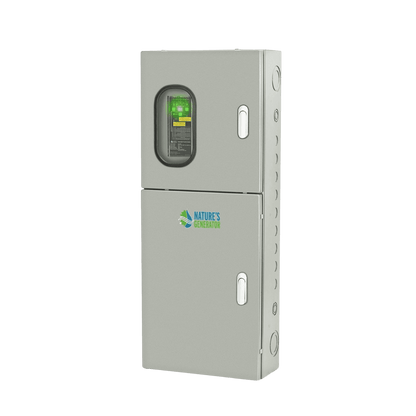

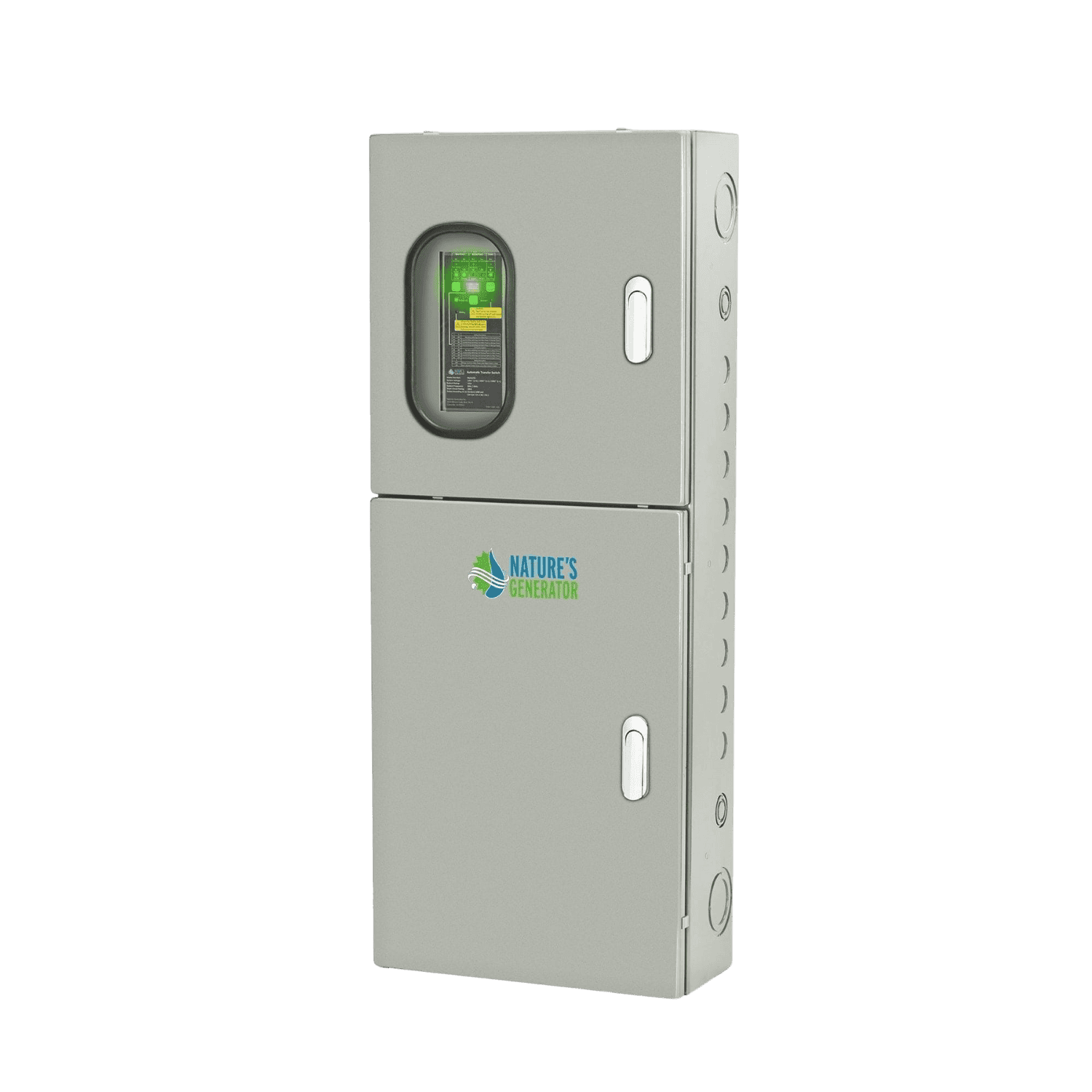

Nature's Generator 125A Automatic Transfer Switch - NGA12532448W

Nature's Generator 125A Automatic Transfer Switch - NGA12532448W

 Seamless Automatic Power Transfer: Automatically detects utility outages and switches to backup power instantly—no manual action required for continuous, reliable operation.
• High-Capacity & Broad Compatibility(125A Bus Bar): Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports 120V, 120/240V, and 120/208V systems and is fully compatible with AFCI and GFCI breakers.
• Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down.
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.

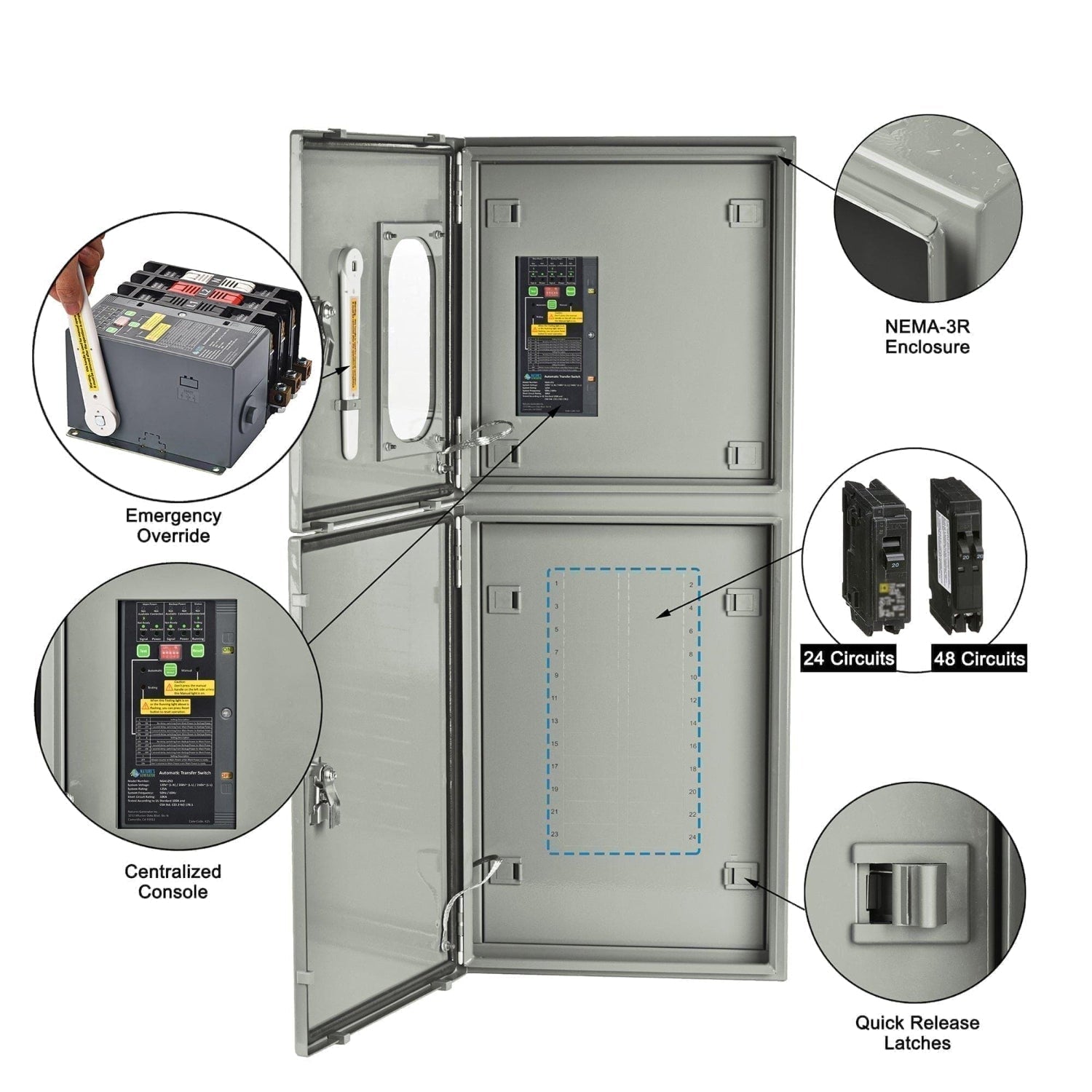

• Extensive Circuit Coverage: Rated at 125A with 24 circuit spaces, expandable up to 48 circuits using tandem breakers to accommodate expanding power needs.

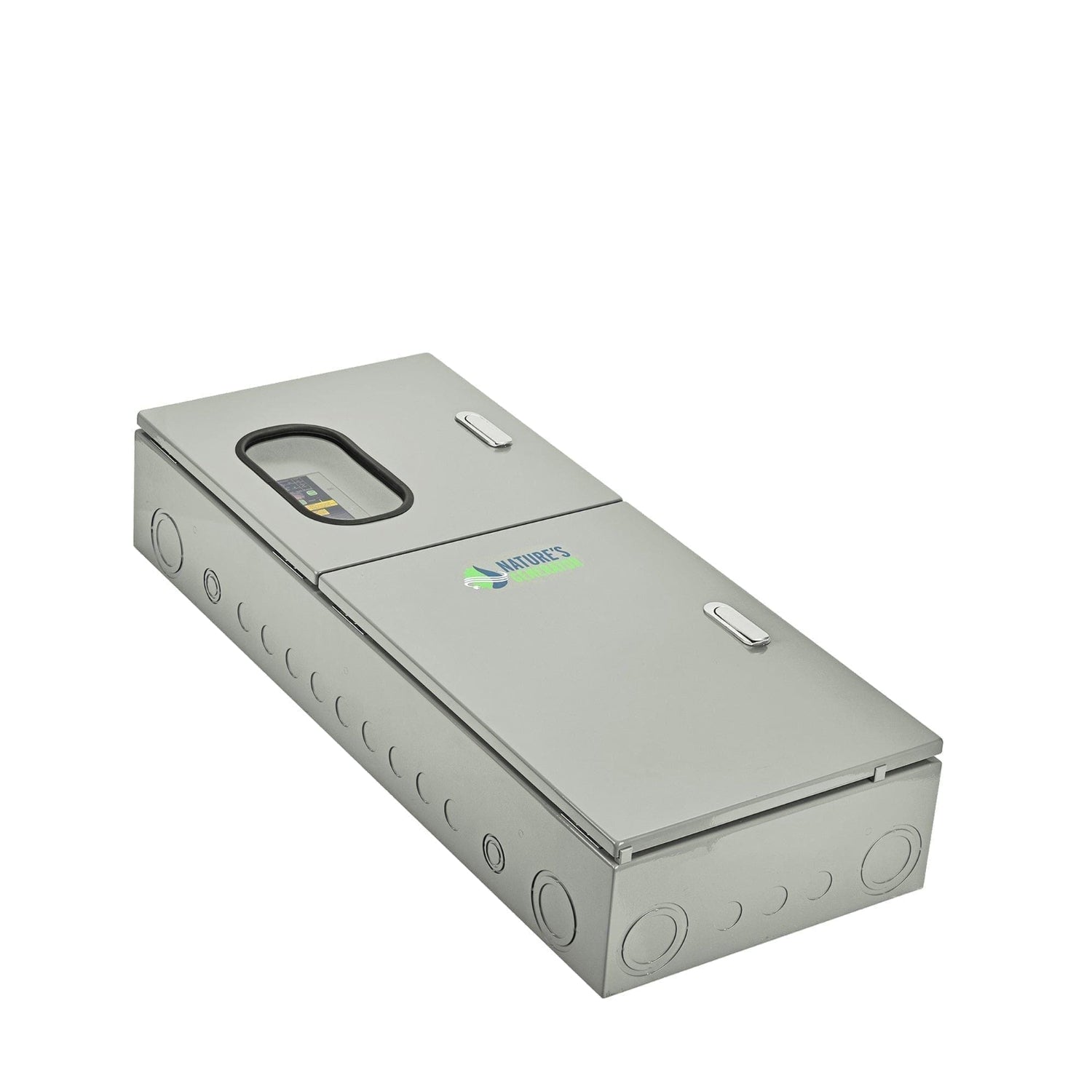

• Rugged, Weather-Resistant Enclosure: Built with a NEMA 3R-rated enclosure to protect against rain, dust, and harsh weather, suitable for both indoor and outdoor installations.

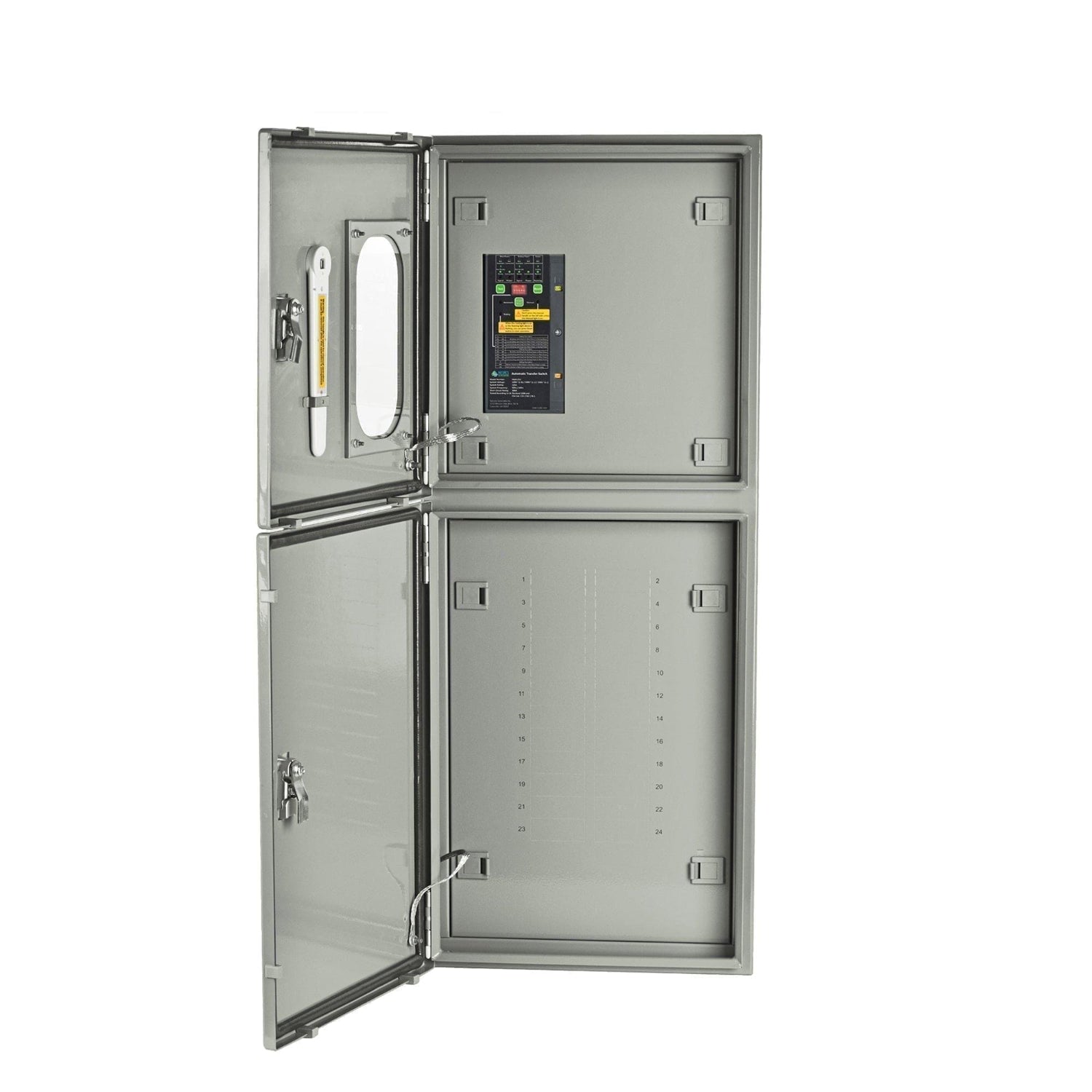

• Advanced Control & Manual Override: Features a centralized control console for managing settings, testing system functionality, and manually overriding power sources for maintenance or user preference.

What our Experts Think


Q&A

Q: What is the Nature’s Generator 125A Automatic Transfer Switch (NGA12532448W)?
A: A heavy-duty whole-home automatic transfer switch designed to safely switch between utility power and backup power sources like solar generators, battery systems, or compatible portable generators, rated for 125 amps and up to 24 circuits (expandable to 48).

Q: What does it do?
A: It automatically detects a power outage and transfers selected home circuits to backup power, then restores grid power when it returns—ensuring seamless, hands-free switching.

Q: How many circuits can it support?
A: It supports 24 built-in circuits and can be expanded up to 48 circuits using tandem breakers for larger homes or load distribution needs.

Q: Is it compatible with solar generators?

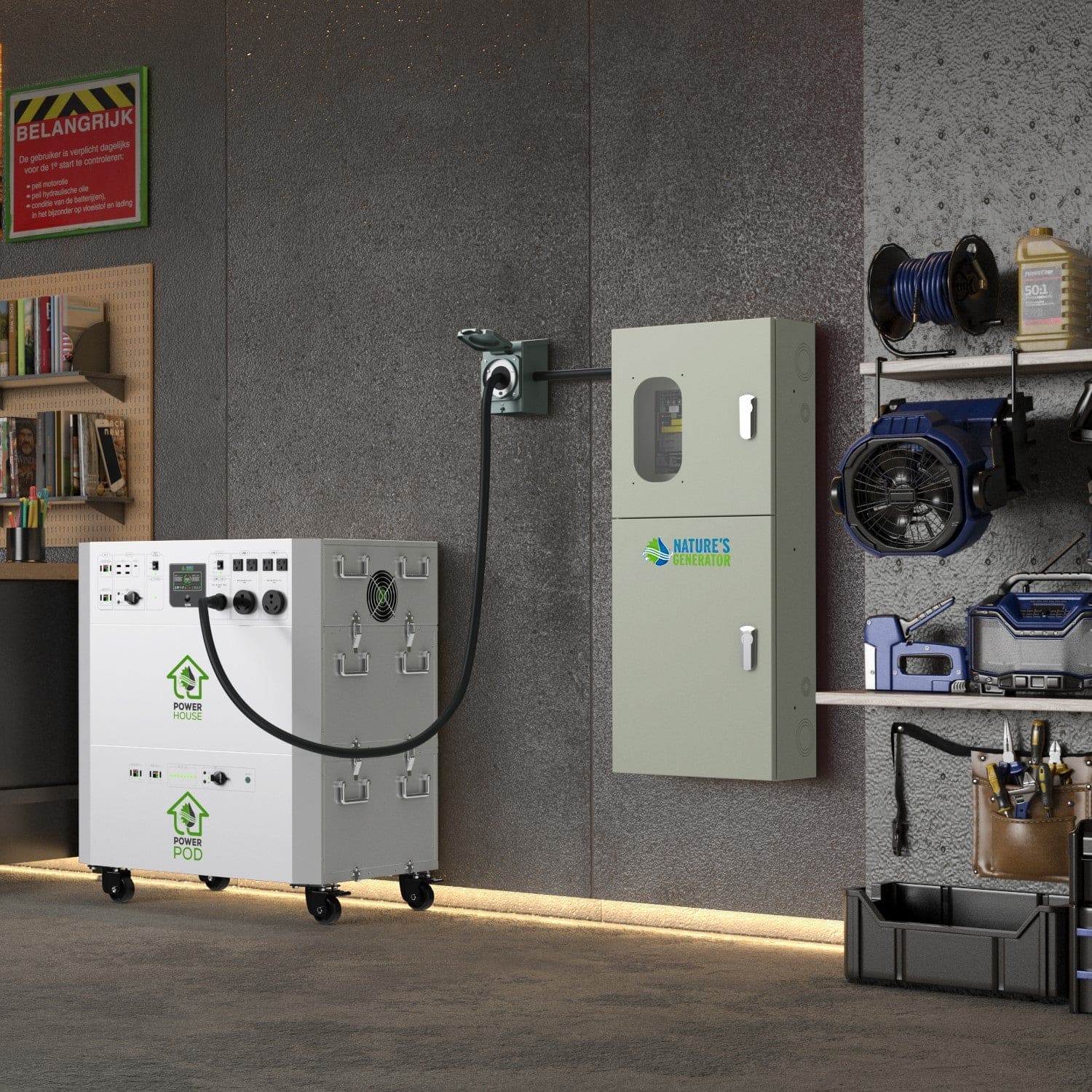

A: Yes. It is designed to work with most solar generators, battery backup systems, grid-tie inverters, and compatible portable generators within voltage and load limits.

Q: What voltage systems does it support?
A: It supports 120V, 120/240V, and 208V systems, making it suitable for residential whole-home backup configurations.

Q: Is it weather resistant?
A: Yes. It features a NEMA 3R-rated enclosure, suitable for indoor or outdoor installation with protection against rain and dust.

Q: Does it allow manual control?
A: Yes. It includes a manual override and centralized control console for testing, maintenance, and user control when needed.

Q: Why choose this ATS?
A: It provides a high-capacity, code-compliant, and scalable solution for whole-home backup power with automatic switching and flexible generator compatibility.


Maintenance Tips

• Test the automatic transfer function regularly to confirm smooth switching between grid and backup power.
• Keep the enclosure (NEMA 3R) clean, dry, and sealed to prevent dust, moisture, and insect intrusion.
• Inspect all breakers, bus bars, and terminal connections for tightness and signs of overheating or corrosion.
• Exercise the transfer switch periodically (every 1–3 months) using manual/auto modes to keep relays and contacts operating smoothly.
• Verify breaker settings and circuit labeling after any electrical changes or load updates.
• Ensure proper torque on all connections during scheduled electrician inspections to maintain safe high-current performance (125A).
• Check inlet wiring and backup generator connections for wear, insulation damage, or loose fittings before outages.
• Avoid overloading circuits beyond rated limits (up to 125A total system capacity, breaker limits apply per circuit).
• Keep ventilation paths clear inside the panel area to reduce heat buildup during heavy load operation.
• Schedule professional inspection annually to ensure UL1008-rated safety performance remains compliant.
