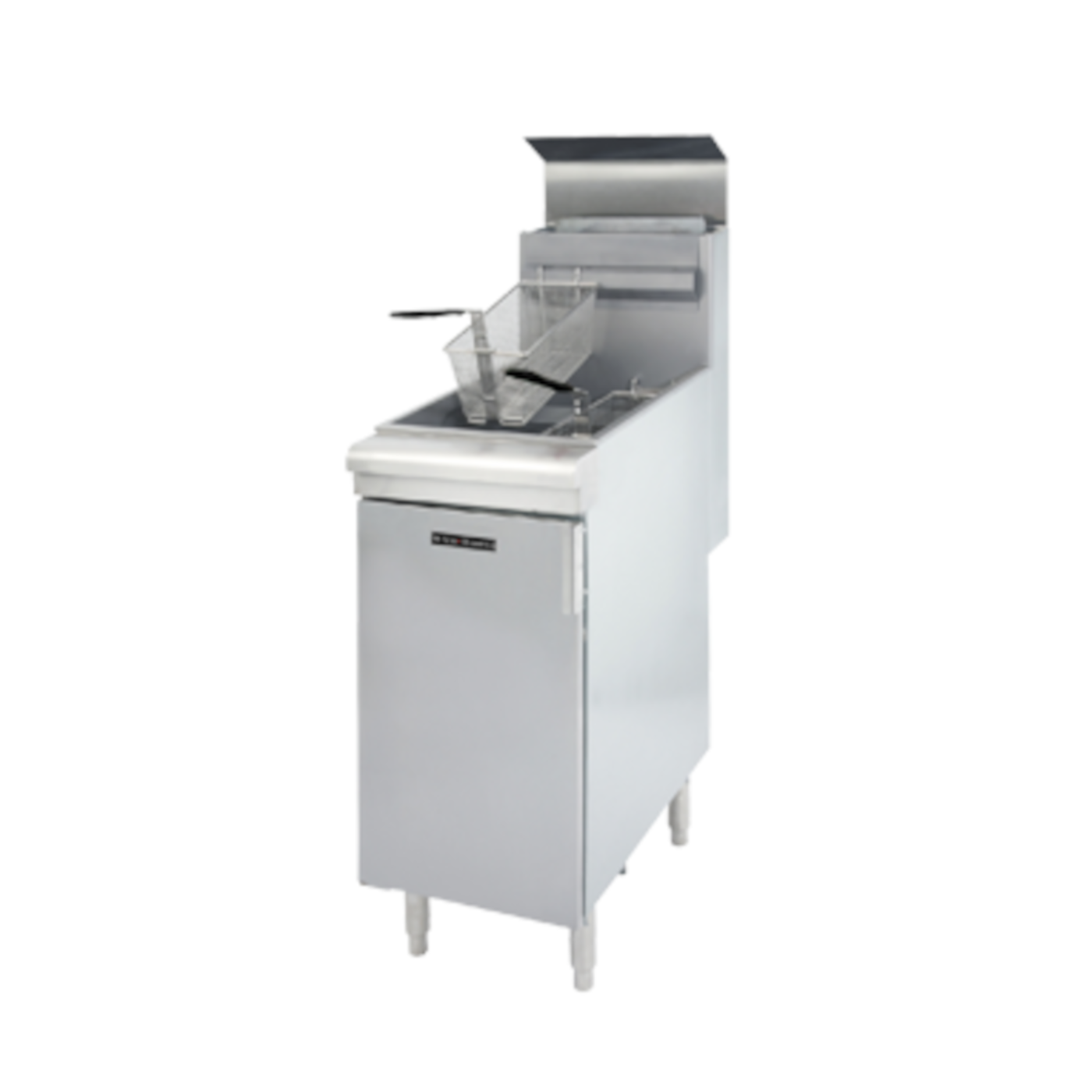

Adcraft BDGF-120/NG Black Diamond 120K Gas Deep Fryer NG - ACBDGF120NG
120,000 BTU floor standing gas deep fryer is constructed of a 16 gauge stainless steel tank and has a thermostat range of 200° F (93°C) to 400°F (204°C). Long lasting stainless steel baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency. A standing pilot light design provides a ready flame when heat is required and an automatic shut off function when the fryer temperature exceeds 450°F (232°C). This fryer comes complete with two nickel plated oblong wire mesh baskets, one nickel plated tube rack, drain extension, built-in heat deflector and 6" adjustable legs. Black Diamond fryers include Robert Shaw components that are made in the USA. 45-50 lb oil capacity. Set up for use with Natural Gas (NG). ETL and ETL Sanitation Listed. 1 year warranty on parts and labor and 5 year warranty on stainless steel tank.
Features
- Welded 16 gauge stainless steel tank with a super smooth machine finish ensures easy cleaning
- Long lasting baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency
- Standing pilot light design provides a ready flame when heat is required
- Cabinet is constructed with a stainless steel front and door with galvanized sides and back
- Thermostat maintains temperature between 200° (93°C) and 400°F (204°C)
- Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator and automatic main valve
- Gas control valve prevents gas flow to the main burner until pilot is established and shuts off gas flow automatically if the pilot flame goes out
- Temperature limit automatically shuts off all gas flow if the fryer temperature exceeds 450°F (232°C)
- Includes Robert Shaw components that are made in the USA
- Standing pilot and thermostat maintain temperature automatically at the selected temperature (between 200°F (93°C) and 400°F (204°C))
- Front 1-1/4” drain for quick draining
- Two nickel plated oblong wire mesh baskets
- One nickel plated tube rack
- One drain extension
- Built-in heat deflector
- 6” adjustable legs
Specifications
- Model: BDGF-120/NG
- Total BTU: 120,000 BTU
- Shipping Dimensions (in): 15-1/2"W x 30-1/4"D x 53-1/2"H
- Net Weight (lbs): 163 lbs
- Gross Weight (lbs): 180 lbs
- Oil Capacity: 45-50 lbs
What Our Experts Think
-
Even heat distribution ensures consistent frying results
-
Stainless steel baffles enhance energy efficiency and longevity
-
Safety features like automatic shut-off prevent overheating
-
Complete with baskets and rack for versatile frying
Q&A
-
Q: What is the temperature range?
A: 200°F–400°F (93°C–204°C)
-
Q: Does it include fry baskets?
A: Yes, two nickel-plated oblong baskets and one tube rack
-
Q: Is it suitable for commercial kitchens?
A: Yes, with standing pilot and automatic shut-off features
Maintenance Tips
-
Drain and filter oil regularly
-
Clean tank, baffles, and baskets after each use
-
Wipe stainless steel surfaces with mild detergent
-
Inspect baffles and safety components periodically
-
Check gas connections before operation
