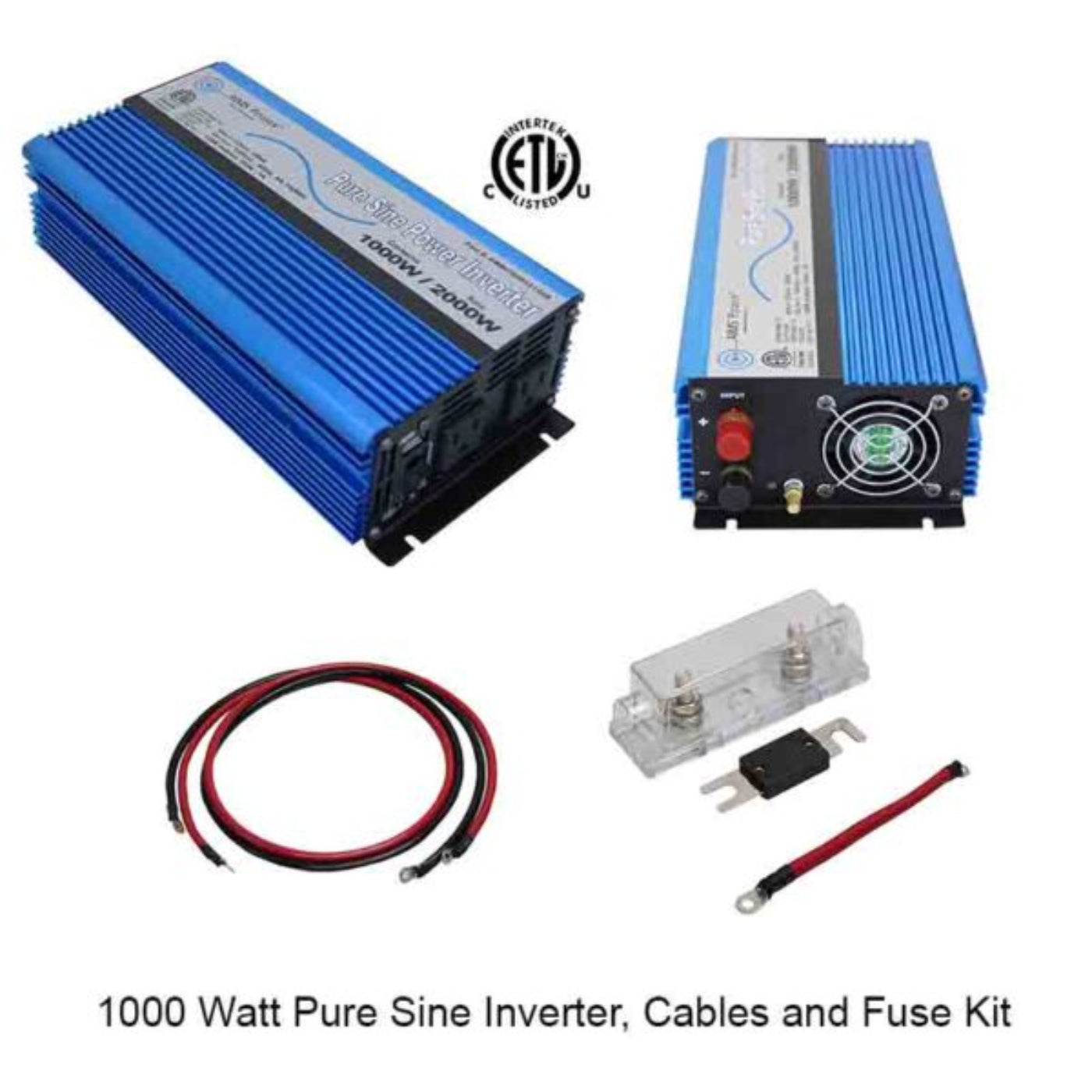

Aims Power 1000 Watt Pure Sine Power Inverter Kit - KITPWRI100012S
A convenient kit, bundled with all the products you need for installation. Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it’s helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement. Advantages of a pure sine inverter: -Equipment runs more efficiently -Motors run cooler -Cleaner power -Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment
Features
- 1000W continuous power
- Pure sine wave
- USB Port
- Dual AC receptacles
- On/off switch
- Over temperature indicator
- Overload protection
- Low battery voltage warning/shutdown
- High input voltage protection with automatic shutdown
- Over load indicator
- Short circuit protection
- Thermally controlled cooling fan
- AC output short circuit protection
- Instruction manual
- Free 2 year tech support
Specifications
- Continuous output power: 1000 Watts
- Surge power capability (peak power): 2000 Watts
- ETL Listed to UL 458, CSA 22.2 No 107.1
- DC input / operating voltage: 10 to 15 Volts
- Output voltage: 120 Volts AC +/- 10%
- Output wave form: pure sine wave
- Output frequency: 60 Hz
- Battery low voltage alarm: 10.6 +/- 0.5 Volts
- Battery low voltage shutdown: 10.0 +/- 0.5 Volts
- Low battery voltage warning/shutdown
- No load power consumption: < .4 dc amps
- DC amps – 83 · AC amps – 8
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: 32 degrees F
- Full load maximum operating temperature: 104 degrees F
- AC Output Socket Type: dual Type 2 -3 prong
- USB Output: 5Vdc, max 1A
- High input voltage protection: 15V
- Low input voltage shutdown: 10V
- Internal blade fuse protection
- Unit Weight: 5.3 lbs.
- Unit Size L x W x H: 11.53 x 5.51 x 2.91 inches
- Shipping Weight: 7 lbs.
- Shipping L x W x H: 18 x 12 x 6 inches
What our Experts Think
- The AIMS Power KITPWRI100012S is an excellent entry-level pure sine wave inverter kit for RVs, boats, cabins, solar systems, and backup power applications.
-
Delivers 1,000 watts of continuous power with clean pure sine wave output, making it safe for sensitive electronics and modern appliances.
- Ideal for powering laptops, TVs, networking equipment, CPAP machines, small kitchen appliances, battery chargers, and other sensitive devices.
- Pure sine wave technology helps ensure smoother operation, improved efficiency, and reduced electrical noise compared to modified sine wave inverters.
- Complete kit design simplifies installation by providing the essential components needed to get up and running quickly.
- Compact footprint makes it easy to install in tight spaces such as RV compartments, utility vehicles, and marine applications.
- Built-in protection systems help guard against overloads, short circuits, low voltage, high voltage, and overheating.
- A strong choice for users seeking reliable off-grid power without the size, cost, or battery demands of larger inverter systems.
- Well-suited for solar energy storage systems where clean, utility-grade AC power is important.
- Offers an excellent balance of affordability, performance, and equipment protection
Q&A
Q: What is the AIMS Power KITPWRI100012S Inverter Kit?
A: The AIMS Power KITPWRI100012S is a complete 1000W pure sine wave inverter kit that converts 12V DC battery power into clean 120V AC power for RVs, boats, trucks, cabins, and emergency backup systems.
Q: What comes in the kit?
A: The kit includes a 1000W pure sine wave inverter, remote on/off switch, 100A fuse kit, and 11-foot 8 AWG battery cables for convenient installation.
Q: How much power can it deliver?
A: It provides 1000 watts of continuous power and 2000 watts of surge power, making it suitable for electronics, small appliances, tools, and mobile power applications.
Q: Why choose a pure sine wave inverter?
A: Pure sine wave output delivers utility-grade power that is ideal for sensitive electronics, laptops, TVs, medical equipment, battery chargers, and other devices requiring clean, stable electricity.
Q: What features does it include?
A: Features include dual AC outlets, a USB charging port, thermally controlled cooling fan, remote operation capability, and high-efficiency power conversion.
Q: What safety protections are built in?
A: The inverter includes overload, short-circuit, over-temperature, low-voltage, and high-voltage protection with automatic shutdown for reliable operation.
Q: What makes this inverter kit a good choice?
A: Its pure sine wave output, complete installation package, compact design, ETL certification, and 2-year warranty make it a dependable power solution for off-grid and mobile applications.
Maintenance Tips
-
Keep the inverter clean, dry, and well-ventilated to prevent overheating and maximize efficiency.
-
Regularly inspect the included 8 AWG cables, 100A fuse, and battery terminals for corrosion, looseness, or damage.
-
Ensure cooling vents and the thermally controlled fan remain free of dust and obstructions.
- Maintain batteries at proper charge levels to avoid low-voltage shutdowns and reduced performance.
- Periodically check the fuse and replace it immediately if blown or damaged.
-
Avoid exceeding the 1000W continuous power rating to prevent overload protection activation.
- Inspect AC outlets, USB port, and remote switch connections for wear or moisture exposure.
-
Test the inverter periodically, especially before RV, camping, marine, or backup power use.
