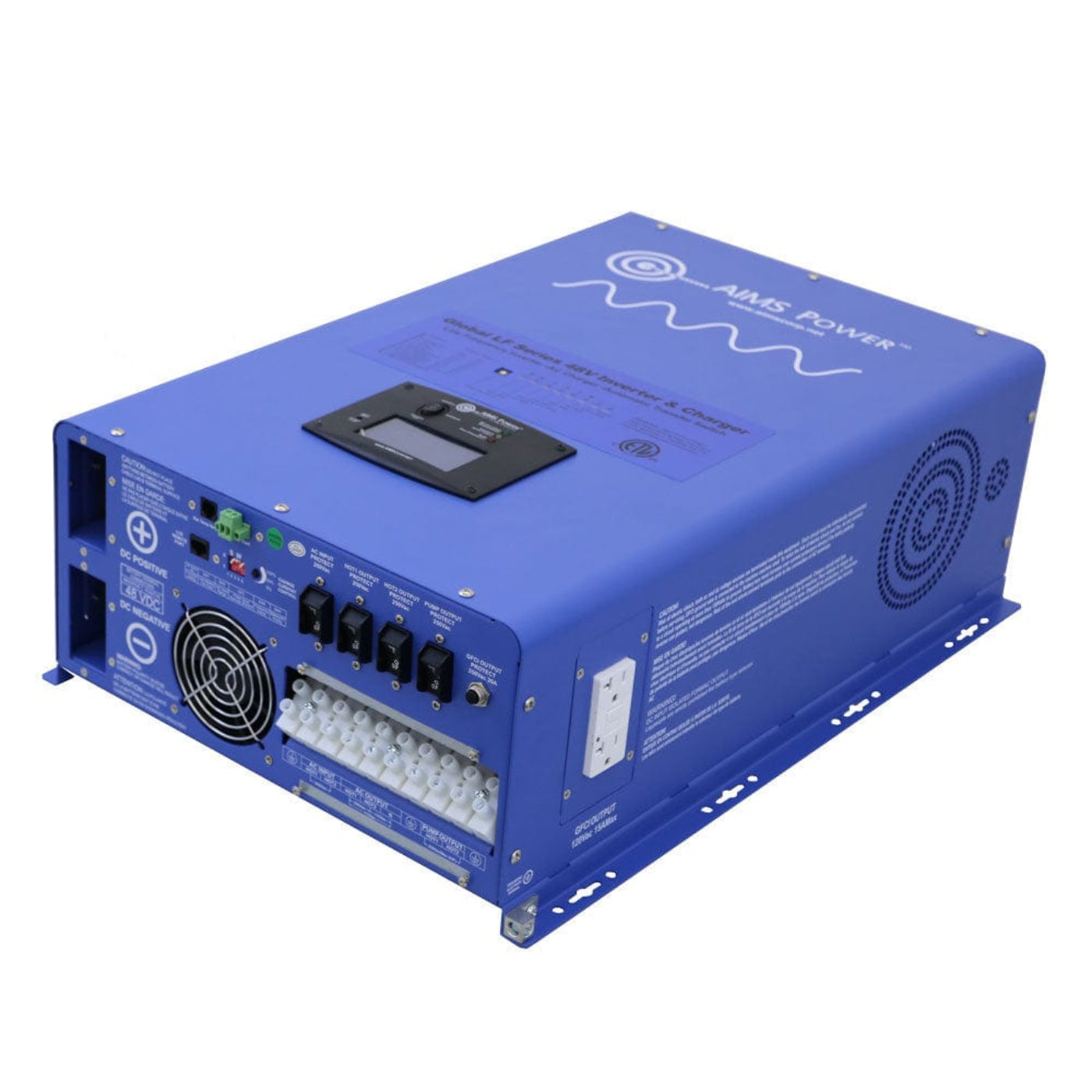

Aims Power 12000 Watt 48V Pure Sine Split Phase Inverter Charger - PICOGLF120W48V240VS

Aims Power 12000 Watt 48V Pure Sine Split Phase Inverter Charger - PICOGLF120W48V240VS

Our line of ETL listed to UL 48 Volt DC split phase 120/240 Volt AC inverter chargers is the power house for back up, off grid systems. Built with a 48 Volt DC input, these inverter chargers perform with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts. This can be an attractive feature for sustainability lovers looking to live as efficiently as possible. The most common use for this inverter is emergency backup power for residences and businesses. You’ll always be prepared for the next power outage with access of up to 12,000 watts (depending on model) of continuous power and 36,000 watts of surge (for up to 20 seconds). We recommend recharging your battery bank with AIMS Power solar panels — a cleaner form of power. One of the most sought-after features this inverter has is the direct-connect terminal block, which allows users to surpass the 8Kw or 12Kw capacity and harness its 300% surge power (up to 24Kw or 36Kw watts for 20 seconds as previously noted). Have a hunting cabin or off-grid vacation home? This AIMS Power inverter charger is perfect for supplying reliable electricity to the entire house. This inverter is also built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans. And it’s protected from humidity or airborne dust and dirt by virtue of its marine-coated (or “conformal-coated”) boards. This inverter provides the reliability needed in any business or residential emergency backup power application. The inverter is a split-phase and will output 110/120 or 220/230/240 Vac, and it can output 50 or 60Hz via the SW4 dipswitch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet! This beast of an inverter can pretty much get any job done imaginable. The development of this new DC-to-AC inverter technology puts this product in high demand among AIMS Power customers. When you purchase a low frequency inverter charger from AIMS Power, you’re getting our top-of-the-line product offering. The unit is repairable, and we stand behind it with a free two-year warranty and tech support. Make a step in the right direction when it comes to preserving this beautiful planet by choosing an inverter powered by renewable energy when building your next electrical system.

Features

• 12000 watt low frequency inverter 110/220Vac Split Phase
• 36000 watt surge for 20 seconds -3x surge capability
• Battery priority selector
• Terminal block
• Marine coated and protected
• Multi stage smart charger 120 Amp charges gel, lead, AGM, and lithium (LiFePO4)
• Remote panel available
• 60hz or 50 hz selectable dip switch
• 10msec typical transfer time
• Selectable 25W power save mode (hibernation)
• 8 battery charger settings
• Automatic transfer switch

Specifications

• Continuous Output Power: 12,000 Watts
• Surge Rating: 36000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• 100-110-120Vac / 220-230-240Vac
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC
• Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)

What our Experts Think

• Whole-Home Power Capability: With 12,000W continuous output and an impressive 36,000W surge capacity, this inverter charger is designed to run large residential, commercial, and off-grid power systems with ease.
• True Split-Phase 120/240V Output: Delivers both 120V and 240V power, making it ideal for homes, workshops, well pumps, HVAC equipment, and other heavy-duty appliances.
• Pure Sine Wave Performance: Produces utility-grade electricity that safely powers sensitive electronics, computers, appliances, and motor-driven equipment.
• Integrated 120A Smart Charger: Features a multi-stage battery charger compatible with AGM, Gel, Lead-Acid, and LiFePO4 battery banks, simplifying off-grid and backup power installations.
• Built for Large 48V Systems: The 48V architecture reduces current draw and improves efficiency, making it an excellent choice for substantial solar and battery storage systems.
• Automatic Transfer Switch Included: Seamlessly switches between utility/generator power and battery power with a fast transfer time for reliable backup operation.
• Industrial-Grade Durability: Marine-coated circuit boards, low-frequency transformer design, intelligent cooling, and heavy-duty construction are engineered for demanding environments.
• Flexible Global Operation: Selectable 50Hz/60Hz output and international voltage support make it suitable for a wide range of residential and commercial applications worldwide.
• Best For: Whole-home backup power, off-grid residences, large solar energy systems, farms, workshops, remote facilities, and businesses requiring dependable high-capacity split-phase power.
• Expert Verdict: One of the strongest options in the AIMS lineup for users needing serious surge capability, true 120/240V split-phase output, and integrated battery charging in a single unit.

Q&A

Maintenance Tips

• Install the inverter charger in a clean, dry, and well-ventilated area to prevent overheating.
• Inspect 48V battery bank connections, AC wiring, and grounding points regularly for corrosion or loose connections.
• Clean cooling fans and ventilation openings periodically to maintain efficient airflow.
• Monitor battery voltage, charging status, and overall battery health to ensure optimal system performance.
• Verify charger settings match your battery type and manufacturer recommendations.
• Tighten electrical connections during routine maintenance to minimize voltage drop and heat buildup.
• Avoid exceeding the inverter’s 12,000W continuous power rating and manage high-startup loads appropriately.
• Protect the unit from moisture, dust accumulation, extreme temperatures, and excessive vibration.
• Disconnect AC and DC power sources before performing inspections or maintenance.
• Test inverter, charger, and automatic transfer functions regularly to ensure dependable backup and off-grid operation.
