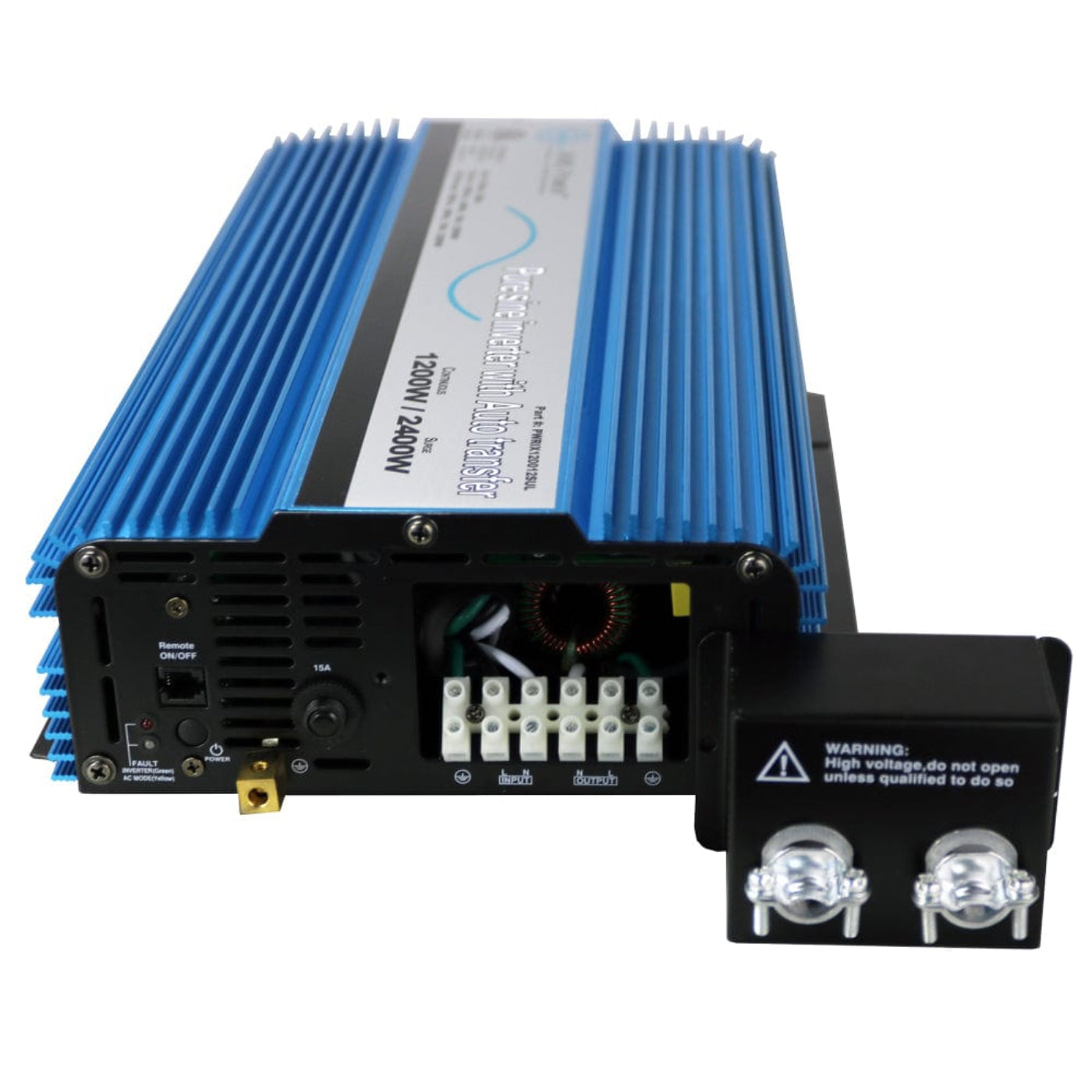

Aims Power 1200W Pure Sine with Transfer Switch - Hardwire UL Listed - PWRIX120012SUL

Aims Power 1200W Pure Sine with Transfer Switch - Hardwire UL Listed - PWRIX120012SUL

1200 Pure Sine Inverter with Transfer Switch - ETL Certified to conform to UL 458 standards. This inverter is ideal for built-in RV refrigerators or other appliances. Easy to install. The inverter will switch between shore power and battery power without any extra wires. Many RV'ers and mobile businesses like to use residential size refrigerators and this is the perfect solution. Smaller microwaves and coffee pots are also common uses for this inverter.

One of the standards of UL 458 is that all AC inverters pass a High Voltage Dielectric Withstand Test, commonly called the Hi-Pot Test. The voltage applied to the control is usually equal to 1,000 volts, plus two times the line voltage rating of the inverter. Therefore, the standard hi-pot voltage for 115 VAC inverter is 1,250 VAC. For 230 VAC or dual voltage inverters, the hi-pot voltage is 1,500 VAC. This Aims power inverter is hi-pot tested before it leaves the factory, with a UL Certified hi-pot tested, set to the voltages shown above.

Features

• Pure sine
• Conforms to UL458
• Hard wire direct connect terminal block
• 1200 watt continuous power
• 2400 watt surge
• Bypass when the inverter is off or on
• Over voltage shutdown
• Under voltage shutdown
• Intelligent cooling fan
• Automatic transfer switch 10 amps
• Conformal coated for marine applications
• Remote switch available
• Less than 20msec typical transfer time


Specifications

• 1200 watts
• 2400 watt surge
• Built in transfer switch 10 amp transfer
• Bypass/throughput = 10 amps. Do not exceed, damage may occur and void warranty.
• DC input voltage 10-16V
• AC input voltage 120VAC +/-10%
• Output voltage 120VAC, 60HZ
• Efficiency 86-90%
• Over voltage shutdown 16VDC +/- .5V
• Under voltage shutdown 10VDC +/- .5V
• Under voltage alarm 10.3VDC +/- .3V
• Over temp protection 150 degrees F +/- 5 degrees F
• Thermal fan
• Pure Sine output
• No load current 1.2A
• Direct connect terminal block
• L x W x H: 17.25 x 9.5 x 3.8
• Unit - 10.2 lbs
• Boxed - 13 lbs

What our Experts Think

• Ideal for RV & Mobile Power Systems: Designed specifically for RVs, vans, boats, and mobile workspaces, with a built-in automatic transfer switch that seamlessly switches between shore power and battery power.
• Clean Pure Sine Wave Performance: Produces utility-grade AC power that safely runs sensitive electronics, residential refrigerators, coffee makers, entertainment systems, and other household appliances.
• Convenient Built-In Transfer Switch: Eliminates the need for additional switching equipment, simplifying installation while providing uninterrupted power during source changes.
• Reliable 1,200W Continuous Output: Delivers 1,200 watts of continuous power with up to 2,400 watts of surge capacity for handling temporary startup demands.

Q&A

Q: What is the AIMS Power PWRIX120012SUL?
A: The AIMS Power PWRIX120012SUL is a 1200-watt pure sine wave inverter with a built-in automatic transfer switch, designed to convert 12V DC battery power into clean 120V AC electricity for RVs, marine systems, mobile businesses, and backup power applications.

Q: How much power can it provide?
A: It delivers 1200 watts of continuous power and 2400 watts of surge capacity, making it suitable for refrigerators, small microwaves, coffee makers, electronics, and other household appliances.

Q: What is the benefit of pure sine wave output?
A: Pure sine wave power safely runs sensitive electronics, appliances, and motors with clean, utility-grade electricity for reliable performance and efficiency.

Q: How does the automatic transfer switch work?
A: The built-in 10-amp transfer switch automatically switches between shore power and battery power in less than 20 milliseconds, helping keep connected equipment running without manual intervention.

Q: Is this inverter UL certified?
A: Yes. It is ETL listed and certified to conform to UL 458 safety standards, providing added confidence for RV, mobile, and off-grid installations.

Q: What installation type does it use?
A: This model features hardwire direct-connect terminal blocks for secure, permanent installation in RVs, boats, cabins, and backup power systems.

Q: Who is this inverter ideal for?
A: It's ideal for RV owners, van conversions, marine applications, off-grid systems, and anyone needing dependable pure sine wave power with automatic backup switching.

Maintenance Tips

• Keep the inverter in a dry, well-ventilated area and ensure cooling vents remain free of dust and debris.
• Inspect battery cables, hardwire connections, and terminal blocks regularly for corrosion, looseness, or damage.
• Verify battery voltage stays within the recommended operating range to prevent low-voltage or over-voltage shutdowns.
• Clean the unit periodically with a dry cloth and avoid exposure to moisture, chemicals, or excessive vibration.
• Check that the cooling fan operates properly and remove any obstructions that could restrict airflow.
• Test the automatic transfer switch function periodically to ensure seamless switching between shore power and battery power.
• Monitor for warning indicators, unusual noises, or overheating and address issues promptly.
