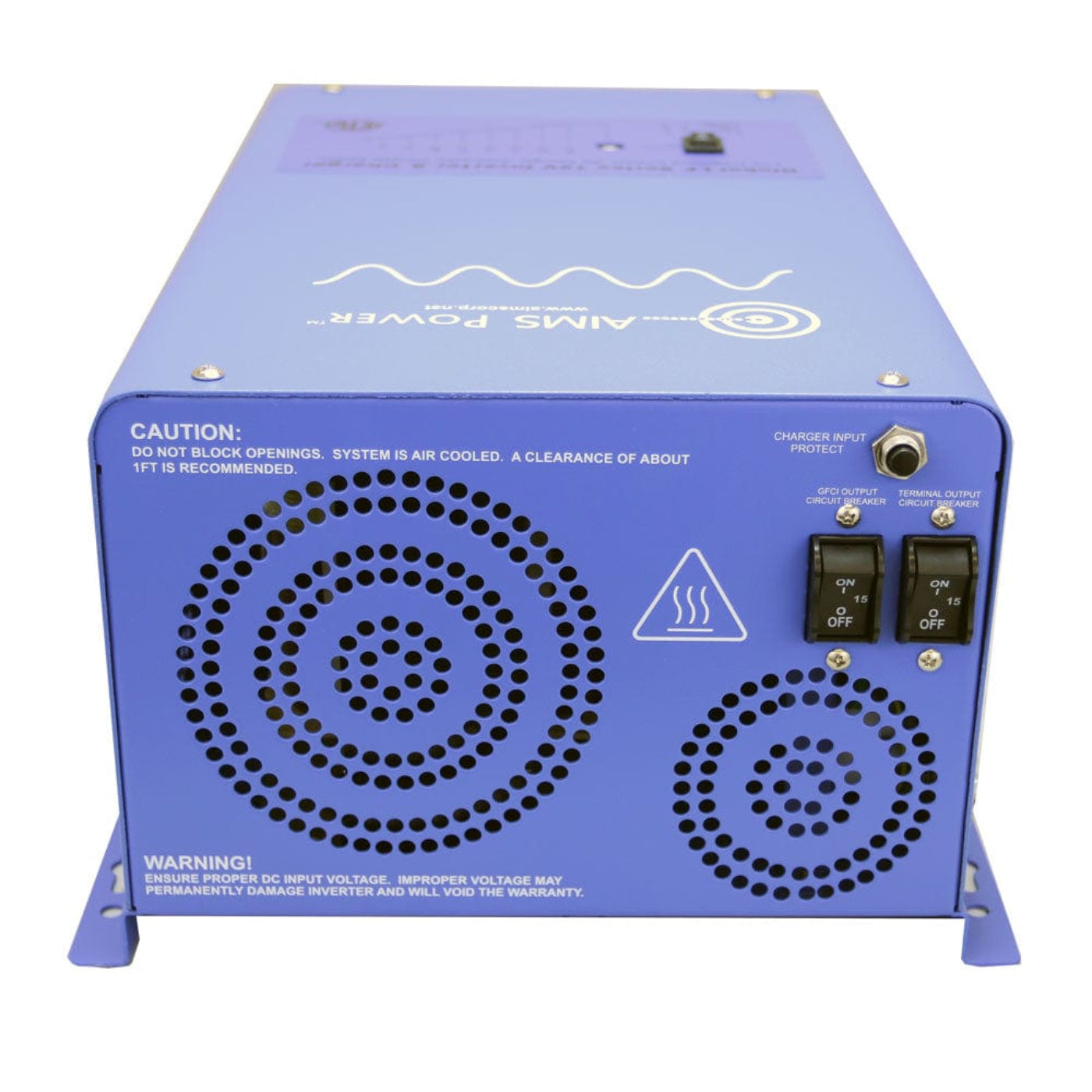

Aims Power 1500 Watt Pure Sine Inverter Charger - ETL Listed - PICOGLF15W12V120V

Aims Power 1500 Watt Pure Sine Inverter Charger - ETL Listed - PICOGLF15W12V120V

AIMS Power 1500 Watt Pure Sine Low Frequency Inverter with built-in battery charger and transfer switch. This inverter charger is perfect for small-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current.

This inverter is also great in a smaller RV or boat. If 1500 watts is not enough power, check out our full line of low frequency inverter chargers available in 12, 24 & 48 volt versions. This AIMS power inverter charger is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop. It will even accept power from an extension cord plugged into your wall outlet at home.

The 1500 watt inverter charger is capable of a 4500 watt surge for 20 seconds and can run at 1500 watts continuously. As an additional feature, this inverter is capable of being used worldwide by virtue of its auto frequency detection capabilities. It will run in any country that uses 120vac output. It works with type-A plugs or a direct 3-wire terminal connection. This inverter comes with a dual-plug GFCI outlet with a reset button. This inverter will never completely drain your batteries as it's low-voltage shut-down keeps the voltage at either 10 volts or 10.5 volts depending on your selection. With the battery priority mode, you can set your inverter to run directly off of a battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a power saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will “sleep” and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it.

An optional wired remote can be added for fast and easy operation if your inverter charger is mounted in a location that is inconvenient to get at. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.

Features

• Listed to UL 458 Standards and CSA 22.2 No 107.1
• 1500 watt low frequency inverter
• 4500 watt surge for 20 seconds -3x surge capability
• Battery priority selector
• AC direct connect terminal block
• GFCI - 20amps
• Marine coated and protected
• Multi stage smart charger 50 Amp for gel, AGM, lead and lithium LiFePO4
• Remote panel available
• Auto gen start
• Auto frequency
• 10msec typical transfer time
• 7 battery type settings for charger
• Selectable 25W power save mode (hibernation)
• Automatic transfer switch

Specifications

• Listed to UL 458 Standards
• Continuous Output Power: 1500 Watts
• Surge Rating: 4500 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Output Voltage: 100-110-120Vac
• Nominal Efficiency: >92% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Bypass Terminal Breaker - 20 amps
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC

Input Specifications

• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low Battery Trip: 10.0Vdc-10.5Vdc
• High Voltage Alarm: 16.0Vdc
• Low /battery Voltage Restart: 13.0Vdc
• Idle Consumption: 13.5 watts
• Charger Breaker - 20 amps
• Power Saver Mode Idle Consumption: 8 watts

Charger Specifications

• Output Voltage: Depends on battery Type
• Charger Rate: 50A

Dimensions

• Unit Weight: 38 lbs.
• Unit Size L x W x H: 15.35 x 11 x 7 inches
• Shipping Weight: 46 lbs.
• Shipping L x W x H: 20.5 X 13.8 X 12.2 inches

What our Experts Think

• Reliable 1500W pure sine inverter/charger delivers clean 120V AC power with integrated battery charging in a single compact unit.
• ETL listed certification adds confidence in safety compliance and suitability for residential, RV, and off-grid applications.
• Pure sine wave output ensures stable operation for sensitive electronics, medical devices, and everyday appliances.
• Built-in multi-stage charger provides efficient and controlled battery charging when connected to shore power or generator input.
• Automatic transfer switch functionality enables seamless switching between grid/generator and battery power without interruption.
• 12V DC compatibility makes it a strong fit for RVs, boats, vans, and small solar energy systems.
• High surge capability supports short bursts of demand from appliances like refrigerators, pumps, and small tools.
• All-in-one power management solution designed for users needing reliable backup power, mobility, and simplified system integration.


Q&A

Q: What is the AIMS Power PICOGLF15W12V120V used for?
A: Aims Power 1500 Watt Pure Sine Inverter Charger - ETL Listed - PICOGLF15W12V120V is an inverter, battery charger, and automatic transfer switch designed for RVs, boats, cabins, and backup power systems.

Q: What does “ETL Listed” mean?
A: ETL Listing means the unit has been independently tested for safety standards, ensuring compliance with recognized electrical safety requirements for North American use.

Q: What power output does it provide?
A: It delivers 1500W continuous power with surge capability for short-term startup loads like small motors and appliances.

Q: What type of power does it produce?
A: It produces pure sine wave output, delivering clean, utility-grade power suitable for sensitive electronics and household devices.

Q: Does it include a battery charger?
A: Yes. It includes a multi-stage charger that can recharge batteries when connected to shore power or a generator.

Q: What is the benefit of an inverter charger?
A: It combines inverter, charger, and transfer switch functions in one unit, allowing automatic switching between battery and external AC power sources.

Q: What systems is it compatible with?
A: It is designed for 12V battery systems commonly used in RVs, marine applications, and small off-grid setups.

Q: What devices can it run?
A: It can power laptops, TVs, lighting, fans, routers, and small appliances within its 1500W capacity.

Q: Why choose this ETL-listed model?
A: The ETL certification adds an extra layer of verified safety compliance, making it suitable for installations requiring certified electrical equipment.


Maintenance Tips

• Install in a dry, cool, and well-ventilated area to manage heat from both inverter and 50A charger during continuous operation.
• Keep air vents, fans, and heat sinks clean and dust-free to prevent overheating and charging faults.
• Regularly inspect 12V battery connections, DC cables, and fuses for tightness, corrosion, or heat damage.
• Use correctly sized heavy-gauge wiring to handle high DC current during 1500W loads and charging cycles.
• Monitor system indicators (load %, battery voltage, charging status, fault LEDs) to detect early issues.
• Ensure proper battery settings (AGM, lead-acid, lithium profiles) for correct multi-stage charging performance.
• Avoid exceeding 1500W continuous / 4500W surge capacity to protect internal MOSFET and transformer components.
• Periodically test the automatic transfer switch (≈10 ms transfer time) for reliable backup power switching.
• Check AC input (generator/shore power) quality; unstable input can affect charging behavior and efficiency.
• Re-torque AC and DC terminals during routine maintenance to prevent thermal loosening.
• Avoid moisture, vibration, and direct sunlight exposure, especially in RV or off-grid installations.
• Perform preventive maintenance every 3–6 months: fan cleaning, load testing, and connection inspection.
• Do not bypass protection systems (over-temp, overload, low/high voltage) as they safeguard internal electronics.
