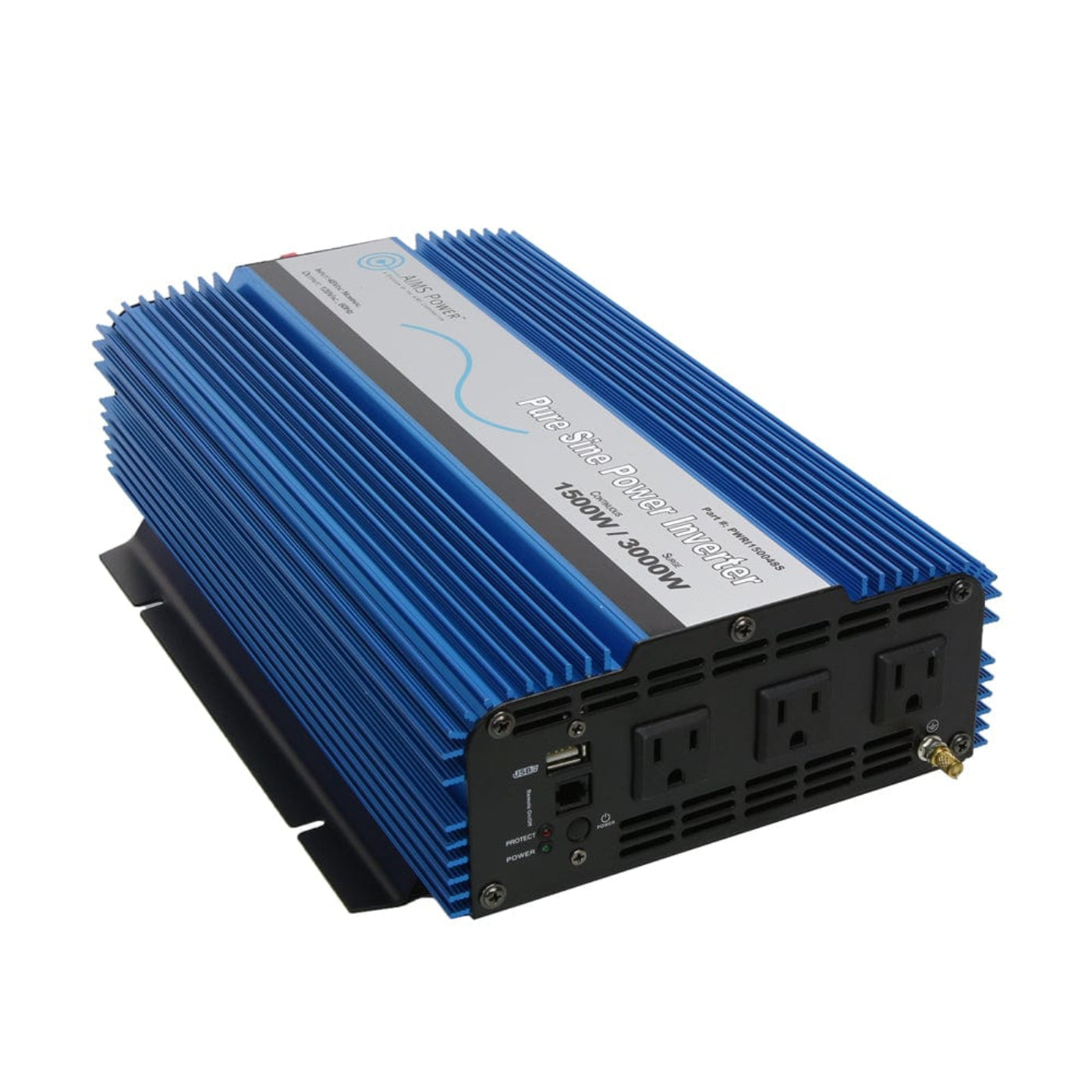

Aims Power 1500 Watt 24 Volt Pure Sine Inverter - PWRI150024S

Aims Power 1500 Watt 24 Volt Pure Sine Inverter - PWRI150024S

Reliable 1500W 48V Pure Sine Inverter. Clean power with triple AC outlets, USB port. Safety features include overload, temp, low/high voltage protection

Features

• 1500W continuous power
• 24 volt DC Input
• Pure sine wave
• USB Port
• Triple ac receptacles
• On/off switch
• Over temperature indicator
• Overload protection
• Low battery voltage warning/shutdown
• High input voltage protection with automatic shutdown
• Over load indicator
• Short circuit protection
• Dual cooling fans thermally controlled
• ac output short circuit protection
• Instruction manual
• Free 1 year tech support


Specifications

• Continuous output power  1500 watts
• Surge power 3000 watts
• Input voltage range 19-32v
• Output voltage 120v
• DC input 24v
• Output wave form Pure sine wave 60Hz (THD ≤3%)\
• Efficiency 90%
• USB Output 5VDC, Max, 1A
• Input over-voltage shutdown 32 ± 1VDC
• Input under-voltage shutdown 19 ± 1VDC
• Input under-voltage alarm 19.6 ± 1VDC
• Over temperature protection 149 ± 8°F
• Over-load protection 1700W ± 200W
• No Load Consumption 0.7A
• Working Temperature 32-104°F
• Storage temperature 14-113°F
• Intelligent cooling (the cooling fan will start running when the case temperature reaches 104°F)
• Dimension (L x W x H) 13.78 x 9.29 x 3.74 in.
• Weight 9.9 lbs
• Remote port for optional remote

What our Experts Think

• Reliable 1500W continuous output at 24V DC delivers stable, efficient power for RVs, cabins, solar systems, and mobile off-grid setups.
• Pure sine wave technology ensures clean, utility-grade electricity that safely runs sensitive electronics like laptops, CPAP machines, and audio equipment.
• 24V system advantage reduces current draw on wiring, improving efficiency and making it ideal for mid-sized battery banks and solar installations.
• 3000W surge capacity provides extra headroom for starting appliances with high inrush loads such as refrigerators, pumps, and small power tools.
• Compact, efficient design (~90% efficiency) helps maximize battery runtime while maintaining consistent performance under load.
• Built-in USB charging port and remote control capability add convenience for everyday use in vehicles, boats, and backup systems.
• Comprehensive protection suite (low voltage, overload, over-temperature, and short-circuit protection) helps safeguard both the inverter and connected devices.
• Strong fit for mobile and emergency power applications where dependable 120V AC power is needed without grid access.


Q&A

Q: What is the AIMS Power PWRI150024S used for?
A: This 1500W pure sine wave inverter converts 24V DC battery power into clean 120V AC electricity, ideal for RVs, off-grid solar systems, boats, trucks, and emergency backup power.

Q: What can a 1500-watt inverter run?
A: It can power laptops, TVs, small appliances, lighting systems, CPAP machines, routers, and power tool chargers within its 1500W continuous rating.

Q: What is the surge capacity of this inverter?
A: It delivers 1500W continuous power with up to 3000W surge capacity to handle motor startup loads like pumps and compressors.

Q: Why choose a pure sine wave inverter?
A: Pure sine wave output provides utility-quality power that ensures safe operation of sensitive electronics and improved efficiency compared to modified sine wave inverters.

Q: Is this inverter compatible with solar systems?
A: Yes. It is commonly used in 24V battery-based solar and off-grid systems for stable AC power conversion.

Q: Does it include USB and multiple outlets?
A: Yes. It includes a built-in USB port and multiple 120V AC outlets for charging and powering several devices at once.

Q: What safety features are included?
A: It includes overload, short circuit, over-voltage, under-voltage, and over-temperature protection with thermally controlled cooling fans for reliable operation.

Q: Can it be used for mobile or remote applications?
A: Yes. Its compact design and 24V efficiency make it well-suited for mobile workstations, field setups, and remote power needs.

Maintenance Tips

• Install in a dry, cool, and well-ventilated location to prevent overheating and ensure stable performance.
• Regularly inspect 24V battery connections, terminals, and fuses; tighten and clean any corrosion.
• Keep cooling fans and air vents free of dust to maintain proper thermal regulation.
• Monitor input voltage (19–32V range) to avoid low-voltage shutdown or battery strain.
• Do not exceed 1500W continuous / 3000W surge load capacity to protect internal circuitry.
• Check wiring for heat damage, looseness, or wear—especially in RV or off-grid setups.
• Ensure proper cable sizing for 24V systems to reduce voltage drop under heavy load.
• Periodically test AC outlets, USB port, and remote port (if used) for correct operation.
• Avoid exposure to moisture, direct sunlight, vibration, and extreme temperatures.
• Run occasional load tests to confirm stable pure sine output and early fault detection.
• Follow manufacturer safety guidelines and shutdown thresholds for long-term reliability.
