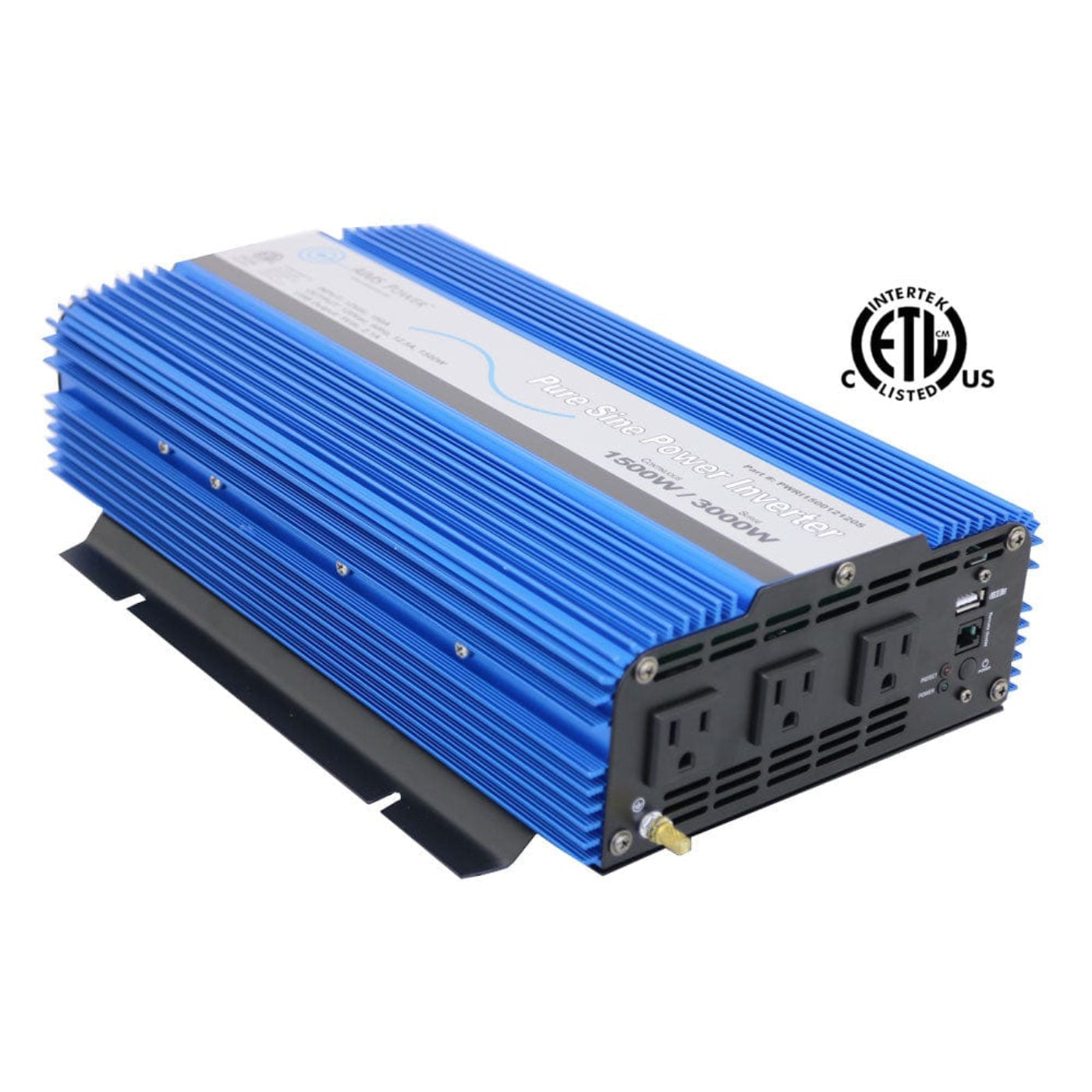

Aims Power 1500 Watt Pure Sine Power Inverter w/ USB & Remote Port - PWRI150012120S

Aims Power 1500 Watt Pure Sine Power Inverter w/ USB & Remote Port - PWRI150012120S

Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it’s helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:
-Equipment runs more efficiently
-Motors run cooler
-Cleaner power
-Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment

To select the right inverter, first determine what devices you would need to run in the event of a power outage. Then, select the appropriate inverter that can carry the combined wattage requirements of these devices. Please see our tech support section for start up averages for all devices. At AIMS, you’ll discover our inverters range from 75 watts up to 50,000 watts – more than enough to power nearly every application imaginable.

Features

• 15 volt DC Input
• Pure sine wave
• USB Port
• Triple AC receptacles
• On/off switch
• Over temperature indicator
• Overload protection
• Low battery voltage warning/shutdown
• High input voltage protection with automatic shutdown
• Over load indicator
• Short circuit protection
• Dual cooling fans thermally controlled
• AC output short circuit protection
• ETL listed to UL 458 Standards
• Instruction manual
• Free 2 year tech support


Specifications

• Continuous output power  1500 watts
• Surge power 3000 watts
• Input voltage range 9.5-16v
• Output voltage 120v
• DC input 12v
• Output wave form Pure sine wave 60Hz (THD ≤3%)\
• Efficiency 90%
• USB Output 5VDC, Max, 1A
• Input over-voltage shutdown 16 ± 0.5VDC
• Input under-voltage shutdown 9.5 ± 0.5VDC
• Input under-voltage alarm 9.8 ± 0.3VDC
• Over temperature protection 149 ± 8°F
• Over-load protection 1700W ± 200W
• No Load Consumption 0.8A
• Working Temperature 32-104°F
• Storage temperature 14-113°F
• Intelligent cooling (the cooling fan will start running when the case temperature reaches 104°F)
• Dimension (L x W x H) 15.875 x 8.375 x 3.875 in.
• Unit Weight 10 lbs
• Shipping weight 12 lbs
• Remote port for optional remote

What our Experts Think

• Clean pure sine wave output delivers utility-grade power that is safe for sensitive electronics, laptops, TVs, CPAP machines, and battery chargers.
• 1500 watts of continuous power with 3000-watt surge capacity provides the flexibility to run a wide range of appliances and equipment.
• Ideal for RVs, trucks, boats, vans, and emergency backup power where dependable off-grid electricity is essential.
• Built-in USB port and remote port add convenience for charging devices and integrating remote inverter control.
• ETL listed to UL 458 standards for added confidence in safety and performance.
• Advanced protection features help guard against overloads, overheating, short circuits, and low battery voltage conditions.
• High-efficiency design with intelligent cooling supports reliable operation while helping maximize battery power.
• An excellent choice for mobile and backup power users seeking dependable, clean energy in a compact, easy-to-install inverter.


Q&A

Q: What is the AIMS Power PWRI150012120S inverter used for?
A: This 1500W pure sine wave inverter converts 12V DC battery power into clean 120V AC electricity, making it ideal for RVs, trucks, boats, off-grid systems, emergency backup power, and mobile workstations.

Q: What can a 1500-watt inverter run?
A: It can power laptops, TVs, small appliances, CPAP machines, power tool chargers, networking equipment, and other sensitive electronics within its 1500W continuous output rating.

Q: What is the surge capacity of this inverter?
A: The PWRI150012120S delivers 1500 watts continuous power and 3000 watts peak surge power to handle startup demands from motors and appliances.

Q: Why choose a pure sine wave inverter?
A: Pure sine wave output provides utility-grade power that helps electronics run safely, efficiently, and with less electrical interference than modified sine wave inverters.

Q: Does this inverter include USB charging?
A: Yes. It features a built-in USB charging port along with three AC outlets for convenient power access.

Q: Can it be operated remotely?
A: Yes. The inverter includes a remote port for connecting an optional remote on/off switch.

Q: What safety features are included?
A: It includes overload, short-circuit, over-temperature, low-voltage, and high-voltage protection, plus thermally controlled cooling fans for reliable operation.

Q: Is this inverter suitable for RV and marine applications?
A: Yes. Its compact design, pure sine output, and 12V battery compatibility make it an excellent choice for RVs, vans, boats, and mobile power systems.


Maintenance Tips

• Keep the inverter in a clean, dry, and well-ventilated location to prevent overheating.
• Regularly inspect and tighten all 12V battery cable connections; remove any corrosion from terminals.
• Clean air vents and cooling fans to maintain proper airflow and cooling efficiency.
• Monitor battery voltage and keep it within the recommended 9.5V–16V input range to prevent shutdowns and battery damage.
• Avoid exceeding the 1500W continuous power rating or 3000W surge capacity. appliances, allow adequate surge capacity and avoid frequent overload conditions. service life while protecting connected electronics and batteries.
