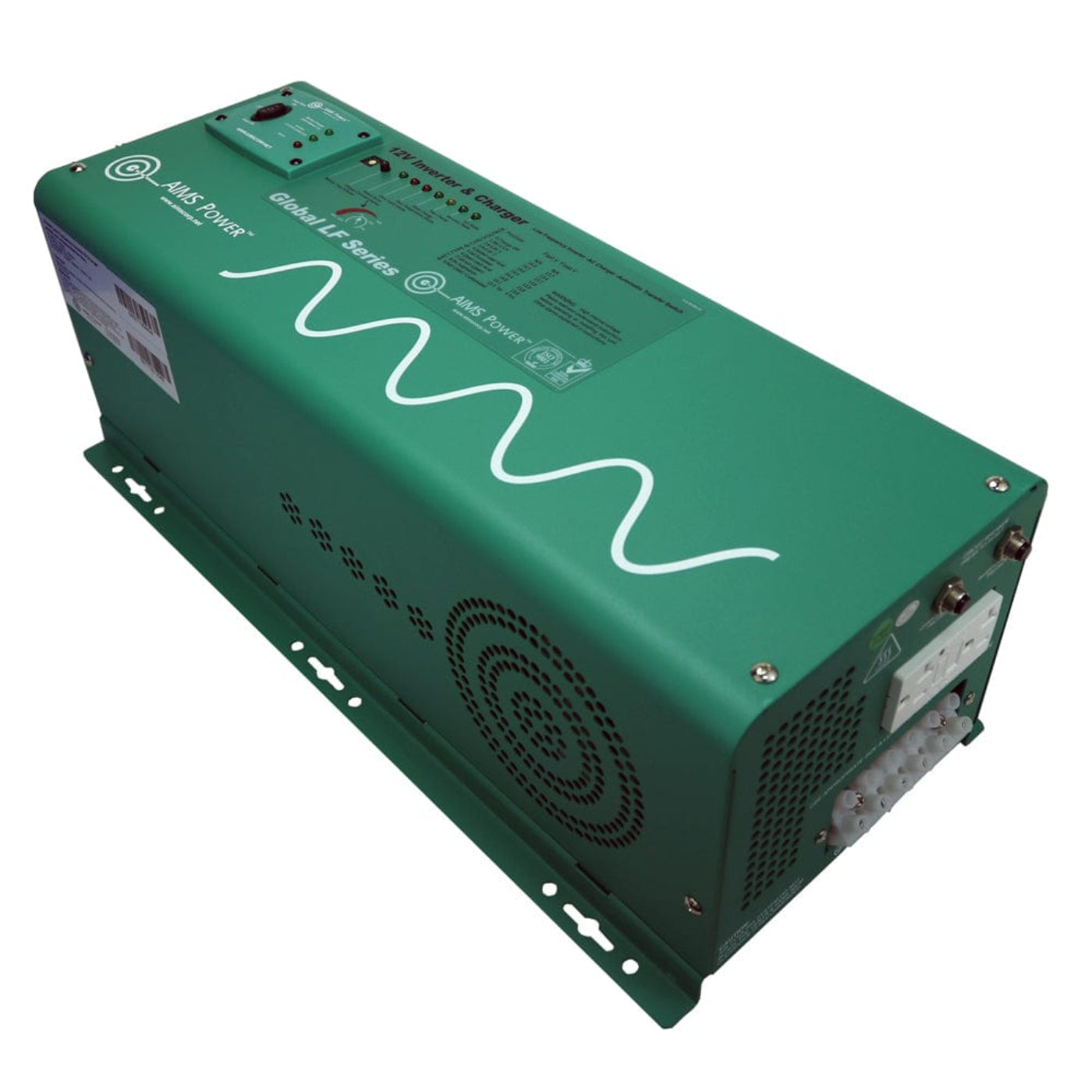

Aims Power 2500 Watt 12V Pure Sine Inverter Charger - PICOGLF25W12V120AL

Aims Power 2500 Watt 12V Pure Sine Inverter Charger - PICOGLF25W12V120AL

The AIMS 2500 watt low frequency inverter charger is perfect for most off grid systems, semi-trucks, 5th wheels, toy haulers or any remote locations needing power. Providing 2500 watts of continuous, clean and reliable pure sine wave power, ideal for sensitive electronics and household appliances. AIMS developed this inverter with less bells and whistles, making if more affordable and easy to use for applications that don't require a lot of extra features. We consider this our better of our good, better, best product lines.

If needed, this inverter has the capability of producing 7500 watts of total surge power for 20 seconds, for start-up applications like refrigerators, computers, tools, motors, fans and microwaves.

This inverter boasts a 85 amp charger and automatic transfer switch. For use with shore power or generator power to recharge your batteries or as a back-up for your sump pump, medical equipment, appliances, tools and most anything up to 20 AC amps.

Features

• 2500 watt continuous
• 7500 watt surge for 20 seconds 300% surge capability (don’t use the surge mode often)
• AC direct connect terminal block
• GFCI outlet
• Marine coated and protected
• Multi stage smart charger 85 A
• LCD or LED remote panel available (LED available in Dec.)
• Thermal and load based fan
• Low voltage recovery
• Power save mode
• Auto frequency
• 10msec typical transfer time
• Optional 25W power save mode
• 7 battery type settings for charger


Specifications

• Continuous output power: 2500 Watt
• Surge rating: 7500 Watt (20 seconds)
• Output waveform: pure sine/same as input (bypass mode)
• Output voltage: 100-110-120 VAC
• Nominal efficiency: >88% (peak)
• Line mode efficiency: >95%
• Output frequency: 60Hz +/- 0.3Hz
• Typical transfer time: 10ms (max)
• Terminal output breaker/ transfer load: 30 amps automatic
• THD: < 10% DC

Input Specifications

• Nominal input voltage: 12.0 VDC
• Minimum start voltage: 10.0 VDC
• Low battery alarm: 10.5Vdc-11.0 VDc
• Low battery trip: 10.0Vdc-10.5 VDC
• High voltage alarm: 16.0 VDC
• Low battery voltage restart: 15.5 VDC
• Input breaker / charger breaker – 30 amps
• Idle consumption: 55 watts
• Power saver mode idle consumption: <21.7 watts

Charger Specifications

• Output voltage: depends on battery type
• Charger rate: 85 A

Dimensions

• Unit weight: 46 lbs
• Unit size: L x W x H: 21 1/2 x 8 3/4 x 7 3/8 inches
• Shipping weight: 50 lbs.
• Shipping size: L x W x H: 23.5 x 13.0 x 12.5 inches

What our Experts Think

• Excellent All-in-One Power Solution: Combines a 2500W pure sine wave inverter, 85A smart battery charger, and automatic transfer switch in one dependable unit.
• Ideal for Off-Grid & Mobile Applications: A great fit for RVs, vans, boats, cabins, work trucks, and backup power systems requiring clean, utility-grade AC power.
• Handles Heavy Startup Loads: Delivers up to 7500W surge capacity, making it capable of starting refrigerators, pumps, tools, and other motor-driven equipment.
• Pure Sine Wave Performance: Safely powers sensitive electronics, appliances, computers, and entertainment systems without the issues associated with modified sine wave inverters.
• Reliable Backup Power: The built-in transfer switch automatically switches between shore/generator power and battery power for seamless operation.
• Built for Tough Environments: Marine-coated components, intelligent cooling, and low-frequency design enhance durability and long-term reliability.
• Best For: Off-grid solar systems, RV owners, marine applications, emergency backup power, and users needing high surge capability with integrated battery charging.

Q&A

Q: What can the AIMS Power PICOGLF25W12V120AL power?
A: With 2500 watts of continuous power and a 7500-watt surge capacity, it can run refrigerators, microwaves, power tools, pumps, computers, TVs, and other household appliances.

Q: Does this inverter include a battery charger?
A: Yes. It features a built-in multi-stage smart battery charger rated up to 85 amps, reducing the need for separate charging equipment.

Q: What is the benefit of pure sine wave output?
A: Pure sine wave power delivers clean, utility-grade electricity that is safe for sensitive electronics, appliances, and motor-driven equipment.

Q: Can it automatically switch between shore power and battery power?
A: Yes. The integrated transfer switch automatically changes between AC input power and inverter power for seamless operation.

Q: Is this inverter suitable for RVs, trucks, and off-grid systems?
A: Yes. It is designed for RVs, fifth wheels, semi-trucks, cabins, backup power systems, and other off-grid applications.

Q: What safety features are included?
A: The unit includes protection against overloads, short circuits, low battery voltage, high voltage, and overheating for reliable long-term operation.

Maintenance Tips

• Keep the inverter charger in a cool, dry, and well-ventilated area to prevent overheating.
• Inspect battery cables, terminals, and AC connections regularly for corrosion, wear, or loose connections.
• Clean air vents and cooling fans periodically to maintain efficient airflow and performance.
• Monitor battery health and voltage levels to ensure proper charging and inverter operation.
• Verify charger settings match your battery type (AGM, Gel, Flooded, or Lithium if applicable).
• Avoid exceeding the 2500W continuous power rating and manage surge loads appropriately.
• Check mounting hardware and wiring for vibration-related loosening, especially in RV, marine, or off-grid installations.
• Disconnect power before cleaning or servicing the unit.
• Perform routine operational tests of the inverter, charger, and transfer switch functions to ensure reliable backup power.
