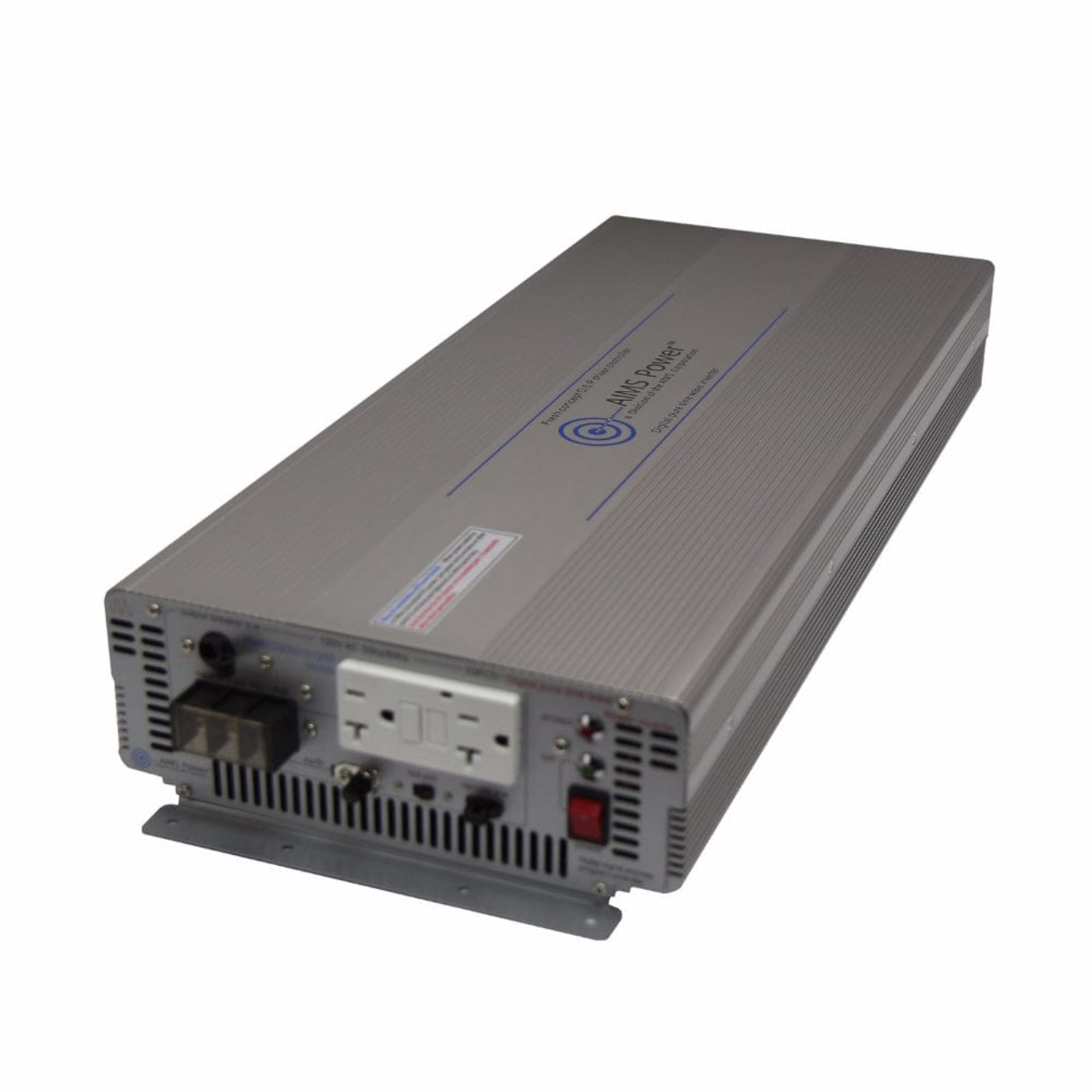

Aims Power 3000 Watt 24V Pure Sine Inverter - PWRIG300024120S

Aims Power 3000 Watt 24V Pure Sine Inverter - PWRIG300024120S

3000 Watt Pure Sine Inverter - Industrial GradeAIMS Power is proud to bring you this new 3000 Watt Pure Sine Power Inverter, designed for harsh environments, which has been completely overhauled and now boasts a dual GFCI outlet and is FCC certified. This product also includes a thermally controlled fan, allowing for increased efficiency and less noise. It will continue to put out stable, pure sine power and maintain output voltage, even as you battery bank voltage decreases. High output performance is achieved through a DSP (Digital Signal Process) drive. This inverter is ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves, medical equipment, any with a circuit board and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.

Packed with 3000 watts of power, this inverter can be used for off-grid home back up power systems, solar, boat, work vehicles and RVs.

Features

• 3000 Watt continuous power
• 6000 Watt surge
• 24 Volt DC input
• Pure sine wave
• 60hz or 50hz switch
• Highly efficient - improved output at low voltage
• 1 - GFCI Dual Outlet
• Direct connect AC Terminal Block
• Connector and cable for remote on/off switch
• Isolated ground & neutral
• Short circuit protection (GFCI and AC Breaker)
• On/off switch
• 5 Function Protection LED indicator
• AC Breaker
• DC volt meter included
• Dual cooling fans thermally controlled
• Instruction manual
• 1 year tech support


Specifications

• Continuous output power: 3000 Watts
• Surge power capability (peak power): 6000 Watts
• DC input / operating voltage: 21-32 Volts
• Output voltage: 120 Volts ac
• Output voltage regulation: +/- 3%
• Output wave form: pure sine wave
• Output frequency: 50/60 Hz
• Battery low voltage alarm: 21 +/- 0.5 Volts
• Battery low voltage shutdown: 20 v +/- 0.5 Volts
• No load power consumption: fan off <0.45 DC amps or fan on <0.67 DC amps
• THD: <5%
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -4 degrees Fahrenheit
• Full load maximum operating temperature: 176 degrees Fahrenheit (automatic shutdown)
• GFCI Reset able AC Outlet
• High input voltage shutdown: 34V
• Low input voltage shutdown: 20V
• Internal blade fuse protection
• Product size (L x W x H): 20.47” x 8.86” x 3.50”
• Weight: 16.09 lbs unit boxed 20 lbs

What our Experts Think

• Robust 3000W pure sine wave output (24V DC) delivers clean, stable 120V AC power for demanding off-grid and backup systems.
• Pure sine wave technology ensures safe operation for sensitive electronics, appliances, and motor-driven loads without noise or damage.
• 24V system efficiency advantage reduces current draw and heat, making it ideal for mid-to-large battery banks and solar installations.
• High surge capability supports startup loads from refrigerators, pumps, compressors, and power tools with ease.
• Industrial-grade construction is built for long-term reliability in RVs, cabins, workshops, and remote power systems.
• Comprehensive protection features help guard against overload, over-temperature, low voltage, and short-circuit conditions.
• Efficient DC-to-AC conversion helps maximize battery runtime while maintaining consistent performance under load.
• Strong fit for mobile and stationary power systems needing dependable mid-to-high capacity inverter performance.


Q&A

Q: What is the AIMS Power PWRIG300024120S used for?
A: AIMS Power 3000 Watt 24V Pure Sine Inverter - PWRIG300024120S is an industrial-grade inverter designed to convert 24V DC battery power into clean 120V AC electricity for off-grid systems, RVs, cabins, and backup power applications.

Q: What power output does it provide?
A: It delivers 3000W continuous power with up to 6000W surge capacity for starting motors, pumps, and other high-inrush loads.

Q: What type of power does it produce?
A: It produces pure sine wave output, providing utility-grade electricity that safely supports sensitive electronics and household appliances.

Q: What devices can it run?
A: It can power refrigerators, microwaves (light duty), power tools, fans, lighting systems, computers, and other 120V AC equipment within its load rating.

Q: Is it suitable for solar or off-grid systems?
A: Yes. It is commonly used in 24V solar and battery-based off-grid systems for stable and efficient energy conversion.

Q: Does it include safety and protection features?
A: Yes. It includes overload, short-circuit, over/under-voltage, and over-temperature protection, along with cooling fans and AC breakers for safe operation.

Q: What makes this inverter “industrial grade”?
A: Its continuous-duty 3000W output, high 6000W surge capability, and rugged internal protection systems make it suitable for demanding off-grid and backup environments.


Maintenance Tips

• Install in a cool, dry, well-ventilated location to maintain stable 3kW continuous output and prevent thermal derating.
• Keep dual cooling fans, air vents, and heat sinks clean; dust buildup is a common cause of overheating shutdowns.
• Regularly inspect 24V battery bank wiring, lugs, and fuse connections for tightness, corrosion, or heat discoloration from high current draw.
• Use properly sized heavy-gauge DC cables to reduce voltage drop and improve efficiency under 3000W loads.
• Monitor system behavior via the LCD/voltage display and fault LEDs to detect low voltage, overload, or thermal warnings early.
• Avoid exceeding 3000W continuous / ~6000W surge capacity, especially with motor starting loads like pumps or compressors.
• Ensure correct grounding and neutral bonding configuration when integrating into panels or transfer systems.
• Periodically check AC outlet, terminal block, and breaker connections for heat marks or loosening due to vibration and thermal cycling.
• Verify battery bank health regularly; weak or imbalanced batteries cause voltage sag and premature shutdowns under load.
• Keep the inverter protected from moisture, direct sunlight, and vibration, especially in RV or off-grid installations.
• Run occasional controlled load tests to confirm stable pure sine wave output and fan operation under stress conditions.
• Do not bypass internal protections (over-temp, low/high voltage, overload), as they protect the inverter’s MOSFET and control circuitry.
