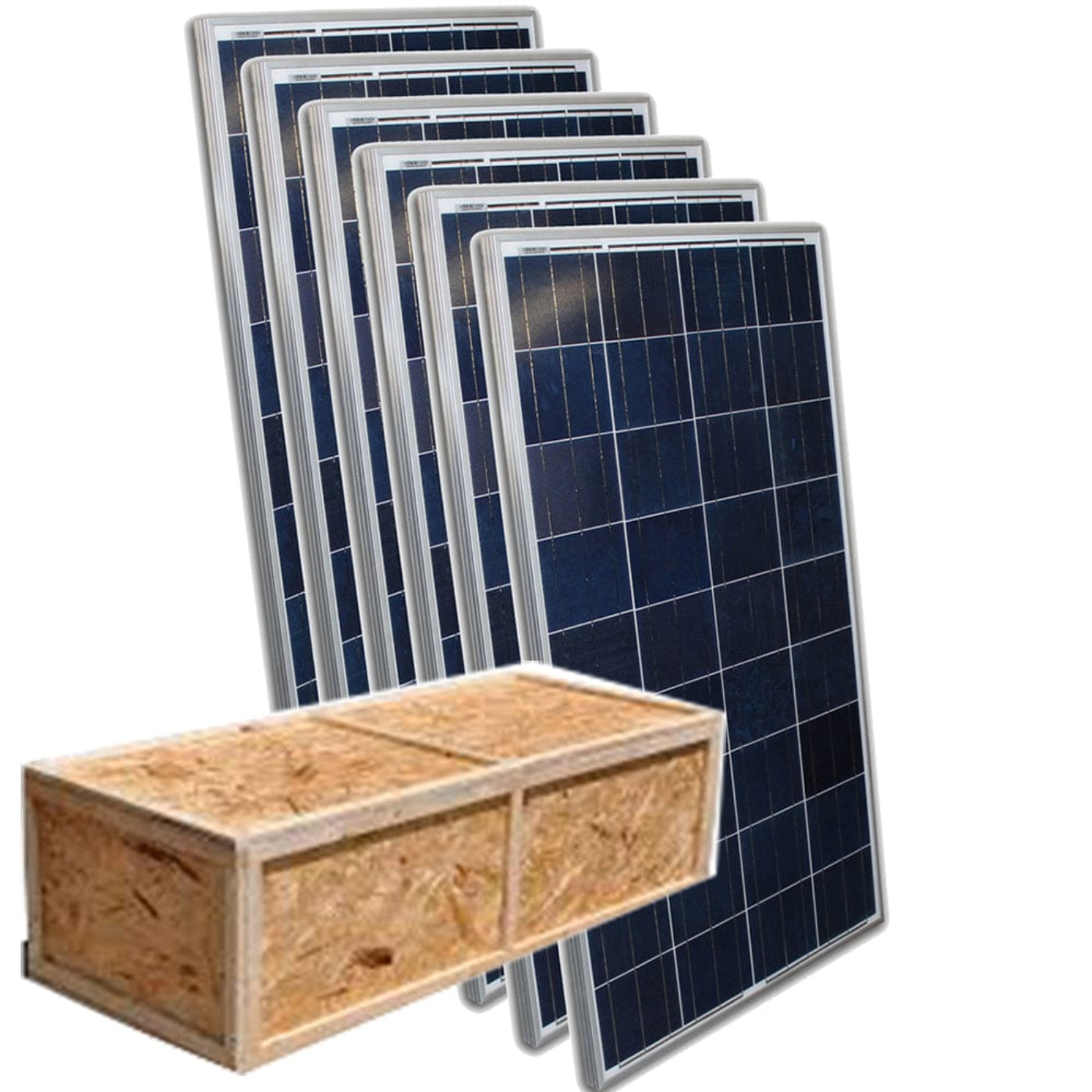

Aims Power 330 Watt Monocrystalline Solar Panel - Ships 6 Panels - PV330MONO6PK

Aims Power 330 Watt Monocrystalline Solar Panel - Ships 6 Panels - PV330MONO6PK

The 330 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel provide high light transmission and the textured glass allows for more efficient power solar harvesting. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home and industrial applications.

Features

• Monocrystalline efficient solar harvesting
• Strong surface for harsh environment
• Panels capable of 0 to +3 Watts over rated capacity
• Pre-drilled aluminum frame
• Tempered glass


Specifications

• Maximum Power (Watts): 330 watts
• (Vmp): 33.9 volts  operating voltage
• (Imp): 9.73 amps operating current
• (Voc):41.5 volts open circuit voltage
• (Isc): 10.22 amps
• Solar Cell: 158.75mm x 158.75mm
• Number of Cells (pcs): 10*6 = 60
• Front Glass Thickness (mm): 3.2 mm
• Temperature Coefficients of Isc (%) °C: -0.048
• Temperature Coefficients of Voc (%) °C: -0.29
• Temperature Coefficients of Pm (%) °C: -0.37
• Temperature Range: -40°C to +85°C
• Tolerance Wattage: 0-3 watts
• Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
• Allowable Hail Load: 45mm at 30.7m/s
• Bypass Diode Rating (A): 10
• Cell Efficiency (%): 21.47%
• Module Efficiency (%): 19.78%
• Warranty: 91.2% of 12 years, 80.6% of 25 years
• Weight Per Panel (lbs): 39.7 lbs
• Dimensions (inches): 65 x 39.25 x 1.37

What our Experts Think

• High-efficiency 330W monocrystalline output delivers strong energy generation in a compact footprint, ideal for space-conscious solar arrays.
• Bulk 6-panel shipping format is perfect for building mid-size off-grid systems for cabins, RVs, farms, or backup power setups.
• Monocrystalline cell technology ensures better performance in low-light and high-temperature conditions compared to polycrystalline panels.
• Optimized for 24V and 48V systems when paired with MPPT controllers, improving overall charging efficiency and system balance.
• Durable tempered glass and corrosion-resistant frame designed for long-term outdoor exposure and harsh weather conditions.
• Consistent power output and reliability make it suitable for daily energy production in solar storage systems.
• Easy integration with AIMS MPPT controllers and inverter systems for streamlined off-grid energy setups.
• Strong choice for scalable solar builds where expansion, efficiency, and dependable generation are key priorities.


Q&A

Q: What is the AIMS Power PV330MONO6PK used for?
A: Aims Power 330 Watt Monocrystalline Solar Panel - Ships 6 Panels - PV330MONO6PK is a high-efficiency solar panel kit designed to generate renewable DC power for off-grid solar systems, RVs, cabins, homes, and backup energy storage systems.

Q: How much power does each panel produce?
A: Each panel is rated at 330W (Pmax) under standard test conditions, delivering reliable solar energy output for battery charging and inverter-based systems.

Q: What is included in the 6-pack system?
A: The PV330MONO6PK includes six 330W monocrystalline solar panels, providing a total system capacity of approximately 1980W.

Q: What type of solar cell technology is used?
A: It uses monocrystalline silicon cells, known for higher efficiency, better low-light performance, and improved durability compared to polycrystalline panels.

Q: What systems is this solar panel compatible with?
A: It is compatible with 12V, 24V, and 48V off-grid solar systems when paired with a proper MPPT charge controller and inverter setup.

Q: What are the key electrical specs?
A: Each panel typically produces around 33.9V (Vmp) and 9.73A (Imp), making it suitable for both series and parallel configurations in solar arrays.

Q: Is this solar panel suitable for harsh weather conditions?
A: Yes. It features a tempered glass surface, aluminum frame, and weather-resistant construction designed to handle wind, snow, and outdoor environmental exposure.

Q: What makes this solar panel a good choice for off-grid use?
A: Its high efficiency, stable 330W output, and compatibility with battery-based systems make it ideal for reliable off-grid energy production and solar expansion projects.


Maintenance Tips

• Install panels in a clean, dust-free, well-ventilated outdoor area with proper tilt for maximum sunlight exposure.
• Regularly clean the glass surface with water and a soft cloth to remove dust, bird droppings, and debris for optimal efficiency.
• Inspect the aluminum frame, mounting clamps, and bolts periodically for loosening due to wind or thermal expansion.
• Check wiring, MC4 connectors, and junction box seals for moisture ingress or corrosion.
• Ensure panels remain free of shading from trees, structures, or dirt buildup to prevent power loss.
• After storms or high winds, verify structural alignment and mounting integrity of all six panels in the pack.
• Avoid standing or placing heavy loads on panels to prevent micro-cracks in solar cells.
• Monitor system output regularly to detect performance drops that may indicate dirt or wiring issues.
• Keep vegetation trimmed around ground-mounted or roof-mounted installations.
• Use proper cable management to prevent UV damage or rodent wear on exposed wiring.
• Inspect bypass diodes indirectly by checking for uneven output across panels under partial shading conditions.
• Follow manufacturer installation guidelines for long-term durability and warranty protection
