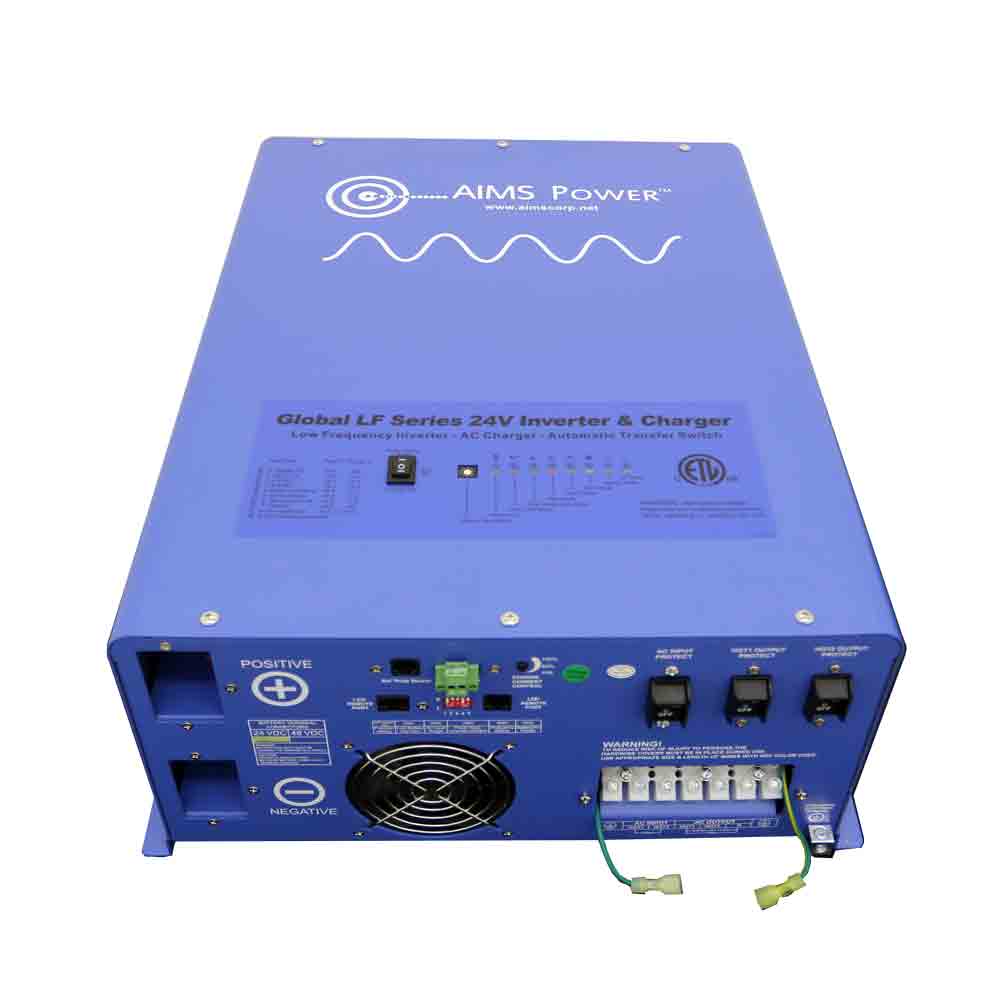

Aims Power 4000 Watt 24V Pure Sine Inverter Charger ETL Listed - PICOGLF4024120UL

SKU PICOGLF4024120UL
Save 6% Save 6%
Original price $1,719.00
Original price $1,719.00 - Original price $1,719.00
Original price $1,719.00
Current price $1,620.00
$1,620.00 - $1,620.00
Current price $1,620.00
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

AIMS Power 4000 Watt Pure Sine Low Frequency Inverter, single phase with built-in battery charger and transfer switch. This inverter charger is perfect for medium-sized industrial applications that depend upon power being available even under heavy load. This heavy-duty inverter charger is ready to go wherever you need it. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120 volts of alternating current. This product also has auto frequency detection that allows users to operate at either 50 or 60 hertz.

This AIMS power inverter charger includes a powerful 45 amp charger and is capable of accepting any source of 120v AC power to charge batteries, including a gas or diesel generator or shore power at an RV park/truck stop. It will even accept power from an extension cord plugged into your wall outlet at home.

An optional wired LED or LCD remote can be added for fast and easy operation if your inverter charger is mounted in a location that is inconvenient to get at. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.

See Features Below:

  • 4000 watt low frequency inverter

  • 12000 watt surge for 20 seconds 300% surge capability

  • 24 Volt DC

  • Single phase 120Vac output

  • Listed to UL 458, 1741, 1012 and CSA 22.2 NO 107.1 & 107.2

  • Battery priority selector

  • AC Direct connect terminal block

  • Marine coated and protected

  • Multi stage smart charger 45 Amp

  • Charges lithium LiFePO4, gel, AGM and lead batteries. We recommend checking battery charging specifications for all batteries.

  • Remote panel available LED or LCD

  • Auto frequency

  • 10msec typical transfer time

  • Selectable 25W power save mode (hibernation)

  • 7 battery type settings for charger

  • Allows start up and through power with depleted batteries

  • Automatic transfer switch

  • Continuous output power: 4000 Watts

  • Surge rating: 12000 Watts (20 Seconds)

  • Output waveform: Pure Sine/Same as input (Bypass Mode)

  • Output voltage 100-110-120Vac

  • Output breaker: 50 Amps

  • Nominal efficiency: >88% (Peak)

  • Line mode efficiency: >95%

  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz

  • Typical transfer time: 10ms (Max)

  • THD: < 10% DC

  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

  • Input Specifications

  • Nominal input voltage: 24.0Vdc

  • Minimum start voltage: 20.0Vdc

  • Low battery alarm: 21.0Vdc-22.0Vdc

  • Low battery trip: 20.0Vdc-21.0Vdc

  • High voltage alarm: 32.0Vdc

  • Low battery voltage restart: 26.6Vdc

  • Idle consumption: 52.5 watts

  • Idle consumption with power saver mode ON: <25 watts

  • Output voltage: depends on battery Type

  • Charger rate: 45A

  • Over charge protection shutdown 31.4V

  • Selectable charge setting based on battery type

  • Adjustable charge current: off-15%-100%

  • Four stage smart charger

  • 50 amp automatic transfer switch

  • 10 ms (max)
