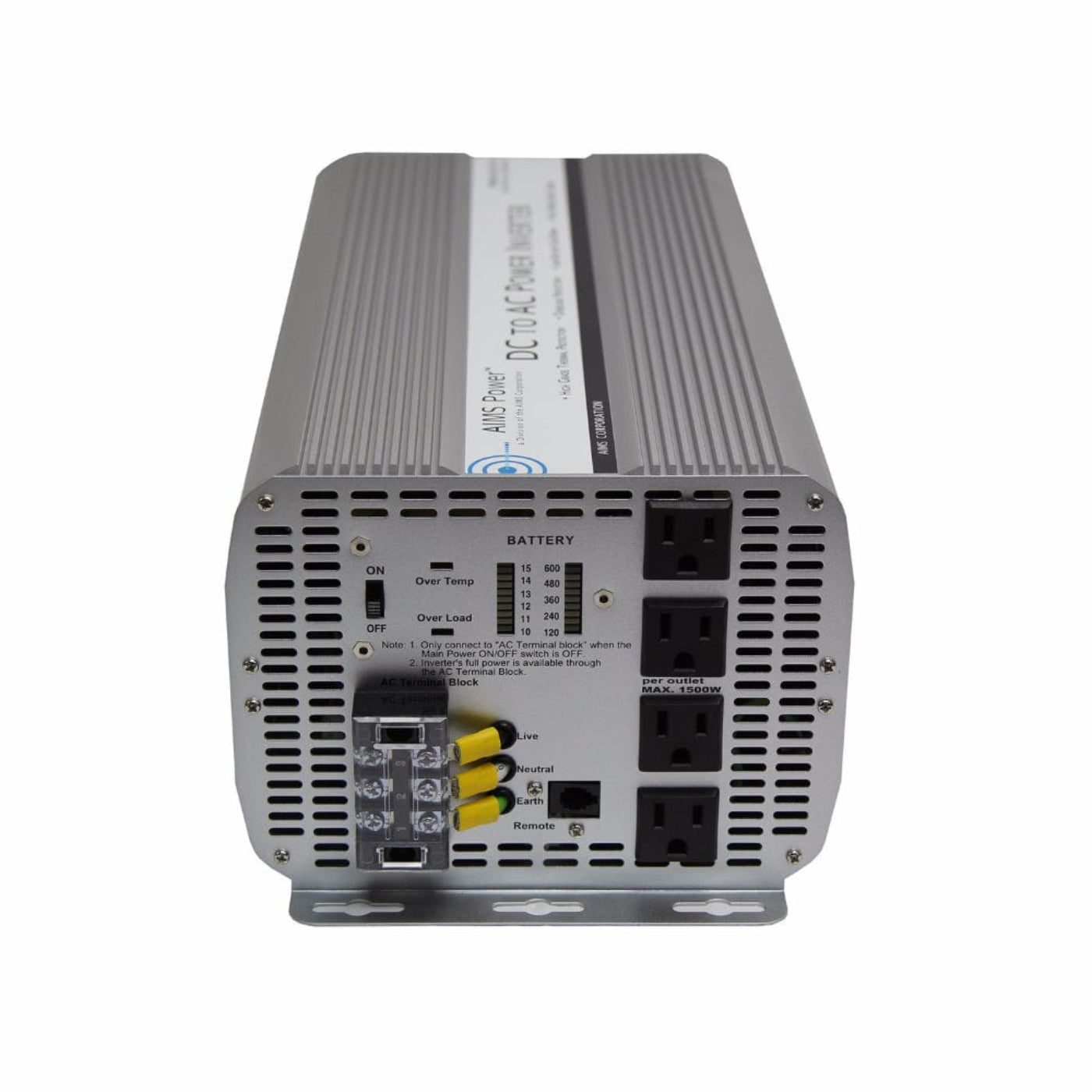

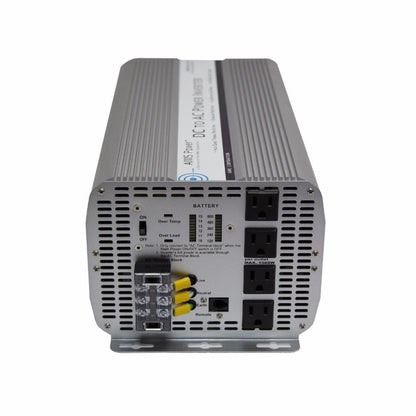

Aims Power 5000 Watt Power Inverter - PWRINV500012W

Aims Power 5000 Watt Power Inverter - PWRINV500012W

This 5000-watt 12-volt power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity. You can use this powerful AIMS 5000-watt inverter to run practically any household appliances or tools.

This unit produces a modified sine wave capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, in your cabin or on your boat. This 5000-watt power inverter is perfect for larger solar systems or anywhere that doesn't have city power.

What really makes this 5000-watts power inverter special is its capability to run off most vehicles' standard power systems at 12 volts. That also makes it a simple solution for RVs and boats.

This inverter is very attractive to mobile business owners because users don't have to modify a vehicle's standard power system to run the inverter. This will definitely save you some money if you are upgrading a fleet of vehicles with some aftermarket equipment that requires this much power.

Some of the popular mobile business applications for this inverter include powering a small mobile office or kitchen, running tools on a work truck or construction vehicle, or supplying electricity to lawn maintenance equipment. One of the biggest incentives for business owners to use inverters for electricity is the fact they make little or no noise. That creates a more peaceful environment for customers and their neighbors.

In addition, these inverters are non-polluting. They create no stinky exhaust fumes and can make for a great green-energy marketing campaign. That can be a real boost to your business, especially in competitive markets.

This unit features two easily accessible AC outlets with a maximum output of 1500 watts. The 200% surge capabilities of this inverter should only be used as a safety feature.

Other safety features include over-temperature and overload LED indicators as a warning system for the operator. Also on the AC side of the unit, you'll find the battery voltage and amperage meters, which display the usage levels of your battery bank. This inverter is equipped with dual cooling fans. Over-temperature protection keeps it from overheating.

We offer this product with a one-year parts and labor warranty. It also comes with one year of free tech support.

Features

• 5000W max continuous power
• Modified sine wave
• Volt meter on front panel to monitor your battery voltage
• Amp meter on front panel to monitor your current use (rate at which battery is drained)
• AC Direct Connect Terminal!
• Over Temperature LED indicator
• Over Load LED indicator
• Quadruple ac receptacle that can be used with any separate spliter to provide even more outlets
• On/off switch
• Over Temperature protection
• Over Load protection
• Single cooling fan operation thermally controlled
• Internally fuse protected
• ac output short circuit protection
• Auto reset on most fault conditions
• Aluminum case for optimal cooling
• Pre-wired for remote on/off switch
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support


Specifications

• Continuous output power: 5000 Watts
• Surge power capability (peak power): 10000 Watts
• dc input / operating voltage: 10 to 15 Volts
• Output voltage: 120 Volts ac +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 60 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10.0 +/- 0.5 Volts
• No load current: < 0.6 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -15 degrees Celsius
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
• AC Output Socket Type: quadruple Type 2 -3 prong
• High input voltage protection: 15V-17V
• Low input voltage shutdown: 10V
• Internal fuse protection
• Product size (L x W x H): 16.92”X 7.95”X 6.1”
• Weight: unit 18 lbs boxed 20 lbs
• UL maximum recommended per outlet 1500W

What our Experts Think

• Delivers a robust 5,000W continuous power output for demanding residential, commercial, and mobile applications.
• 10,000W surge capacity easily handles startup loads from motors, compressors, pumps, and power tools.
• Well-suited for RVs, off-grid cabins, trucks, boats, and emergency backup power systems.
• Modified sine wave design offers a cost-effective solution for most appliances, tools, and electronic equipment.
• Built-in digital monitoring helps users track inverter performance and battery status at a glance.
• Multiple AC outlets provide flexibility when powering several devices simultaneously.
• Engineered with overload, low-voltage, over-voltage, over-temperature, and short-circuit protection for enhanced reliability.
• Strong choice for users building a high-capacity 12V battery-powered energy system.
• Durable construction is designed to withstand demanding off-grid and mobile environments.
• Ideal for powering refrigerators, freezers, microwaves, power tools, lighting systems, TVs, and other essential equipment.
• Remote operation capability adds convenience for permanently installed systems.
• Offers an excellent balance of power, durability, and value compared to many competing high-wattage inverters.


Q&A

Q: What is the AIMS Power 5000 Watt Power Inverter (PWRINV500012W)?
A: The AIMS Power PWRINV500012W is a 5000W DC-to-AC power inverter that converts 12V battery power into 120V AC electricity for off-grid, RV, marine, work truck, and backup power applications.

Q: How much power can it deliver?
A: It provides 5000 watts of continuous power and up to 10,000 watts of surge power for startup loads.

Q: What type of waveform does it produce?
A: This inverter uses a modified sine wave output, making it suitable for many tools, appliances, pumps, lights, and power equipment.

Q: What safety features are included?
A: It features overload protection, over-temperature protection, low-voltage shutdown, short-circuit protection, internal fusing, and automatic reset on most fault conditions.

Q: Is it suitable for RVs, boats, and off-grid systems?
A: Yes. It is designed for RVs, boats, cabins, mobile businesses, commercial vehicles, and off-grid backup power systems.

Q: What monitoring features does it offer?
A: Front-panel volt and amp meters help monitor battery voltage and power consumption in real time.

Q: Why choose the AIMS Power PWRINV500012W?
A: It combines high 5000W output, 12V compatibility, built-in protection features, multiple AC outlets, and durable aluminum construction for reliable mobile and backup power.


Maintenance Tips

• Keep the inverter clean and dust-free. Wipe the exterior periodically with a dry or slightly damp cloth to prevent dust buildup on vents and cooling areas.
• Ensure proper ventilation at all times. Leave adequate clearance around the unit and keep cooling fan openings unobstructed to prevent overheating.
• Regularly inspect and tighten DC input terminal connections. Loose connections can cause voltage drops, reduced efficiency, and excess heat.
• Check battery cables for corrosion, wear, or damage and replace if necessary. Heavy-gauge cables are essential for safe 5000W operation.
• Keep batteries fully charged and properly maintained to avoid low-voltage conditions that can strain the inverter.
• Install the inverter in a cool, dry location, away from direct sunlight, moisture, flammable materials, and excessive heat sources.
• Periodically monitor the inverter's voltage and load indicators to identify abnormal operating conditions before they become problems.
• Disconnect the inverter when not in use for extended periods to reduce battery drain and unnecessary wear.
