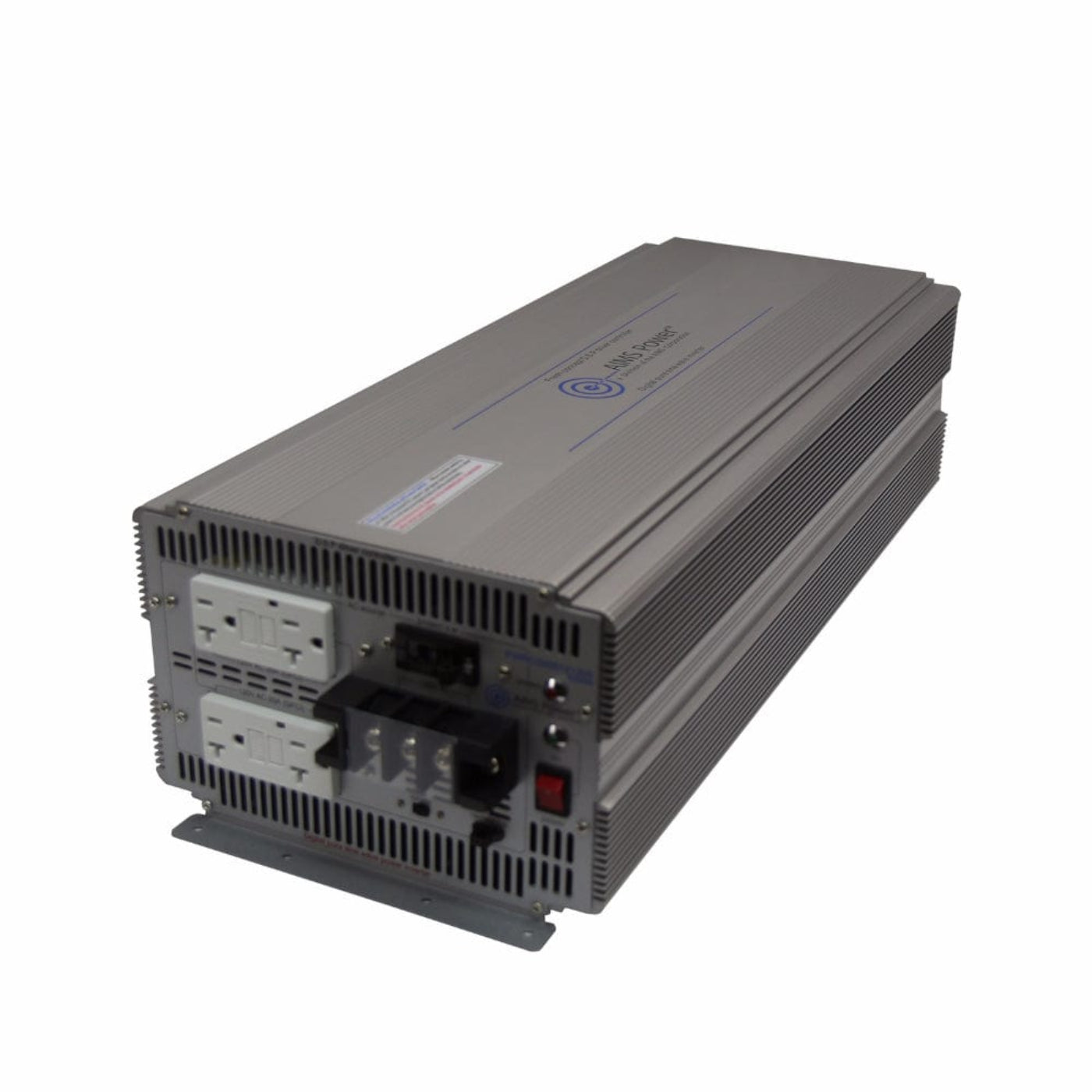

Aims Power 5000 Watt 24V Pure Sine Inverter - PWRIG500024120S

Aims Power 5000 Watt 24V Pure Sine Inverter - PWRIG500024120S

5000 Watt Pure Sine Inverter - Industrial Grade - 24 VDC 50 & 60 hzAIMS Power is proud to bring you this new 5000 Watt Pure Sine Power Inverter, designed for harsh environments, which has been completely overhauled and now boasts a dual GFCI outlet and is FCC certified. This product also includes a thermally controlled fan, allowing for increased efficiency and less noise. It will continue to put out stable, pure sine power and maintain output voltage, even as you battery bank voltage decreases. High output performance is achieved through a DSP (Digital Signal Process) drive. This inverter is ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves, medical equipment, any with a circuit board and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.

Packed with 5000 watts of power, this inverter can be used for off-grid home back up power systems, solar, boat, work vehicles and RVs. We designed this inverter to be more efficient operating at 24 VDC at higher loads.

Features

• 5000 Watt continuous power
• 10000 Watt surge for 0.5 second
• 24 Volt DC input
• Pure sine wave
• 60hz or 50hz switch
• Highly efficient - improved ouptut at low voltage
• 2 - GFCI Dual Outlet
• Direct connect AC Terminal Block
• Connector and cable for remote on/off switch
• Isolated ground & neutral
• Short circuit protection (GFCI and AC Breaker)
• On/off switch
• 5 Function Protection LED indicator
• AC Breaker
• DC volt meter included
• Dual cooling fans thermally controlled
• Instruction manual
• 1 year tech support


Specifications

• DC Input Voltage 26.4V (21V-30V)
• Output Voltage no load 120Vac +/- 3%
• Continuous 5000 Watts
• Surge 10000 Watts
• 91% Efficiency @ full load
• No Load Current (Fan Off) 1.3A 24V
• No Load Current (Fan On) 2.2A 24V
• Low Battery Shut Down: 20.0V
• Low Battery Return on Power: 22.4V
• High Battery Shut Down: 31.7V
• High battery return on Power: 30.0V
• Frequency Selection 50/60hz
• Over Temperature Protection: -25ºC - 79ºC
• Cooling Fan on Temperature: 40ºC
• GFCI Outlets rated at 20A per block.
• Dimensions (inches) 23.75 x 8.88 x 6.25
• Weight: 27lbs

What our Experts Think

• High-capacity 5000W pure sine output delivers clean, stable power suitable for heavy-duty appliances, tools, and full off-grid systems.
• 24V DC platform improves efficiency compared to 12V systems, reducing current draw and heat in larger solar or battery bank setups.
• Pure sine wave technology ensures safe operation for sensitive electronics, motors, pumps, and modern appliances without risk of damage or noise.
• Strong surge handling capability supports high startup loads from compressors, refrigerators, well pumps, and industrial equipment.
• Ideal for off-grid homes, cabins, workshops, and backup power systems requiring consistent, high-output electricity.
• Built for continuous operation under load with industrial-grade components designed for long-term durability and reliability.
• Multiple integrated protection features (overload, over-temp, low voltage, short circuit) help safeguard both system and connected devices.
• A strong choice for serious power users needing scalable, efficient 24V-based inverter performance in demanding environments.


Q&A

Q: What is the AIMS Power PWRIG500024120S used for?
A: This 5000W pure sine wave inverter converts 24V DC battery power into clean 120V AC electricity, ideal for off-grid solar systems, RVs, cabins, workshops, and backup power applications.

Q: What is the output of this inverter?
A: It delivers 5000 watts of continuous power with up to 10,000 watts surge capacity, supporting heavy startup loads like motors and compressors.

Q: Is this a pure sine wave inverter?
A: Yes. It produces a pure sine wave output for safe operation of sensitive electronics, appliances, and industrial equipment.

Q: What type of devices can it run?
A: It can power refrigerators, pumps, power tools, air compressors, lighting systems, computers, and other 120V AC equipment within its load rating.

Q: Is this inverter suitable for solar systems?
A: Yes. It is commonly used in 24V off-grid and solar power systems for reliable large-scale energy conversion.

Q: Does it include protection features?
A: Yes. It includes overload, short-circuit, over-voltage, under-voltage, and over-temperature protection for safe and stable operation.

Q: What makes this a heavy-duty inverter?
A: Its industrial-grade design, high surge capacity, dual cooling fans, and DSP-controlled output make it suitable for demanding continuous-use environments.

Q: What output voltage does it provide?
A: It provides 120V AC output at 60Hz (with selectable frequency in some configurations), designed for North American electrical systems.


Maintenance Tips

• Install in a dry, dust-free, and well-ventilated area to prevent heat buildup and ensure stable 24V operation.
• Regularly inspect 24V battery bank connections, heavy-gauge cables, and fuse/breaker points; tighten and clean corrosion.
• Keep dual thermally controlled cooling fans and air vents clean for proper airflow and thermal protection.
• Monitor DC input voltage (21–30V range) to avoid low-voltage shutdowns and battery stress.
• Do not exceed 5000W continuous / 10,000W surge capacity, especially with motor or compressor loads.
• Check built-in protection indicators (overload, over-temp, low battery) and address faults immediately.
• Inspect AC output terminals and GFCI outlets periodically for wear or overheating.
• Ensure proper cable sizing for high current draw typical of 24V 5kW systems to reduce voltage drop.
• Protect unit from moisture, vibration, and direct sunlight to extend component life.
• Run occasional load tests to confirm stable pure sine output and early fault detection.
• Follow manufacturer installation and safety guidelines for long-term reliability and warranty protection.
