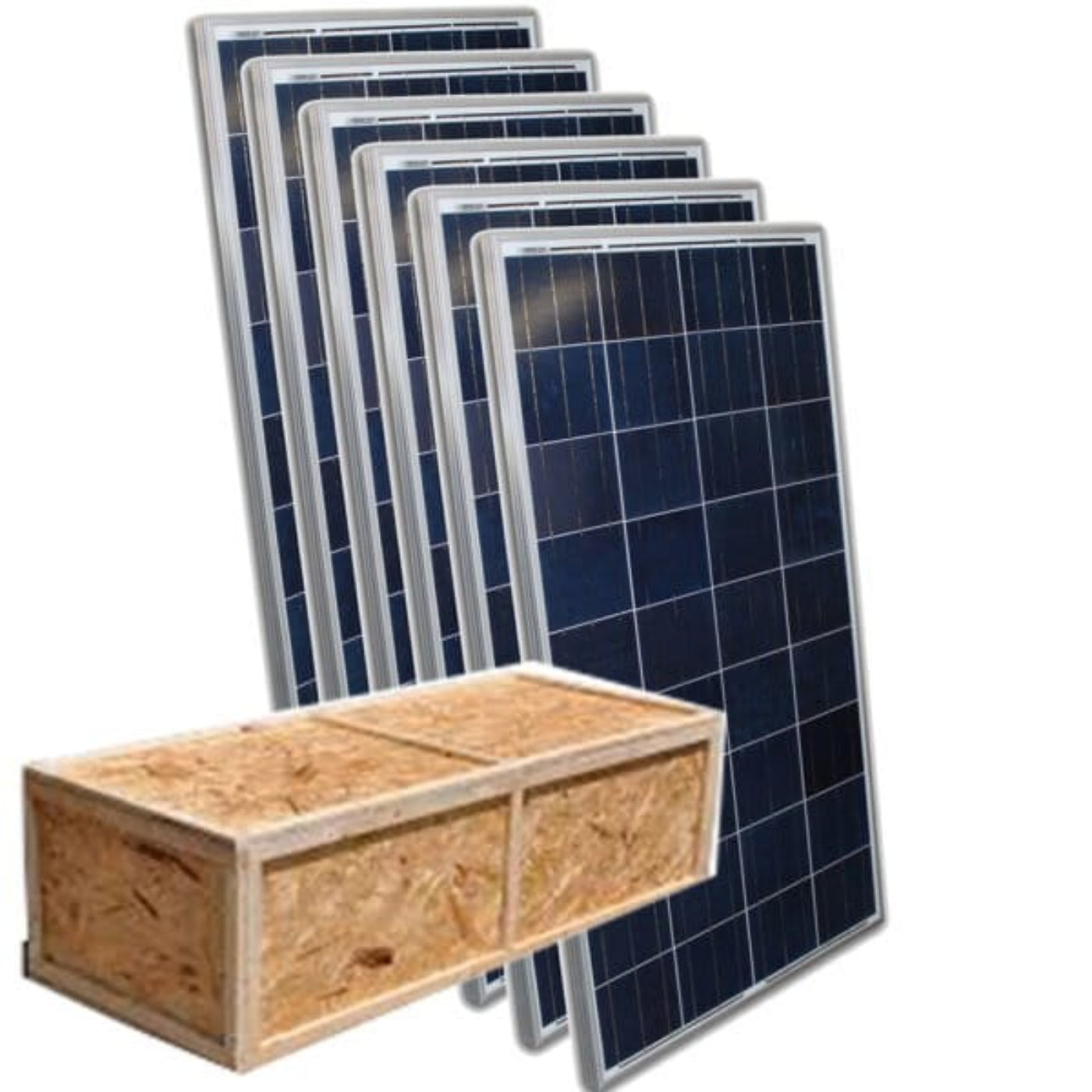

Aims Power 555 Watt Monocrystalline Solar Panel - 10 Pack - PV555MONO-10PACK

Aims Power 555 Watt Monocrystalline Solar Panel - 10 Pack   - PV555MONO-10PACK

The 555 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel provide high light transmission and the textured glass allows for more efficient power solar harvesting. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, business and industrial applications for back up or off grid power. You can also use to tie to the grid or with ourPacked with power. Includes 12″ cable with female and male MC4 compatible connectors.

Features

• Monocrystalline efficient solar harvesting
• Strong surface for harsh environment
• Panels capable of 0 to +3 Watts over rated capacity
• Pre-drilled aluminum frame
• Tempered glass

• 10 Pack

Specifications

• Maximum Power (Watts): 555 watts
• (Vmp): 42.11 volts  operating voltage
• (Imp): 13.18 amps operating current
• (Voc):50.02 volts open circuit voltage
• (Isc): 14.07 amps
• Number of Cells (pcs): 6*24 = 144
• Front Glass Thickness (mm): 3.2 mm
• Temperature Coefficients of Isc (%) °C: -0.048
• Temperature Coefficients of Voc (%) °C: -0.29
• Temperature Coefficients of Pm (%) °C: -0.37
• Temperature Range: -40°C to +85°C
• Tolerance Wattage: 0-3 watts
• Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
• Allowable Hail Load: 45mm at 30.7m/s
• Bypass Diode Rating (A): 10
• Cell Efficiency (%): 22%
• Module Efficiency (%): 21.5%
• Warranty: 91.2% of 12 years, 80.6% of 25 years
• Weight Per Panel (lbs): 60 lbs
• Dimensions (inches): 89.75 x 44.75 x 1.37

What our Experts Think

• The AIMS Power PV555MONO-10PACK is a high-output solar bundle featuring ten 555W monocrystalline panels, ideal for large off-grid and hybrid solar systems.
• Delivers a combined capacity of 5,550 watts (5.55 kW total system power), making it suitable for serious residential, RV, industrial, or backup installations.
• Built with high-efficiency monocrystalline cells (~21.5% module efficiency) for strong performance even in limited sunlight conditions.
• Designed for durability with tempered glass, aluminum frame, and high wind/snow load ratings, ensuring long-term outdoor reliability.
• Includes bypass diodes to reduce power loss from shading, improving real-world energy yield in partially shaded environments.
• Supports wide temperature tolerance (-40°C to +85°C), making it suitable for harsh climates and year-round operation.
• Engineered for compatibility with grid-tie, hybrid, and off-grid inverter systems, offering flexible system design options.
• Pre-drilled frames and MC4-compatible connectors simplify installation and reduce setup time.
• High-voltage panel design (~42V Vmp per panel) allows efficient string configurations for MPPT charge controllers.


Q&A

Q: What is the AIMS Power PV555MONO-10PACK solar panel kit?
A: The AIMS Power PV555MONO-10PACK is a 10-pack of 555W monocrystalline solar panels designed for residential, commercial, and off-grid solar power systems, including RVs, cabins, and hybrid inverter setups.

Q: How much total power does the 10-pack provide?
A: It delivers up to 5,550 watts (5.55 kW) of combined solar generation capacity under optimal sunlight conditions.

Q: What type of solar cells are used?
A: These panels use high-efficiency monocrystalline cells designed for strong performance in both low-light and high-irradiance conditions.

Q: What are the key electrical specifications?
A: Each panel produces 555W with approximately 42.11V Vmp, 13.18A Imp, and around 21.5% module efficiency for high energy output per square meter.

Q: Are these panels durable for outdoor use?
A: Yes. They feature tempered glass, aluminum framing, and weather-resistant construction rated for harsh environments, including wind, snow, and hail loads.

Q: Can these panels be used in off-grid or hybrid systems?
A: Yes. They are compatible with off-grid solar systems, hybrid inverters, and grid-tied installations, making them suitable for energy storage and backup power setups.

Q: Do they support long-term performance guarantees?
A: Yes. They typically include a 25-year limited performance warranty with gradual output degradation protection over time.

Q: Why choose this 555W solar panel pack?
A: It offers high wattage per panel, fewer total panels needed, efficient monocrystalline technology, and strong durability for large-scale or off-grid solar installations.


Maintenance Tips

• Keep panels clean and dust-free; dust, bird droppings, and pollution can significantly reduce output—clean with soft water and non-abrasive cloth.
• Inspect the tempered glass surface regularly for cracks, chips, or hot spots, especially after storms or hail.
• Ensure secure mounting and frame tightness; check aluminum frame bolts and racking for looseness or corrosion.
• Periodically inspect MC4-compatible connectors and wiring for heat damage, moisture ingress, or loose connections.
• Maintain proper panel tilt and alignment to maximize sunlight exposure and prevent uneven wear.
• Avoid shading on any part of the panel string, as the bypass diodes only reduce—not eliminate—power loss.
• Check for hotspots using infrared or visual inspection during peak sun hours if output drops unexpectedly.
• Keep vegetation, dust buildup, and debris away from the array for consistent performance.
