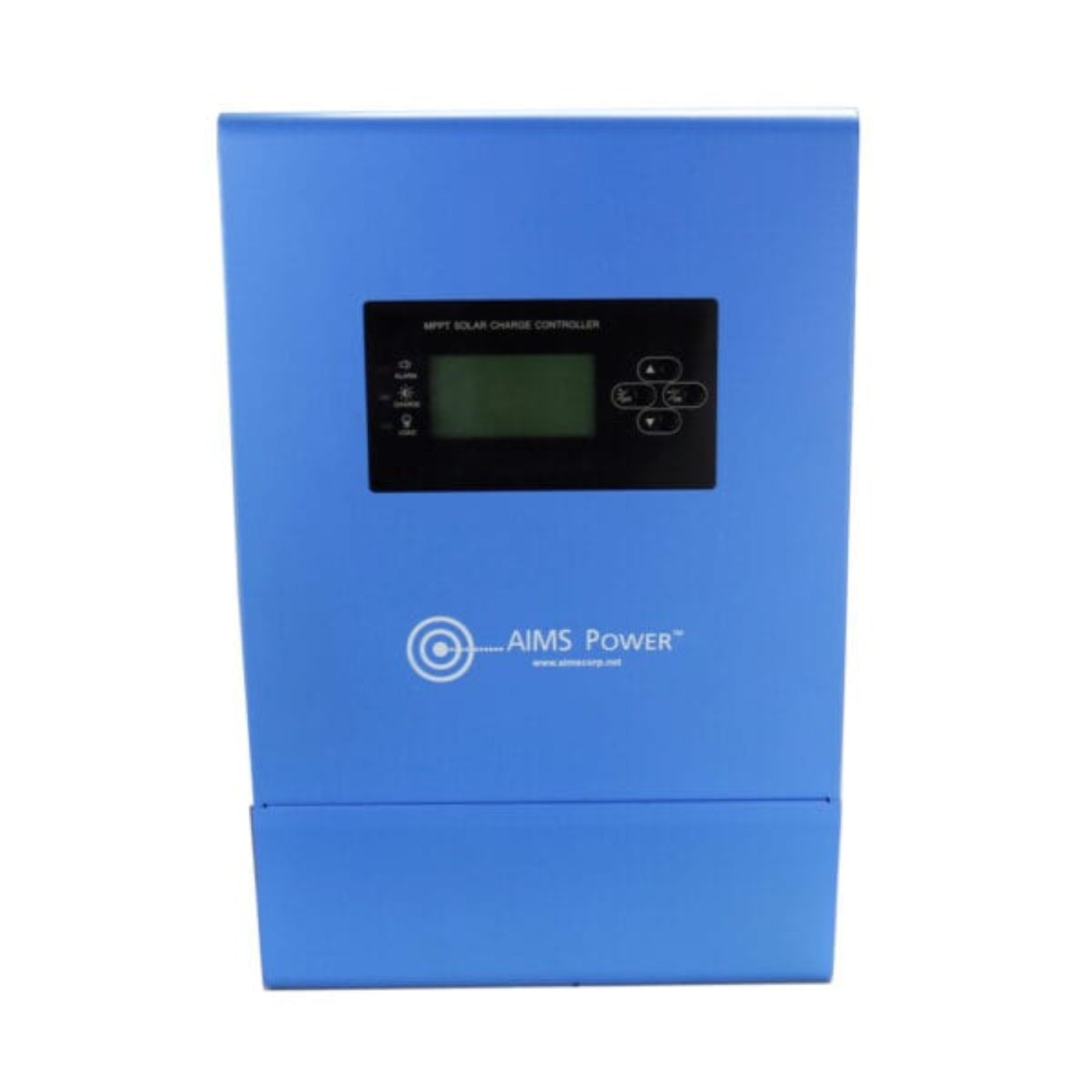

Aims Power 60 Amp MPPT Solar Charge Controller - SCC60AMPPT

Aims Power 60 Amp MPPT Solar Charge Controller - SCC60AMPPT

This solar battery charge controller by AIMS Power features a smart tracking algorithm using MPPT charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions. This charge controller also has temperature compensation protection using the included battery temperature sensor. Charges 12, 24, 36 and 48 volt solar systems with multistage charging technology and adjusts according to battery type.

The AIMS charge controller includes LED indicators to show charging status and faults. An LCD displays key information such as:

• battery voltage and capacity
• solar panel voltage and wattage
• solar panel charging current
• KWH produced
• battery charge mode
• DC load (current)

Features

• MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
• Quality heatsink cooling – no fans needed and no thermal derating
• Battery type selector and user defined charging voltage
• 4 stage charging
• PV input, battery output and load control ports
• Stackable
• Reliable electronics, over engineered components generating less heat
• Very efficient up to 99%
• Low self consumption
• Thermal design rugged case
• Over temp protection
• Overload, short circuit, high and low voltage protection
• RS485 port for computer monitoring
• CE, ETL to UL1741 and RoHS compliant
• Marine coated
• Mounting holes

Specifications

• Maximum battery current: 60 amps
• DC load port: 60 amps
• Max PV open circuit voltage: 150Vdc
• Self power consumption: <4 watts
• Efficiency: 98.5%
• Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
• Monitoring: RS485 port for computer monitoring
• Optimal cooling case design – built for extreme conditions

CHARGING

• Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
• 4 Stage charging: bulk, absorption, float and equalize
• Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V
• Float charge voltage:  sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V
• Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V
• Low voltage reconnection: 12.5V
• Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)

MECHANICAL

• Enclosure: IP43 protection, metal
• Cooling: heatsink
• Humidity: 100% non-condensing
• Temperature compensation: -5mV⁰C / 2V with BTS
• Temperature range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
• Conformal coated for marine environments
• Wire knockouts: 1.25”
• Unit weight: 15.5 lbs
• Boxed weight: 17.5 lbs
• Dimensions: 14.5”L x 10.5”W x 4.5”H


What our Experts Think

• Advanced 60A MPPT technology maximizes solar harvest by optimizing voltage and current conversion for higher overall charging efficiency.
• Improved energy yield vs PWM controllers ensures better performance in variable light conditions, cloudy weather, and partial shading.
• Supports large off-grid solar arrays making it suitable for cabins, RV systems, and residential-scale battery banks.
• Automatic battery voltage detection simplifies setup and helps ensure correct charging for 12V/24V/48V systems (model dependent).
• Multi-stage smart charging profile improves battery life by delivering bulk, absorption, and float charging with precision control.
• Built-in safety protections guard against overcharging, overheating, reverse polarity, short circuit, and overload conditions.
• Clear digital display interface provides real-time monitoring of system performance, including voltage, current, and charging status.
• Ideal companion for solar + inverter setups where efficient energy management and long-term system reliability are essential.


Q&A

Q: What is the AIMS Power 60 Amp MPPT Solar Charge Controller (SCC60AMPPT) used for?
A: Aims Power 60 Amp MPPT Solar Charge Controller - SCC60AMPPT is used to efficiently charge 12V/24V/48V battery banks from solar panels in off-grid and hybrid solar power systems.

Q: What does MPPT technology do?
A: MPPT (Maximum Power Point Tracking) optimizes solar input by continuously adjusting voltage and current to extract maximum available power from solar panels, improving charging efficiency.

Q: What systems is this charge controller compatible with?
A: It is compatible with 12V, 24V, and 48V battery systems, making it suitable for residential, RV, cabin, and commercial solar setups.

Q: What is the charging capacity of this controller?
A: It supports up to 60 amps of charging current, allowing it to handle medium to large solar arrays depending on system voltage.

Q: What types of batteries can it charge?
A: It supports lithium, AGM, gel, and flooded lead-acid batteries with programmable charging profiles.

Q: Does it provide system protection?
A: Yes. It includes protection against overcharging, over-voltage, reverse polarity, overheating, and short-circuit conditions.

Q: Can it be used for off-grid solar systems?
A: Yes. It is designed for off-grid and hybrid solar systems where efficient battery charging and energy management are required.

Q: Does it include a display or monitoring features?
A: Yes. It typically features an LCD display for real-time monitoring of charging status, voltage, current, and system performance.


Maintenance Tips

• Install the controller in a cool, dry, and well-ventilated indoor location to prevent moisture and heat damage.
• Ensure proper airflow around the heatsink; avoid sealed enclosures that trap heat.
• Regularly inspect PV, battery, and load terminals for tightness, corrosion, or discoloration.
• Use correctly sized cables to reduce voltage drop and prevent overheating under high current.
• Clean dust from vents and heat sinks periodically to maintain efficient thermal performance.
• Verify correct system voltages (battery and PV input) to avoid over-voltage or controller shutdown.
• Always maintain proper battery bank health (same type, age, and capacity) for stable MPPT charging performance.
• Check fuses, breakers, and disconnect switches for wear or tripping issues.
• Avoid reverse polarity connections—this can permanently damage the controller.
• Inspect wiring insulation for heat, UV damage, or rodent wear, especially in off-grid setups.
• Ensure equalization settings are only used with compatible flooded lead-acid batteries.
• Perform semi-annual system checks including grounding integrity and connection torque.
