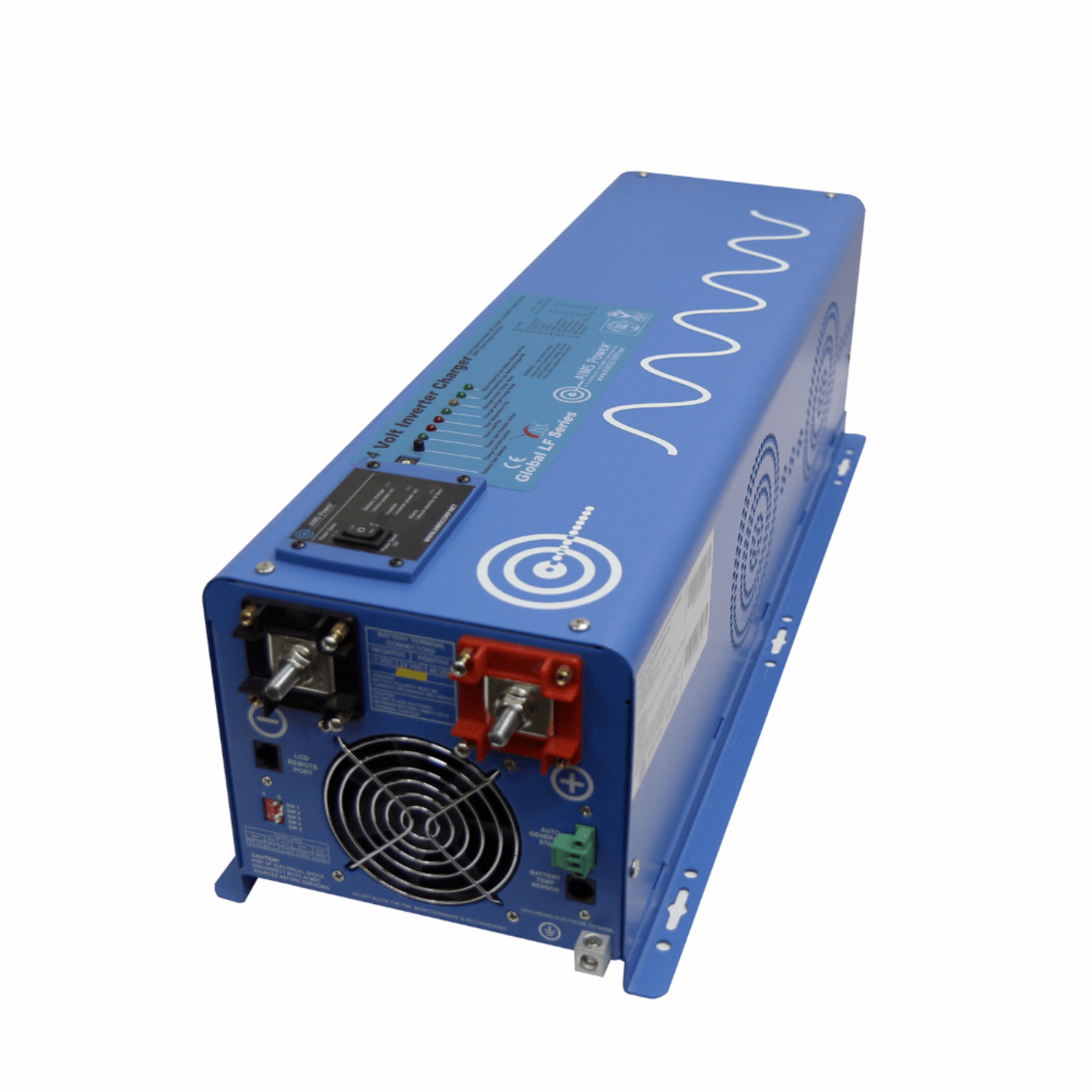

Aims Power 6000 Watt 48V Pure Sine Inverter Charger - PICOGLF60W48V120V

Aims Power 6000 Watt 48V Pure Sine Inverter Charger - PICOGLF60W48V120V

When you purchase a low frequency inverter charger from AIMS Power, you’re getting our top-of-the-line product offering. The unit is repairable, and we stand behind it with a free one-year warranty and tech support.

Built with a 48 volt DC input, this inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using 12 or 24 volts, which can be an attractive feature for sustainability lovers looking to live as efficiently as possible.

This inverter will output 120 Vac, and it can output 50 or 60Hz via the SW4 switch on the DC side of the product. This means the inverter works internationally and is operable with nearly any electrical system on the planet!

If you need a similar inverter with a bit more power, try our

This AIMS Power inverter is perfect for nearly any job, because it can handle even the most rugged conditions. It’s built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans.  And it’s protected from humidity or dust and dirt by virtue of its marine-coated or “conformal-coated” boards. This inverter provides the reliability needed in any business or residential emergency backup power applications.

Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere.

Features

• 6000 watt low frequency inverter 110 Vac Single Phase
• 18000 watt surge for 20 seconds -3x surge capability
• Battery priority selector
• AC direct connect terminal block
• Marine coated and protected
• Multi stage smart charger 80 Amp charges gel, lead, AGM, Lithium
• Remote panel available
• 60hz or 50 hz selectable dip switch
• 10msec typical transfer time
• Optional 25W power save mode
• 7 battery type settings for charger

 Specifications

• Continuous Output Power: 6000 Watts
• Surge Rating: 18000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• 100-110-120Vac
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC
• Ambient Operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 48.0Vdc
• Low Battery Alarm: 42.0Vdc-44.0Vdc
• Low Battery Trip: 40.0Vdc-42.0Vdc
• High Voltage Alarm: 64.0Vdc
• Low Battery Voltage Restart: 53.2Vdc
• Idle Consumption: 4.16 amps DC
• Power Saver Mode Idle Consumption: <0.83 amps DC

What our Experts Think

• The AIMS Power PICOGLF60W48V120V is a heavy-duty 6,000W pure sine wave inverter/charger designed for 48V off-grid and backup power systems.
• Delivers 6,000W continuous output with an impressive 18,000W surge capacity, making it suitable for high-demand appliances and motor startups.
• Built-in pure sine wave output ensures safe operation for sensitive electronics, including computers, medical equipment, and modern appliances.
• Integrated 80A smart battery charger allows direct charging from grid or generator input, reducing the need for separate charging equipment.
• Designed for 48V battery banks, improving efficiency and reducing DC current draw in large-scale systems.
• Supports automatic transfer switching (~10ms typical) for near-instant backup power during outages.
• Includes advanced system controls such as battery priority mode, generator auto-start, and selectable battery types (LiFePO4, AGM, gel, flooded).
• Built for off-grid homes, solar energy systems, RVs, industrial backup, and remote power installations.
• Marine-coated internal components and dual cooling fans enhance durability in harsh environments.


Q&A

Q: What is the AIMS Power PICOGLF60W48V120V 6000 Watt 48V Pure Sine Inverter Charger?
A: The AIMS Power PICOGLF60W48V120V is a 6000W low-frequency pure sine wave inverter/charger that converts 48V DC battery power into stable 120V AC electricity for off-grid, RV, solar, marine, and backup power systems.

Q: How much power does it deliver?
A: It provides 6000 watts of continuous output with up to 18,000 watts surge capacity (for ~20 seconds), making it suitable for heavy startup loads like pumps, compressors, and tools.

Q: Is it a pure sine wave inverter?
A: Yes. It produces pure sine wave power, ensuring safe, utility-quality electricity for sensitive electronics, appliances, and critical loads.

Q: What is the built-in charger feature?
A: It includes a multi-stage smart battery charger (typically up to ~80A), compatible with lithium, AGM, gel, and lead-acid batteries for fast and efficient recharging.

Q: What systems is it designed for?
A: It is designed for 48V solar systems, whole-home backup, RVs, boats, and off-grid installations requiring high-capacity inverter + charger integration.

Q: What key features does it include?
A: It features battery priority mode, automatic generator start, selectable 50/60Hz output, power-saving mode, remote panel support, and fast transfer switching (~10ms).

Q: What safety protections are built in?
A: It includes overload, over-temperature, short-circuit, and low/high voltage protections, plus advanced battery protection and system fault monitoring.

Q: Why choose this inverter charger?
A: It combines high 6kW output, strong surge handling, integrated smart charging, and industrial-grade durability—reducing the need for separate inverter and charger components.


Maintenance Tips

• Install in a cool, dry, well-ventilated location to prevent overheating during high-load operation and charging cycles.
• Keep dual cooling fans and air vents clean and unobstructed; dust buildup can reduce efficiency and trigger thermal shutdowns.
• Regularly inspect and tighten 48V battery cables, AC input terminals, and grounding connections to avoid voltage drop or charging faults.
• Ensure battery bank stays within proper operating range (about 40–64V DC) to prevent low/high voltage alarms or shutdowns.
• Use correct battery charging profiles (LiFePO4 / AGM / GEL settings) to avoid overcharging or improper float behavior.
• Periodically check the 80A internal charger performance and confirm expected charge current under load conditions.
• Avoid continuous operation at or near full 6000W load capacity; maintain a 20–30% safety margin for longevity.
• Monitor LCD panel for fault codes, overload warnings, or temperature alerts and address issues early.
• Keep firmware/dip-switch settings correctly configured for 50/60Hz and battery priority mode depending on system setup.
