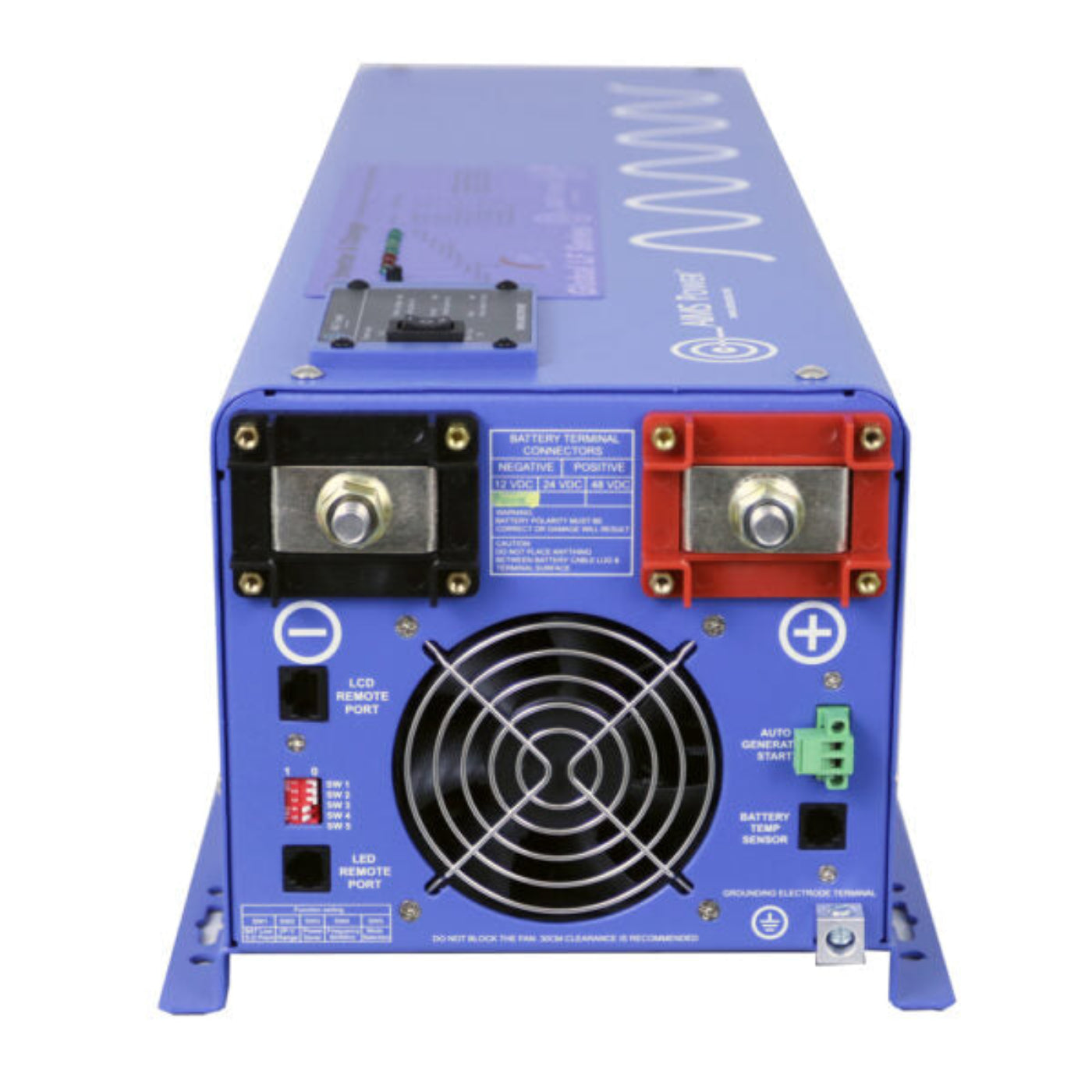

Aims Power 6000 Watt Pure Sine Inverter Charger 48Vdc / 240Vac Input & 120/240Vac Split Phase Output - PICOGLF60W48V240VS

Aims Power 6000 Watt Pure Sine Inverter Charger 48Vdc / 240Vac Input & 120/240Vac Split Phase Output - PICOGLF60W48V240VS

Specifications

• Continuous output power: 6000 Watt
• Surge rating: 18,000 Watt (20 seconds)
• Output waveform: pure sine/same as input (bypass mode)
• Output voltage: 100-110-120/220/230/240 VAC – split phase 120 & 240Vac
• Nominal efficiency: >88% (peak)
• Line mode efficiency: >95%
• Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical transfer time: 10ms (Max)
• THD: < 10% DC
• Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal input voltage: 48 VDC
• Minimum start voltage: 44 VDC
• Low battery alarm: 42 Vdc-44  VDC
• Low battery trip: 40 VDC-42VDC
• High voltage alarm: 64 VDC
• Low battery voltage restart: 53.2 VDC
• Idle consumption: 1.67 amps DC
• Power saver mode idle consumption: <.83 amps DC

Charger Specifications

• Output voltage: depends on battery type
• Charger rate: 60A
• Selectable charge setting based on battery type
• Adjustable charge current off-20%-100%
• Four stage smart charger

Transfer Switch Specifications

• 75 amp @ 120 Vac and 40 AMP @ 240 Vac automatic transfer switch (bypass)
• 10 ms (max)

Dimensions

• Unit weight: 80 lbs.
• Unit size: L x W x H: 27.88 x 8.74 x 7.10 inches
• Shipping weight: 89 lbs.
• Shipping size: L x W x H: 30.5 x 14.25 x 13.75 inches

What our Experts Think

• The AIMS Power PICOGLF60W48V240VS is a heavy-duty 6,000W low-frequency pure sine wave inverter/charger designed for 48V DC systems with 120/240V split-phase output, built for whole-home, RV, and off-grid energy systems.
• Delivers 6,000W continuous output with 18,000W surge (≈3× for motor start loads), making it capable of handling well pumps, HVAC units, and multiple household appliances simultaneously.
• Supports 120/240V split-phase output, allowing direct connection to residential breaker panels and both large 240V loads and standard 120V circuits at the same time.
• Includes a built-in inverter + 60A multi-stage smart charger + automatic transfer switch, creating a complete hybrid power hub in a single unit.
• Designed for 48V battery architecture, improving efficiency and reducing DC current compared to 12V or 24V systems in high-power applications.
• Provides ~10ms transfer time, enabling near-UPS performance during grid or generator switching.
• Supports battery priority modes, generator auto-start, and programmable charging profiles, making it highly adaptable for hybrid solar setups.
• Low-frequency transformer design improves surge handling and durability under sustained heavy loads, especially motor-driven equipment


Q&A

Q: What is the AIMS Power PICOGLF60W48V240VS 6000 Watt Pure Sine Inverter Charger?
A: The AIMS Power PICOGLF60W48V240VS is a heavy-duty 6000W low-frequency pure sine wave inverter/charger designed for 48V battery systems, delivering split-phase 120/240V AC power for whole-home, off-grid, RV, and backup applications.

Q: How much power does it deliver?
A: It provides 6000W continuous output with up to 18,000W surge capacity (around 20 seconds), allowing it to start large motors, pumps, and HVAC loads.

Q: What type of output does it produce?
A: It delivers pure sine wave split-phase power (120V/240V), suitable for residential electrical panels, sensitive electronics, and inductive loads.

Q: What input and charging capability does it have?
A: It runs on 48V DC battery banks and includes a built-in multi-stage smart charger (around 60A) for lithium, AGM, gel, and lead-acid batteries.

Q: Can it switch between grid, generator, and battery automatically?
A: Yes. It includes an automatic transfer switch (~10 ms typical) that enables seamless switching between utility/generator power and battery inverter mode.

Q: What key features does it include?
A: It offers battery priority mode, generator auto-start support, remote monitoring capability, power-saving mode, hardwire AC terminals, and auto frequency detection (50/60Hz).

Q: What safety protections are built in?
A: It includes overload, short-circuit, over-temperature, and high/low DC voltage protection, plus resettable breakers and marine-coated components for durability.

Q: Where is it typically used?
A: It is commonly used in off-grid homes, large RV systems, workshops, and backup power systems requiring reliable split-phase 120/240V output.

Q: Why choose this inverter charger?
A: It combines inverter, battery charger, and transfer switch in one industrial-grade system, offering high surge capacity, stable split-phase output, and strong reliability for whole-system backup power.


Maintenance Tips

• Install in a cool, dry, well-ventilated location; this unit draws high current and generates heat under sustained 5–6kW loads.
• Keep fans, air inlets, and internal heat sinks dust-free to prevent thermal throttling or shutdown during heavy charging/inverting.
• Regularly torque-check 48V DC battery cables and lugs—even slight resistance at this power level causes heat buildup and voltage drop.
• Maintain battery bank within proper 40–64V DC operating range to avoid low-voltage alarms and charger instability.
• Ensure correct split-phase wiring balance (120/240V legs) to avoid uneven loading and inverter stress.
• Configure proper battery type profile (LiFePO₄/AGM/GEL) to prevent overcharging or poor absorption behavior.
• Periodically test transfer switch (~10 ms UPS function) to ensure seamless backup operation.
• Inspect AC hardwire terminals, breakers, and generator input lines for heat marks or looseness after heavy use.
• Avoid continuous operation near full 6000W output or 60A charging limit—keep 20–30% headroom for longevity.
• Check monitoring system (LCD/remote) for fault codes, temperature warnings, or overload logs and address early.
