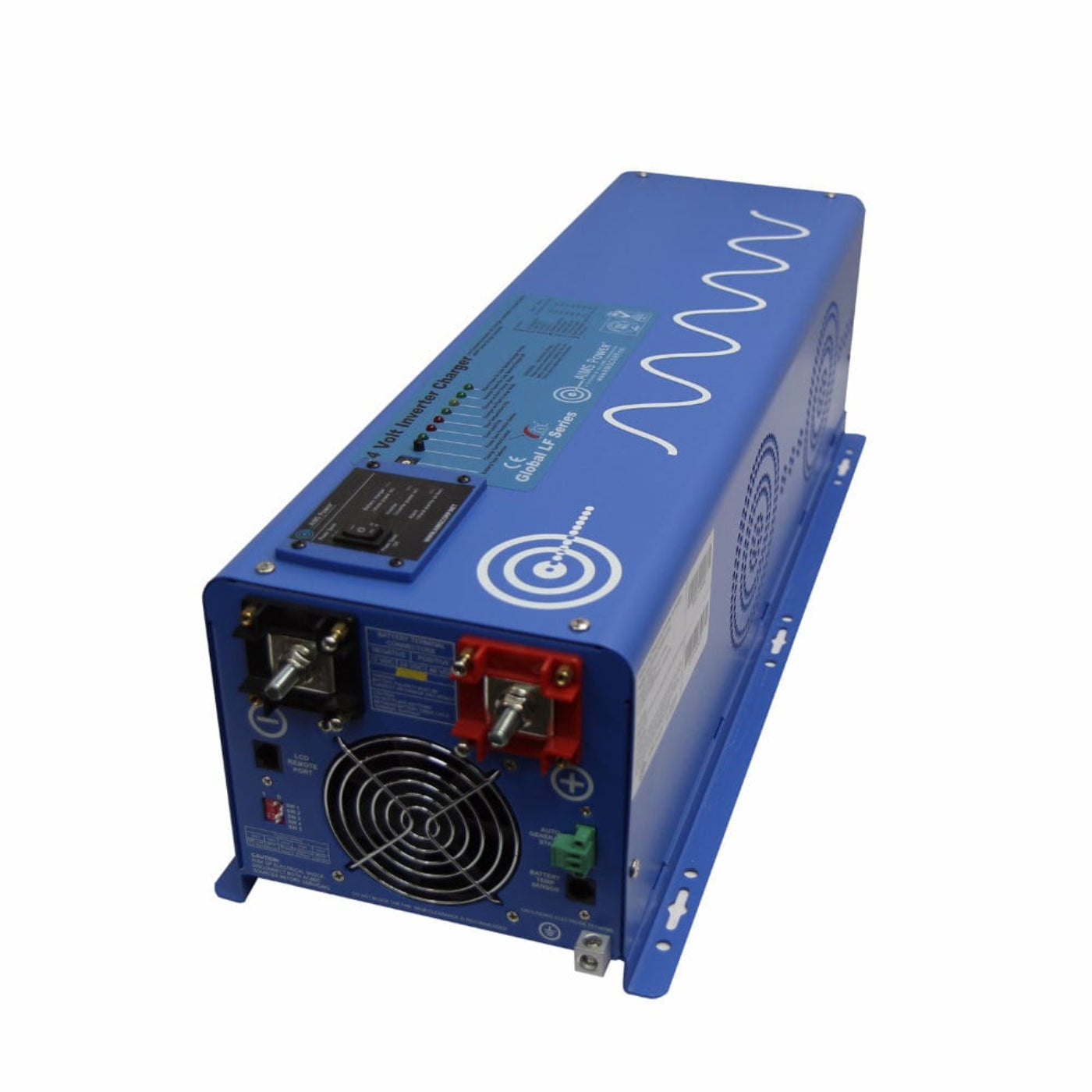

Aims Power 6000 Watt 24V Pure Sine Inverter Charger - PICOGLF60W24V240VS

Aims Power 6000 Watt 24V Pure Sine Inverter Charger - PICOGLF60W24V240VS

Combine this solar inverter charger with a for off-grid, mobile and emergency backup power.

The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 18000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers.

If you’re looking for an inverter with similar capabilities but a lower wattage capacity, check out the 2000 watt low frequency AIMS Power inverter charger.

Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110/120 OR 220/230/240 volts of alternating current. The inverter accepts 24 volts DC, which makes it great for vehicle upfitting as well as boat and RV applications that use a 24 volt battery system.  The inverter outputs 120/240 volts AC.

The marine-coated or conformal-coated boards also make this inverter great for mobile applications, as it protects the product from dust or water vapor that may be present in the air.

A low frequency label has been given to this inverter because of the lowered level of total harmonic distortion (THD) produced during the DC to AC inversion process. This allows for a cleaner transfer of energy, which increases efficiency, and it also provides a quieter performance.

This inverter will also run powerful tools like most electric chainsaws, portable grinders, shop vacs, and more.

This 6000 watt inverter charger produces a pure sine wave, which some appliances require for use. It can run laser jet printers, computers, televisions, CPAP machines and other medical equipment.

During a big storm that knocks out electricity, a battery-bank and power inverter running a sump pump could be the difference that saves a home from flooding. The power to run a heater could save someone thousands of dollars by keeping plumbing pipes from freezing.

Also great for emergency backup power applications is the automatic transfer switch on this unit, which keeps the power supply uninterrupted in the event of an outage. With the inverter hooked up to shore power, it will detect the loss of electricity and start pulling energy from a connected battery bank instead to keep the power supply constant.

This inverter also has an optional remote port, allowing you to turn the product on and off from a distance.

Other popular applications for this inverter include powering lights and other appliances in an off-grid cabin, providing electricity for a mobile business or mobile office, and running camping equipment.

Features

• 6000 watt low frequency inverter 110/220Vac Split Phase
• 18000 watt surge for 20 seconds -3x surge capability
• Battery Priority Selector
• Terminal Block
• GFCI
• Marine Coated and Protected
• Multi Stage Smart charger 85 Amp charges GEL, Lead, AGM, Lithium
• remote panel available
• auto frequency
• 10msec typical transfer time
• selectable 25W power save mode (hibernation)
• 8 battery charger settings

Specifications

• Continuous Output Power: 6000 Watts
• Surge Rating: 18000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 10% DC
• Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications

• Nominal Input Voltage: 24.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc
• High Voltage Alarm: 32.0Vdc
• Low battery Voltage Restart: 26.6Vdc
• Idle Consumption: 76.8 Watts
• Idle Consumption in Power Saver Mode: 29 Watts

Charger Specifications

• Output voltage: Depends on battery Type
• Charger Rate: 85A

Dimensions

• Unit Weight: 79 lbs.
• Unit Size L x W x H: 27.88 x 8.5 x 7.0 inches
• Shipping Weight: 84 lbs.
• Shipping L x W x H 30.5 x 14.5 x 13.75 inches

What our Experts Think

• The AIMS Power PICOGLF60W24V240VS is a heavy-duty 6,000W low-frequency pure sine wave inverter/charger designed for 24V split-phase systems, ideal for whole-home, RV, and industrial backup power.
• Delivers 6,000W continuous power with 18,000W surge (up to 20 seconds), giving strong startup capability for motors, pumps, and compressors.
• Built-in split-phase 120/240V output allows it to directly support residential-style electrical panels and larger appliances.
• Integrated inverter + smart battery charger + transfer switch, making it a complete off-grid or backup power hub.
• Includes a high-capacity ~85A multistage charger, enabling fast charging from generator or grid input.
• Offers automatic transfer switching (~10 ms typical) for near-seamless UPS-style backup during outages.
• Supports generator auto-start, battery priority modes, and multiple battery chemistry profiles, improving system flexibility.
• Low-frequency design provides better surge handling and durability under heavy inductive loads compared to high-frequency inverters.
• Built for off-grid homes, large RV systems, workshops, and solar hybrid installations requiring stable high-power output.

Q&A

Q: What is the AIMS Power PICOGLF60W24V240VS 6000W 24V Pure Sine Inverter Charger?
A: The AIMS Power PICOGLF60W24V240VS is a 6000W low-frequency pure sine wave inverter/charger that converts 24V DC battery power into 120V/240V AC split-phase electricity for off-grid homes, RVs, and backup power systems.

Q: How much power does it deliver?
A: It provides 6000W continuous power with up to 18,000W surge (for ~20 seconds), making it suitable for heavy motor loads like pumps, compressors, and HVAC equipment.

Q: What type of output does it produce?
A: It delivers pure sine wave output with 120V/240V split-phase capability, ensuring safe operation for sensitive electronics and whole-home systems.

Q: Does it include a battery charger?
A: Yes. It features a built-in multi-stage smart charger (up to ~85A) compatible with lithium, AGM, gel, and lead-acid batteries.

Q: What key features does it have?
A: It includes automatic transfer switching (~10ms), battery priority mode, auto generator start, selectable 50/60Hz, and power-saving mode for efficient system control.

Q: Is it suitable for whole-house or off-grid systems?
A: Yes. It is designed for larger off-grid solar setups, small homes, workshops, and backup systems requiring 240V split-phase power and high surge capacity.

Q: What safety protections are included?
A: It includes overload, short-circuit, over/under-voltage, and over-temperature protection, along with marine-coated housing for durability in harsh environments.

Q: Why choose this inverter charger?
A: It combines a high-power inverter, smart charger, and transfer switch in one unit, reducing system complexity while delivering reliable whole-system backup power.


Maintenance Tips

• Install in a cool, dry, and well-ventilated area; this 6kW low-frequency unit generates significant heat during charging and heavy loads.
• Keep dual cooling fans and internal vents clean and dust-free to prevent overheating, fan noise issues, or thermal shutdowns.
• Regularly inspect and tighten 24V battery cables, DC terminals, and grounding connections—high current draw makes loose connections a major failure point.
• Ensure your battery bank stays within proper operating voltage range (24V system ~20–31V range depending on load/charging state) to avoid low/high voltage alarms.
• Use correct battery charging profile settings (LiFePO4 / AGM / GEL) to prevent overcharging or undercharging and maintain long battery life.
• Avoid running continuously at or near full 6000W output; keeping a 20–30% load buffer improves efficiency and lifespan.
• Periodically verify the 85A smart charger performance and transfer switch operation (~10ms switchover) for reliable backup power behavior.
• Check LCD/remote panel for fault codes, temperature warnings, or overload alerts and act early before damage escalates.
• Keep surrounding space clear of flammable materials and ensure proper grounding and surge protection for safety.
