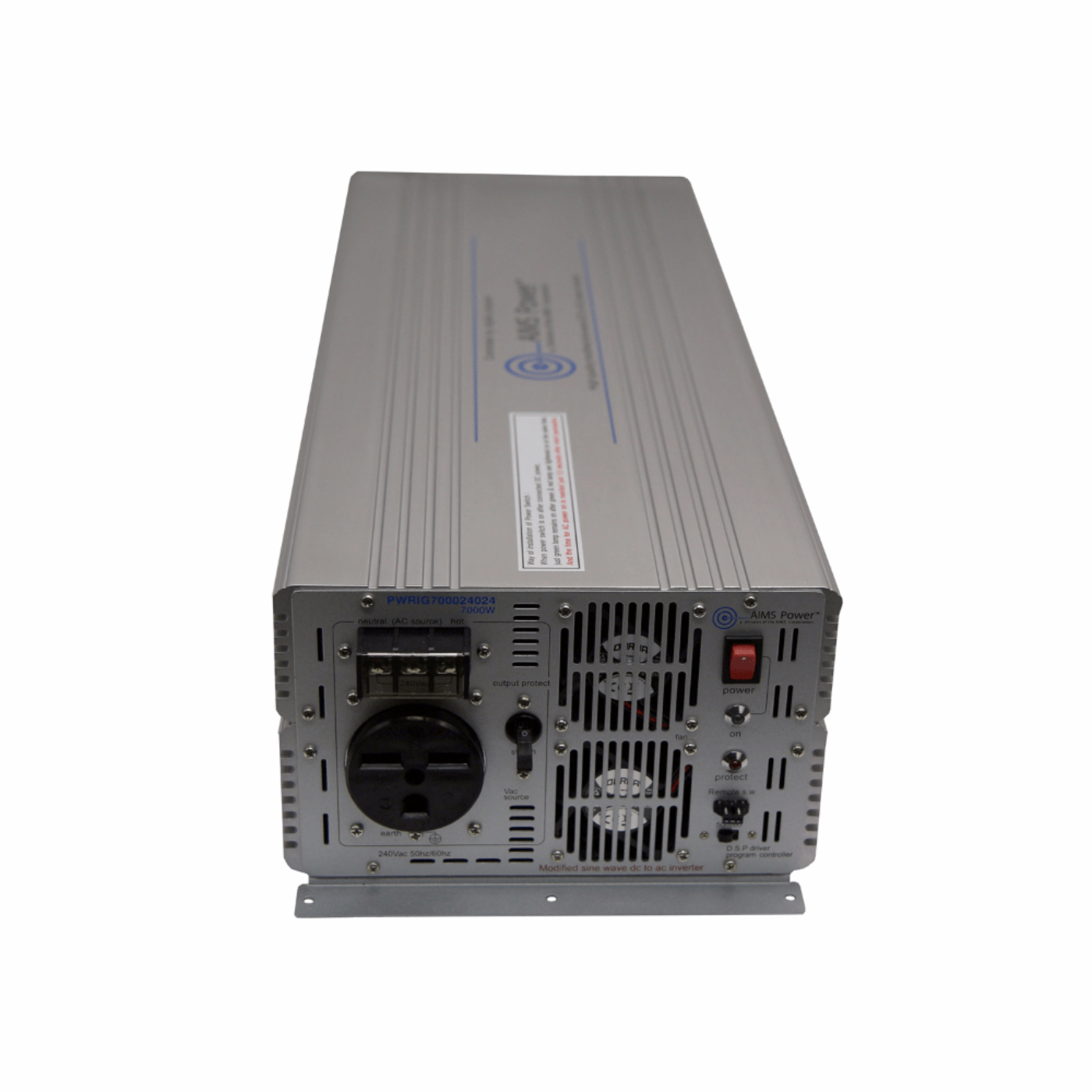

Aims Power 7000 Watt 24V Modified Sine Power Inverter - Industrial Grade - PWRIG700024024

Aims Power 7000 Watt 24V Modified Sine Power Inverter - Industrial Grade - PWRIG700024024

At 7000 watts and up to 14,000 watts for 9 seconds, 24 VDC the Industrial Grade Modified Sine Wave Power Inverter promises to be a complete solution for any power need you present. From recreation to industrial applications or off-grid home and solar power needs, this 7000 watt modified sine wave inverter delivers enough durable power for high end equipment that requires substantial electricity powering items that require 240 VAC. It's rugged design is great for high vibration environments and operates in extreme temperatures.This digitally outputted and phase corrected inverter is the recommended power solution for clean reliable output without noise or distortion. Delivering an incredible 7000 watts of continuous power this utility-grade inverter was designed to reproduce the quality of electricity provided by power companies to create a stable AC power source. This inverter supplies ample power to run large pumps compressors power tools multiple appliances job sites and even a small house! It has PWM programming which corrects any fluctuation in voltage or frequency caused by battery fluctuation or sudden surges in power usage. It also has a longer than average surge time (9 seconds when over 7000 watts).

Features

• 7000W max continuous power
• Modified sine wave
• Select-able frequency switch for 50 Hz or 60 Hz
• Power switch LED is also a self test light – Green
• Overload fail LED – Red
• Over Temperature LED indicator
• Over Load LED indicator
• 1 AC receptacles 240 volt
• Direct connect terminal block for full load applications
• On/off switch
• Over Temperature protection
• Over Load protection
• Thermally controlled fan
• Percent load usage LED bar
• Externally located re-settable circuit breakers
• ac output short circuit protection
• Aluminum case for optimal cooling
• Pre-wired for remote on/off switch
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support


Specifications

• Continuous output power: 7000 Watts
• Surge power capability (peak power): 14000 Watts
• dc input / operating voltage: 20-30 Volts
• Output voltage: 247 Volts ac +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 50/60 Hz +/- 1 Hz
• Battery low voltage alarm: 20 +/- 0.5 Volts
• Battery low voltage shutdown: 19.5 +/- 0.5 volts
• High input voltage protection 34 +/-0.5 volts
• No load current: 200mA
• Start up AC amps: 58
• Continuous AC amps: 29
• Full load efficiency: 90%
• Auto Cooling Fan Start at 107 degrees F
• Full load maximum operating temperature: 163 degree F
• AC Output Socket Type: single 240 volt plug
• Internal fuse protection
• Product size (D x W x H): 21.26” X 8.43” X 5.35”
• Weight: 26.5 lbs

What our Experts Think

• Serious High-Power Performance: With 7000W continuous power and 14,000W surge capacity, this inverter is built to handle demanding equipment, motors, compressors, pumps, and job-site tools.
• Industrial-Grade Construction: Designed for heavy-duty use with robust protection features, thermally controlled cooling, and a durable aluminum housing for long-term reliability.
• Efficient 24V System Design: The 24V DC input helps reduce cable size and current draw, making it a smart choice for larger battery banks and off-grid power systems.
• Strong Surge Handling: The extended 9-second surge capability provides extra starting power for high-demand loads that many standard inverters struggle to support.
• Flexible Global Operation: Selectable 50Hz/60Hz output makes it suitable for international, industrial, and remote power applications.
• Best For: Construction sites, off-grid cabins, backup power systems, mobile businesses, workshops, and applications requiring substantial 240V AC power.
• Expert Note: The modified sine wave design offers excellent value for heavy-duty loads, though pure sine wave inverters remain the preferred choice for highly sensitive electronics.

Q&A

Q: What can the AIMS Power PWRIG700024024 inverter power?
A: With 7,000 watts of continuous power and 14,000 watts of surge capacity, it can run large pumps, compressors, power tools, appliances, job-site equipment, and other high-demand loads.

Q: What type of output does this inverter provide?
A: It delivers modified sine wave power with phase correction, making it a cost-effective solution for many industrial and heavy-duty applications.

Q: What battery system is required?
A: This inverter operates from a 24V DC battery bank and converts power to 240V AC output.

Q: Is it suitable for off-grid and backup power systems?
A: Yes. It is designed for off-grid cabins, construction sites, mobile businesses, emergency backup systems, and industrial applications.

Q: What safety features are included?
A: The inverter includes overload, short-circuit, over-temperature, low-voltage, and high-voltage protection, along with resettable circuit breakers.

Q: Does it support international power requirements?
A: Yes. A selectable 50Hz/60Hz frequency switch allows compatibility with a wide range of power applications.

Maintenance Tips

• Install in a clean, dry, and well-ventilated location to maximize cooling performance.
• Keep cooling fans, vents, and heat sinks free of dust and debris for efficient airflow.
• Inspect 24V battery connections, DC cables, and terminal blocks regularly for corrosion or loose connections.
• Tighten all wiring connections periodically to prevent voltage drop and overheating.
• Monitor battery voltage and maintain batteries according to manufacturer recommendations.
• Avoid operating continuously above the inverter’s 7000W rated capacity.
• Check for overload, over-temperature, and fault indicators during routine inspections.
• Protect the inverter from moisture, extreme temperatures, and excessive vibration.
• Disconnect all power sources before cleaning or performing maintenance.
• Test inverter operation regularly to ensure reliable backup, industrial, and off-grid power performance.
