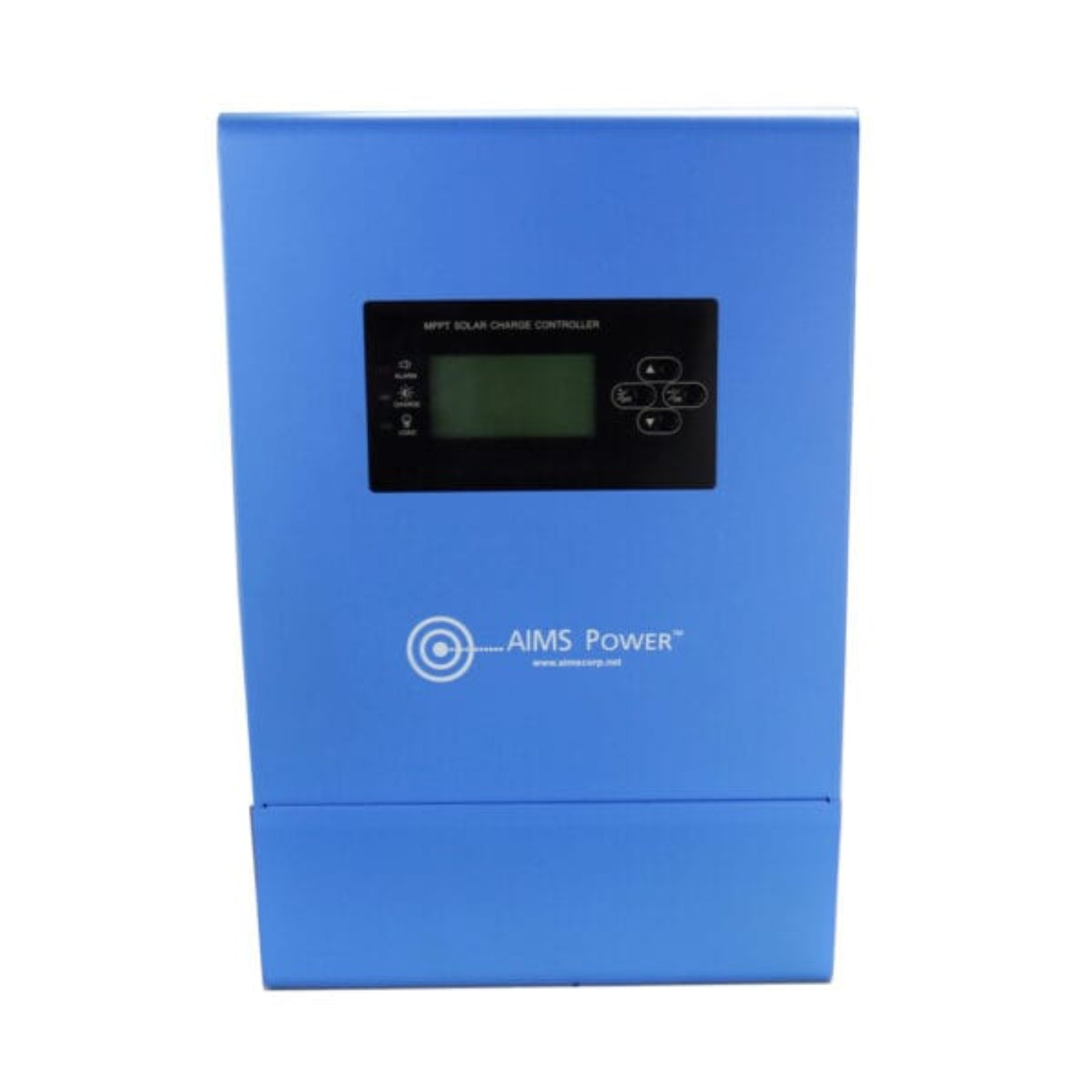

Aims Power 80 Amp MPPT Solar Charge Controller - SCC80AMPPT

Aims Power 80 Amp MPPT Solar Charge Controller - SCC80AMPPT

This solar battery charge controller by AIMS Power features a smart tracking algorithm using MPPT charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions. This charge controller also has temperature compensation protection using the included battery temperature sensor. Charges 12, 24, 36 and 48 volt solar systems with multistage charging technology and adjusts according to battery type.

The AIMS charge controller includes LED indicators to show charging status and faults. An LCD displays key information such as

• battery voltage and capacity
• solar panel voltage and wattage
• solar panel charging current
• KWH produced
• battery charge mode
• DC load (current)

Features

• MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
• Quality heatsink cooling – no fans needed and no thermal derating
• Battery type selector and user defined charging voltage
• 4 stage charging
• PV input, battery output and load control ports
• Stackable
• Reliable electronics, over engineered components generating less heat
• Very efficient up to 99%
• Low self consumption
• Thermal design rugged case
• Over temp protection
• Overload, short circuit, high and low voltage protection
• RS485 port for computer monitoring
• CE, ETL to UL1741 and RoHS compliant
• Marine coated
• Mounting holes

Specifications

ELECTRICAL
PV Operating Voltage:

• 15-150Vdc@12V
• 34-150Vdc@24V
• 50-150Vdc@36V
• 60-150Vdc@48V

Rated PV input:

• 12V – 1200 Watts
• 24V – 2400 watts
• 36V – 3600 watts
• 48V – 4800 watts

• Maximum charging current: 80 amps
• Maximum DC load current: 60 amps
• Max PV open circuit voltage: 150Vdc
• Self power consumption: <4 watts
• Efficiency: 98.5%
• Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
• Monitoring: RS485 port for computer monitoring
• Optimal cooling case design – built for extreme conditions

CHARGING

• Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
• 4 Stage charging: bulk, absorption, float and equalize
• Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V
• Float charge voltage:  sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V
• Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V
• Low voltage reconnection: 12.5V
• Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)

MECHANICAL

• Enclosure: IP43 protection, metal
• Cooling: heatsink
• Humidity: 100% non-condensing
• Temperature compensation: -5mV⁰C / 2V with BTS
• Temperature range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
• Conformal coated for marine environments
• Wire knockouts: 1.25”
• Unit weight: 19 lbs
• Boxed weight: 21 lbs
• Dimensions: 14”L x 9”W x 4.7”H


What our Experts Think

• High-capacity 80A MPPT solar charge controller delivers efficient power management for large off-grid and hybrid solar systems.
• Advanced MPPT technology maximizes solar harvest by continuously optimizing voltage and current for higher charging efficiency.
• Superior performance vs PWM controllers especially in low-light, cloudy, or partial-shading conditions.
• Supports larger solar arrays making it ideal for cabins, homes, RV systems, and commercial-scale battery storage setups.
• Multi-stage smart charging (bulk, absorption, float) helps extend battery life and improve long-term system reliability.
• Automatic battery voltage detection (system dependent) simplifies setup across 12V/24V/48V configurations.
• Comprehensive built-in protections guard against overcharging, reverse polarity, overheating, and electrical faults.
• Ideal for high-output solar installations requiring dependable energy regulation and efficient battery charging performance.


Q&A

Q: What is the AIMS Power SCC80AMPPT used for?
A: Aims Power 80 Amp MPPT Solar Charge Controller - SCC80AMPPT is a high-efficiency solar charge controller that regulates power from solar panels to charge 12V, 24V, 36V, or 48V battery banks in off-grid and hybrid solar systems.

Q: What does MPPT technology do in this controller?
A: It uses Maximum Power Point Tracking (MPPT) to continuously optimize solar input, increasing charging efficiency up to ~99% by extracting maximum usable power from PV panels.

Q: What battery systems is it compatible with?
A: It supports 12V, 24V, 36V, and 48V systems, including lithium, AGM, gel, flooded lead-acid, and user-defined battery profiles.

Q: What is the maximum charging capacity?
A: It delivers up to 80A charging current and supports up to 4800W of solar input on a 48V system (lower limits apply at 12V/24V/36V configurations).

Q: What are the key protection features?
A: It includes protection against overcharging, over-voltage, overload, short-circuit, overheating, and low-voltage conditions for system safety.

Q: Can it be used in off-grid solar systems?
A: Yes. It is designed specifically for off-grid cabins, RVs, homes, and commercial solar setups requiring efficient battery charging.

Q: Does it support system monitoring?
A: Yes. It includes an RS485 communication port for external monitoring and configuration, plus LCD/LED status indicators.

Q: Why is this controller considered high-efficiency?
A: It achieves up to ~98–99% efficiency with low self-consumption (<4W), helping maximize usable solar energy in battery-based systems.

Q: What makes this a good choice for larger solar arrays?
A: Its 80A output, wide voltage support, and high PV input capacity make it suitable for mid-to-large off-grid solar systems with expandable panel banks.


Maintenance Tips

• Install in a cool, dry, well-ventilated indoor or weather-protected enclosure to maintain high MPPT efficiency (up to ~98–99%).
• Ensure heatsink fins stay dust-free; although fanless, thermal performance depends on passive cooling airflow.
• Regularly inspect PV input, battery output, and load terminals for tightness, corrosion, and heat discoloration.
• Use properly sized cables to reduce voltage drop—especially important at 80A max charging current.
• Keep PV array voltage within safe limits (up to 150V max input depending on system configuration) to avoid controller damage.
• Verify correct battery type settings (AGM, flooded, gel, lithium, user-defined profiles) for proper 4-stage charging.
• Periodically check battery temperature sensor (BTS) placement and condition for accurate temperature compensation charging.
• Monitor system via LED indicators or RS485 interface for fault codes, over-temp, or over-voltage warnings.
• Inspect fuses, breakers, and disconnects on both PV and battery sides to ensure safe isolation during maintenance.
• Avoid reverse polarity or incorrect string configuration—these are common causes of irreversible controller damage.
• Ensure proper grounding and surge protection (lightning protection recommended for outdoor PV arrays).
• Perform periodic system checks (every 3–6 months): torque verification, voltage validation, and PV performance review.
