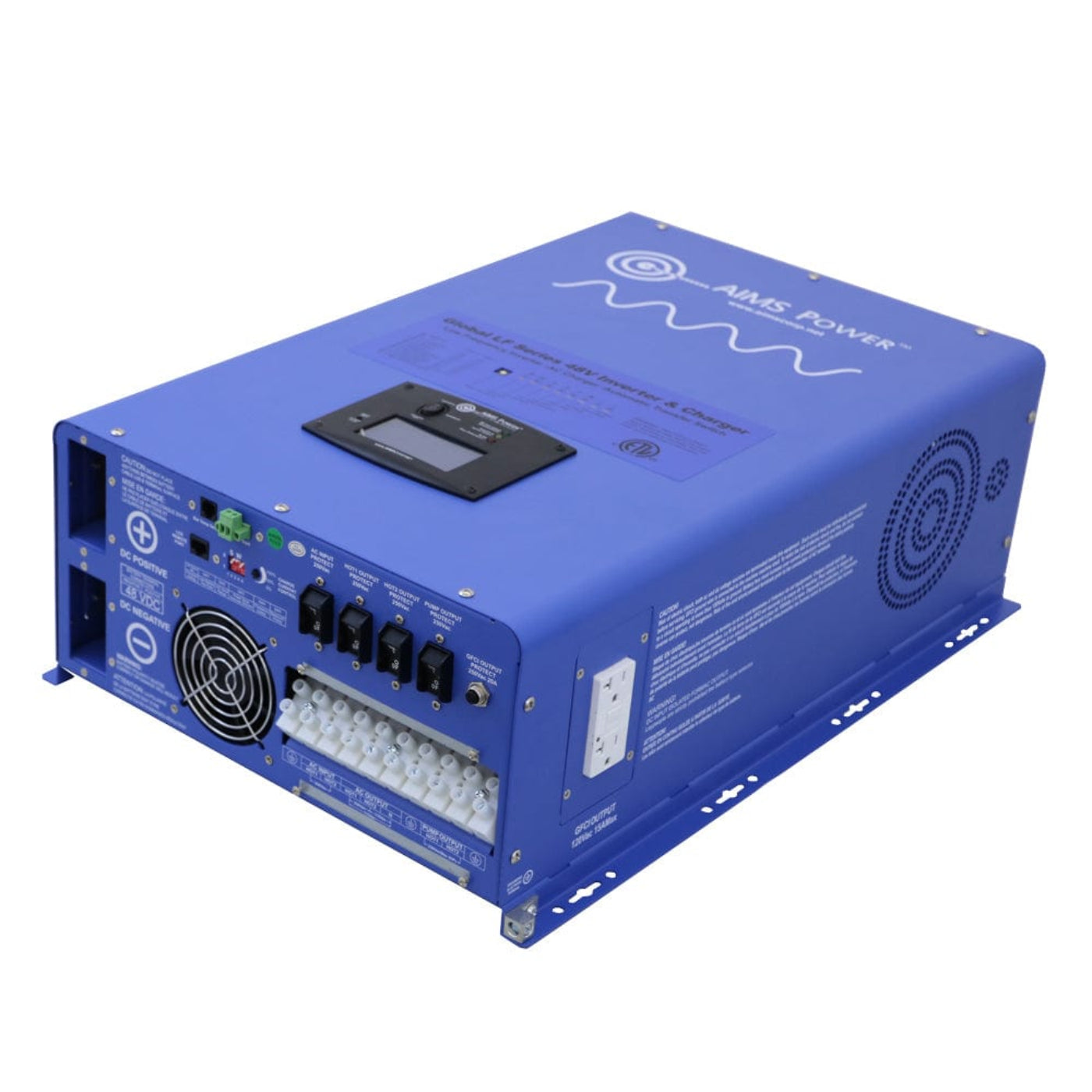

Aims Power 8000 Watt 48V Pure Sine Inverter Charger ETL Listed - PICOGLF80W48V240VS

Aims Power 8000 Watt 48V Pure Sine Inverter Charger ETL Listed - PICOGLF80W48V240VS

Our line of ETL listed to UL 1741 Standards 48 Volt DC to 120/240 Volt AC inverter chargers is the power house for back up, off grid systems. Built with a 48 Volt DC input, these inverter chargers perform with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts. This can be an attractive feature for sustainability lovers looking to live as efficiently as possible. The most common use for this inverter is emergency backup power for residences and businesses. You’ll always be prepared for the next power outage with access of up to 12,000 watts (depending on model) of continuous power and 36,000 watts of surge (for up to 20 seconds). We recommend recharging your battery bank with AIMS Power solar panels — a cleaner form of power. One of the most sought-after features this inverter has is the direct-connect terminal block, which allows users to surpass the 8Kw or 12Kw capacity and harness its 300% surge power (up to 24Kw or 36Kw watts for 20 seconds as previously noted). Have a hunting cabin or off-grid vacation home? This AIMS Power inverter charger is perfect for supplying reliable electricity to the entire house. This inverter is also built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans. And it’s protected from humidity or airborne dust and dirt by virtue of its marine-coated (or “conformal-coated”) boards. This inverter provides the reliability needed in any business or residential emergency backup power application. The inverter is a split-phase and will output 110/120 or 220/230/240 Vac, and it can output 50 or 60Hz via the SW4 dipswitch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet! This beast of an inverter can pretty much get any job done imaginable. The development of this new DC-to-AC inverter technology puts this product in high demand among AIMS Power customers. When you purchase a low frequency inverter charger from AIMS Power, you’re getting our top-of-the-line product offering. The unit is repairable, and we stand behind it with a free two-year warranty and tech support. Make a step in the right direction when it comes to preserving this beautiful planet by choosing an inverter powered by renewable energy when building your next electrical system.

Features

• 8000 Watt low frequency inverter 110/120/220/230/240 Vac Split Phase
• 24000 Watt surge for 20 seconds -3x surge capability
• ETL Listed to UL 1741 Standards
• CSA STDC 22.2 NO.107.1
• Battery priority selector
• AC direct connect terminal block
• Marine coated and protected
• Multi stage smart charger 80 Amp charges GEL, Lead, AGM, Lithium
• Three cooling fans - thermal and load based
• Remote panel available
• 60hz or 50 hz selectable dip switch
• 10msec typical transfer time
• Mounting plate included
• Selectable 25W power save mode (hibernation)
• 8 battery charger settings
• 4 stage battery charger


Specifications

• Continuous Output Power: 8000 Watts
• Surge Rating: 24000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• 100-110-120Vac / 220-230-240Vac
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: < 7% under full linear load
• Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

What our Experts Think

• Reliable 1500W pure sine inverter/charger delivers clean 120V AC power with integrated battery charging in a single compact unit.
• ETL listed certification adds confidence in safety compliance and suitability for residential, RV, and off-grid applications.
• Pure sine wave output ensures stable operation for sensitive electronics, medical devices, and everyday appliances.
• Built-in multi-stage charger provides efficient and controlled battery charging when connected to shore power or generator input.
• Automatic transfer switch functionality enables seamless switching between grid/generator and battery power without interruption.
• 12V DC compatibility makes it a strong fit for RVs, boats, vans, and small solar energy systems.
• High surge capability supports short bursts of demand from appliances like refrigerators, pumps, and small tools.
• All-in-one power management solution designed for users needing reliable backup power, mobility, and simplified system integration.


Q&A

Q: What is the AIMS Power PICOGLF15W12V120V used for?
A: Aims Power 1500 Watt Pure Sine Inverter Charger - ETL Listed - PICOGLF15W12V120V is an inverter, battery charger, and automatic transfer switch designed for RVs, boats, cabins, and backup power systems.

Q: What does “ETL Listed” mean?
A: ETL Listing means the unit has been independently tested for safety standards, ensuring compliance with recognized electrical safety requirements for North American use.

Q: What power output does it provide?
A: It delivers 1500W continuous power with surge capability for short-term startup loads like small motors and appliances.

Q: What type of power does it produce?
A: It produces pure sine wave output, delivering clean, utility-grade power suitable for sensitive electronics and household devices.

Q: Does it include a battery charger?
A: Yes. It includes a multi-stage charger that can recharge batteries when connected to shore power or a generator.

Q: What is the benefit of an inverter charger?
A: It combines inverter, charger, and transfer switch functions in one unit, allowing automatic switching between battery and external AC power sources.

Q: What systems is it compatible with?
A: It is designed for 12V battery systems commonly used in RVs, marine applications, and small off-grid setups.

Q: What devices can it run?
A: It can power laptops, TVs, lighting, fans, routers, and small appliances within its 1500W capacity.

Q: Why choose this ETL-listed model?
A: The ETL certification adds an extra layer of verified safety compliance, making it suitable for installations requiring certified electrical equipment.


Maintenance Tips

• Install in a cool, dry, and dust-free electrical space with strong airflow to support continuous high-load operation.
• Keep all cooling fans, vents, and heat sinks clean; this 8kW unit uses forced-air cooling that must remain unobstructed for safe operation.
• Regularly inspect 48V DC battery bank connections, busbars, and high-current fuses/breakers for tightness, corrosion, and heat discoloration.
• Use properly sized industrial-grade cabling to minimize voltage drop and prevent overheating under heavy load.
• Monitor the display for fault codes, temperature warnings, load percentage, and battery voltage trends to catch issues early.
• Avoid exceeding 8000W continuous / 24,000W surge (20 seconds) to protect internal MOSFETs and transformer components.
• Ensure proper split-phase balancing (120/240V loads) to avoid uneven stress across inverter output stages.
• Keep AC input (grid or generator) stable and properly grounded, as poor input quality can affect charging performance.
• Perform periodic maintenance (every 3–6 months): fan cleaning, terminal re-torque, and load testing under real operating conditions.
• Check charger settings and battery profiles (AGM, lithium, lead-acid) are correctly configured for safe multi-stage charging.
