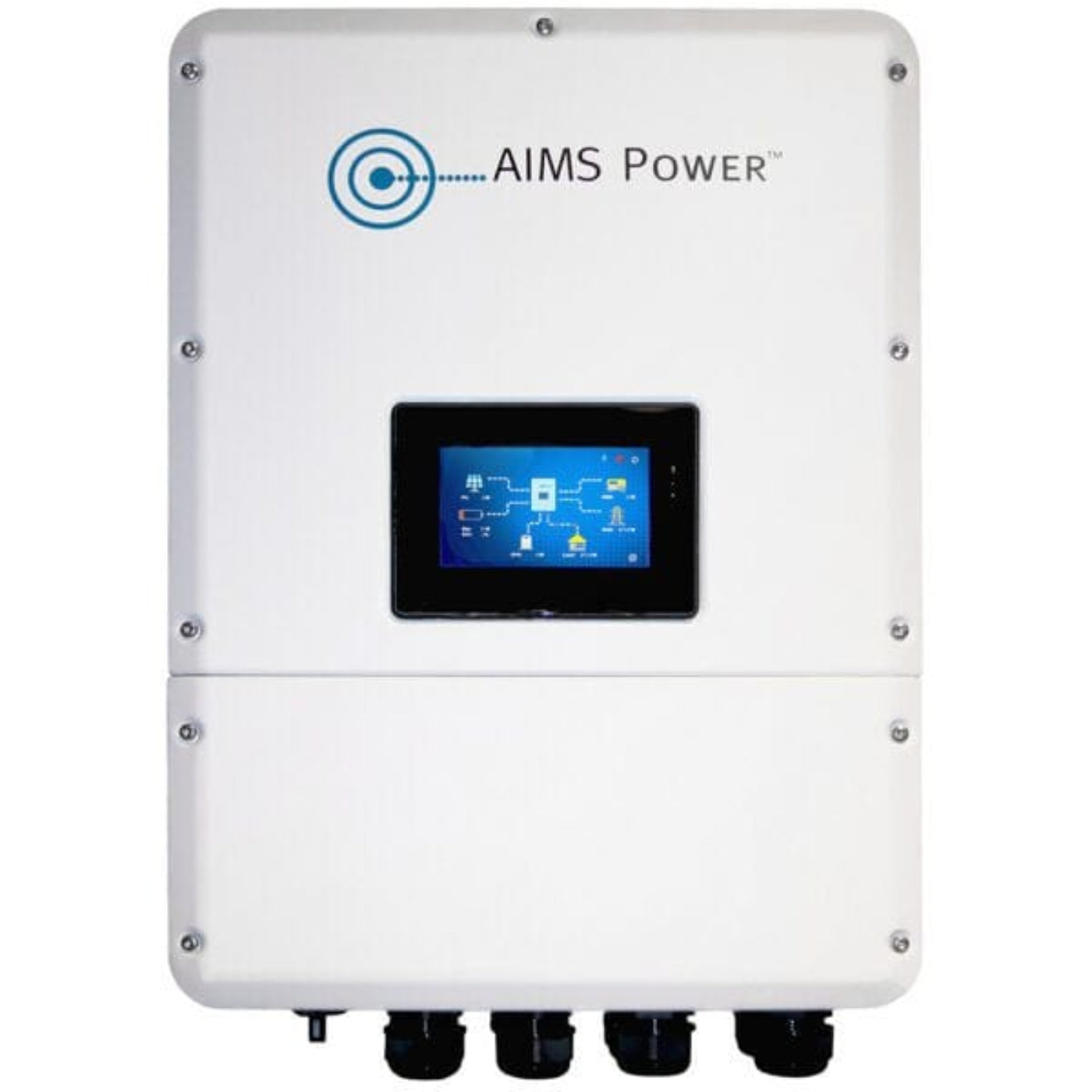

Aims Power Hybrid Inverter Charger 4.6 kW Inverter Output 6.9 kW Solar Input Grid Tie & Off Grid - PIHY4600

Aims Power Hybrid Inverter Charger 4.6 kW Inverter Output 6.9 kW Solar Input Grid Tie & Off Grid - PIHY4600

The NEW REVOLUTIONARY AIMS Power Hybrid Inverter gives you total control of your power. It combines solar power and battery backup into one complete, easy to use solution, that provides FREE power and independence from the grid. In addition, the AIMS Power Hybrid Inverter can reduce or eliminate electric bills, provides power during outages, and allows customers to monitor their system from anywhere.

The truth is that when the power goes out in the neighborhood, millions of homeowners with solar panels quickly realize that they are not truly “independent” of the power company because they don’t have batteries in their home to store the power generated from their solar panels. The excess power they have generated goes back to the grid and doesn’t allow them to use the power generated when it really matters most.

Where the AIMS Power Hybrid Inverter makes an immediate impact is in its ability to be programmed to do exactly what you want it to do. Think of an orchestra without a conductor. It may have all the talent and potential in the world, but without a way to organize and direct it, you may as well listen to radio static. AIMS Power Hybrid Inverter is essentially the conductor for every source of power that you have in your house.

Features

• Instead of sending the suns power straight to the power company where they dictate the rate, you can decide how to use YOUR power.
• On a sunny day, you can program it to fill up your batteries first, and then power your house.
• If you are not home, you can pump the excess power back to the Utility Co. and offset your power bill.
• Have an EV car? When you get home, you can charge from batteries or solar for FREE.
• You can program it to power your house at night with batteries and recharge during the day with sunlight.
• Did the grid go down? In the blink of an eye, it automatically switches over to batteries.
• Sun not shining? You can charge your batteries using the grid when rates are low and power your house at specified times.
• Have a generator? Use it to charge your batteries instead of using the grid or solar.

What our Experts Think

• The AIMS Power PIHY4600 is a 4.6kW hybrid inverter/charger designed for both grid-tie and off-grid solar systems, combining solar MPPT, battery inverter, and transfer functions in one unit.
• Supports up to 6.9kW of solar PV input, allowing oversizing of panels for better real-world energy harvest across different weather conditions.
• Built for 48V battery systems (including lithium and lead-acid compatibility), improving efficiency and reducing DC current compared to 12V setups.
• Delivers split-phase 120/240V output, making it suitable for residential loads, workshops, and small commercial use.
• High efficiency design with up to ~97% conversion efficiency and <10ms transfer time for near-instant backup switching.
• Includes advanced communication (Wi-Fi, RS485, CAN, optional 4G) for remote monitoring and system control.
• Outdoor-rated with IP65/NEMA 4X enclosure, supporting installation in harsh environmental conditions.


Q&A

Q: What is the AIMS Power PIHY4600 4.6 kW Hybrid Inverter Charger?
A: The AIMS Power PIHY4600 is a 4.6 kW hybrid inverter/charger that combines solar power conversion, battery charging, and grid or generator backup into one system for both off-grid and grid-tie applications.

Q: How much power does it deliver?
A: It provides 4,600 watts of continuous AC output with support for heavy residential and small commercial loads like appliances, pumps, and HVAC equipment.

Q: How much solar input does it support?
A: It supports up to 6.9 kW of solar PV input with a wide MPPT range (80–550V) for flexible solar array design.

Q: What type of power output does it produce?
A: It delivers pure sine wave split-phase power (120V/240V), making it suitable for home backup and hybrid energy systems.

Q: Can it work both on-grid and off-grid?
A: Yes. It supports grid-tie operation, off-grid backup, load sharing, and generator integration for flexible energy management.

Q: What key smart features does it include?
A: It includes fast transfer switching (<10ms), programmable operating modes, remote monitoring (Wi-Fi/RS485/4G), and advanced energy management controls.

Q: What batteries is it compatible with?
A: It supports lithium and lead-acid battery systems with a wide DC operating range (80–495V).

Q: What safety features are included?
A: It includes anti-islanding, PV reverse polarity protection, arc fault detection, overload protection, and ground fault monitoring.

Q: Why choose this hybrid inverter?
A: It combines solar inverter, battery charger, and grid management in one unit with high efficiency (up to ~97%), reducing system complexity and improving energy control.


Maintenance Tips

• Install in a cool, dry, IP65-rated location, but still ensure airflow around the unit to support natural convection cooling during heavy solar or backup loads.
• Keep the enclosure, heat sinks, and ventilation paths dust-free—blocked airflow can reduce efficiency (up to ~97%) and trigger thermal derating.
• Regularly inspect and tighten battery terminals, PV input connectors, and AC output wiring to avoid resistance heating under high charge/discharge currents (up to 50A).
• Periodically verify PV string voltage (80–550V MPPT range, max 660V) after storms or maintenance to ensure safe and stable solar input.
• Keep the 48V battery system within proper operating range (~80–495V DC battery bus specs vary by configuration) and avoid deep discharge cycles for lithium batteries.
• Check LCD or monitoring systems (Wi-Fi / RS485 / CAN) for fault codes, insulation alarms, or arc detection warnings and address early.
• Avoid running continuously at full 4.6 kW output or 6.9 kW PV input capacity; maintain headroom to reduce heat stress and extend lifespan.
• Inspect grounding, surge protection, and anti-islanding safety systems periodically to maintain grid-tie stability and safety compliance.
• If the system is idle for long periods, keep batteries at a moderate state of charge rather than full or empty storage.
