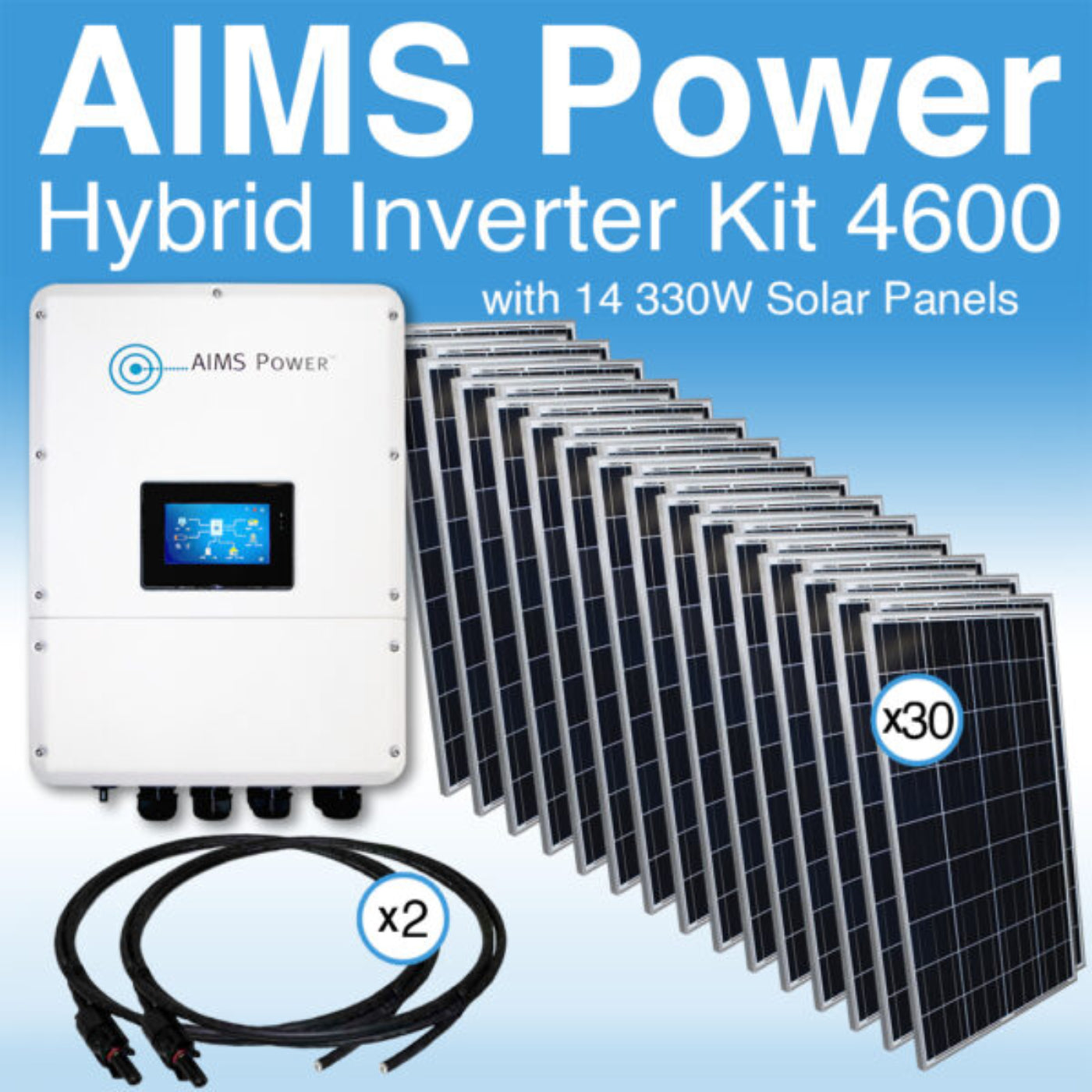

Aims Power Solar Kit Hybrid Pure Sine Inverter Charger & Solar Panels 4.6 kW Inverter Output | 4620 Watts Solar Panels - KITHY46SOL330

Aims Power Solar Kit Hybrid Pure Sine Inverter Charger & Solar Panels 4.6 kW Inverter Output | 4620 Watts Solar Panels - KITHY46SOL330

Introducing our NEW hybrid inverter and solar panel complete KIT.

The NEW REVOLUTIONARY AIMS Power Hybrid Inverter gives you total control of your power. It combines solar power and battery backup into one complete, easy to use solution, that provides FREE power and independence from the grid. In addition, the AIMS Power Hybrid Inverter can reduce or eliminate electric bills, provides power during outages, and allows customers to monitor their system from anywhere.

The truth is that when the power goes out in the neighborhood, millions of homeowners with solar panels quickly realize that they are not truly “independent” of the power company because they don’t have batteries in their home to store the power generated from their solar panels. The excess power they have generated goes back to the grid and doesn’t allow them to use the power generated when it really matters most.

Where the AIMS Power Hybrid Inverter makes an immediate impact is in its ability to be programmed to do exactly what you want it to do. Think of an orchestra without a conductor. It may have all the talent and potential in the world, but without a way to organize and direct it, you may as well listen to radio static. AIMS Power Hybrid Inverter is essentially the conductor for every source of power that you have in your house.

Features

• Instead of sending the suns power straight to the power company where they dictate the rate, you can decide how to use YOUR power.
• On a sunny day, you can program it to fill up your batteries first, and then power your house.
• If you are not home, you can pump the excess power back to the Utility Co. and offset your power bill.
• Have an EV car? When you get home, you can charge from batteries or solar for FREE.
• You can program it to power your house at night with batteries and recharge during the day with sunlight.
• Did the grid go down? In the blink of an eye, it automatically switches over to batteries.
• Sun not shining? You can charge your batteries using the grid when rates are low and power your house at specified times.
• Have a generator? Use it to charge your batteries instead of using the grid or solar.
• Self-Use – The panels will power the electrical loads first, for FREE and any excess energy is then used to recharge a battery bank. The remaining energy will go back to the grid.
• Selling First – The panels will power the loads first and any excess energy will go back to the grid.
• Charge First – The panels will charge the battery bank first and any excess energy will then power the electrical loads for FREE. The remaining energy will go back to the grid. This setting will also allow you to use solar and grid to recharge the batteries if the solar panels can’t produce enough power to charge the batteries.

What our Experts Think

• High-capacity 5.04 kWh lithium power station delivers substantial backup energy for home essentials, RVs, and off-grid applications.
• Integrated inverter + battery + charge controller design provides a true all-in-one solar generator solution with simplified setup.
• Expandable system architecture allows capacity scaling for growing energy needs or longer backup runtime.
• 33A output capability supports a wide range of household appliances, tools, and electronics simultaneously.
• Solar and grid input compatibility enables flexible charging from panels, utility power, or generator sources.
• Lithium battery technology (likely LiFePO₄) ensures long cycle life, stable performance, and improved safety over traditional chemistries.
• Pure sine wave output provides clean, stable electricity safe for sensitive electronics and motor-driven loads.
• Ideal for emergency backup and off-grid living where portability, reliability, and system simplicity are key priorities.


Q&A

Q: What is the AIMS Power AIO-5KWH4KW used for?
A: Aims Power Portable Solar Generator 5.04 kWh 33 Amp Output Lithium Battery - AIO-5KWH4KW is an all-in-one portable power station that combines a 4kW pure sine inverter, lithium battery storage, solar charge controller, and transfer switching for off-grid, backup, and mobile power use.

Q: How much energy storage does it provide?
A: It offers approximately 5.04 kWh (5040 Wh) of LiFePO₄ battery storage at 51.2V, designed for extended runtime of appliances, tools, and critical loads.

Q: What is the power output capacity?
A: It delivers 4000W continuous output (33A AC) and up to 7000W surge, suitable for running power tools, refrigerators, pumps, and small HVAC loads.

Q: What inputs does it support for charging?
A: It supports solar input (up to ~2100W, 12–150VDC) and AC grid/generator input (up to 1800W) with automatic switching and priority charging modes.

Q: Is it suitable for off-grid or backup power?
A: Yes. It is designed for off-grid living, emergency backup, remote job sites, and mobile power applications, with automatic transfer switching and EPS backup functionality.

Q: Can the system be expanded?
A: Yes. It supports expandable battery capacity (optional extender modules) to increase total storage beyond 5kWh for longer runtime.

Q: What type of battery technology is used?
A: It uses LiFePO₄ (lithium iron phosphate) chemistry, offering long cycle life, stable voltage output, and improved safety over lead-acid batteries.

Q: What makes this system “all-in-one”?
A: It integrates the inverter, battery, MPPT solar charging, display monitoring, and transfer switch into a single wheeled unit, reducing installation complexity and wiring needs.


Maintenance Tips

• Keep the unit in a cool, dry, ventilated space (0–40°C range) to protect the LiFePO₄ battery and inverter electronics.
• Avoid continuous exposure to direct sunlight or sealed hot enclosures, as internal inverter heat builds under heavy loads.
• Regularly check AC input/output ports, solar input connectors, and breakers for heat marks, looseness, or dust buildup.
• Keep air vents and internal cooling fans unobstructed; airflow is critical during 3–4kW sustained loads.
• Use only compatible solar input (12–150V DC range) and charging sources to avoid controller damage.
• Maintain battery health by avoiding deep discharge below ~10–15% SOC and recharging promptly after use.
• If using expansion battery (optional ~5kWh pack), ensure proper connection/disconnection only when powered off to protect BMS communication.
• Periodically test transfer switch function (~15A / 1800W bypass limit) to confirm automatic switchover reliability.
• Inspect wheels/handle assembly if used in mobile setups—mechanical wear affects transport safety more than electronics.
• Every few months, run a controlled discharge/recharge cycle to verify battery calibration and system accuracy.
• Keep firmware/LCD monitoring active (if available) to track voltage, load, temperature, and fault alerts early.
