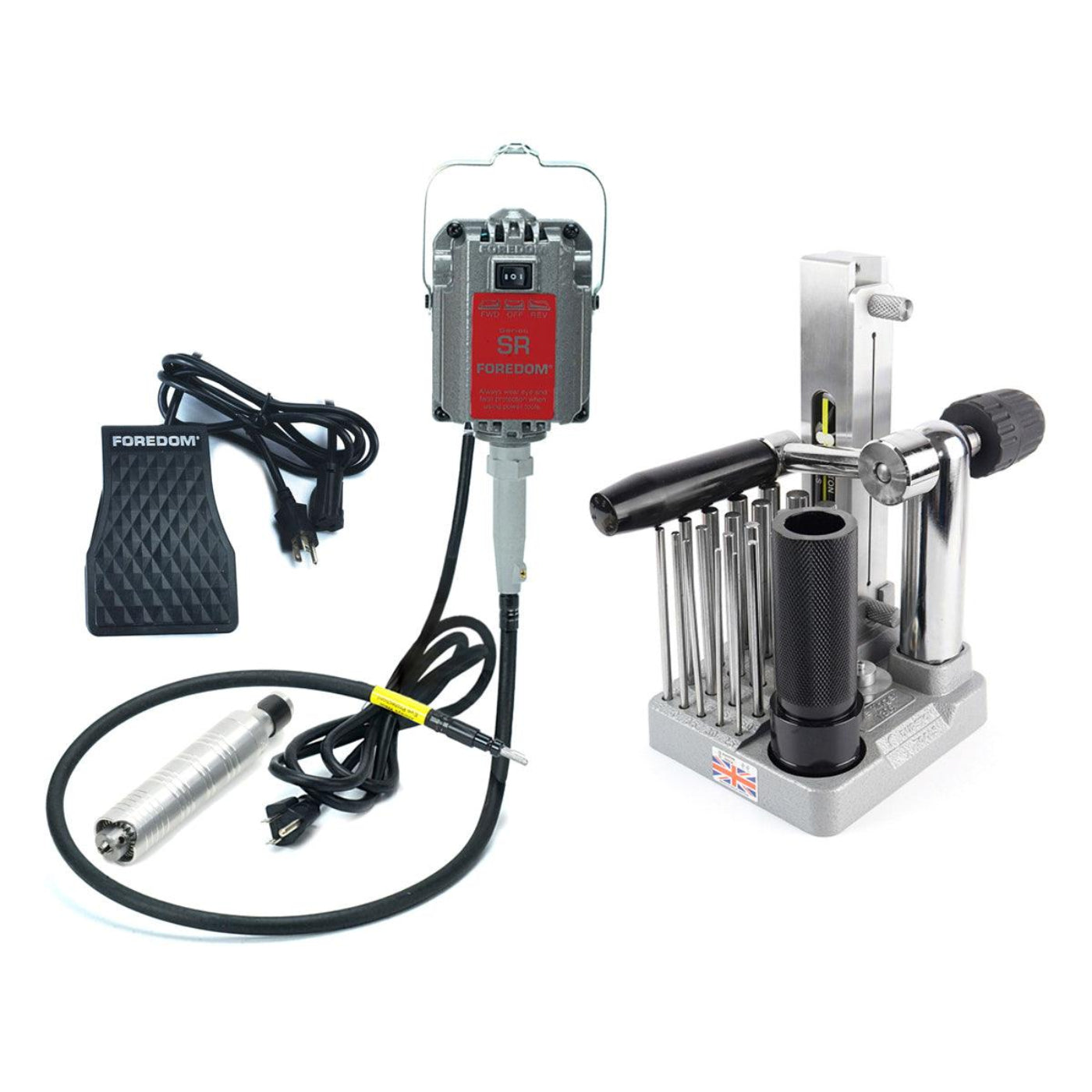

Durston Complete Jump Ring Maker and 230V Foredom Flex Shaft Combo - 143.101X-2230

Durston Complete Jump Ring Maker and 230V Foredom Flex Shaft Combo - 143.101X-2230

review stars 1 Review

5% Sale

Only left!


Free Delivery


Limited Stocks

In Stock - Ready to be Shipped

Regular price $648.00 Sale price $615.99
Shipping calculated at checkout.

Quantity

View full details
SALE ENDS IN
07 HRS
23 MINS
28 SECS
DON'T MISS IT!

Popular Add on

$30.00

$28.99

$70.00

$66.99

Add-Ons Bundle

$30.00

$28.99

$70.00

$66.99

Bundle Offer

$100.00

$95.98

Recently Viewed

Durston Complete Jump Ring Maker and 230V Foredom Flex Shaft Combo - 143.101X-2230

230V export jump ring making combo for 220โ€“240 V regions, pairing the Durston Complete Jump Ringer with a Foredom 230V reversible flex shaft kit. Once set up, you can wind coils and cut smooth, consistent jump rings while the motor runs at a controlled, low hum at your bench.

Features
  • 230V export setup combines a Durston Complete Jump Ringer with a Foredom 1/6 HP reversible flex shaft
  • M.SR-2 230V motor delivers up to 18,000 RPM with plenty of power for winding and cutting coils without stalling under normal load
  • Reversible motor rotation helps manage chip direction and extend tool life when cutting jump rings
  • Durston Complete Jump Ringer produces jump rings from soft non-ferrous wire (gold, copper, silver) up to approx. 13 ga (1.85 mm)
  • Mandrels cover a wide inside diameter range from 2 mm to 12 mm in 0.5 mm steps for chain and jewelry design flexibility
  • Coil holder integrated into the main base and a movable safety coil winder improve stability and ergonomics at the bench
  • H.30 handpiece with geared 3-jaw chuck securely grips the included saw blade mandrel and other rotary accessories
  • C.FCH-2 230V foot control in plastic housing provides smooth variable speed control for precise cutting and drilling
Specifications
Kit Type Durston jump ring maker with Foredom 230V flex shaft combo
Motor Model Foredom M.SR-2 230V reversible flex shaft motor
Motor Power 1/6 HP
Maximum Motor Speed Up to 18,000 RPM
Motor Rotation Forward and reverse
Voltage 230 V AC export version for regions with 220โ€“240 V mains supply
Handpiece H.30 handpiece with geared 3-jaw #0 chuck
Jump Ringer Wire Capacity Soft non-ferrous wire up to approx. 13 ga (1.85 mm)
Jump Ring Inside Diameter Range Approx. 2โ€“12 mm in 0.5 mm increments (Durston mandrels)
Saw Blade High speed steel, approx. 1-1/4" (31.75 mm) diameter
Mandrel Length (Durston) Approx. 4-3/4" (121 mm)
Brand Durston / Foredom
What our Experts Think
  • High-efficiency production setup: Combines the Durston 1312 Quad Jump Ringer with the Ottoflex S Flex Shaft for fast, repeatable jump ring production with minimal setup friction.
  • Designed for serious makers: Ideal for jewelers and workshops needing consistent output in soft metals like silver, gold, and copper with professional-grade precision.
  • Strong performance-to-value balance: Delivers industrial-style functionality at a more accessible price point compared to full heavy-duty ringer systems.
  • Precision and control: Quad coil holder and 20 mandrel system allow accurate sizing (2.5 mmโ€“12 mm) for consistent, uniform jump rings.
  • Workshop-ready durability: Built for continuous use in small production environments with stable 1/8 HP motor performance and smooth foot pedal control.
  • Efficiency upgrade tip: Best results achieved when paired with proper lubrication, correct blade tension, and non-ferrous wire within recommended gauges for clean cutting and reduced wear.

Q&A

Q: What is the Durston Jump Ring Maker + Foredom Combo used for?
A: It is a professional jewelry production setup designed to quickly produce consistent jump rings from wire coils, then cut them cleanly using a powered flex shaft system.

Q: What does this combo include?
A: It pairs the Durston Complete Jump Ring Maker with a Foredom 230V SR-series flex shaft motor, foot control, and H.30 handpiece, creating a complete coil-to-cut workflow system.

Q: What materials can it work with?
A: It is designed for soft non-ferrous metals such as gold, silver, and copper wire, typically up to around 1.85mm (approx. 13 gauge) depending on setup.

Q: What size jump rings can it produce?
A: The mandrel system allows approx. 2mm to 12mm inner diameters in 0.5mm steps, giving a wide range for chain and jewelry design.

Q: What is the benefit of the Foredom flex shaft in this setup?
A: The Foredom system provides up to ~18,000 RPM with foot control and reversible rotation, enabling smooth, controlled cutting of coils with precision and reduced effort.

Q: Is it suitable for professional use?
A: Yes, it is a bench-grade production system used for chain making and repetitive jump ring fabrication, ideal for workshops needing speed and consistency.

Q: What makes this combo stand out?
A: The key advantage is its integrated workflow: coil winding + precise sizing + powered cutting, significantly increasing output efficiency while maintaining uniform ring quality.

Q: Is it beginner-friendly?
A: It is better suited for intermediate to professional users, since proper setup, safe coil handling, and controlled cutting technique are important for best results.


Maintenance Tips
  • Clean after use: Remove metal filings from mandrels, cutters, and machine base to maintain precision cutting.
  • Lubricate flex shaft: Regularly oil the inner shaft per manufacturer guidance to prevent heat buildup and wear.
  • Inspect cables & handpiece: Check for fraying, stiffness, or vibration to ensure safe operation.
  • Keep mandrels clean: Wipe forming rods and cutters to prevent burr buildup and inconsistent jump rings.
  • Avoid overloading motor: Use appropriate speed settings and avoid excessive pressure during cutting.
  • Check alignment: Ensure cutting blade and coil alignment are correct for uniform ring sizes.
  • Store properly: Coil flex shaft loosely and store in a dry, dust-free environment.
  • Replace worn parts: Change blades, burrs, or shafts when performance drops to maintain accuracy.
