Fanuc Corporation | GE Fanuc Analog Input Module - IC693ALG221G

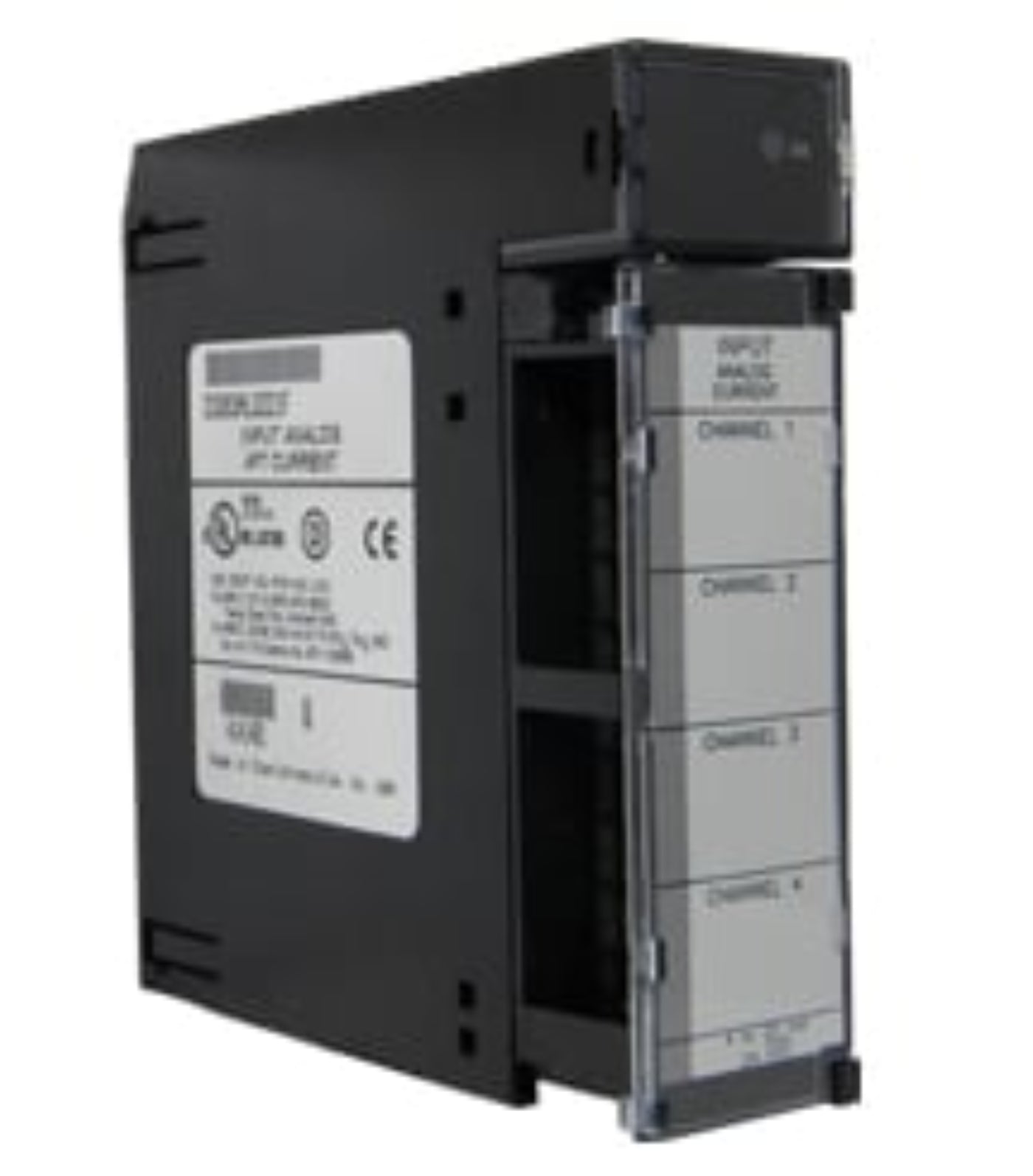

The GE Fanuc IC693ALG221G is a 4-channel analog current input module designed for the Series 90-30 Programmable Logic Controller (PLC) systems. It converts analog input signals into digital data for precise monitoring and control in industrial applications.
The GE Fanuc IC693ALG221G is a 4-channel analog current input module designed for use with the Series 90-30 Programmable Logic Controller (PLC) systems. It provides high-precision conversion of analog current signals into digital data, enabling accurate monitoring and control in various industrial automation applications.
Features
-
Flexible Input Ranges:
The IC693ALG221G supports both 0–20 mA and 4–20 mA current input ranges, selectable through jumpers, providing flexibility to accommodate various sensors and transmitters.
-
High Accuracy & Resolution:
With 12-bit resolution and ±0.1% full-scale accuracy, the module ensures precise data acquisition for critical control and monitoring applications.
-
Fast Response Time:
A 2 ms update rate for all channels ensures rapid and accurate data sampling, essential for real-time process control.
-
Electrical Isolation:
The module includes optical isolation between input channels and the system, protecting the PLC and connected devices from voltage spikes and electrical noise.
-
Factory Calibration:
The module comes pre-calibrated, eliminating the need for field adjustments and ensuring consistent performance.
-
Improved Process Control:
High accuracy and fast response time lead to more precise control and monitoring of industrial processes.
-
Flexibility:
The ability to select between 0–20 mA and 4–20 mA ranges makes the module compatible with a wide range of industrial sensors and transmitters.
-
Simplified Integration:
Seamless integration with GE Fanuc Series 90-30 PLC systems reduces installation and configuration time.
-
Enhanced Reliability:
Robust isolation and noise protection features ensure stable operation in industrial environments.
-
Process Control:
Monitoring and controlling flow, temperature, pressure, and level in chemical, pharmaceutical, and food processing industries.
-
Factory Automation:
Collecting data from sensors and transmitters for machinery control, material handling, and automated assembly lines.
-
Energy Management:
Measuring and monitoring current signals in power plants and energy distribution systems.
-
HVAC Systems:
Managing and monitoring analog signals from temperature and humidity sensors in large-scale HVAC installations.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc |
| Category |
Control Devices |
| Part Number |
IC693ALG221G |
| Subcategory |
CPU & Control Circuit Boards |
| Weight |
0.4 kgs |
| Dimensions |
6.0 in x 2.0 in x 5.0 in (15.2 cm x 5.1 cm x 12.7 cm) |
| No. of Channels |
4 Inputs |
| Input Current Range |
4 to 20 mA and 0 to 20 mA |
| Calibration |
Factory calibrated to 4 µA per count |
| Update Rate |
2 msec (all 4 channels) |
| Input Filter Response |
325 Hz |
| Power Consumption |
25 mA from +5V bus and 100mA from +24V bus |
What Our Experts Think
-
High Precision Input: Offers 4-channel analog input (voltage or current), ideal for accurate signal processing in industrial automation.
-
Reliable Performance: Built to GE Fanuc's robust standards, ensuring long-term durability in demanding environments.
-
Versatile Compatibility: Seamlessly integrates with GE Series 90-30 PLCs, making it a flexible option for system upgrades or replacements.
-
Easy Configuration: Supports user-selectable input ranges and diagnostic features for simplified setup and troubleshooting.
-
Space-Saving Design: Compact form factor maximizes panel space, fitting easily into tight control cabinets.
Q&A
Q: What is the GE Fanuc IC693ALG221G Analog Input Module?
A: It’s a 4-channel analog input module from Fanuc Corporation, used to interface analog signals (0–10V) with GE Fanuc Series 90-30 PLCs.
Q: What is it used for?
A: Ideal for industrial automation, it enables precise voltage input monitoring for sensors and equipment.
Q: Is it compatible with GE Fanuc Series 90-30?
A: Yes, it is specifically designed for seamless integration with the GE Fanuc Series 90-30 PLC systems.
Q: What type of inputs does it accept?
A: It accepts four single-ended voltage inputs, ranging from 0 to 10 volts.
Q: Why choose the IC693ALG221G?
A: It offers reliable signal accuracy, easy installation, and proven compatibility with legacy GE Fanuc systems.
Maintenance Tips
-
Calibration Checks: Regularly verify input signal accuracy and recalibrate as needed.
-
Clean Gently: Use anti-static tools to remove dust from terminals and board.
-
Secure Wiring: Ensure all analog input connections are tight and free of corrosion.
-
Shielded Cabling: Use proper shielding to minimize electrical noise.
-
Monitor Environment: Maintain a clean, dry, and temperature-stable location.
-
Firmware Maintenance: Keep module firmware updated using GE-approved utilities.
