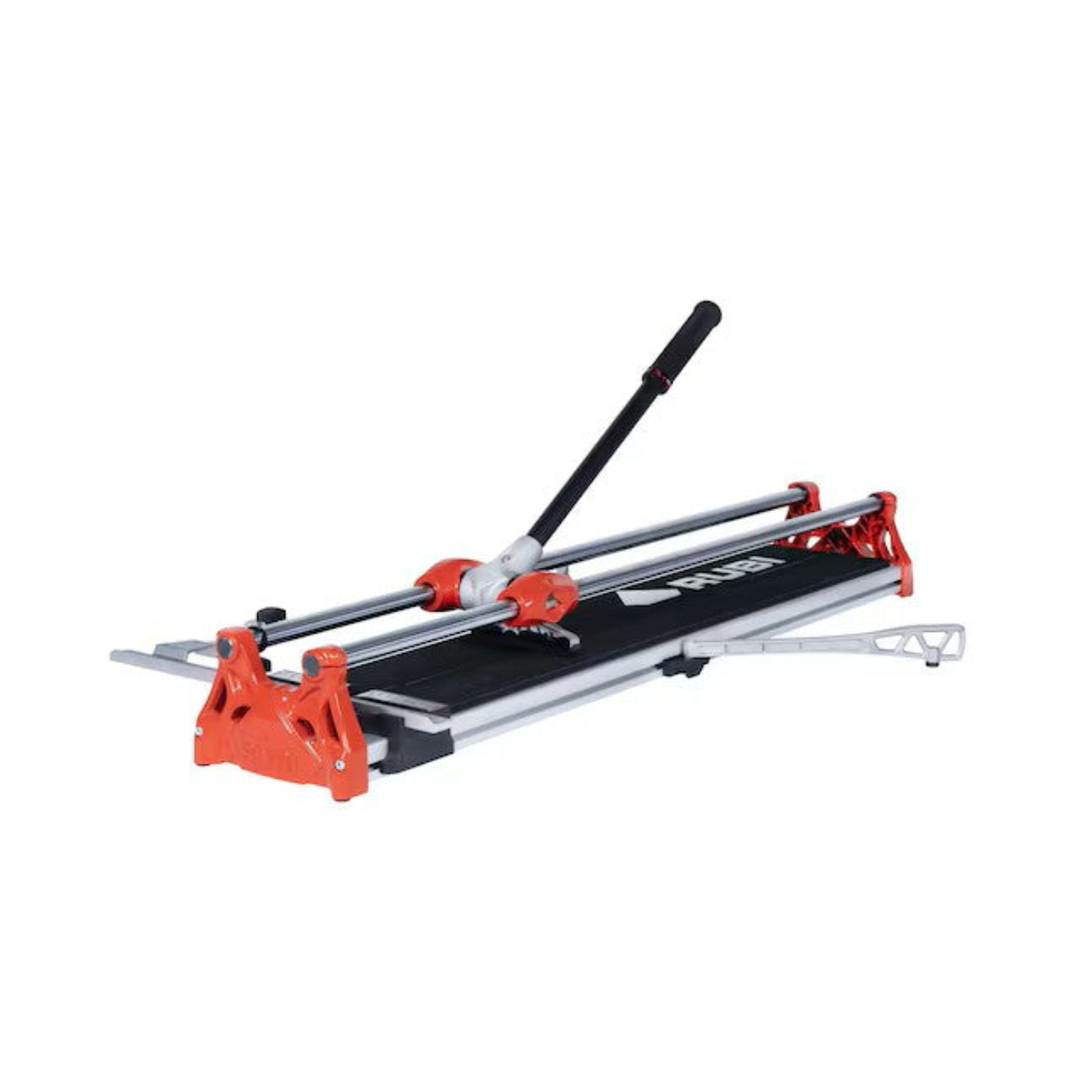

Rubi Tools HIT-N Professional Tile Cutters - 26963

Rubi Tools HIT-N Professional Tile Cutters - 26963

The HIT-N manual cutters are robust and precise tile cutters for the most demanding jobs in large-format tiles. Equipped with a high-performance breaker, the HIT-N can apply a maximum power of 1,763 lbs at the time of separating the material. In addition, the breaker unit incorporates the revolutionary Rubi Magnet system, which allows the locking and unlocking of the breaker, to score and separate, with one hand, providing greater working speed and greater comfort when handling large format tiles. The sliding set of the HIT-N incorporates linear bearings that provide greater softness and comfort during scoring.

Features

• Available in 3 sizes - HIT-850 N (33" rip cut), HIT-100 N (39" rip cut) and HIT-1200 N (48" rip cut)
• Robust and precise cutters for the most demanding jobs in large-format ceramic tiles
• Ideal for professional cutting of all types of ceramic tile, natural stone, and porcelain tile
• High-performance mobile separator provides high breaking power of 1,764 lbs.
• Sliding set incorporates linear bearings that provide greater softness and comfort during scratching
• Ergonomic soft-grip hilt provides greater comfort of the professional setter
• Aluminum extrusion base with a closed structure provides an increase in the structural rigidity of the cutter

What our Experts Think

• Professional heavy-duty snap cutter for porcelain work
  The HIT-N (Ref. 26963) is a robust manual tile cutter designed for demanding professional use, especially on porcelain, glazed stoneware, and ceramic tiles.
• Strong breaking power for clean results
  Delivers up to ~800 kg (≈1760 lbs) of separation force, allowing clean, controlled snapping even on dense modern porcelain tiles.
• Designed for accuracy on medium formats
  The 26963 model supports up to ~85 cm cutting length, making it ideal for standard wall and floor tile installations and repetitive cuts.
• Smooth scoring + stable rail system
  Uses dual guide rails and a rigid base structure, helping maintain straight, consistent scoring with reduced deviation during long cuts.
• MAGNET-assisted breaker system for speed
  The integrated RUBI MAGNET system improves locking and snapping efficiency, enabling faster workflow on repetitive job-site cutting.
• Optimized for everyday pro use (not slab work)
  Best suited for ceramic and porcelain tiles up to ~15 mm thickness, covering most residential and commercial tiling jobs.
• Expert insight
  Compared to higher-end RUBI cutters (like TX/TK series), the HIT-N focuses on reliability, speed, and consistency rather than extreme cutting size or slab capacity.

Q&A

Q1: What is the Rubi HIT-N 26963 used for?
A: The Rubi HIT-N 26963 is a professional heavy-duty manual tile cutter designed for precise cutting of ceramic, porcelain, and stoneware tiles, especially in demanding job-site conditions.

Q2: What cutting capacity does the HIT-N 26963 offer?
A: This model (HIT-850 N) provides up to 85 cm (33.5") straight cuts and about 60×60 cm diagonal cuts, suitable for medium-to-large tiles.

Q3: How strong is the breaking system?
A: It delivers up to 800 kg (≈1760 lbs) of breaking force, allowing clean separation even on dense porcelain tiles.

Q4: What tile thickness can it cut?
A: It handles tiles from approximately 3 mm to 15 mm thickness, covering most ceramic and porcelain applications.

Q5: What makes the HIT-N system more efficient?
A: It features a high-performance breaker with Rubi MAGNET one-hand locking system, improving speed, comfort, and cutting control.

Q6: Is it suitable for professional job-site use?
A: Yes, it is designed specifically for continuous professional use, offering stability, durability, and accurate repetitive cutting.

Q7: Can it make angled and repetitive cuts?
A: Yes, it supports 45° angled cuts and repetitive cuts using its adjustable side stop system, improving productivity.

Q8: What improves cutting precision?
A: It uses a rigid aluminum base, dual guide rails, and smooth scoring carriage, ensuring stable and accurate scoring with minimal chipping.

Maintenance Tips

• Clean chromed guide rails after every use: Remove porcelain dust and ceramic residue to keep cutting smooth and accurate.
• Keep MAGNET breaker system dust-free: Ensure the one-hand magnetic release mechanism stays clean for fast, consistent snapping force.
• Avoid oil or heavy lubrication: Dry operation prevents abrasive dust buildup and maintains scoring precision.
• Inspect scoring wheel regularly: Replace when wear appears to maintain clean, chip-free cuts on porcelain and stoneware.
• Check alignment before each job: Ensure rails, square guide, and carriage are perfectly straight for accurate repetitive cuts.
• Tighten frame & side supports periodically: Maintains rigidity under high breaking force (up to ~800 kg / 1764 lb).
• Clean sliding carriage bearings: Wipe dust from linear bearings to preserve smooth, low-resistance movement.
• Store in dry, protected area: Prevent rust on steel parts and keep guide alignment stable over time.
