Understanding Charge-Coupled Devices (CCDs) in Digital Imaging

Digital camera systems built around various charge-coupled device (CCD) sensor designs have become the dominant image-capture technology across countless fields — from professional photography and scientific research to everyday consumer electronics. Before CCDs arrived on the scene, specialized film cameras were the standard for recording images. That older approach relied on the light sensitivity of silver-halide photographic film: incoming photons triggered chemical reactions that left a hidden (latent) image in the emulsion, revealed only after the film was chemically developed.

CCD-equipped digital cameras swap out chemical film for a silicon-based photon detector — a thin wafer segmented into a precise grid of thousands or even millions of tiny, light-sensitive zones. Each zone captures and stores image data as localized electrical charge that fluctuates with the brightness of the light hitting it. The electronic signal from each picture element (pixel) is read out rapidly, assigned an intensity value representing that spot on the image, and once all the values are digitized the complete picture can be assembled and displayed on a monitor almost instantly.

Modern digital camera platforms designed for high-end optical imaging showcase impressive capabilities. High-resolution models deliver photo-realistic images at resolutions reaching 12 megapixels and beyond, with low noise, excellent color fidelity, and strong sensitivity. Their control software gives photographers and researchers tremendous flexibility in capturing, organizing, and refining digital images. Live preview at fluid frame rates makes focus confirmation effortless, and files can be saved in multiple formats such as JPG, TIF, and BMP for maximum versatility.

All-in-one camera systems take convenience even further, packaging the sensor, a built-in LCD display, and a standalone control unit into a single device. These platforms can capture high-resolution images through intuitive menus and pre-configured modes for various shooting conditions. Independent operation is possible with onboard storage via CompactFlash cards, though full network connectivity — USB, Ethernet, HTTP, Telnet, FTP, DHCP — is available for users who need remote image viewing and control.

In spatial resolution, today's CCDs rival film, yet their ability to resolve differences in light intensity surpasses film and video by one to two orders of magnitude. Traditional photographic emulsions lose sensitivity at wavelengths beyond around 650 nanometers, while high-performance CCD sensors often extend their quantum efficiency well into the near-infrared region. The linear response of CCD sensors across a broad range of light levels further enhances performance and gives them quantitative measurement capabilities similar to imaging spectrophotometers.

At its core, a CCD imager is composed of a vast number of light-detecting elements organized in a two-dimensional grid on a thin silicon substrate. Silicon's semiconductor properties allow the chip to trap and hold charge carriers generated by incoming photons whenever the right electrical bias is applied. Individual pixels are defined within this silicon matrix by an intersecting grid of narrow, transparent electrode strips — commonly called gates — deposited onto the chip's surface.

The basic light-sensing unit inside a CCD is a metal-oxide semiconductor (MOS) capacitor that functions as both a photodiode and a charge-storage device. Under reverse bias operation, negatively charged electrons are drawn toward the area beneath the positively charged gate electrode. Electrons freed by photon interaction are held in a depletion region up to the sensor's maximum capacity — known as the full well. When many of these detector elements are combined into a complete CCD, they are electrically separated from each other in one direction by voltages on the surface electrodes and in the other direction by insulating structures called channel stops within the silicon.

The CCD's photodiode elements respond to incoming photons by absorbing their energy, which liberates electrons and creates corresponding electron-deficient sites (holes) in the silicon crystal. Each absorbed photon generates one electron-hole pair, and the total charge that builds up in each pixel is directly proportional to the number of photons that arrived. External voltages on each pixel's electrodes govern how charge is stored and moved during a specified exposure period. Every pixel in the sensor initially acts as a potential well for charge collection, and the accumulated charge carriers — typically electrons, known as photoelectrons — can be stored for extended periods before being read out by the camera's electronics.

The electrode network built on top of the CCD sensor, also called the gate structure, includes a layer next to the imaging elements that forms the shift register used for charge transfer. Serial readout from a two-dimensional diode array begins by moving all individual charge packets from the imager surface into the parallel register, which is then shifted one full row at a time. This charge-coupled shift moves the nearest row of pixel charges to a specialized single row of pixels along one edge of the chip — the serial register. From there, charge packets are sent one at a time to an on-chip amplifier for measurement. After the serial register is emptied, it refills with the next row from the parallel register, and the cycle continues until every row has been measured. Manufacturers often refer to the parallel and serial registers as the vertical and horizontal registers, respectively.

A helpful way to picture serial CCD readout is the "bucket brigade" analogy for measuring rainfall. Imagine a grid of buckets collecting rainwater, where the amount falling into each bucket varies from position to position — just as photon intensity varies across an imaging sensor. The buckets (parallel register) are moved stepwise on a conveyor toward a row of empty buckets (serial register) running perpendicular to the first set. An entire row of buckets is shifted in parallel into the serial register's reservoirs. From there, each bucket is conveyed one at a time to a calibrated measuring container (the CCD's output amplifier). Once every container on the serial conveyor has been measured, the next parallel row is shifted into the serial register, and the process repeats until every pixel's contents have been quantified.

The stored charge in any given pixel is directly proportional to the light falling on it, up to the sensor's maximum — the full-well capacity (FWC). This ceiling defines the strongest signal a pixel can register and is therefore a critical factor in the sensor's dynamic range. FWC scales with the physical size of the individual pixel. Historically, CCDs have used square pixels arranged in rectangular arrays with a 4:3 aspect ratio being the most common.

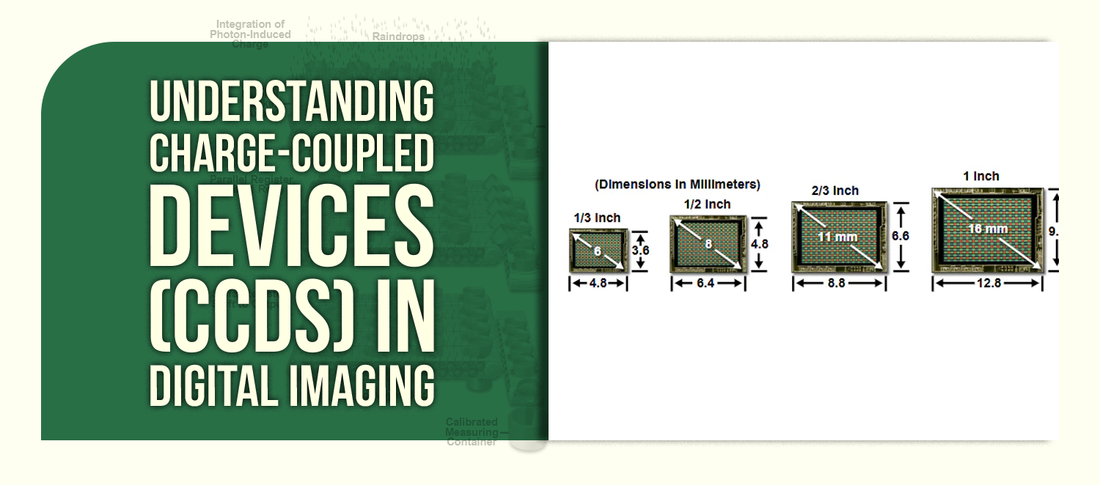

The rectangular shape and standardized dimensions of CCDs trace back to their early competition with vidicon tube cameras, which needed solid-state sensors that could output a signal conforming to the video standards of the era. The "inch" labels applied to CCD formats (1/3-inch, 1/2-inch, 2/3-inch, 1-inch) do not describe any physical dimension of the CCD itself. Instead, they refer to the scanned area of the equivalent round vidicon tube. A "1-inch" CCD, for example, has a 16-millimeter diagonal and sensor dimensions of 9.6 by 12.8 millimeters — derived from the scanned area of a vidicon tube with a 25.4-millimeter outside diameter and an 18-millimeter input window. This admittedly confusing convention has stuck around, sometimes using fractional and decimal size labels interchangeably.

While consumer cameras overwhelmingly use rectangular sensors built to one of these standardized formats, scientific-grade cameras are increasingly adopting square sensor arrays that more closely match circular image fields. A wide range of sensor array sizes and pixel dimensions exists across designs optimized for different performance targets. Common 2/3-inch format CCDs typically feature arrays of 768 × 480 or more photodiodes with dimensions around 8.8 × 6.6 millimeters (11-millimeter diagonal). Because sensor diagonals are often smaller than the full field of view in high-magnification imaging setups, some applications benefit from larger CCD formats ranging from 18 to 26 millimeters that better match the field diameter.

A rough estimate of a CCD's potential-well storage capacity can be obtained by multiplying the pixel area by 1,000. Consumer-grade 2/3-inch CCDs, for instance, have pixel sizes between 7 and 13 micrometers and can store roughly 50,000 to 100,000 electrons per pixel. A 10 × 10-micrometer diode would hold approximately 100,000 electrons. For any given CCD size, designers must balance total pixel count against individual pixel dimensions and charge capacity. The consumer trend toward ever-higher megapixel counts has pushed pixel sizes down to less than 3 micrometers in some newer 2/3-inch sensors.

CCDs designed for scientific imaging have traditionally used larger photodiodes than those in consumer or video-rate products. Because FWC and dynamic range scale with diode area, scientific sensors used in slow-scan applications have employed diodes as large as 25 × 25 micrometers to maximize dynamic range, sensitivity, and signal-to-noise ratio. Many current high-performance cameras incorporate design improvements that allow large arrays with smaller pixels to maintain optical resolution at high frame rates while still delivering the sensitivity of larger pixels when needed through techniques like pixel binning and variable readout rates.

Before the charge stored in each pixel can be used to measure light intensity at that point, it has to be transferred to a readout node without losing its integrity along the way. Fast, efficient charge transfer and rapid readout are essential to the CCD's role as an imaging device. When a dense array of MOS capacitors forms the sensor, charge is shuttled across the chip by manipulating voltages on the capacitor gates in a carefully timed pattern, causing charge to spill from one capacitor to the next — or from one row to the next. This movement of charge within the silicon, tightly linked to the clocked voltage patterns on the overlying electrodes, is precisely why the technology bears the name "charge-coupled device."

Interestingly, the CCD was originally conceived not as a camera sensor but as a memory array — essentially an electronic counterpart to the magnetic bubble device. Its charge-transfer mechanism satisfied a fundamental requirement for memory: the ability to establish a physical quantity representing a data bit and preserving that quantity until it is read. In the imaging application, each "data bit" is a packet of charge proportional to the light that fell on that pixel.

At each transfer step, the voltage coupled to the well ahead of the charge packet turns positive while the well currently holding electrons is brought to zero or negative potential, nudging accumulated electrons forward to the next phase. These voltage transitions on adjacent phases are deliberately gradual and overlapping rather than abrupt, ensuring the most efficient possible charge transfer. One full three-phase clock cycle applied to the entire parallel register produces a single-row shift of the whole array. A critical feature of the three-phase scheme is that a potential barrier is always maintained between adjacent charge packets, preserving a clean one-to-one correspondence between sensor pixels and display pixels throughout the imaging sequence.

With each complete parallel transfer, an entire pixel row's worth of charge packets is pushed into the serial register, from which they are sequentially shifted toward the output amplifier using the same three-phase coupling mechanism driven by the serial shift register clock. After all pixels in that serial row are read out, the parallel register clock fires again to shift the next row of trapped photoelectrons into the serial register. Each charge packet reaching the CCD's output node is detected by an output amplifier (also called the on-chip preamplifier) that converts the charge into a proportional voltage. This voltage represents the signal magnitude produced by successive photodiodes, read out left to right across each row and top to bottom over the full array. The CCD output at this point is therefore an analog voltage signal equivalent to a raster scan of accumulated charge over the imaging surface.

Despite this lengthy sequence, more than one million pixels can be transferred across the chip, assigned a 12-bit gray-scale value, stored in memory, and displayed — all in under a second. A typical 1-megapixel camera running at a 5-MHz digitization rate finishes readout and display in about half a second. Charge-transfer efficiency is also remarkably high for cooled CCD cameras, with minimal charge loss even after thousands of successive transfers from the farthest pixels in the array.

Three fundamental CCD architecture variants are in widespread use for imaging: full frame, frame transfer, and interline transfer.

An added benefit of incorporating microlenses is that a CCD's spectral sensitivity can be extended further into the blue and ultraviolet wavelength regions, which is particularly valuable for fluorescence techniques employing dyes or green fluorescent protein (GFP) excited by ultraviolet light. To further improve quantum efficiency across the visible spectrum, advanced chips use gate structures made of materials like indium tin oxide, which are significantly more transparent in the blue-green spectral region. These nonabsorbing gate designs can push quantum efficiency values toward 80 percent for green light.

The historical limitation of reduced dynamic range in interline-transfer CCDs has been largely eliminated thanks to improved electronic technology that has driven camera read noise down by roughly half. Although the active pixel area of an interline CCD is about one-third that of a comparable full-frame device, modern interline cameras operate with read noise as low as 4 to 6 electrons, producing dynamic range performance on par with 12-bit full-frame cameras. Enhanced clocking schemes and camera electronics have also enabled readout rates of 20 megahertz for 12-bit megapixel images — approximately four times the rate of full-frame cameras with similar array sizes. Semiconductor composition modifications in some interline designs further improve near-infrared quantum efficiency.

Several camera operation parameters tied to the readout stage directly affect image quality. The readout rate of most scientific-grade CCD cameras is adjustable, typically ranging from about 0.1 MHz up to 10 or 20 MHz. Maximum readout speed depends on the ADC and the camera electronics — essentially, how quickly a single pixel can be digitized. Applications tracking rapid processes demand fast readout and high frame rates for adequate temporal resolution; in some cases, 30 frames per second or faster may be necessary. However, read noise is an ever-present companion in electronic images, and higher readout rates amplify it. When top temporal resolution is not critical, slowing the readout rate captures better images of dim specimens by minimizing noise and improving signal-to-noise ratio.

When fast frame rates are essential, the standard CCD readout sequence can be modified to reduce the number of charge packets processed, enabling hundreds of frames per second. This acceleration can be achieved by combining pixels during readout (a technique called binning) or by reading only a portion of the detector array. Most camera acquisition software permits users to define a smaller subarray of the full pixel array for capture and display. Selecting a reduced image field means unneeded pixels are discarded before digitization, proportionally boosting readout speed. The subarray may be chosen from preset sizes or drawn interactively as a region of interest on the monitor. This technique is widely used in time-lapse imaging to accelerate acquisition while keeping file sizes manageable.

The technological sophistication behind today's CCD imaging systems is remarkable — millions of pixels read, quantized, stored, and displayed in well under a second with extraordinary precision. Whether employed in high-end photography, cutting-edge research, or specialized industrial inspection, CCD sensors remain a cornerstone of digital imaging. Understanding how these devices work — from photon absorption at the silicon level through charge transfer and analog-to-digital conversion — helps photographers, scientists, and enthusiasts alike make more informed decisions about the tools they use to capture the world around them.
