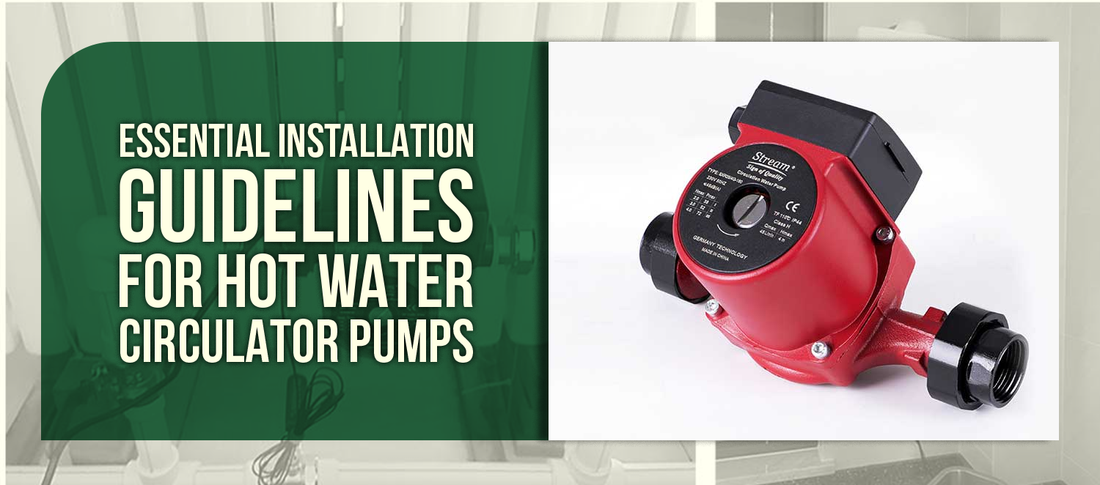

Essential Installation Guidelines for Hot Water Circulator Pumps
While domestic hot water recirculation offers convenience by delivering instant hot water throughout your home, it's frequently the primary cause of reduced hydraulic efficiency or compromised service quality. This typically results from improper installation locations or incorrect piping configurations.
Below you'll find comprehensive guidance to help you prevent the most frequent installation complications.
1. Proper Horizontal Shaft Orientation
The motor shaft must be positioned horizontally, aligned with the discharge and inlet ports placed in the correct horizontal plane.
Rationale for horizontal mounting:
1) Ceramic Shaft Construction: Circulator pumps equipped with ceramic shafts can effectively prevent calcium deposits and magnesium buildup within the hot water system, thereby extending pump longevity. However, ceramic materials are prone to fracturing under vertical mounting or inverted installation conditions.
2) Air Evacuation Capability: Another critical advantage of horizontal shaft positioning is its facilitation of efficient air removal.
2. Correct Water Flow Direction
The directional arrow marking indicates water enters from the right-side port and exits through the left-side port. Consequently, the right port connects to the water supply line while the left port directs flow to the outlet system. After securing the shaft in its fixed position and establishing proper piping connections, verify that pump rotation remains unimpeded and that all shaft components are correctly oriented prior to system activation.
Recommended High-Efficiency Circulator
Upgrade your hot water system with our premium variable-speed ECM circulator pump, designed for optimal energy efficiency and reliable performance in residential and light commercial applications.
View Taco Viridian CirculatorInstallation Success Tips
Adhering to these fundamental installation principles ensures optimal circulator pump performance, extended equipment lifespan, and maximum energy efficiency. Always consult manufacturer specifications and local plumbing codes before beginning installation. When positioned correctly with horizontal shaft alignment and proper flow direction, your circulator pump will deliver years of dependable service while maintaining peak hydraulic performance throughout your hot water distribution system.
For professional-grade results and system longevity, invest time in proper installation procedures from the start. Your attention to these critical details will pay dividends through reduced maintenance requirements and enhanced system reliability.
