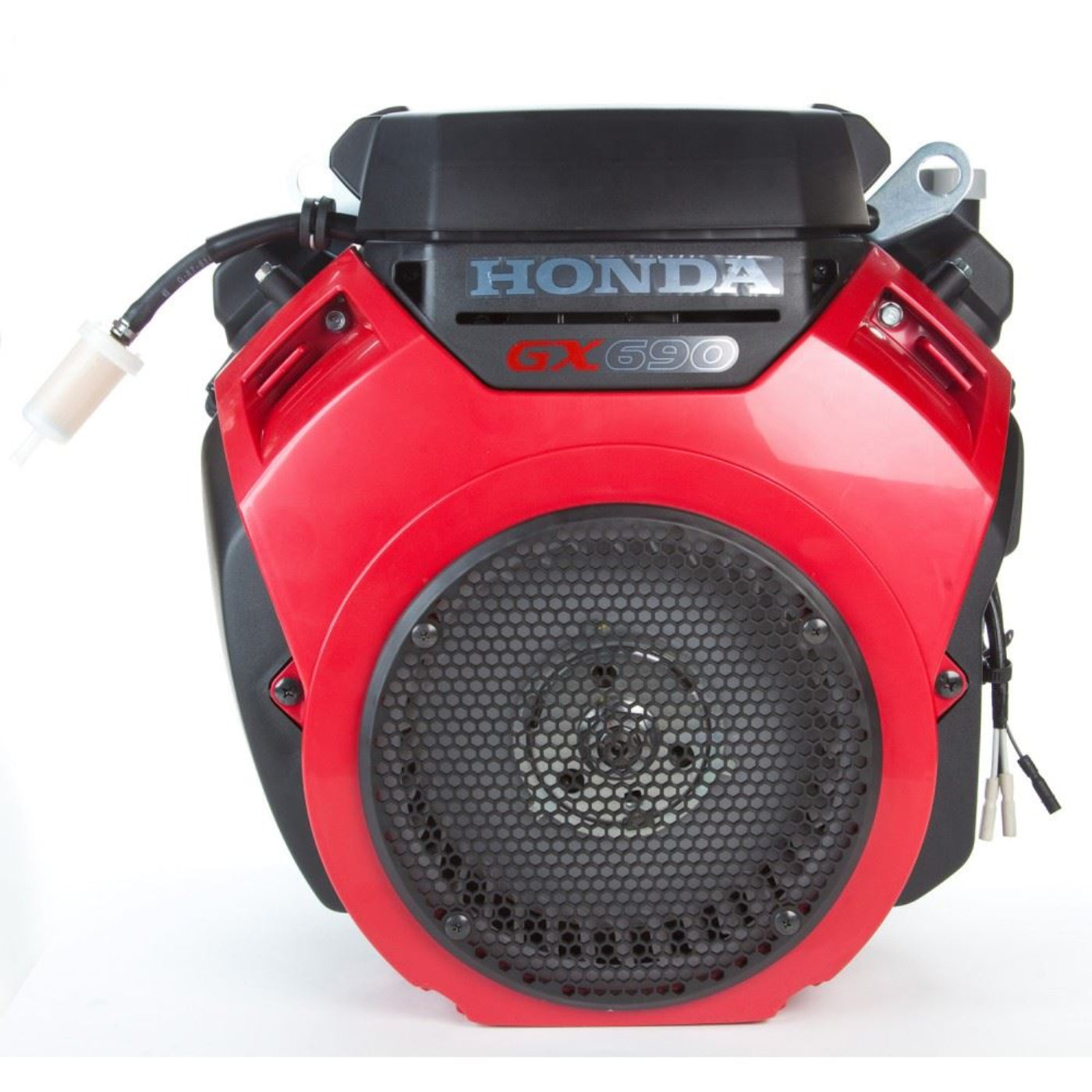

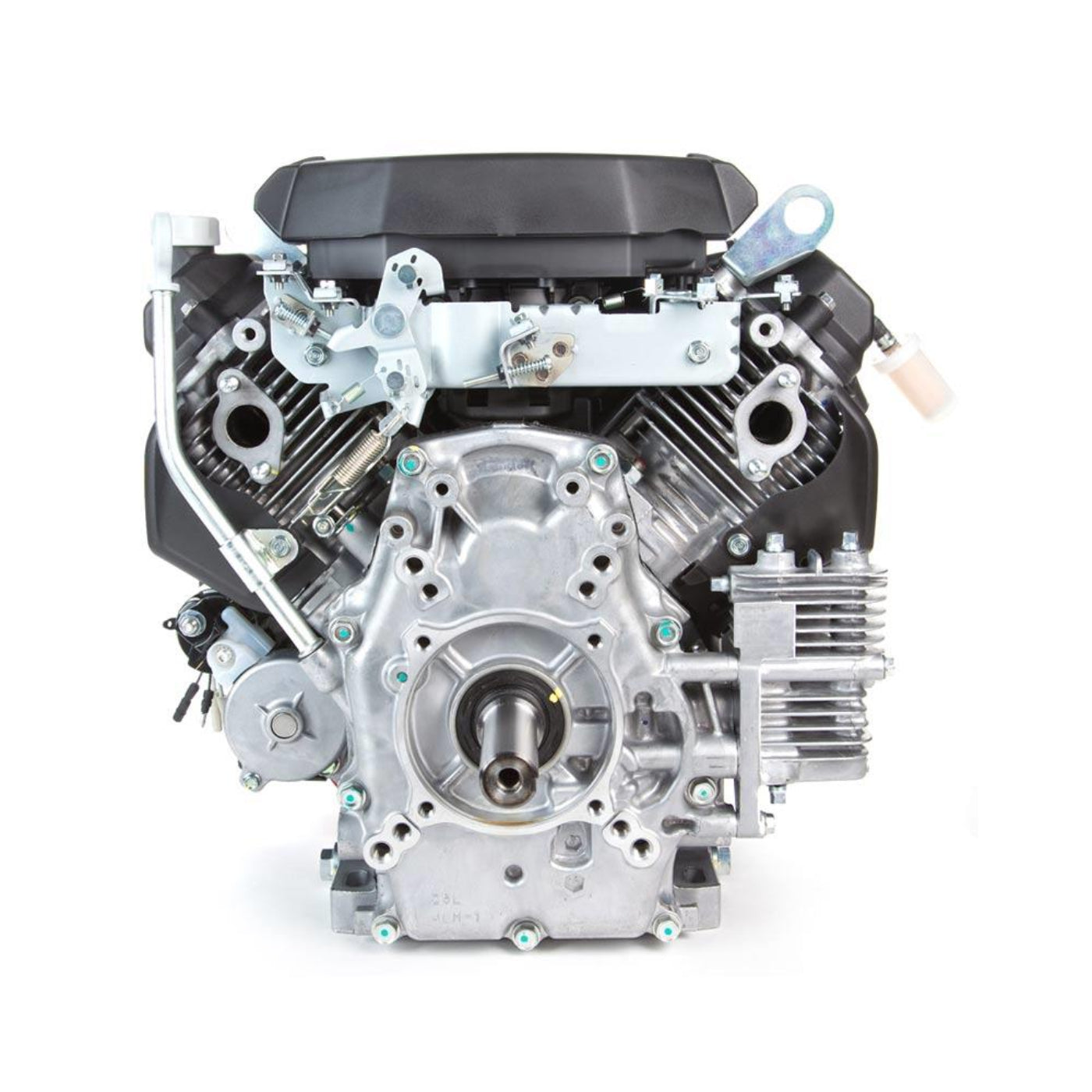

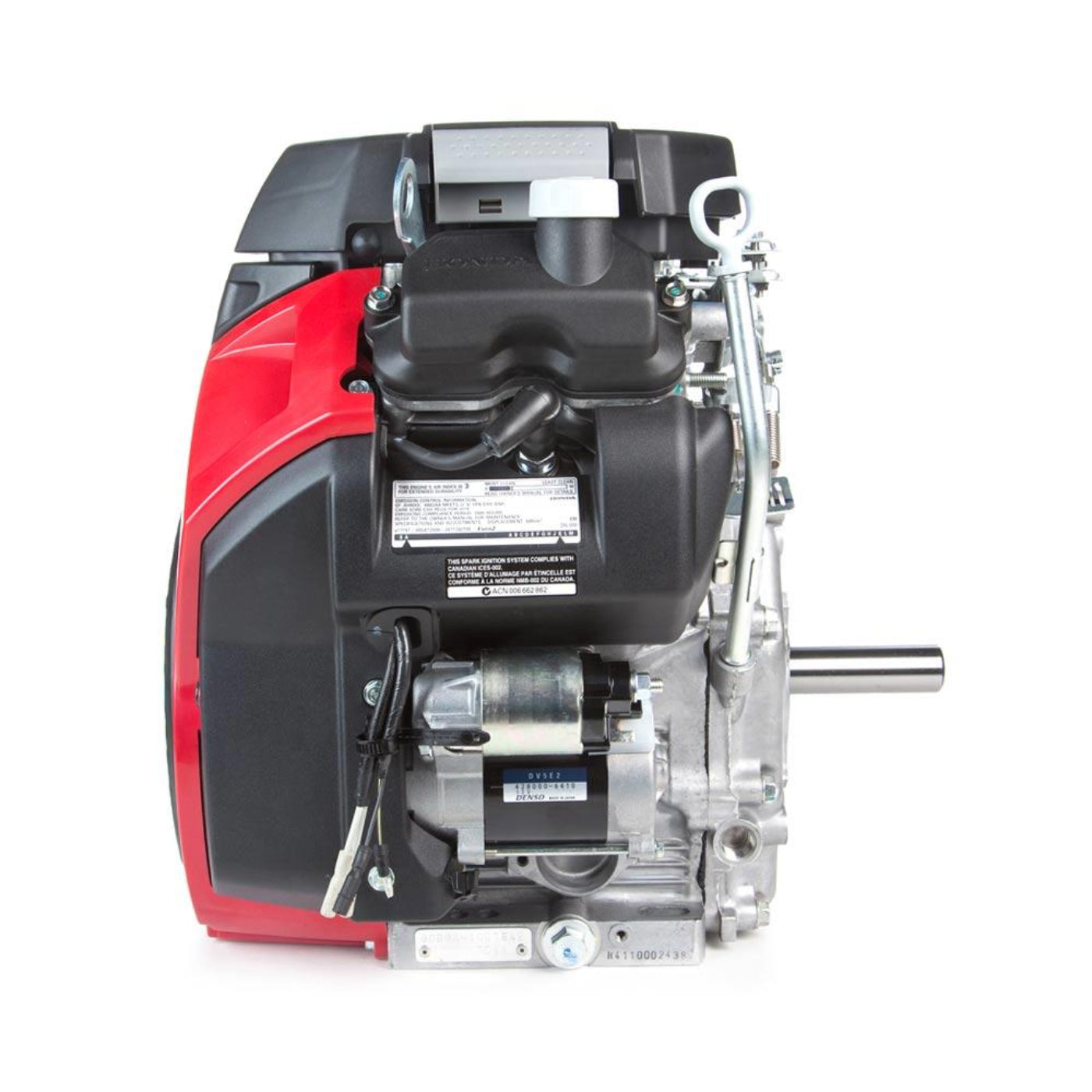

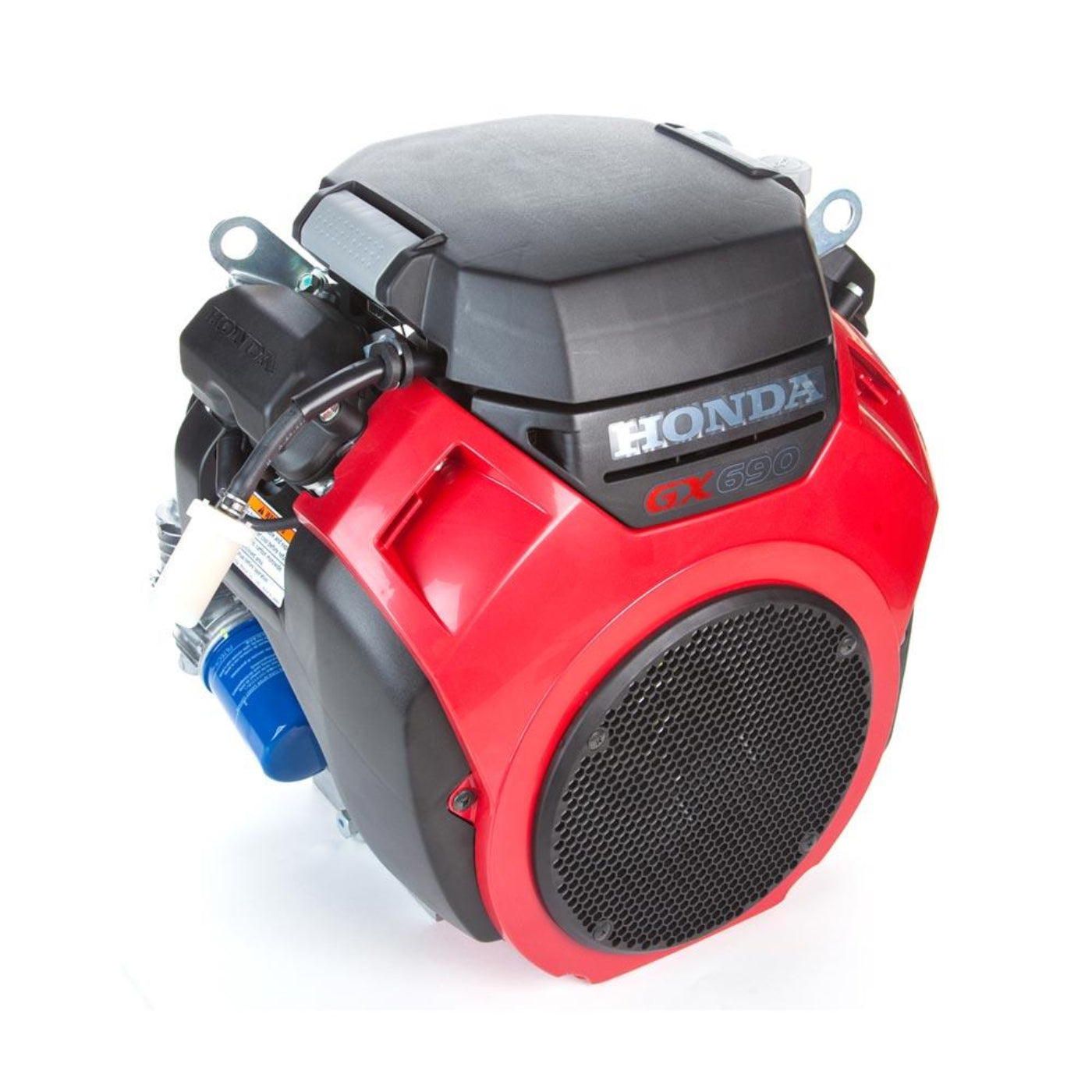

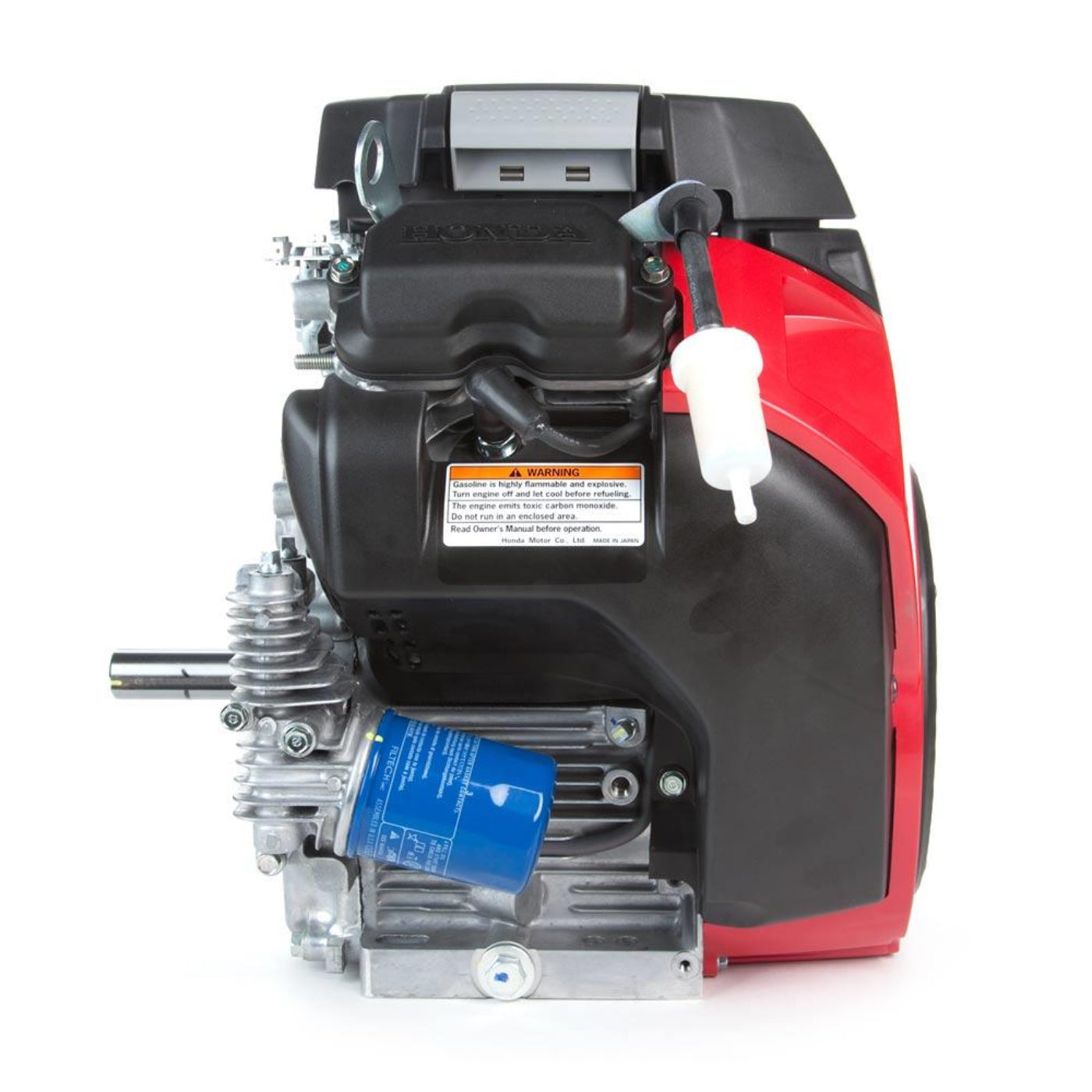

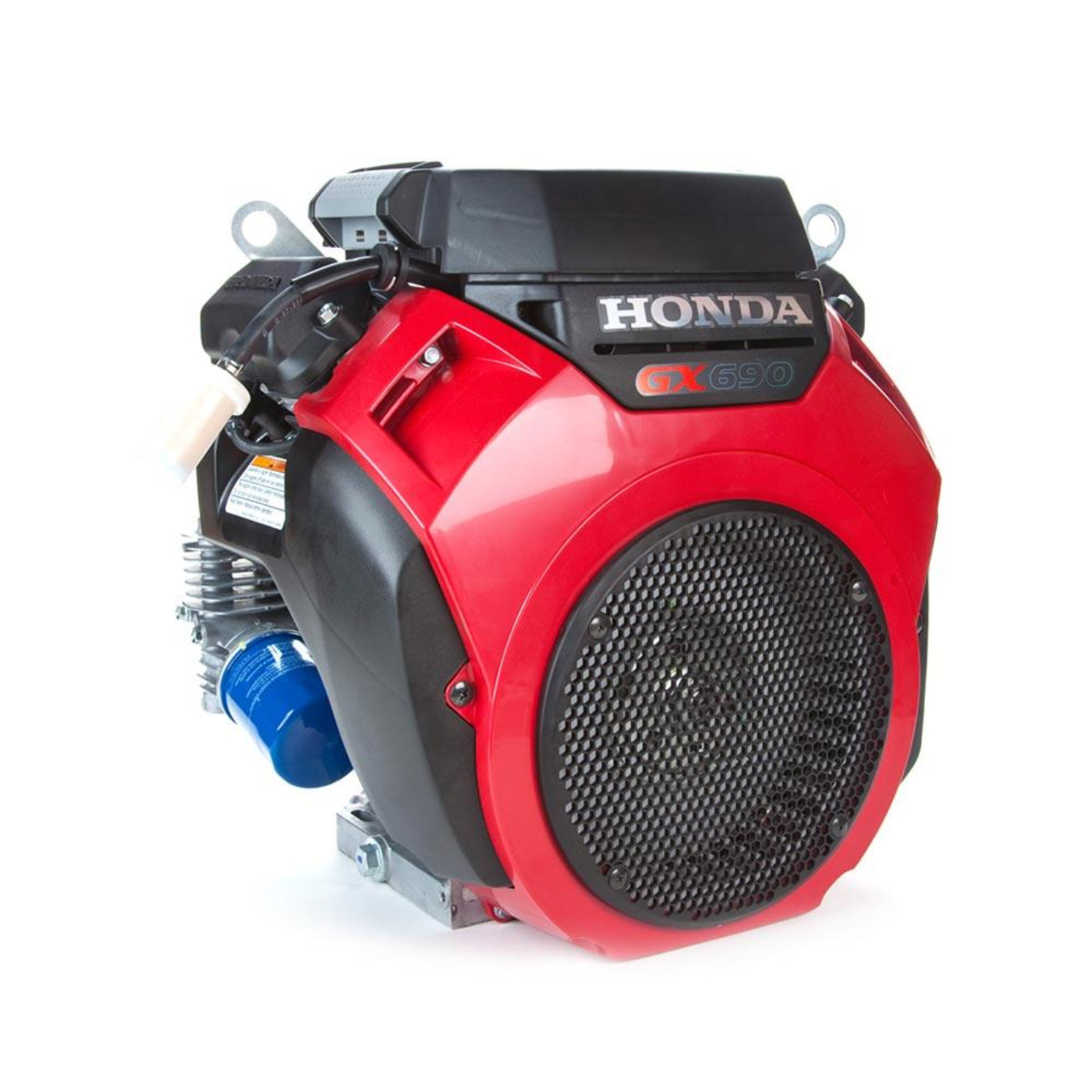

Honda Horizontal V-Twin Engine - HDA,GX690-TDW
Honda GX690 TDW Horizontal V-Twin OHV Engine with Electric Start and 17-Amp Charging System, 688cc, 22.1 Net HP, 1-1/8" x 3.78" Crankshaft, Tapped 7/16-20, Remote Throttle and Choke, No Key Switch, No Fuel Tank, No Muffler, Model GX690RHTDW
Needs ignition switch and harness if replacing a GX610, GX620, GX670.
Specifications
| Brand |
Honda |
| Model Number |
GX690RHTDW |
| Internal ID |
HDA-GX690-TDW |
| Warranty |
3 Year Residential / 3 Year Commercial |
| Available to California |
Not Available to Ship to California |
| Weight |
110.0 lb |
| Power Output |
22.1 HP @ 3600 RPM |
| Torque |
35.6 lb-ft (48.3 Nm) @ 2500 RPM |
| Crankshaft Orientation |
Horizontal |
| Crankshaft Type |
Straight |
| Crankshaft Diameter |
1-1/8" |
| Crankshaft Length |
3.78" |
| End Tapped Size |
7/16"-20 |
| Keyway |
1/4" |
| Rotation Direction |
Counter-Clockwise |
| Starter Type |
Electric |
| Ignition System |
Digital CDI with Variable Ignition Timing |
| Carburetor |
Horizontal Two-Barrel Butterfly Valve with Internal Vent |
| Number of Cylinders |
Two |
| Air Cleaner |
Dual Element |
| Oil Capacity |
2.1 qt |
| Fuel Type |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
N/A |
| Fuel Pump |
Diaphragm |
| Governor System |
Mechanical |
| Lubrication System |
Forced |
| Controls |
Remote (Wire) Choke & Throttle |
| Bore x Stroke |
78mm x 72mm |
| Compression Ratio |
9.3 : 1 |
| Charging System |
17 Amp |
What Our Experts Think
-
Exceptional V-Twin Power: The Honda GX690-TDW Horizontal V-Twin Engine is built for maximum power, providing the torque and strength necessary for the most demanding commercial, agricultural, and industrial applications.
-
Fuel-Efficient & Low Emissions: Equipped with advanced 4-stroke technology, the GX690-TDW offers improved fuel efficiency and reduced emissions, making it an environmentally friendly choice without sacrificing performance.
-
Durable & Reliable: Honda’s renowned engineering ensures the GX690-TDW is built for the long haul. It’s designed to endure tough working conditions, making it ideal for high-stress, heavy-duty operations.
-
Smooth & Quiet Operation: The V-Twin design significantly reduces vibration and noise, offering smoother, quieter operation, which is crucial for operator comfort and extending the engine’s lifespan.
-
Versatile & Rugged: Whether powering industrial equipment, commercial vehicles, or agricultural machinery, the GX690-TDW excels across various applications, offering the reliability and versatility needed for hard jobs.
-
User-Friendly Maintenance: Honda’s design makes this engine easy to maintain, with longer intervals between service requirements. This ensures the engine stays reliable, efficient, and operational with minimal effort for the user.
Q&A
Q: What is the Honda Horizontal V-Twin Engine - HDA, GX690-TDW?
A: The Honda Horizontal V-Twin Engine - HDA, GX690-TDW is a high-performance engine designed for demanding industrial and commercial applications. With its V-Twin configuration, it offers excellent power output, smooth operation, and fuel efficiency. This engine is ideal for large-scale equipment such as generators, mowers, and other heavy-duty machinery.
Q: What are the benefits of the Honda Horizontal V-Twin Engine - HDA, GX690-TDW?
A: The GX690-TDW provides superior power and durability, making it ideal for tough jobs. Its V-Twin design ensures smoother operation and reduced vibration, offering a more comfortable user experience. The engine is fuel-efficient and features reduced emissions, contributing to both environmental and operational cost benefits.
Q: Is the Honda Horizontal V-Twin Engine - HDA, GX690-TDW easy to maintain?
A: Yes, the GX690-TDW is designed with ease of maintenance in mind. The engine is built to last with minimal upkeep required. Regular oil changes and routine servicing are enough to keep the engine running smoothly. Its robust design helps minimize wear, leading to fewer maintenance needs over time.
Q: What applications is the Honda Horizontal V-Twin Engine - HDA, GX690-TDW suitable for?
A: The GX690-TDW is well-suited for heavy-duty applications such as large generators, commercial-grade lawn mowers, industrial machinery, and agricultural equipment. Its powerful performance makes it an excellent choice for tasks requiring high output and reliability.
Q: Does the Honda Horizontal V-Twin Engine - HDA, GX690-TDW come with a warranty?
A: Yes, the Honda GX690-TDW engine is backed by Honda's warranty, ensuring reliable coverage. Warranty details may vary depending on your region, so it’s important to review the specific terms and conditions applicable to your location.
Maintenance Tips
-
Oil Changes: Change the oil and replace the filter regularly to ensure smooth operation and prevent engine wear.
-
Air Filter Maintenance: Clean or replace the air filter to ensure proper airflow and prevent dirt from affecting engine performance.
-
Fuel System Care: Use fresh fuel and consider adding a fuel stabilizer if the engine will be stored for a long period to avoid fuel system issues.
-
Coolant Level Check: Inspect coolant levels and hoses to prevent overheating and ensure proper cooling of the engine.
-
Spark Plug Inspection: Regularly check, clean, or replace spark plugs for optimal ignition and engine performance.
