Sundown Audio Single 18" Zv5 Ported Enclosure - AABE-SA-Zv5-S18SUPB-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Zv5 18" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosure that are well build, well performing and good looking enclosure at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and our solid 1" baffle is thick enough to handle subwoofer setups up to 5000w. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

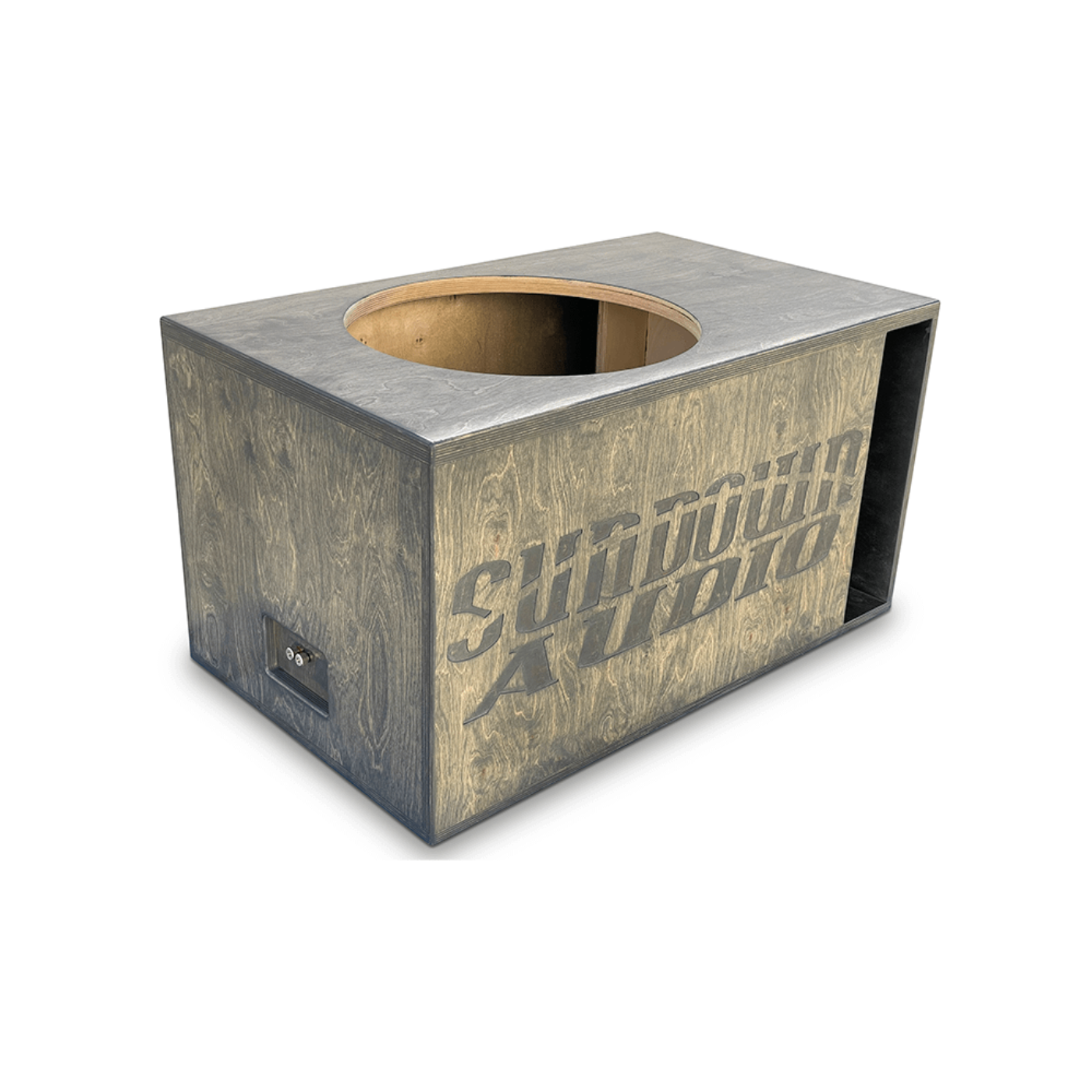

Custom built enclosure specifically for the Sundown Audio Zv5 18" subwoofer.
Specifications
| Net Internal Volume |
7.0 cubic feet |
| Tuning Frequency |
30 Hz |
| Port Area |
95.64 sq in |
| Port Dimensions |
18” (L) x 5.33” (H) |
| Subwoofer Cut-Out Diameter |
17.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 20" tall
- 39.75" wide
- 24.625″ deep
What Our Experts Think
-
Precision-Tuned Ported Design: Engineered specifically for the Zv5 18" subwoofer, this enclosure maximizes airflow and minimizes distortion, delivering deep, resonant bass.
-
High-Quality Construction: Built with durable materials to withstand the intense vibrations and power output of high-performance audio systems.
-
Optimized Airflow: The ported design enhances low-frequency response, ensuring that bass notes are both powerful and clear.
-
Compact Footprint: Despite its robust performance, the enclosure maintains a manageable size, making it suitable for various vehicle installations.
Q&A
Q: What makes this enclosure ideal for the Zv5 subwoofer?
It’s specifically tuned and engineered to match the unique performance characteristics of the Zv5 18" subwoofer, ensuring optimal sound reproduction.
Q: What kind of bass can I expect from this enclosure?
Expect deep, powerful, and distortion-free bass with high SPL output—ideal for both daily listening and competition-level performance.
Q: Is the enclosure compatible with other 18" subwoofers?
While it’s designed for the Zv5 18", it may fit other similar-sized subwoofers, but performance could vary depending on the subwoofer used.
Q: How is this enclosure constructed?
Made from high-density MDF with internal bracing for added durability and minimized resonance, ensuring solid bass performance.
Q: Is this enclosure pre-wired?
Yes, it comes with a heavy-duty terminal cup and internal wiring, ready for quick setup.
Q: What is the port design used in this enclosure?
It features a precision-tuned port that maximizes airflow for optimal bass response and efficiency.
Maintenance Tips
-
Clean Regularly: Wipe down the exterior with a soft cloth to keep it free from dust and dirt.
-
Clear the Port: Ensure the port remains unobstructed for optimal airflow and bass performance.
-
Tighten Mounting Screws: Periodically check and tighten screws to prevent rattling or air leaks.
-
Avoid Moisture Exposure: Keep in a dry environment to protect the MDF and components from damage.
-
Inspect Wiring: Ensure speaker terminals are securely connected and free from corrosion.
-
Handle with Care: Avoid impact damage by transporting and handling the enclosure gently.
