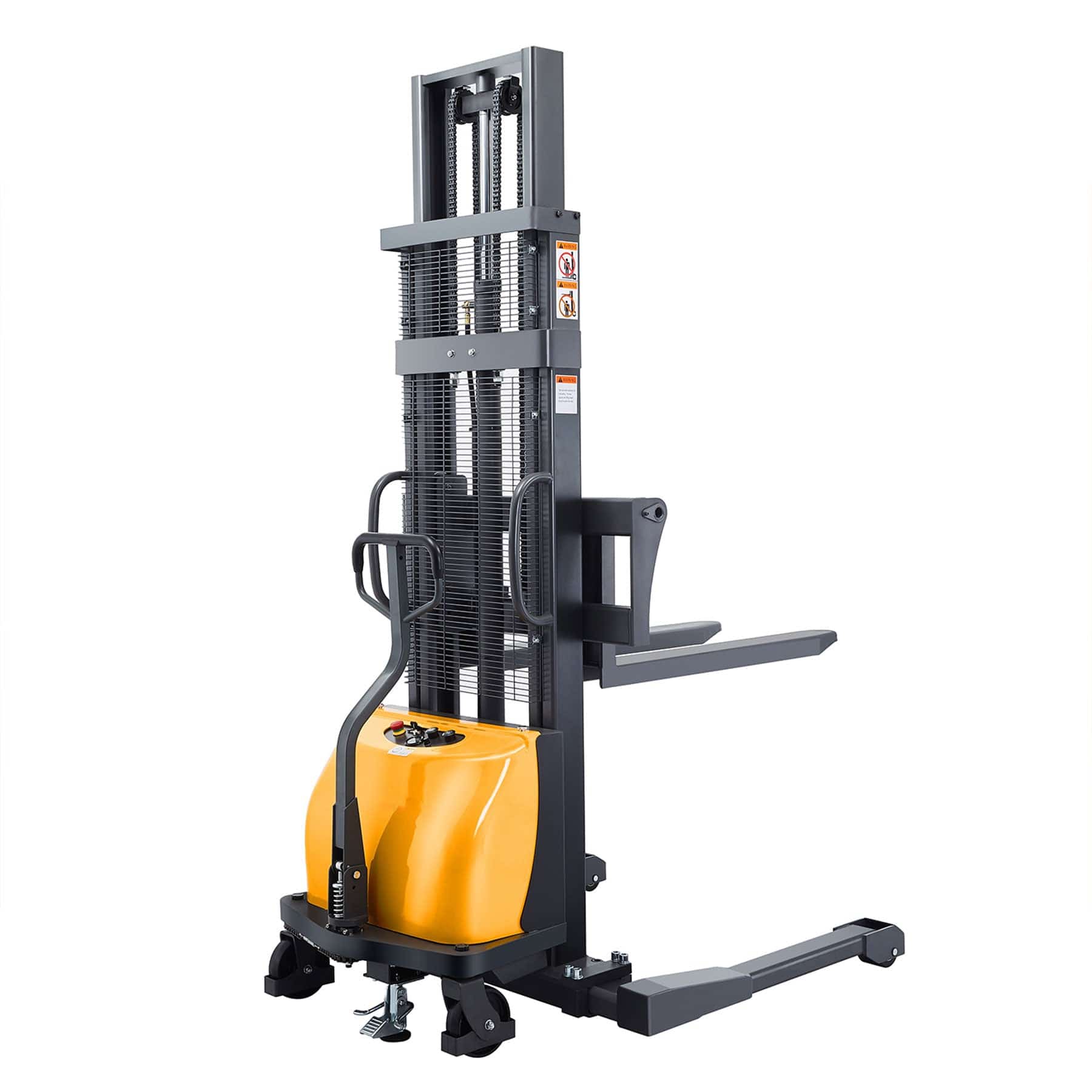

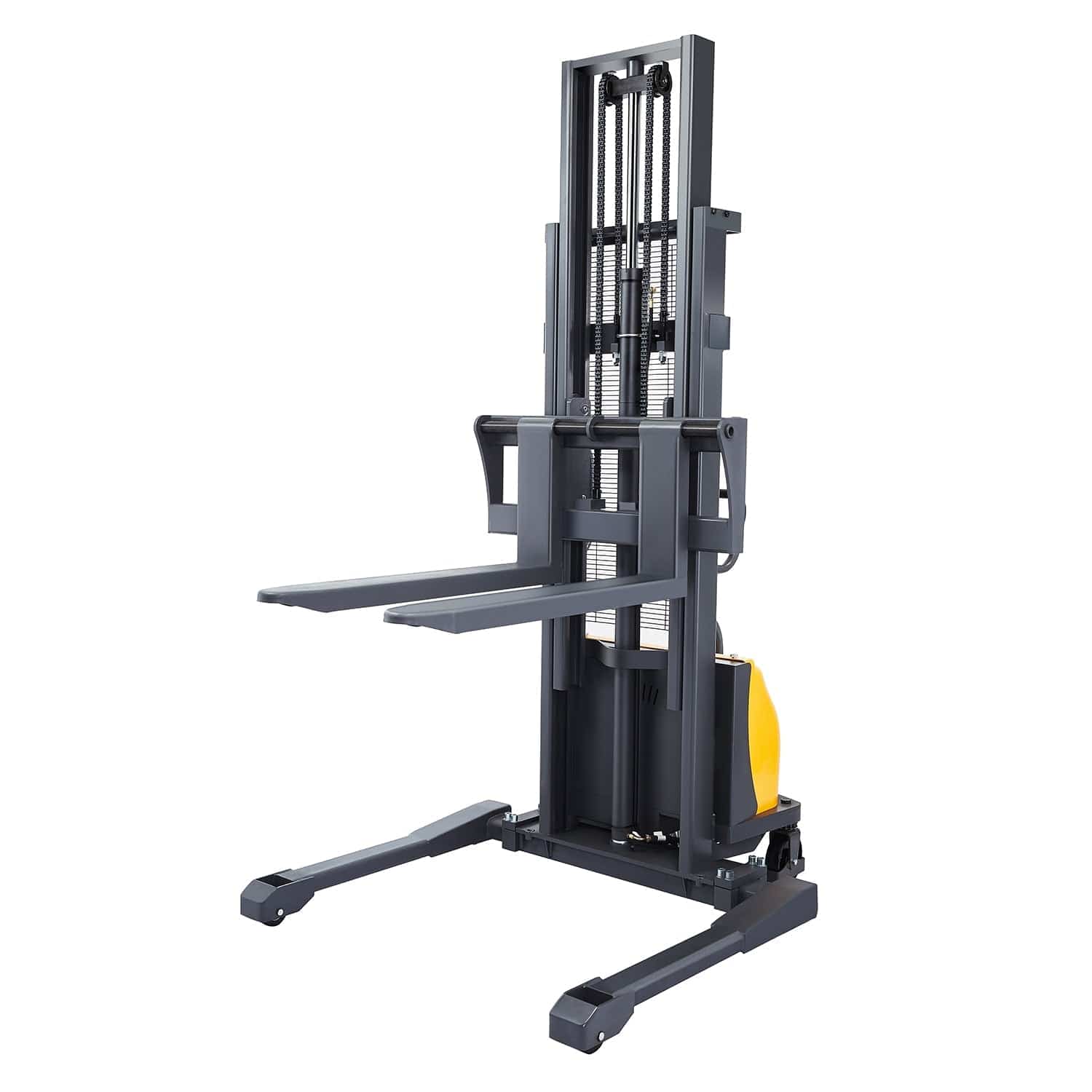

Apollolift Semi-Electric Straddle Stacker 3300Lbs Cap.118" Lifting - A-3010

Manual Push And Pull, Powered Lifting And Lowering

• Special chain steering system.
• Integrate panel design.
• Foot pedal brake for safety and ramp usage.

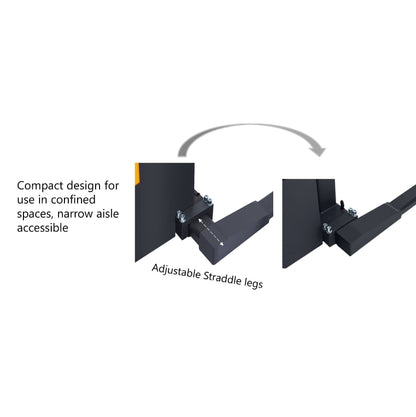

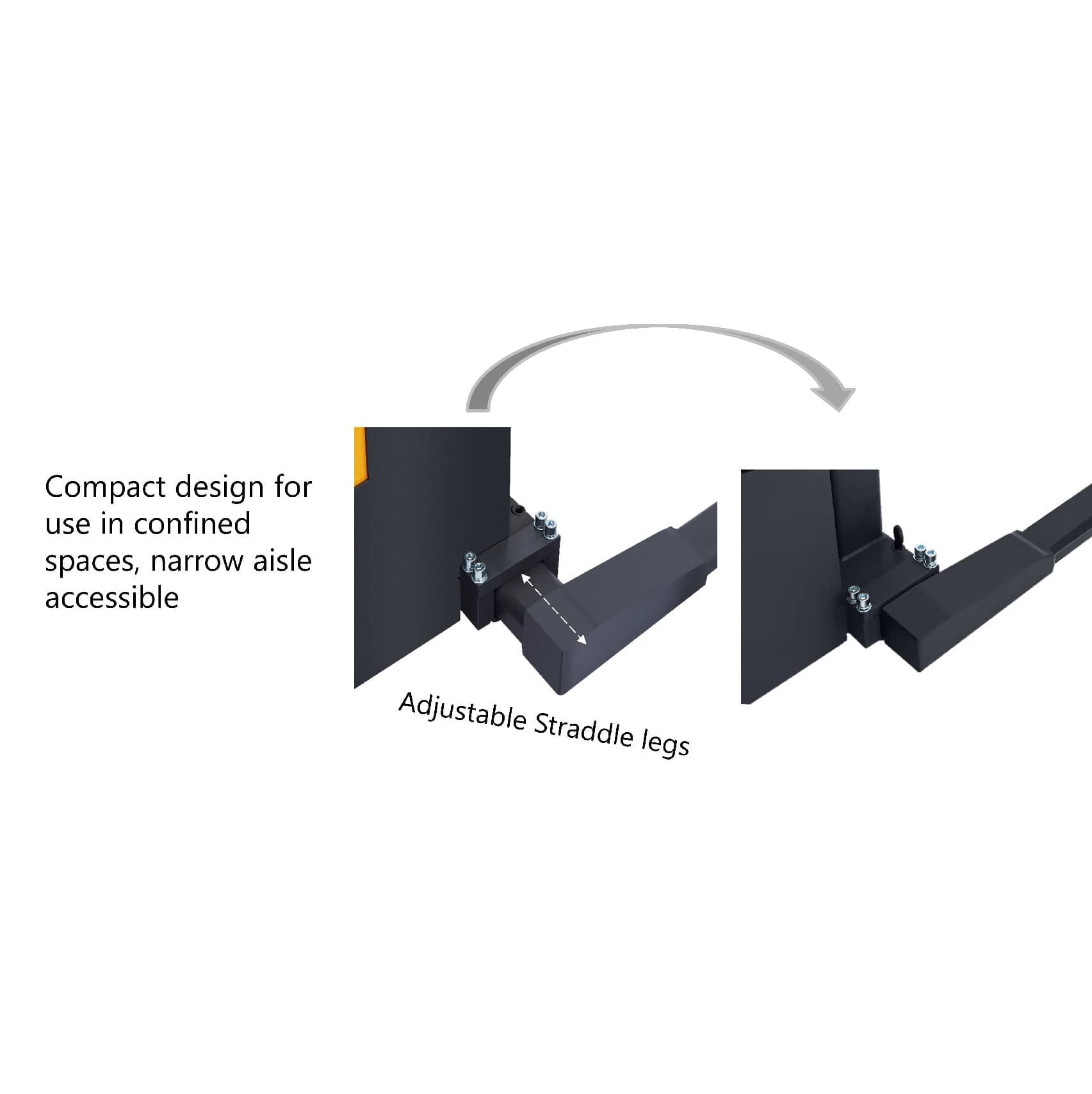

• Adjustable forks and straddle legs.

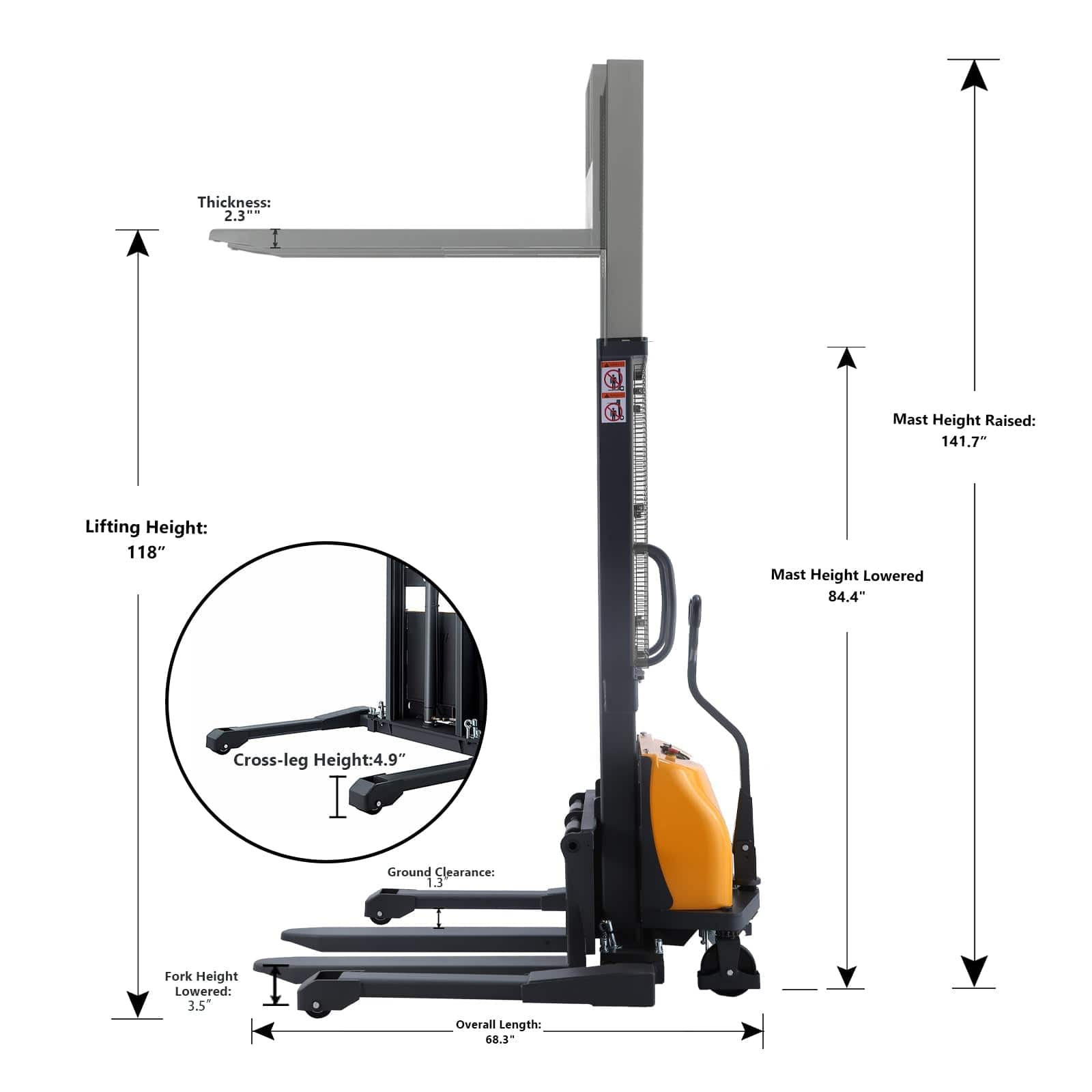

DIMENSIONS:

• Overall Length: 72.2"
• Overall Width: 44½"-60.3"
• Recommended Aisle Width: 92.4"
• Turning Radius:59.3"
• Mast Height Lowered: 84.4"
• Mast Height Raised: 141.7''
• Load Center: 19.7"

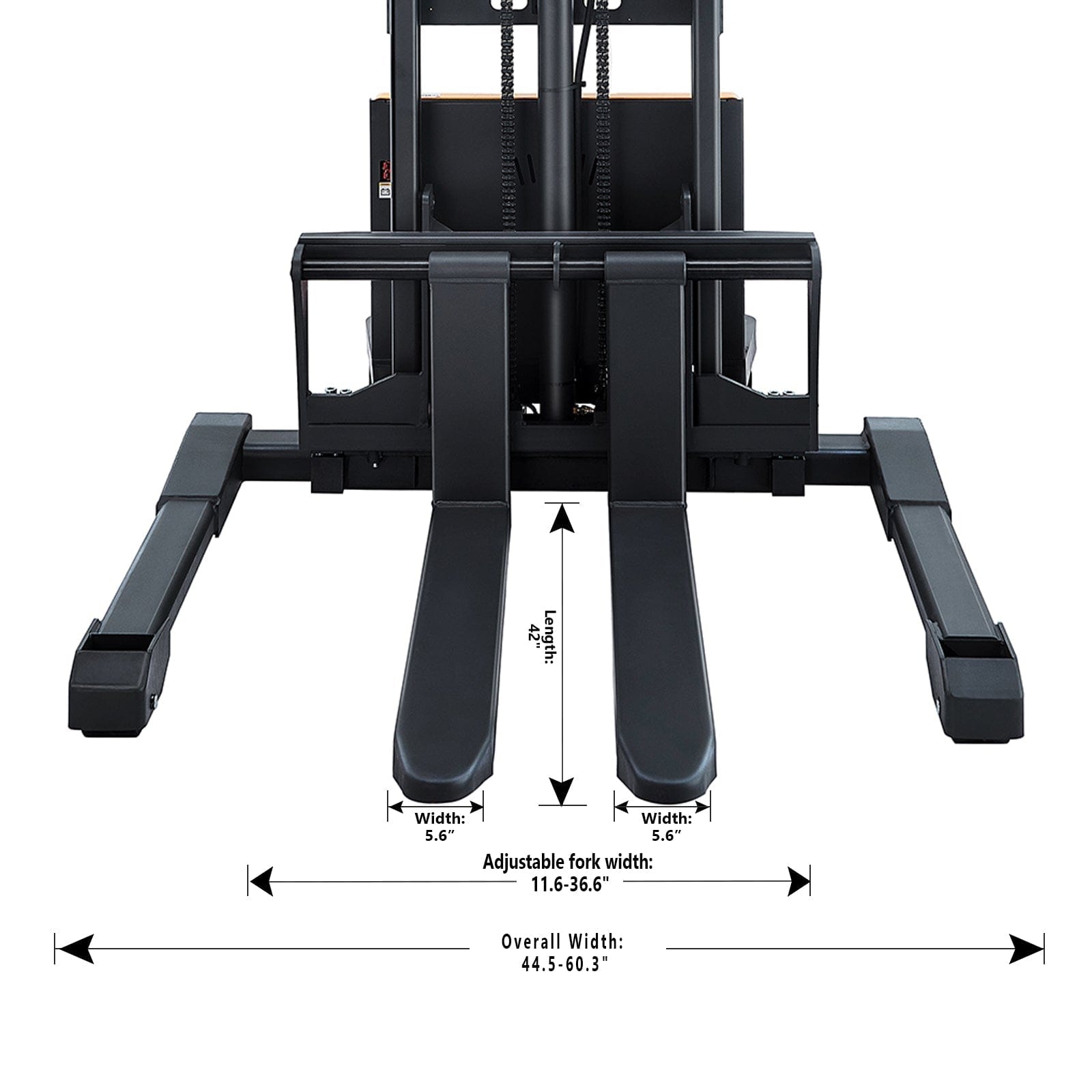

FORKS:

• Thickness: 2.3''
• Width: 5.6''
• Length: 42''
• Adjustable fork width: 11.6-36.6''
• Leg inner width: 14.5''
• Leg outer width: 22.4''

SPEED:

• Lifting speed(laden/unladen): 2.7/3.9mph
• Lowering speed(laden/unladen): 5.9/4.7mph

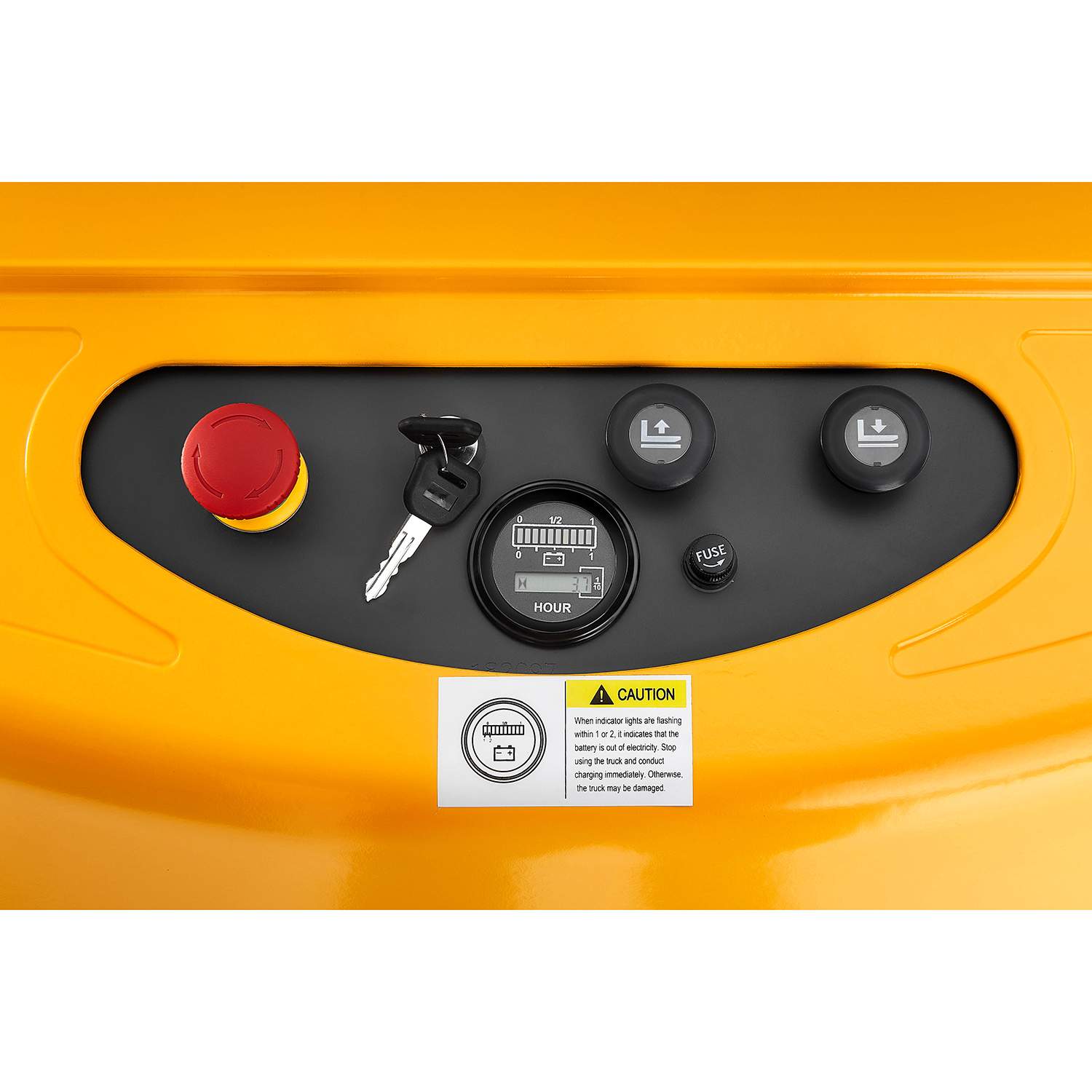

BDI:

• Multi-function battery display indicator.
• Red: the battery is less than 20% and  need to be charged, the truck can walk only, not lift.
• Yellow: the battery is around 50%.
• Green: the battery is full.

Specifications

• Not explosion proof.
• This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Fully charge battery before use to avoid damaging cells.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

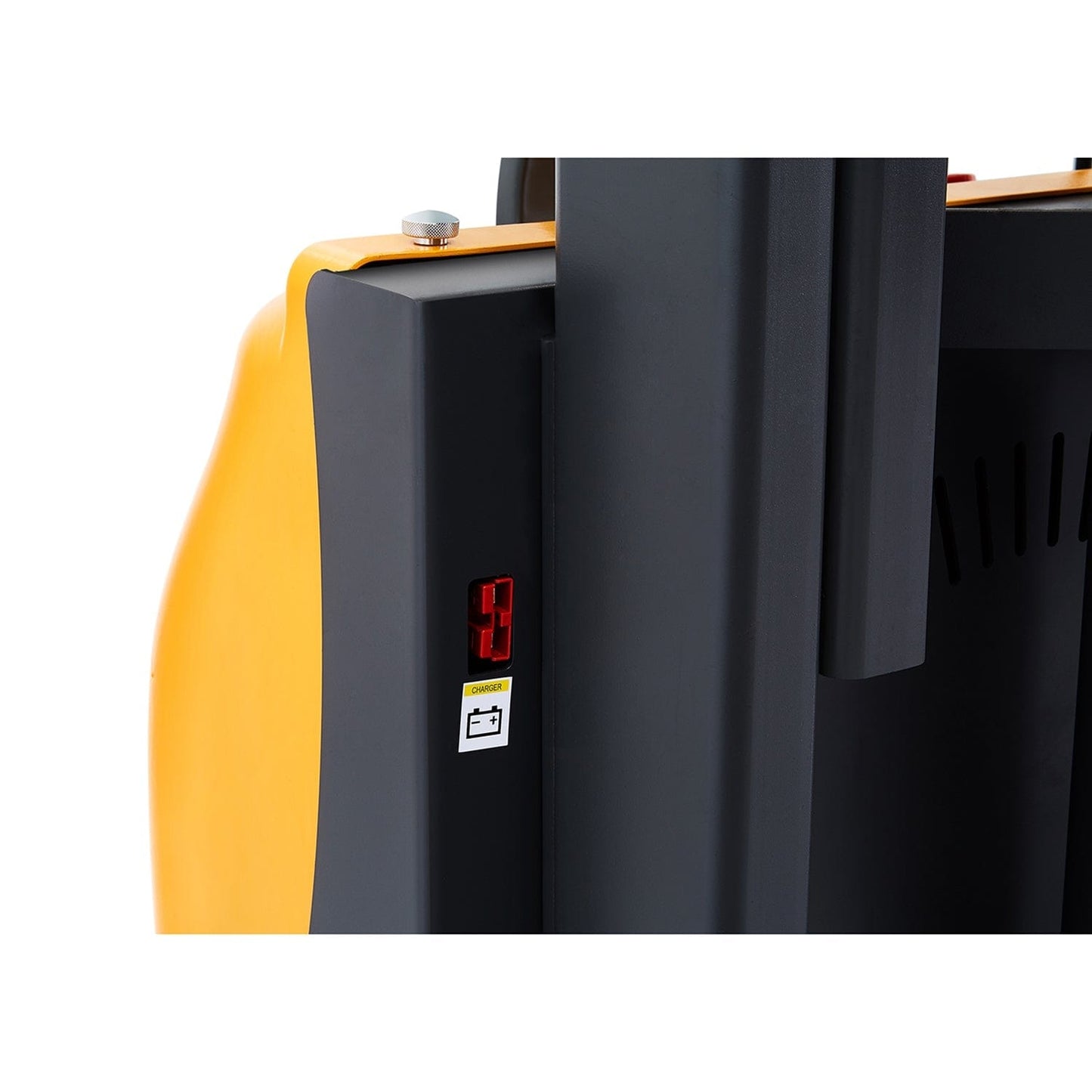

• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.
• Time to fully charge battery: 8 - 10 hrs.
