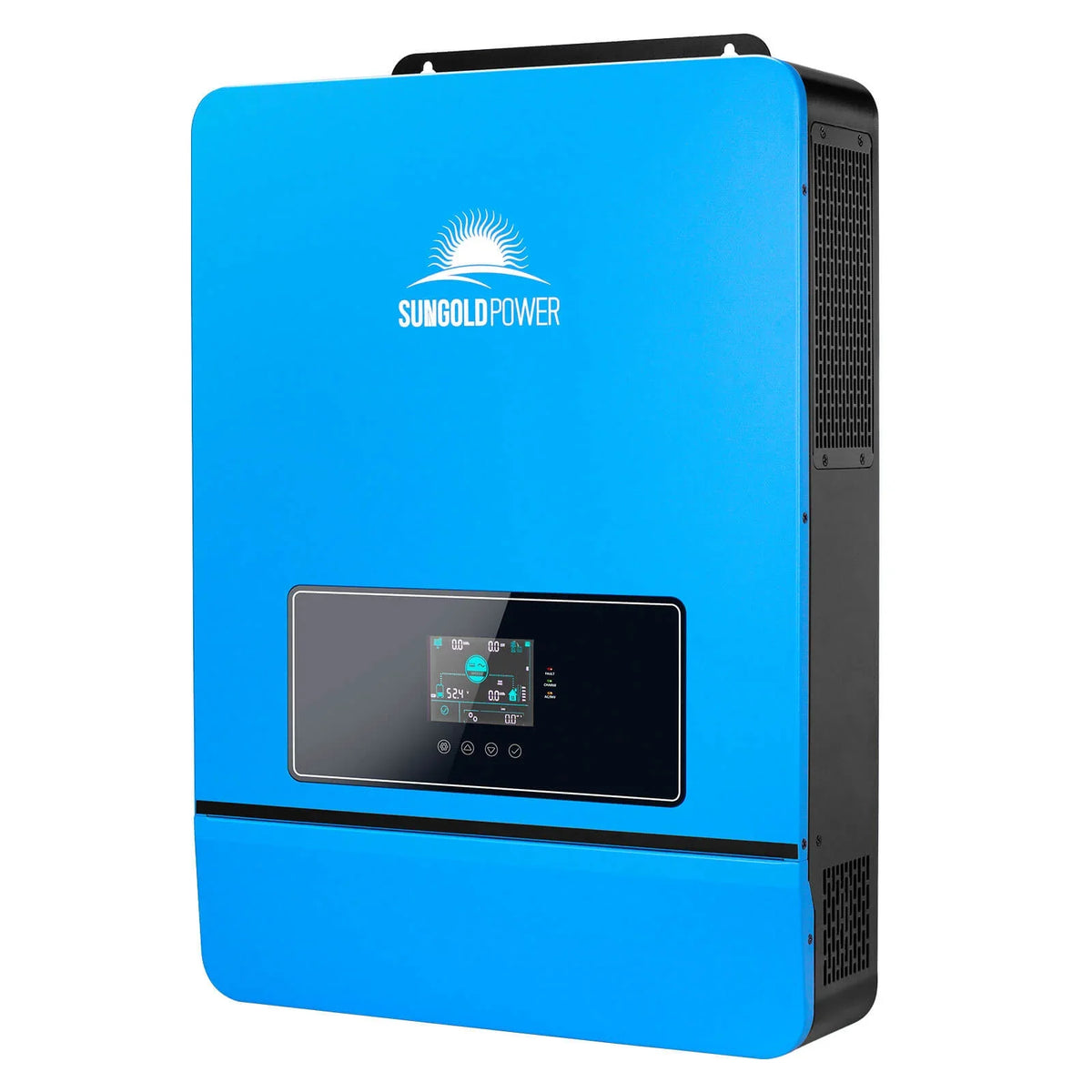

10KW 48V Split Phase Solar Inverter - SPH10K48SP

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight

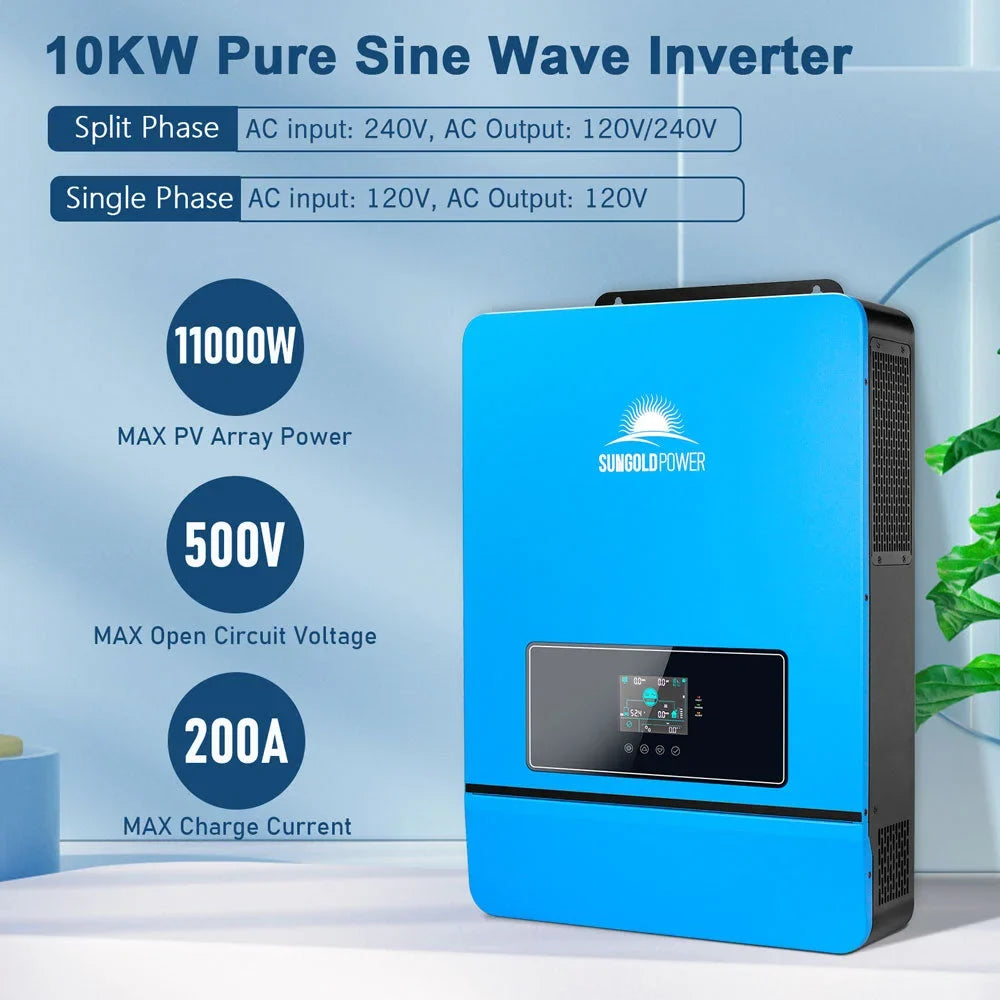

• ★ All in one unit: 10KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit : 500VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP.

• ★ Stable AC output and Smart Protection: Rated Output Power:10000W, Max Peak Power:20,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on.

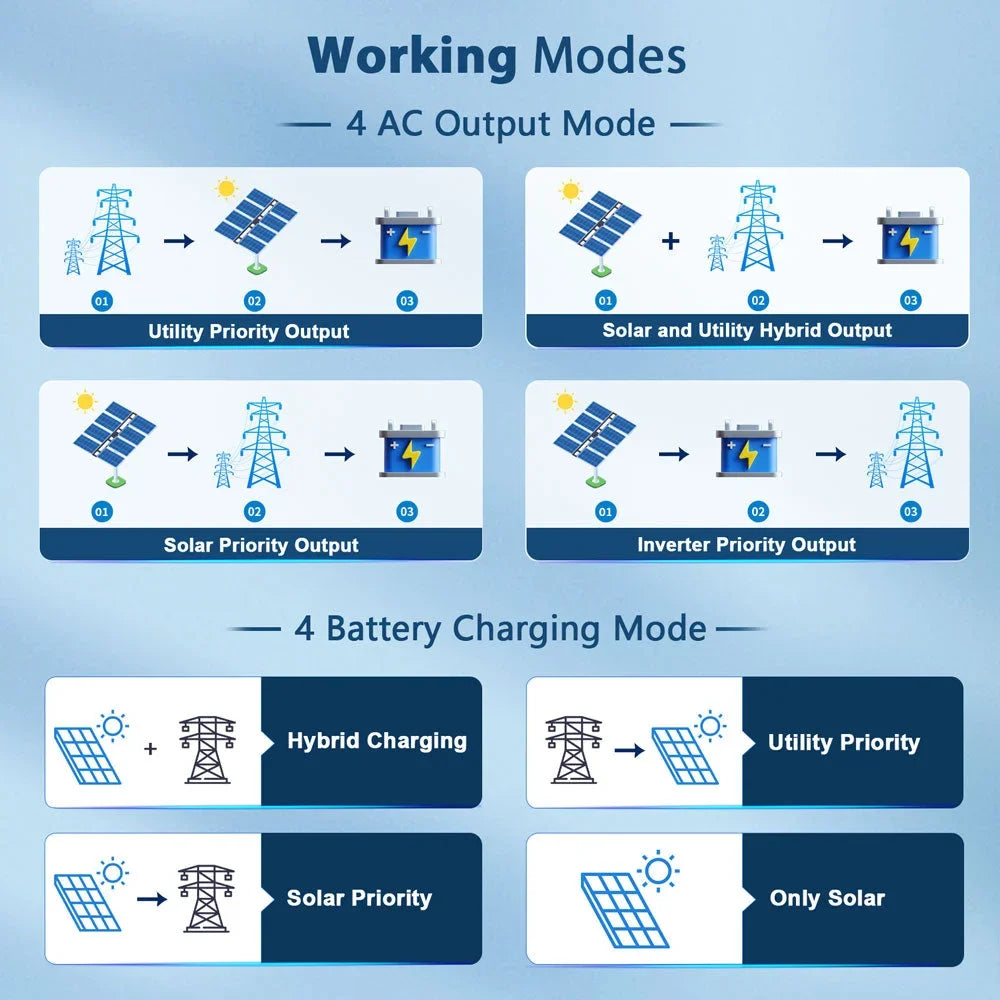

• ★ Four charging / Output modes: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes:  Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

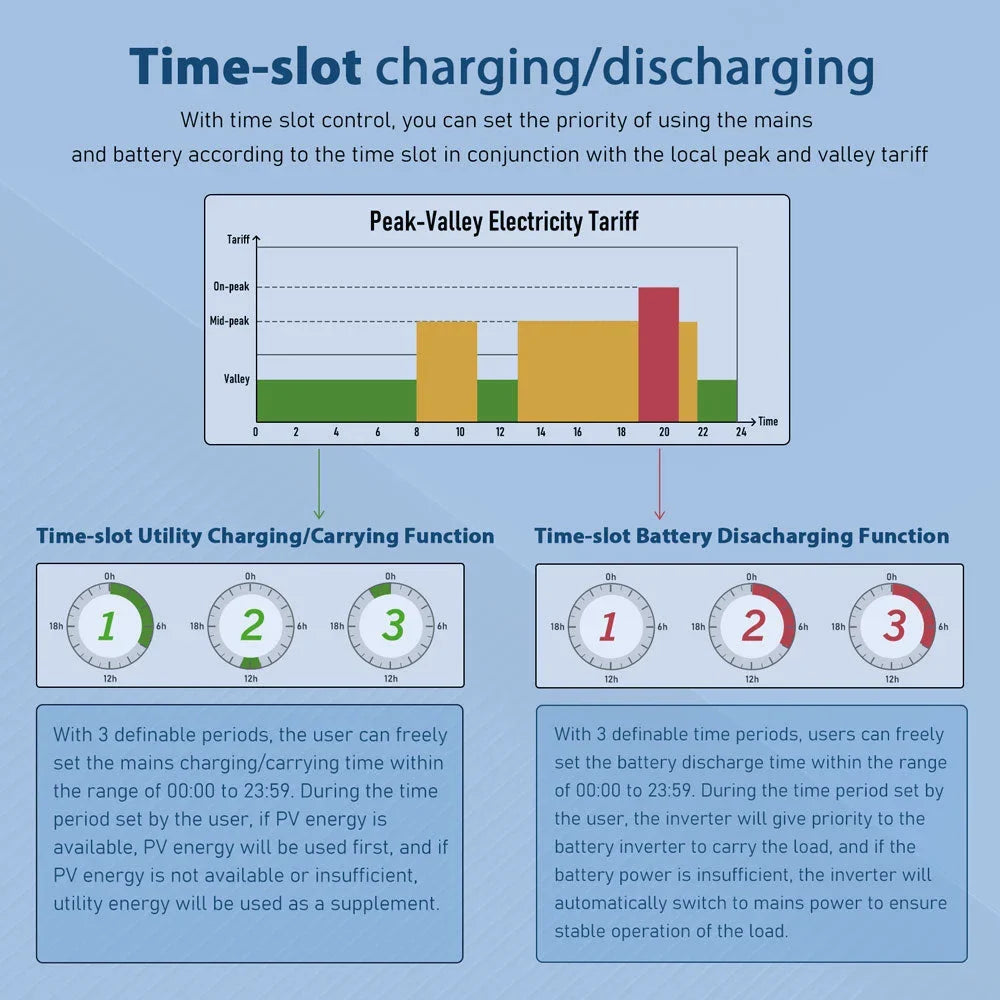

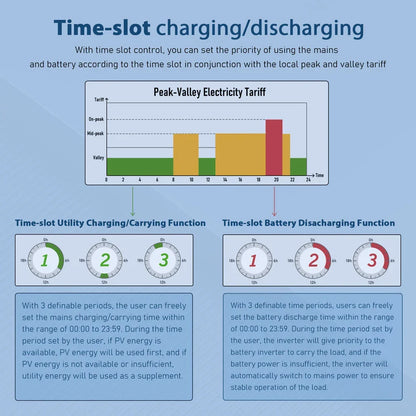

• ★ Time-slot charging/discharging function: The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

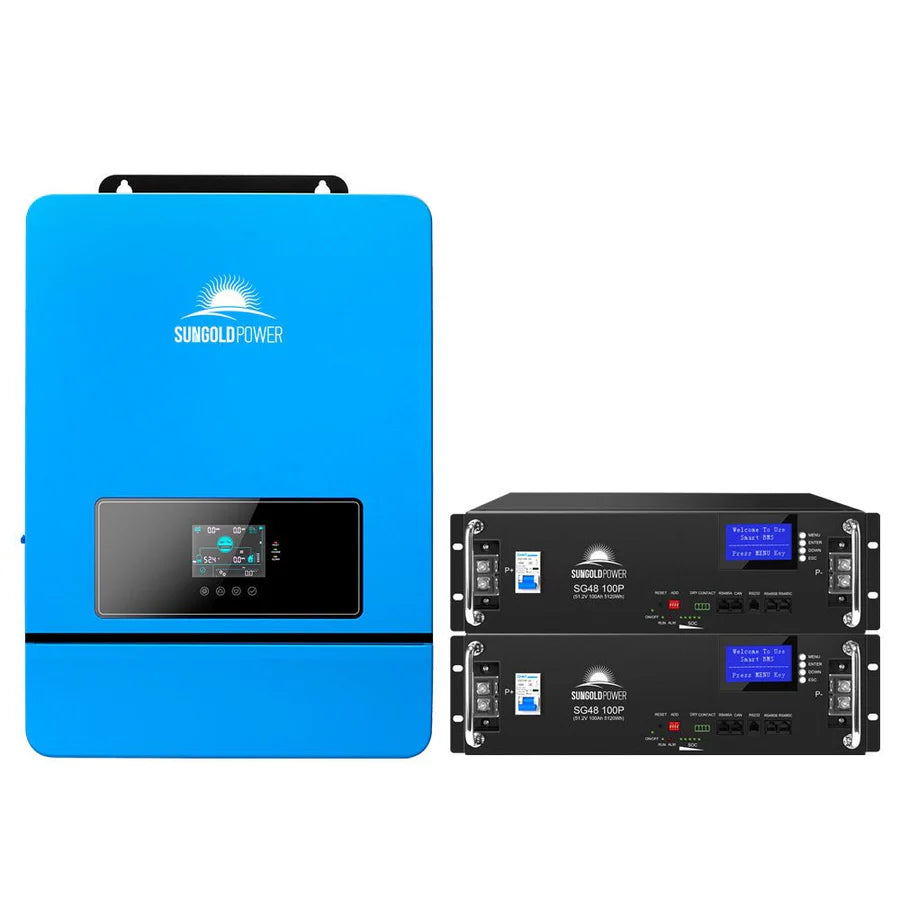

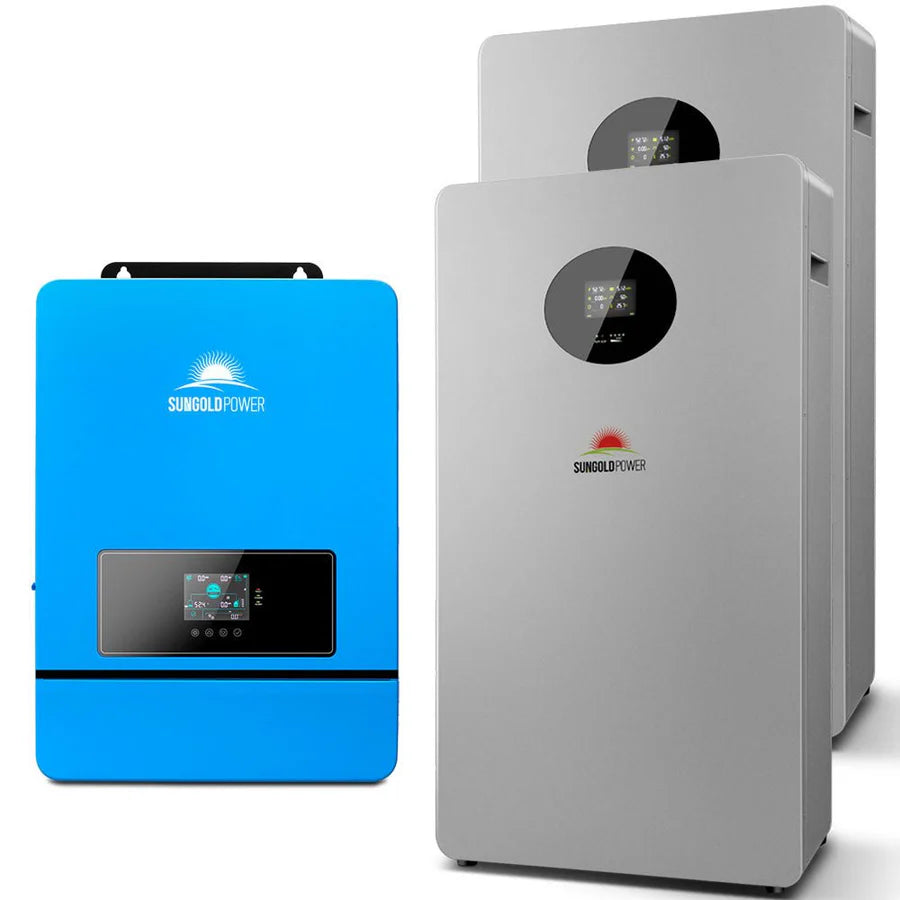

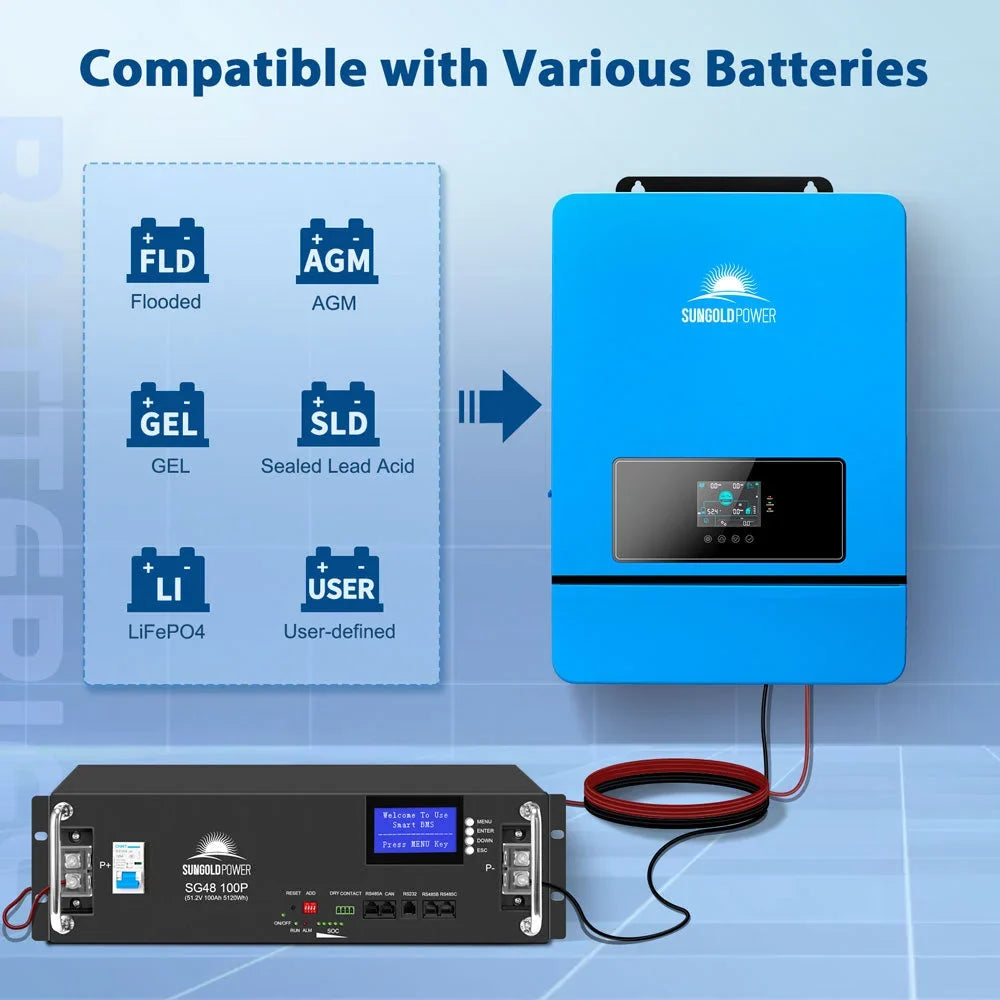

• ★ Battery type: 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.

• Robust Power Output: Delivers a powerful 10KW output, ideal for large homes and commercial installations.
• Split-Phase Capability: Provides 120V/240V output, perfect for running diverse appliances and heavy-duty equipment.
• 48V System: Optimized for energy storage and efficient solar energy utilization.
• Advanced MPPT Technology: Ensures maximum solar charging efficiency and reliable performance.
• Built for Reliability: Durable construction with overload and short-circuit protection for long-lasting operation.
• Easy Integration: Seamlessly works with solar panels, batteries, and utility grids for a versatile energy solution.

Q: What is the 10KW 48V Split Phase Solar Inverter (SPH10K48SP)?
A: A powerful 10,000W split-phase solar inverter designed for 48V solar systems, ideal for residential and off-grid applications.

Q: What are its key features?
A:

• 10,000W capacity with split-phase output (120V/240V)
• Supports 48V battery systems
• Advanced MPPT for maximum solar energy efficiency
• Pure sine wave output for sensitive electronics
• Built-in protections: overload, short circuit, and overcharge

Q: What applications is it ideal for?
A: Perfect for residential homes, small businesses, off-grid systems, and backup power solutions.

Q: Can it handle high-demand appliances?
A: Yes, its 10KW capacity and split-phase design make it suitable for powering heavy loads like HVAC systems and large appliances.

Q: Is it easy to integrate into existing systems?
A: Yes, it supports seamless integration with 48V battery banks and solar arrays for efficient operation

• Cooling System: Ensure vents and fans are dust-free to prevent overheating.
• Battery Care: Check battery connections and voltage regularly for optimal performance.
• Inspect Wiring: Tighten all connections and inspect cables for wear or corrosion.
• Clean Environment: Install in a dry, ventilated area away from direct sunlight and moisture.

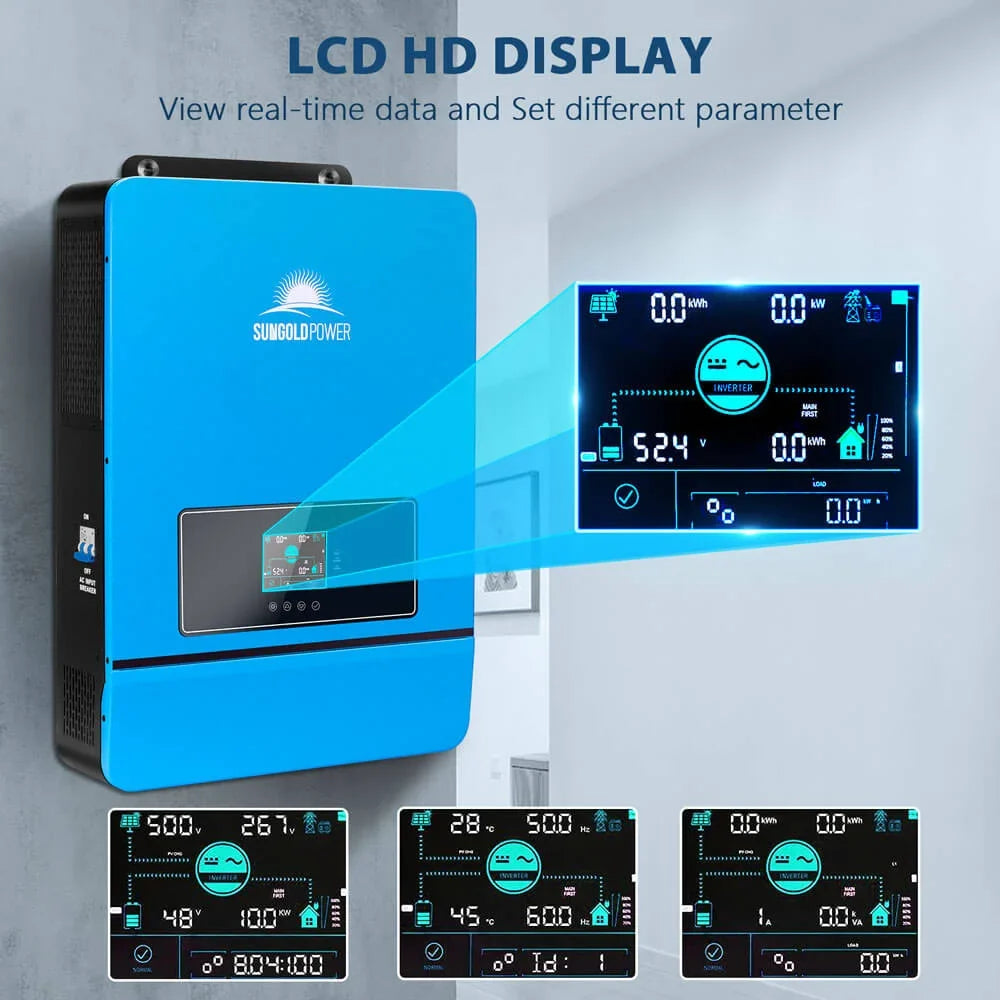

• Monitor Performance: Use the display or monitoring app to track input/output and troubleshoot issues.
• Firmware Updates: Update firmware periodically to maintain system compatibility and efficiency.
• Shutdown for Maintenance: Disconnect solar and battery sources before performing any maintenance.
