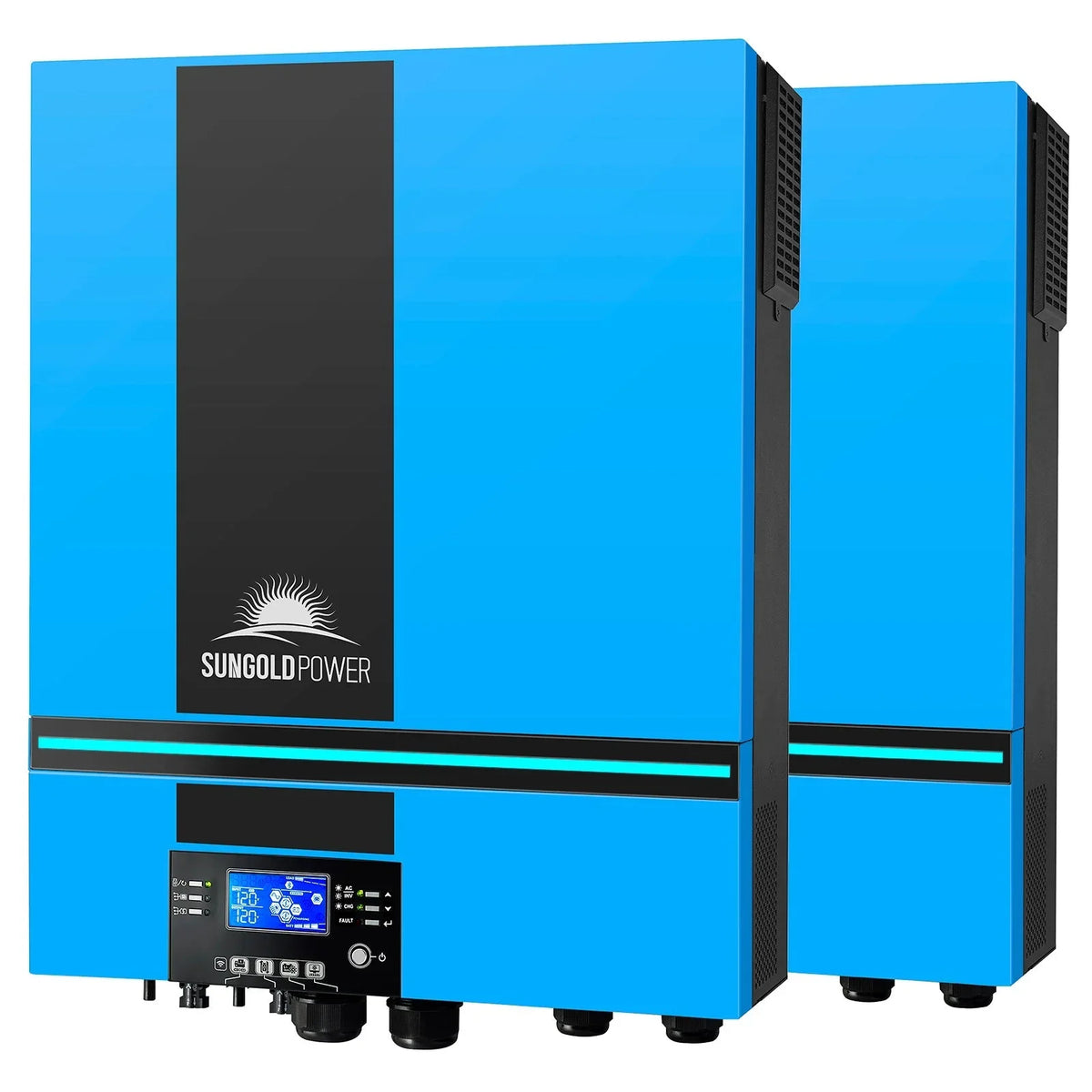

13000W 48V Solar Charge Inverter Split Phase + Wifi Monitor (2 Units Parallel) UL1741 Standard - SP6548*2

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

Product Highlight

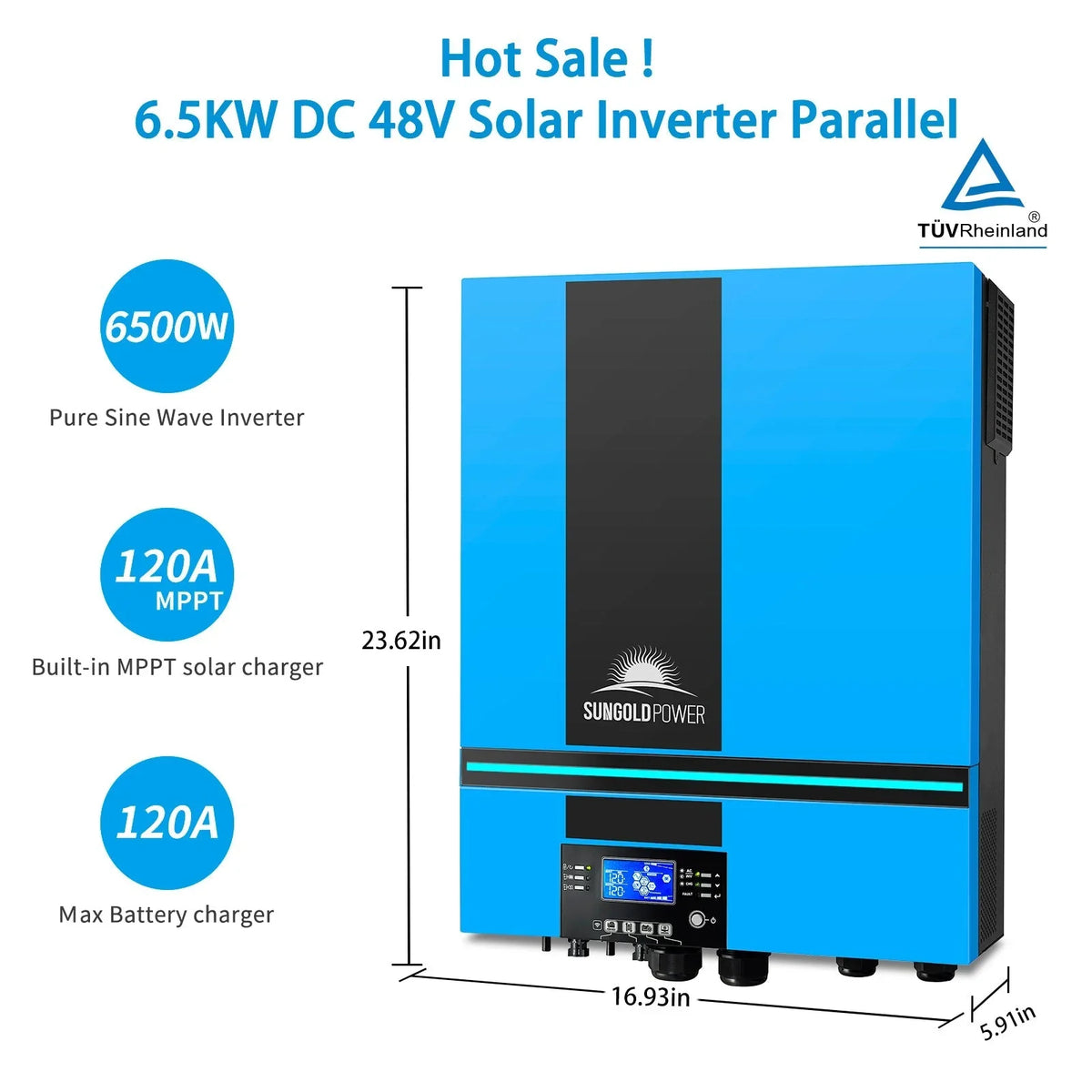

• ★ Solar Inverter: 6.5KW DC 48V pure sine wave AC output 120V, Built-in MPPT solar charger max 120A and utility battery charger max 120A, Max PV input 390V (VOC), Dual PV input. UL 1741 Standard Listed by TUV / CSA / FCC

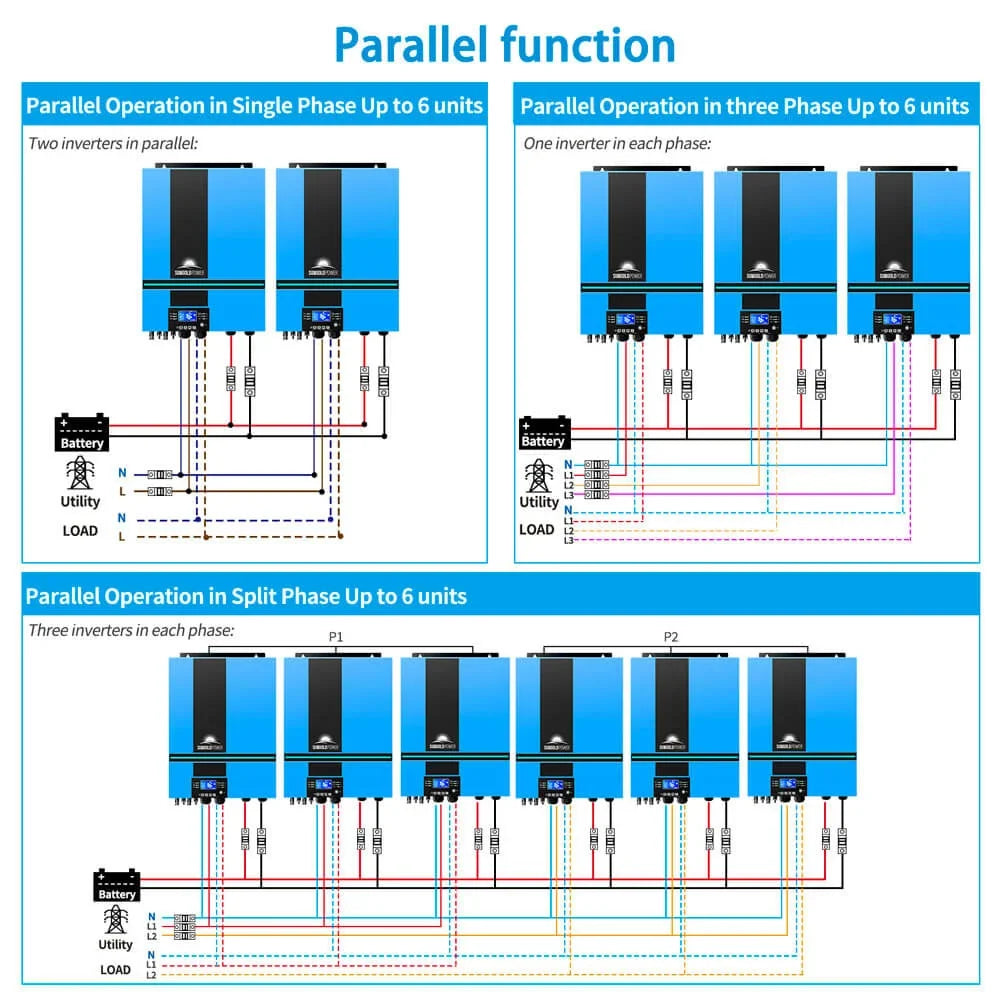

• ★ Parallel Kit: parallel support up to 6 units, 120V single phase (1 unit),120V/240V Split Phase capable (2 unit parallel),208V 3-Phase Support (3 unit parallel)

• ★ WIFI Model : Built-in WIFI transmitter, Enable inverter data to be transmitted via WIFI to user's iPhone or android smartphone, app can be downloaded from apple or android store

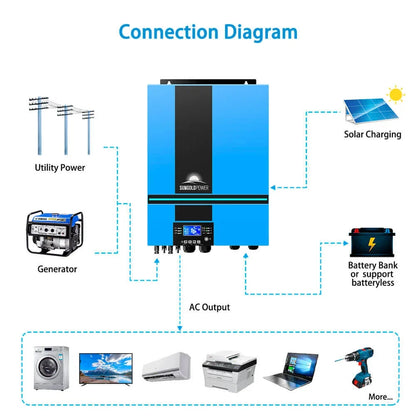

• ★ Batteryless support: the inverter can power the loads from PV array / ac grid without battery connected

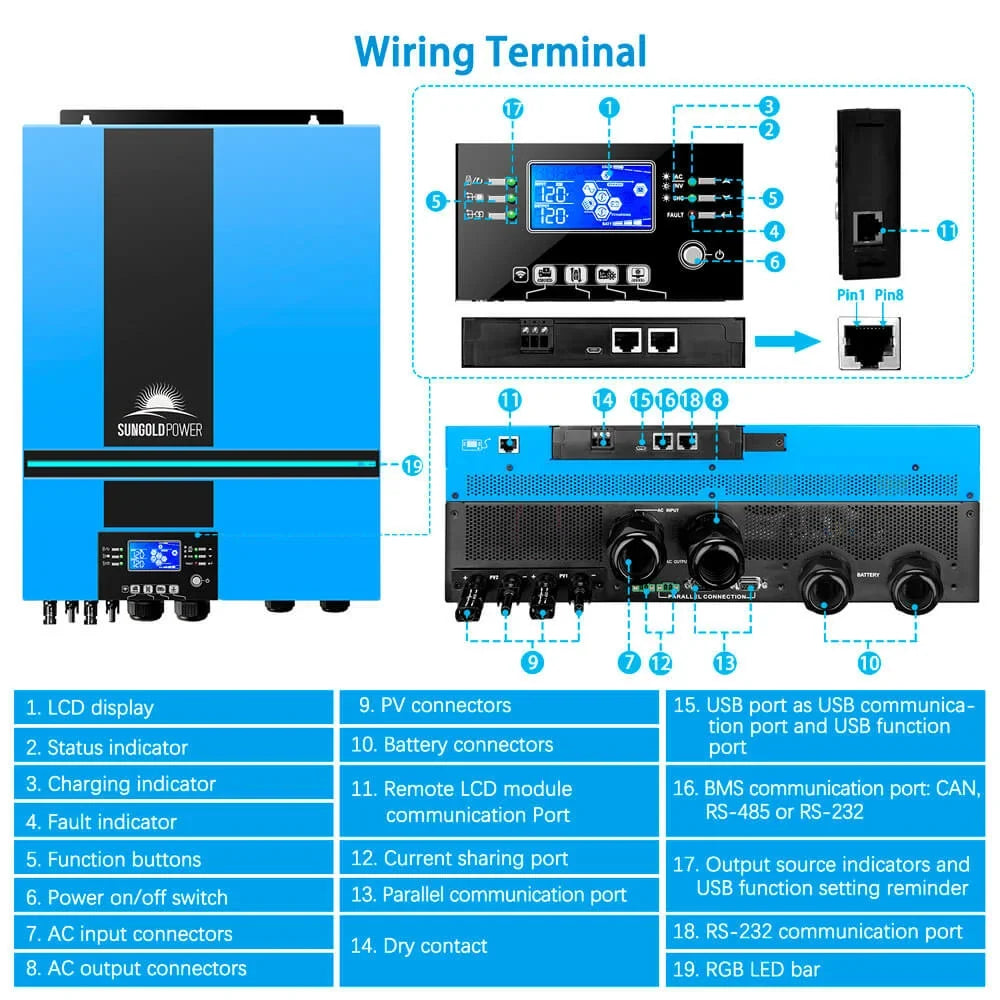

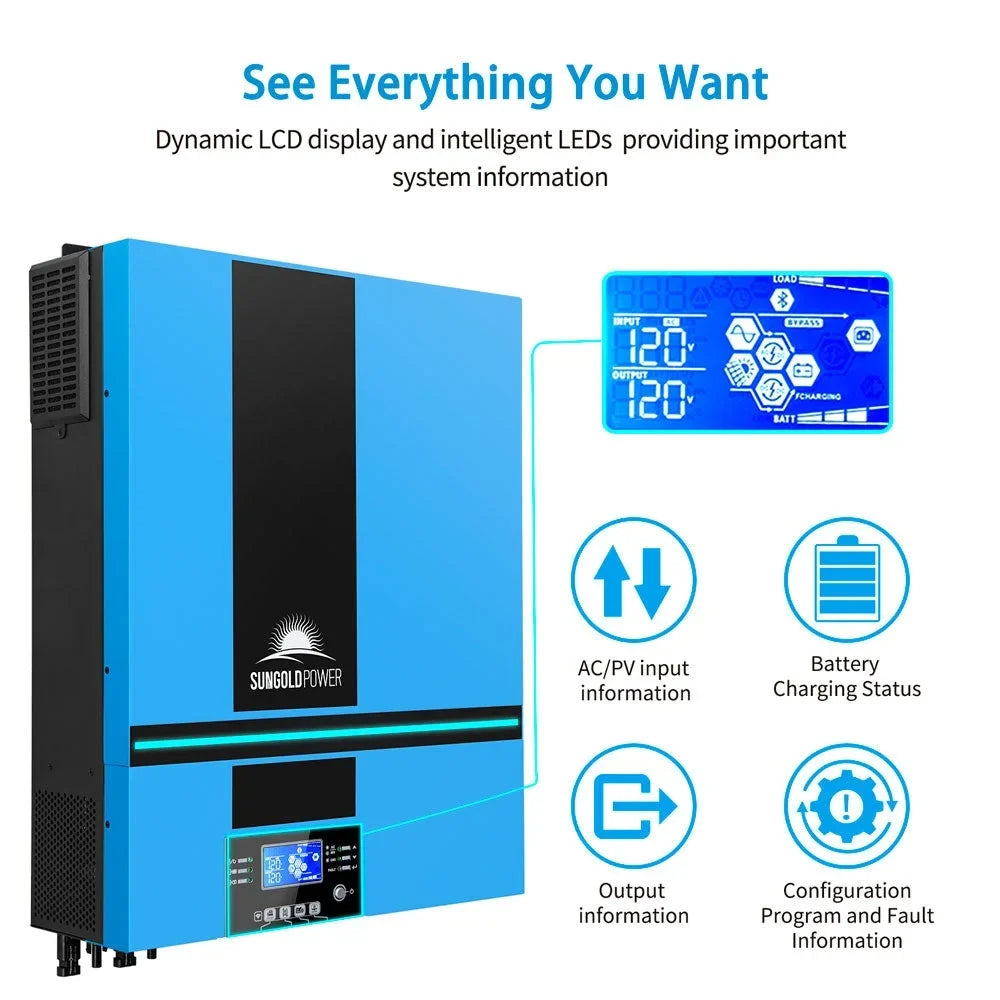

• ★ LCD operation: Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)

• 6500W Pure Sine Wave 120V output

• Parallel up to 6 units (built-in parallel kits)

• 120V/240V Split Phase capable (2 unit parallel)

• 208V 3-Phase Support (3 unit parallel)

• Built-in Wi-Fi for mobile monitoring

• Work with 48V Lead-acid/Lithium/User and NO Battery

• Pylontech/Weco/Soltaro BMS Support

• Built-in genset starter dry contact

• FREE monitoring software

Download Pure Sine Wave Solar Inverter Charger User's Manual

• Massive Power Capacity: Delivers 13,000W total output (2 units in parallel), ideal for large residential and commercial energy needs.
• Split-Phase Technology: Offers 120V/240V output to power diverse appliances and heavy-duty equipment.
• Advanced Solar Charging: Features MPPT technology for maximum solar energy conversion and efficiency.
• Certified Reliability: UL1741 compliance ensures safe and dependable operation in all environments.
• WiFi Monitoring: Built-in WiFi allows real-time performance tracking and remote management via an intuitive app.
• 48V System Compatibility: Designed for efficient energy storage and seamless integration with solar setups.
• Expandable Design: Parallel operation supports scalable energy solutions for growing power demands.

Q: What is the 13000W 48V Solar Charge Inverter Split Phase (SP6548*2)?
A: A dual-unit solar inverter system providing 13,000W total output, split-phase 120V/240V capability, WiFi monitoring, and UL1741 certification, ideal for 48V solar systems.

Q: What are its key features?
A:

• 13,000W total output (2 x 6,500W units in parallel)
• Split-phase 120V/240V for versatile applications
• MPPT technology for efficient solar energy capture
• Integrated WiFi monitoring for real-time system management
• UL1741 certified for grid-tie and safety compliance

Q: What applications is it best suited for?
A: Designed for residential solar power, off-grid systems, and backup energy solutions with high-demand appliances.

Q: Can it power heavy loads?
A: Yes, its 13KW capacity and split-phase design support large appliances like HVACs, water pumps, and industrial equipment.

Q: Is remote monitoring available?
A: Yes, the WiFi monitor allows easy access to performance data from anywhere

• Cooling System: Clean vents and fans on both units regularly to prevent overheating.
• Parallel Setup: Inspect and secure parallel connection cables for proper synchronization.
• Battery Care: Check battery voltage, terminals, and overall health frequently.
• WiFi Monitoring: Use the monitoring system to track real-time performance and detect anomalies.
• Environmental Conditions: Keep the units in a dry, ventilated, and temperature-controlled location.
• Firmware Synchronization: Update firmware on both units simultaneously to avoid operational mismatches.
• Power Down Safely: Turn off and disconnect all power sources before maintenance.
