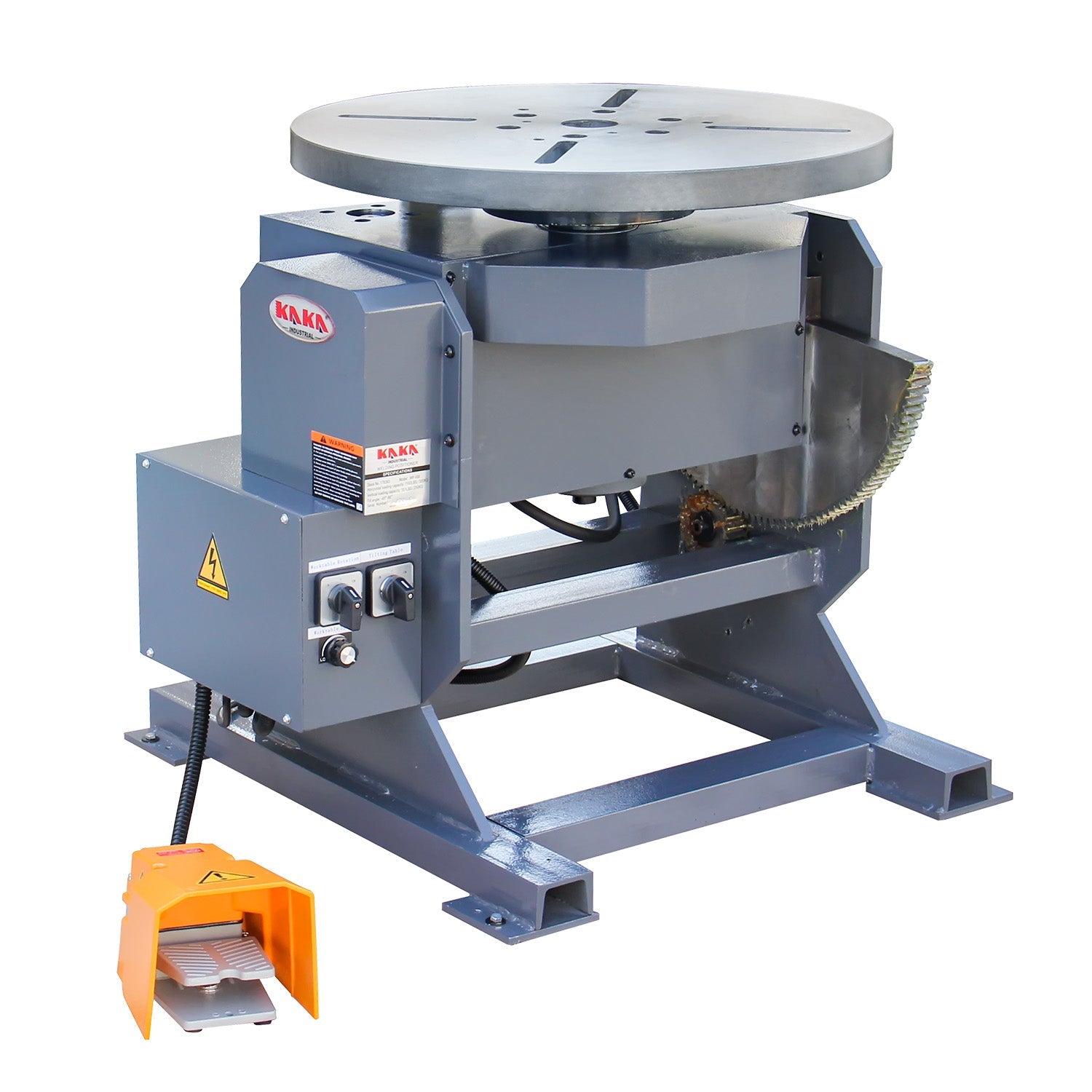

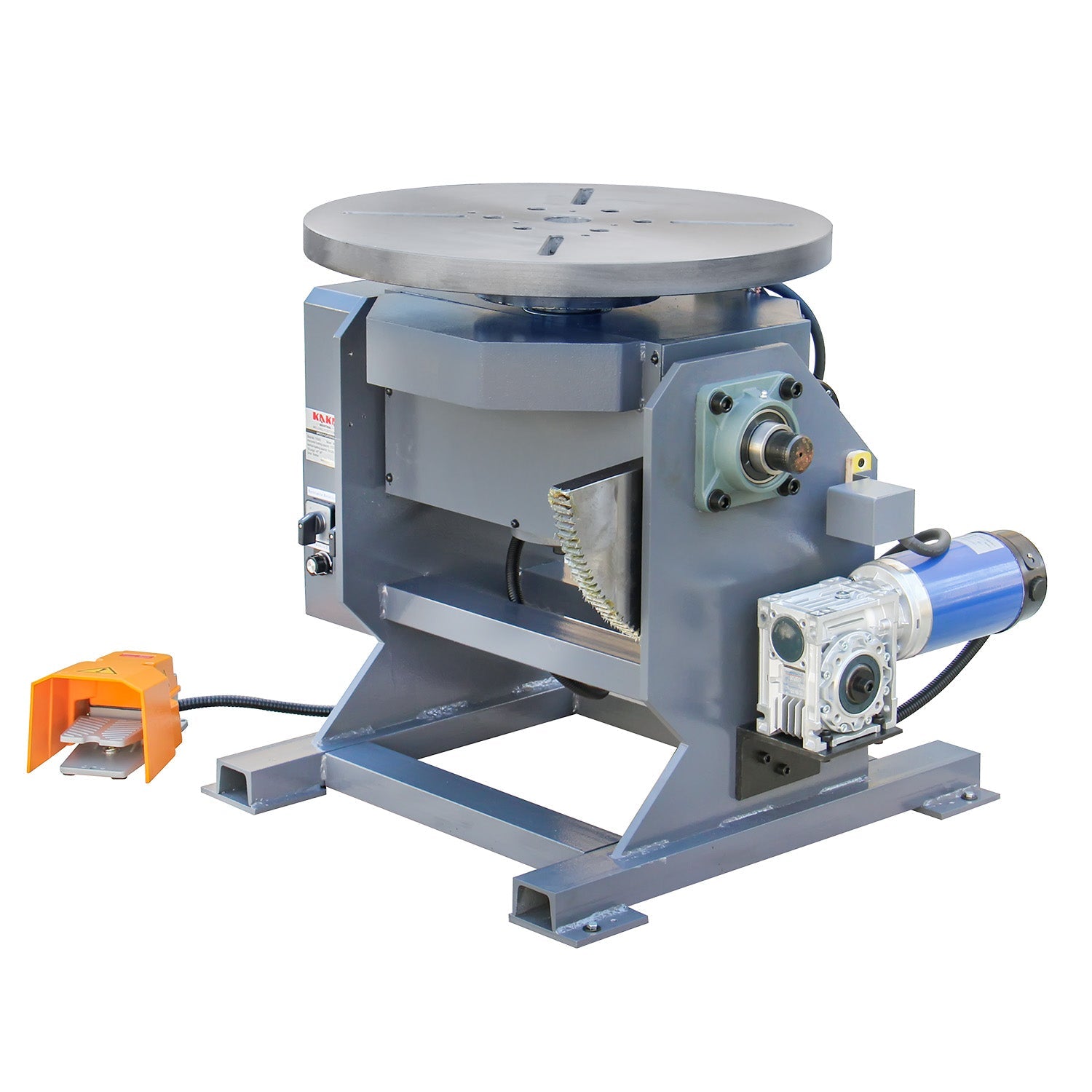

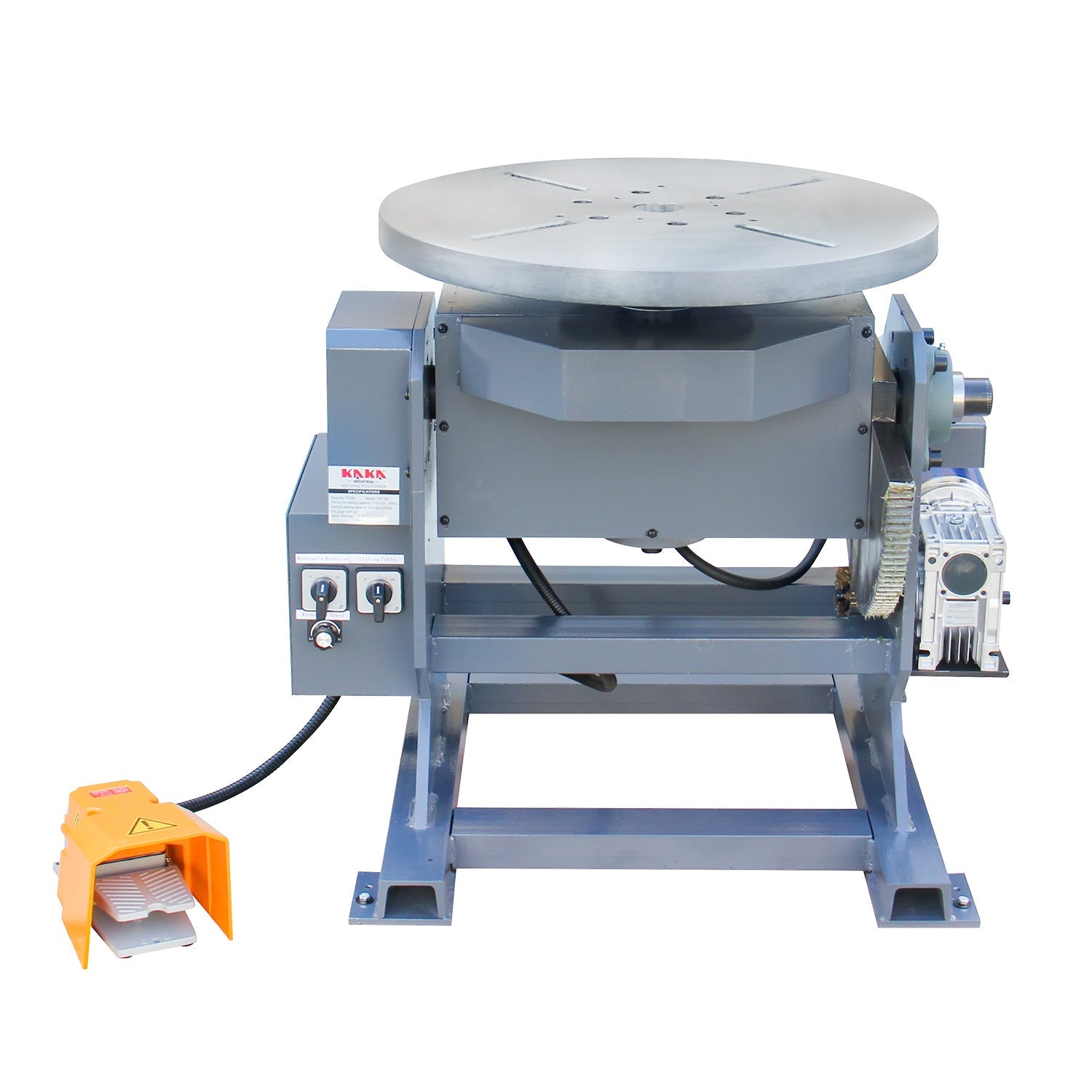

Kaka Industrial WP-500 Welding Positioner Rotating table for welding

1. Loading capacity up to 1102 lbs

2. Rotating 360°

3. Variable rotating speed

4. Foot pedal control

5. Table tilts up to 135° (electric)

6. Slow rotating speed to ensure perfect welding

7.  Different sizes available, the model WP-220 &  WP-3508. Single-phase motor

Horizontal loading capacity:1102lbs(500KG),Vertical loading capacity:551lbs

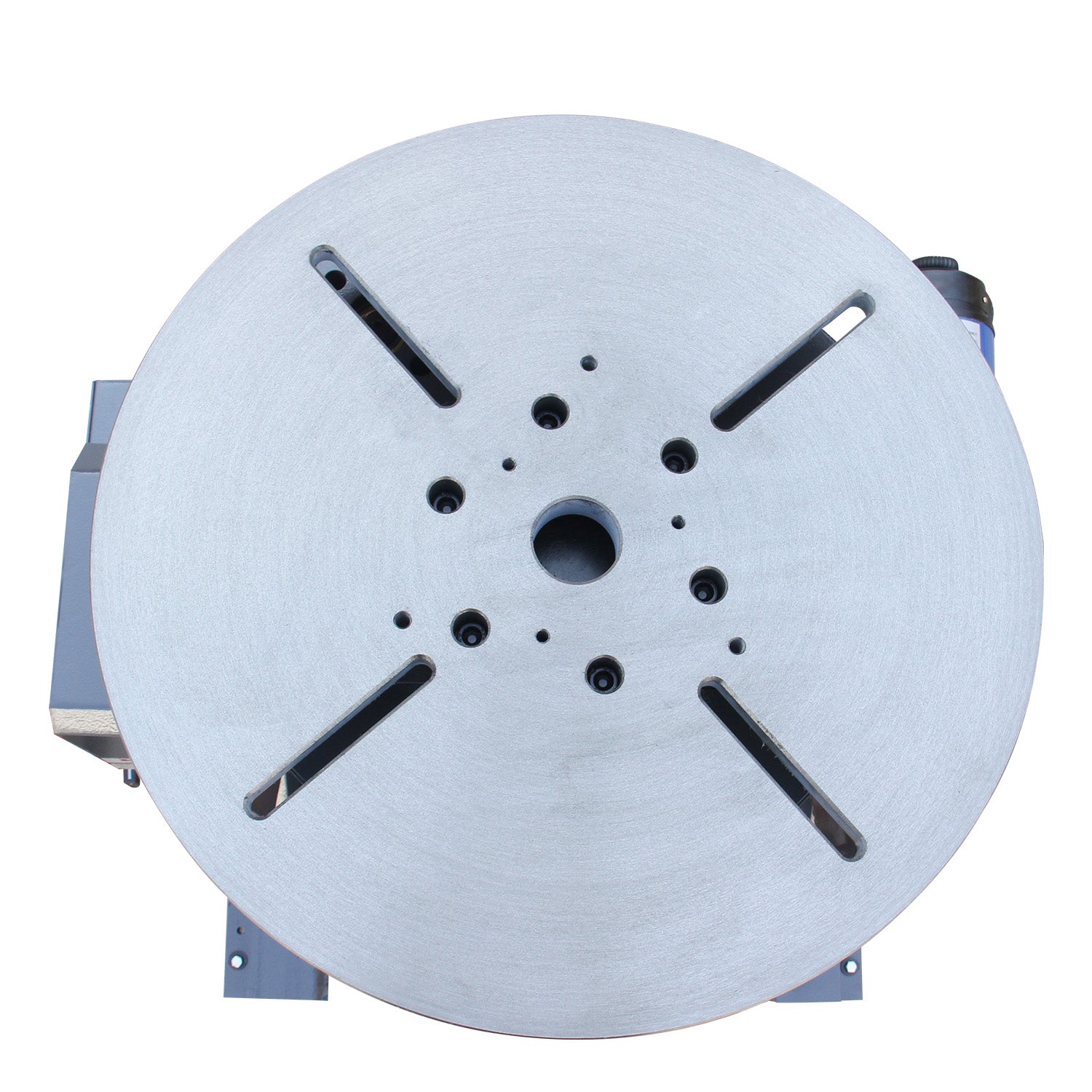

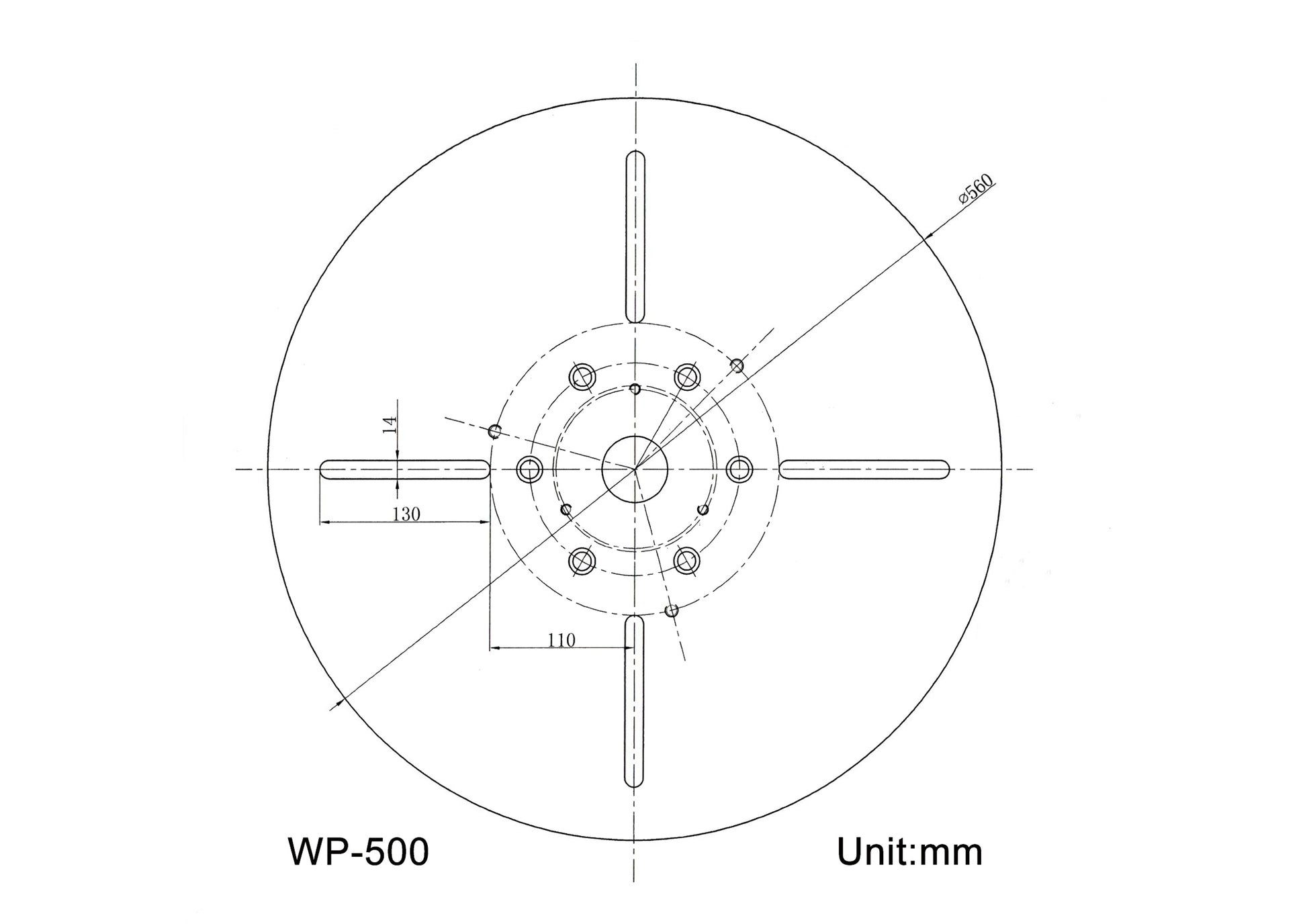

• Working table diameter/heigh: 21.6"/26"

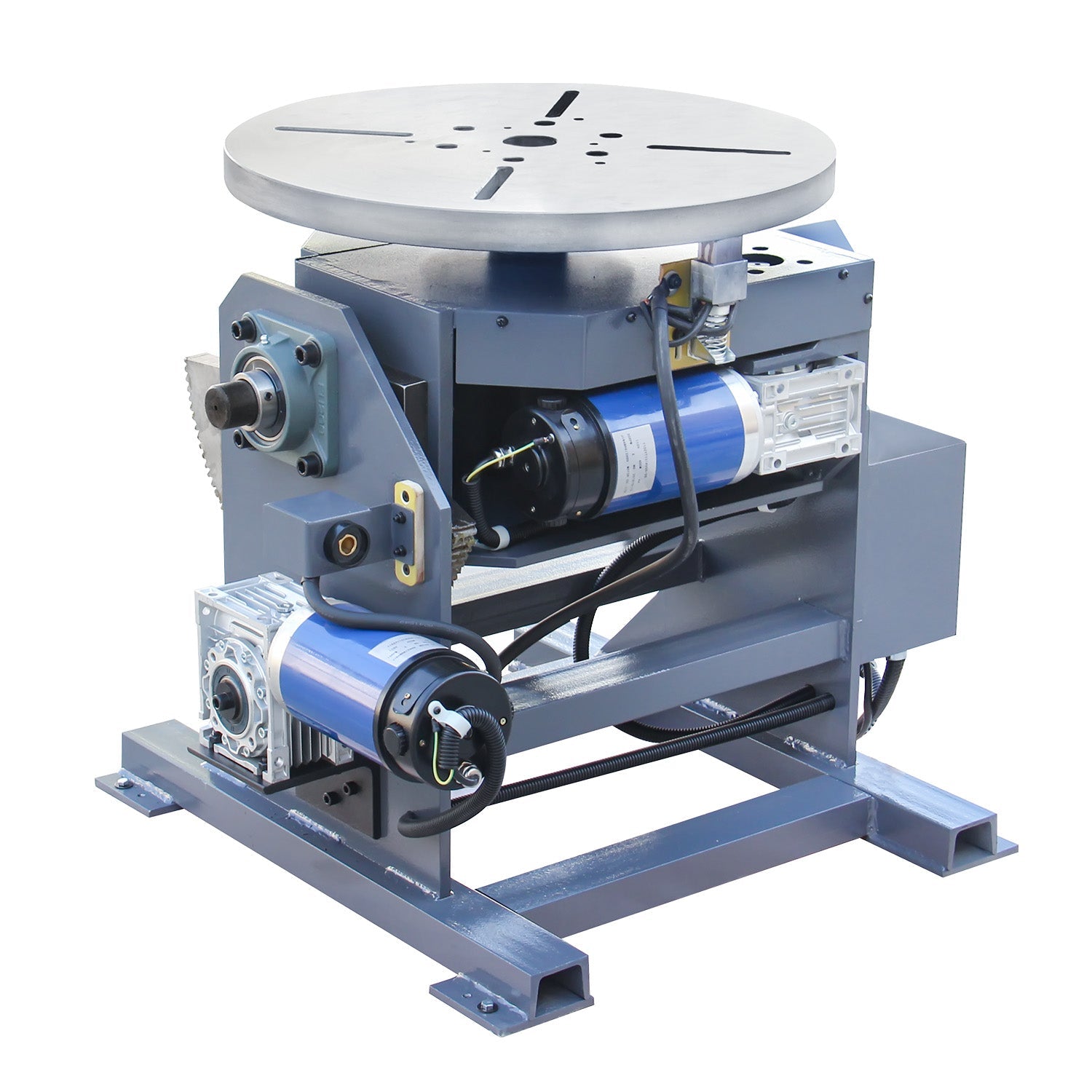

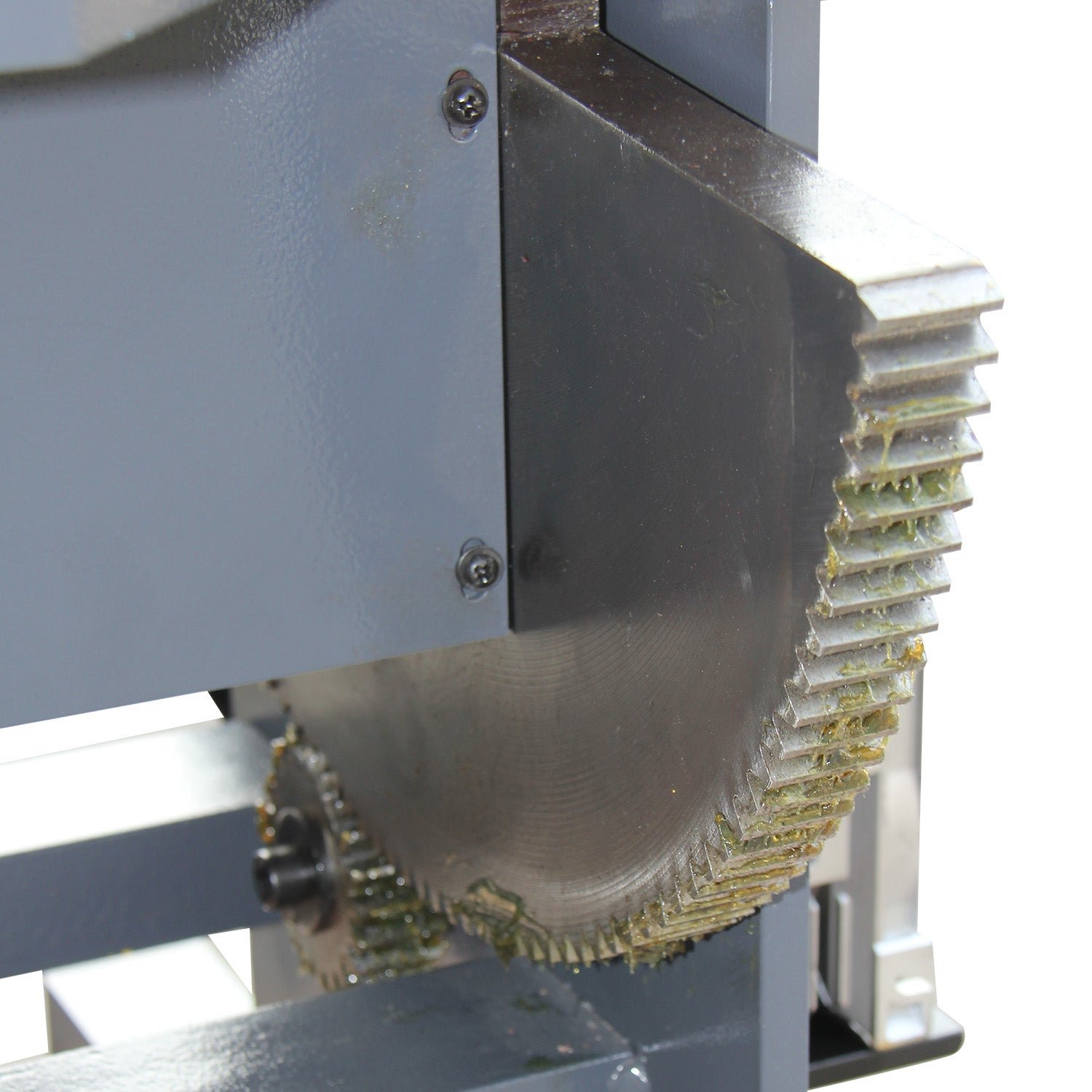

• The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90°. It also can be fixed at any angle you want.Table tilts up to 135° (manual)

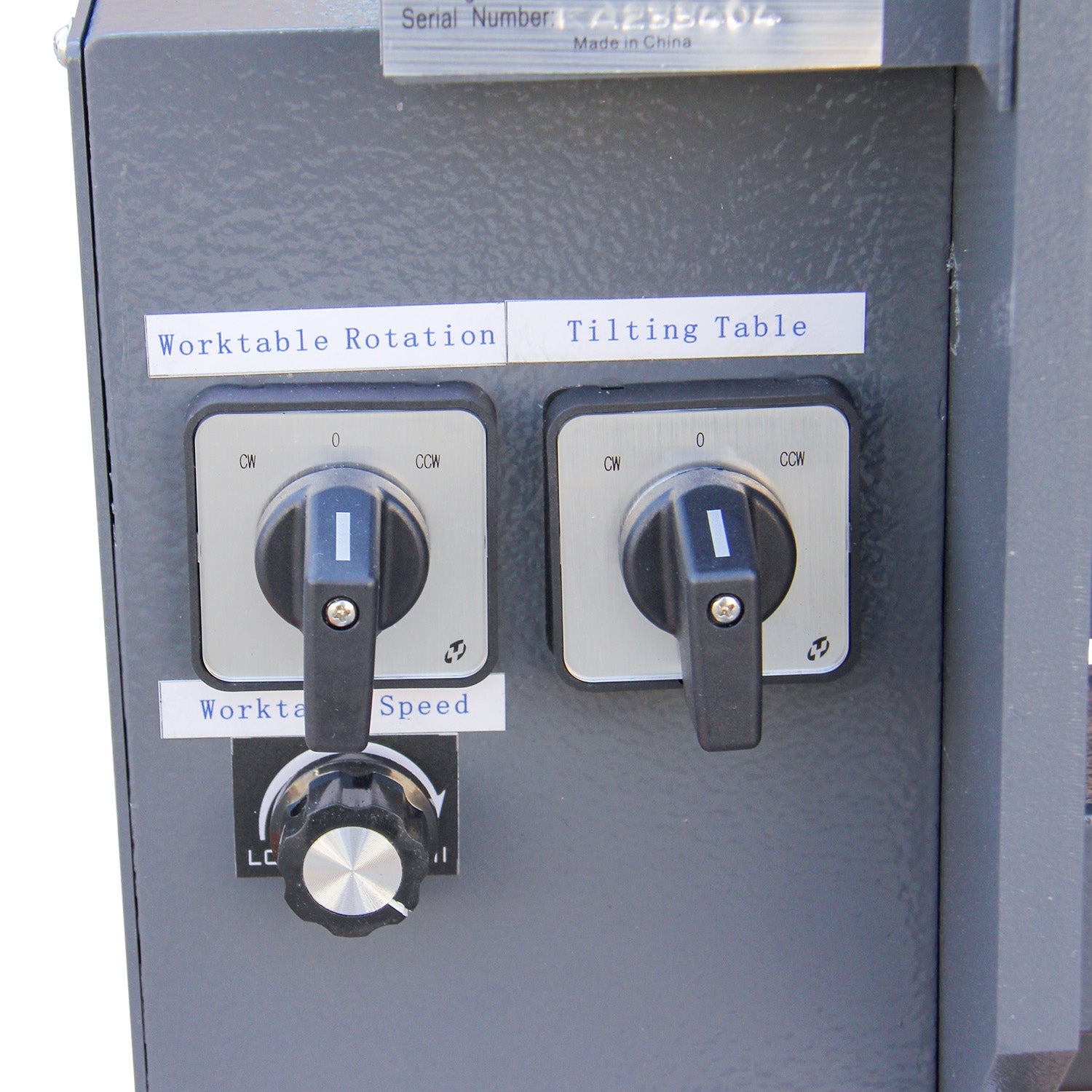

• Using foot switch to control table rotation, the speed is regulated by the knob on the machine(0.5-5r/min stepless speed regulation)
• Slow rotating speed to ensure perfect welding.Time-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder

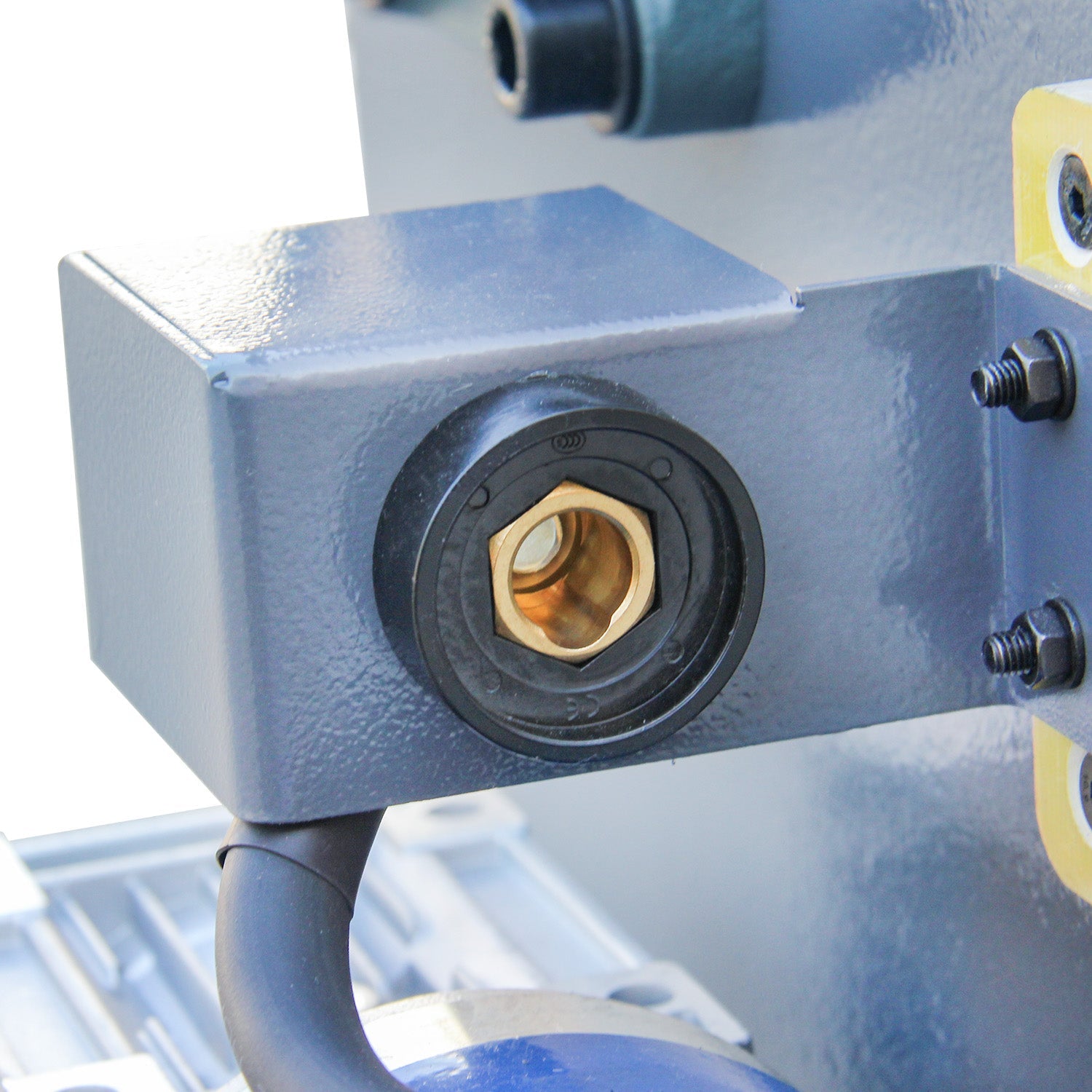

• Single-phase motor, safety earth current from welder is 120A (contact the carbon brush)

What Our Experts Think

• The KAKA Industrial WP-500 Welding Positioner (178383V110) is a robust 1102 lb capacity machine designed to rotate and tilt workpieces for precise welding operations.

• Features tilt angles from -45° to 90° and stepless rotation speed control (0–5 RPM) for optimal positioning and accuracy.

• Powered by a 400W motor with 110V-60Hz single-phase input, providing smooth and reliable operation.

• Ideal for fabrication shops, welding workshops, and industrial projects, ensuring efficiency and improved weld quality.

Q&A

Q: What is the maximum load capacity?
A: Supports up to 1102 lbs (500 kg).

Q: What tilt angles are available?
A: Adjustable from -45° to 90°.

Q: Can the rotation speed be adjusted?
A: Yes, features stepless speed control from 0–5 RPM.

Q: What power supply does it require?
A: Operates on 110V-60Hz single-phase electricity.

Maintenance Tips

• Clean platform and rotating surfaces after each use to remove debris.

• Lubricate tilt and rotation mechanisms regularly for smooth operation.

• Check fasteners and alignment periodically to maintain precision.

• Store in a dry area to prevent corrosion and ensure long-term durability.
