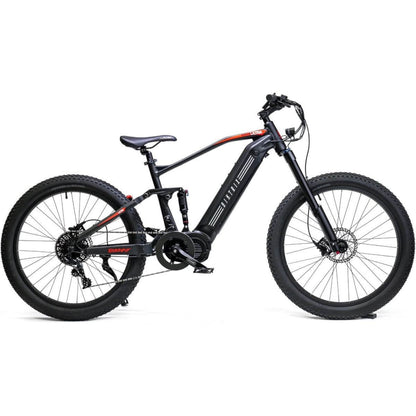

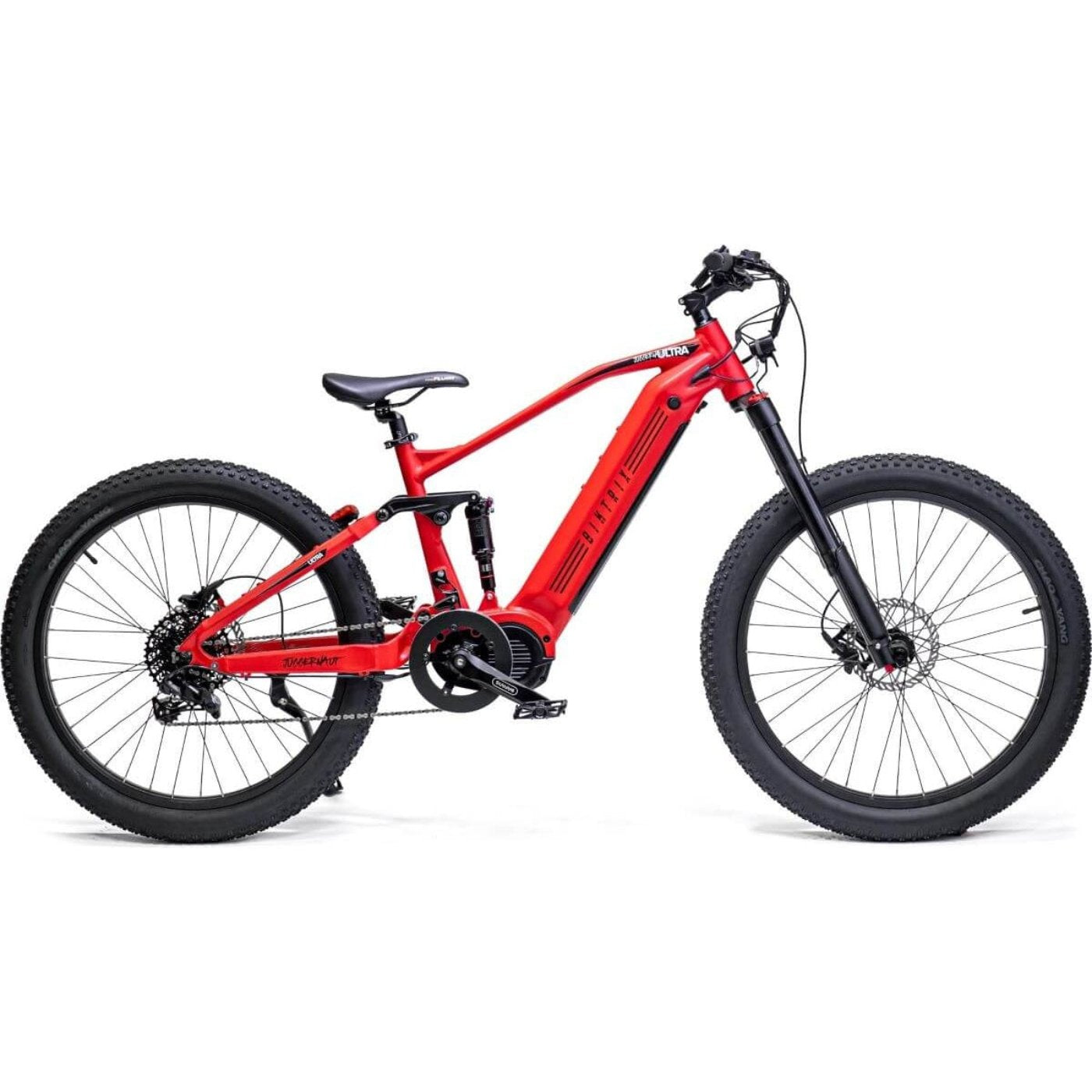

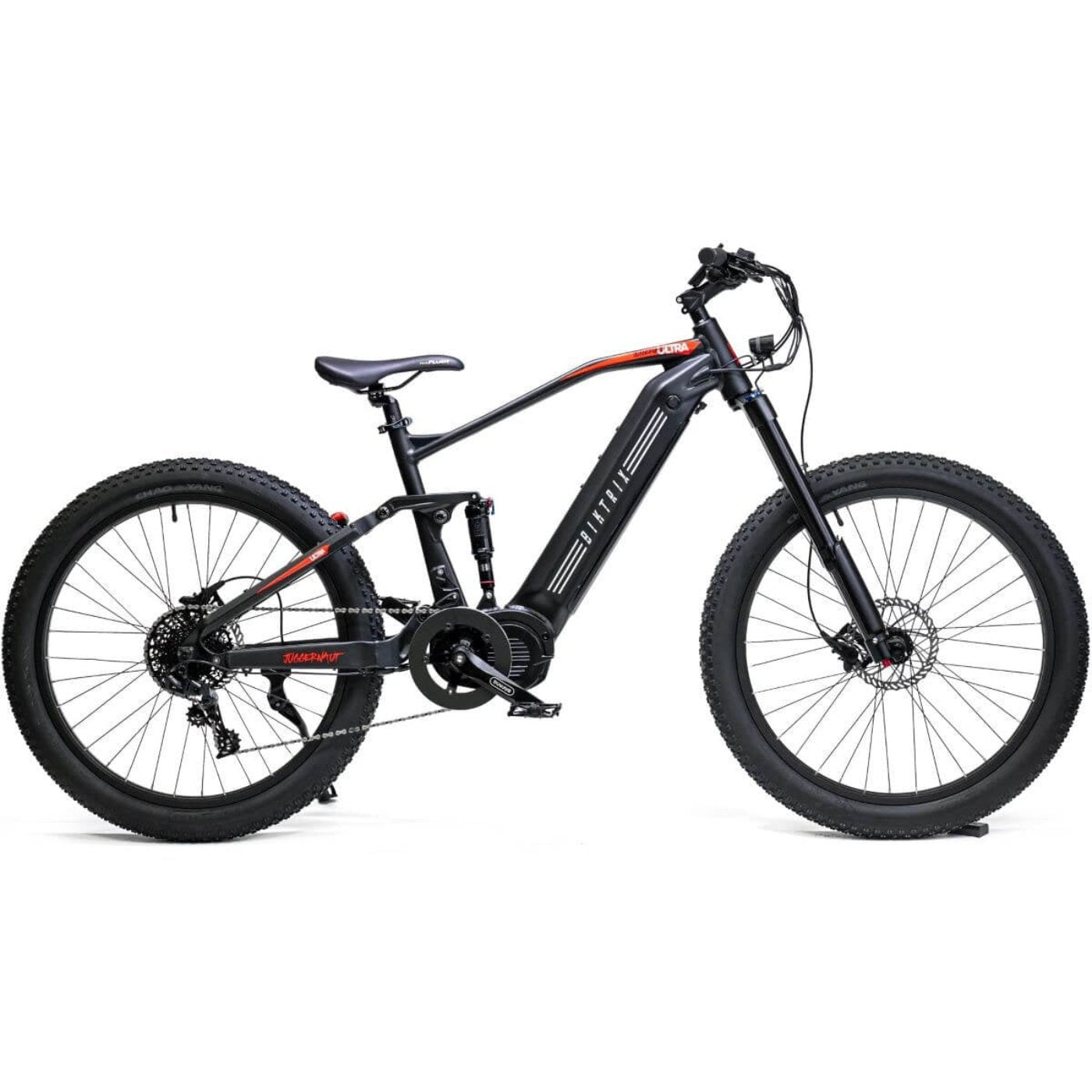

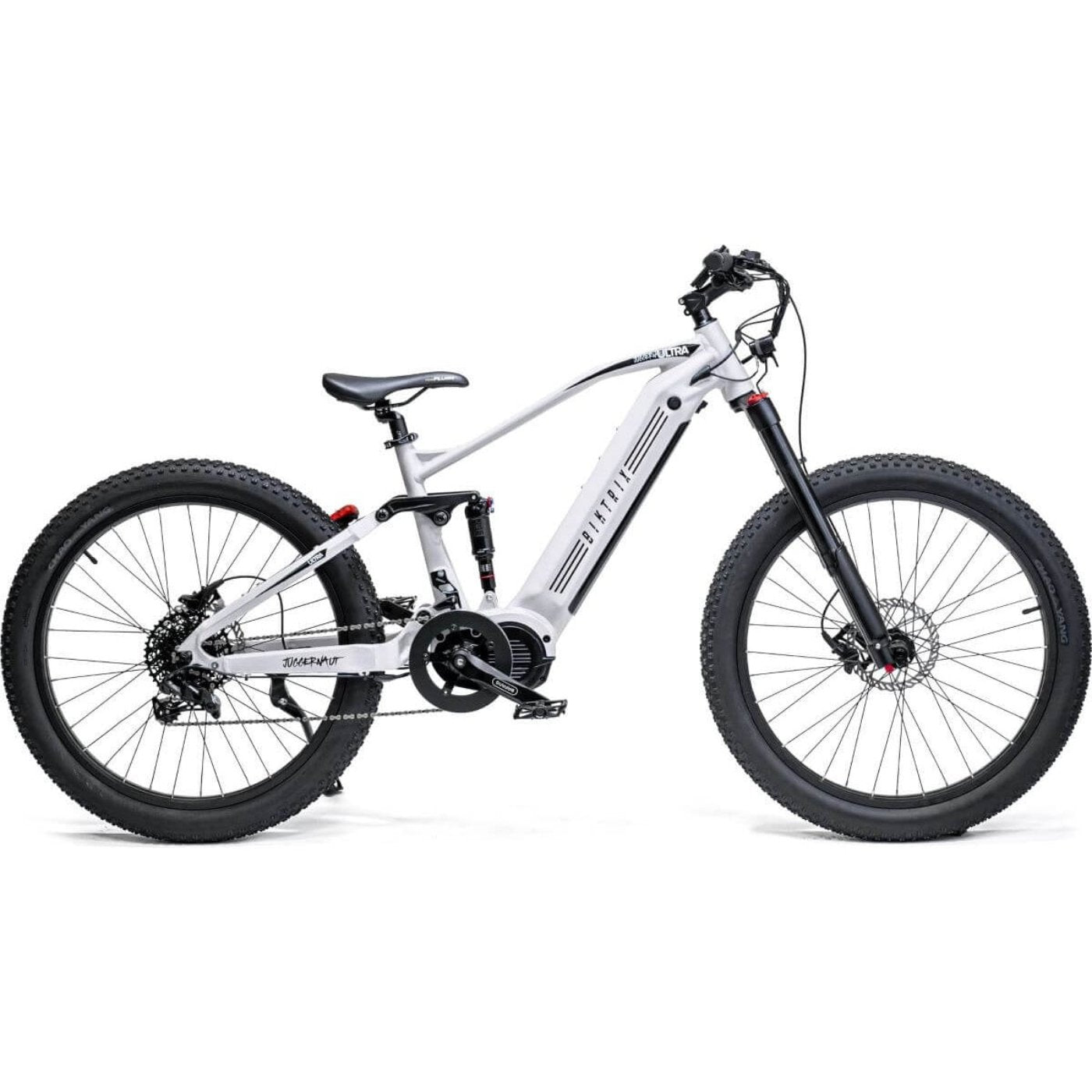

The Biktrix Juggernaut Ultra FS PRO 3 MTB Mid Drive Full Suspension Electric Bike features top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry.
The Juggernaut Ultra FS Pro 3 the best-built full-suspension electric bike on the market today.
With a quality FS system, both wheels stay connected with the ground. That means better handling and higher speeds on tough terrain. This electric bicycle is built for the off-road trails.
Bafang Ultra M620 Mid-Drive System
The Bafang M620 system features the G510 electric motor with over 1500 watts of peak power, 160Nm of torque and torque-sensing assist. Span cities, climb hills, and explore all the places you want to go with ease.
Rockshox Rear Suspension
The rear suspension sets the Ultra FS Pro apart from the rest of our lineup, making it the ultimate eBike. Take on any trail with maximum comfort and control
Front Suspension
The Biktrix Inverted Suspension Fork features 140mm of travel, adjustable preload and adjustable lockout
Drivetrain
The SRAM NX 11-speed drivetrain has the versatility to provide max torque while climbing hills and max speed on the flats.
Hydraulic Disc Brakes
When it's so easy to go fast on an electric bike, you need strong stopping power. These hydraulic disc brakes will swiftly and reliably bring you to a halt.
LCD Display
The LCD Display shows you all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level, and more.
Thumb Throttle & Control Pad
With just a push of the thumb you can access the motor's full power! The control pad allows you to turn the bike on/off and adjust your settings.
Integrated Front Light
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
Frame | 6061 Aluminum |
---|---|
Brakes | Biktrix Dual Piston Hydraulic w/180mm Rotors |
Battery Size Total Capacity: | 52V 34.5Ah 1794Wh |
Internal Battery: | 52V 17.5Ah 910Wh |
External Range Extender Battery: Up To 52V 17Ah 884Wh | |
Fork | Biktrix Inverted Air Fork w/100mm Travel, Lockout, and Preload |
Brake Levers | Biktrix Adjustable w/ Integrated Brake Cutoff |
Headset | Threadless 1-1/8 1-1/2 Tapered |
Handlebar | 700mm Wide w/25mm Rise, 31.8mm Clamp |
Shifter Rear | SRAM NX 11 Speed Trigger Shifter |
Stem | 90mm Solid |
Rear Derailleur | SRAM NX 11 Speed |
Grips | Velo Bolt On MTB Grips |
Cassette | SRAM 11-42T |
Seat Post | 31.6mm Aluminum |
Chain | KMC e11S - 130 Links |
Seat Post Clamp | QR |
Crank Set | 44T Chainring w/ 170mm Arms |
Saddle | Velo Plush |
Bottom Bracket | Bafang ISIS |
Motor | Bafang Ultra M620 |
Front Hub | 150mm Thru 36H |
Display | DPC-18 |
Front Axle/Skewer | 15mm Thru Axle |
Lights | Integrated Headlight |
Rear Hub | 197mm THRU 36H |
Throttle | Thumb Throttle |
Rear Axle/Skewer | 12mm THRU Axle |
Assist Levels | 1-5 |
Rims | Black 26" with round cutouts, Solid Black 27.5" |
Assist Type | Torque + Cadence |
Tires | 26x4", 27.5x3", 26x4.8" |
Other | 2-Bolt Kickstand |
17" M FRAME | 19" L FRAME | 21" XL FRAME | |||||
---|---|---|---|---|---|---|---|
1 | Effective Top Tube Length | 580 mm | 22.8 inches | 600 mm | 23.6 inches | 600 mm | 23.6 inches |
2 | Seat Tube Length (Classic Bike Size) | 430 mm | 16.9 inches | 480 mm | 18.9 inches | 520 mm | 20.5 inches |
3 | Reach | 440 mm | 17.3 inches | 460 mm | 18.1 inches | 460 mm | 18.1 inches |
4 | Stack | 540 mm | 21.3 inches | 590 mm | 23.2 inches | 590 mm | 23.2 inches |
5 | Chainstay Length | 510 mm | 20.1 inches | 510 mm | 20.1 inches | 520 mm | 20.5 inches |
6 | Standover Height | 730 mm | 28.7 inches | 740 mm | 29.1 inches | 770 mm | 30.3 inches |
7 | Head Angle | 63 ° | - | 63 ° | - | 63 ° | - |
8 | Seat Angle | 72 ° | - | 72 ° | - | 72 ° | - |
9 | Head Tube Length | 160 mm | 6.3 inches | 160 mm | 6.3 inches | 160 mm | 6.3 inches |
10 | Fork Length | 540 mm | 21.3 inches | 540 mm | 21.3 inches | 540 mm | 21.3 inches |
11 | Front Center | 810 mm | 31.9 inches | 810 mm | 31.9 inches | 810 mm | 31.9 inches |
12 | BB (Bottom Bracket) Drop | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches |
13 | Fork Offset | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches |
14 | Wheelbase | 1320 mm | 52 inches | 1330 mm | 52.4 inches | 1340 mm | 52.8 inches |
15 | Total Length | 2030 mm | 79.9 inches | 2040 mm | 80.3 inches | 2060 mm | 81.1 inches |
16 | Max Seat Height | 1040 mm | 40.9 inches | 1080 mm | 42.5 inches | 1120 mm | 44.1 inches |
17 | Min Seat Height | 840 mm | 33.1 inches | 880 mm | 34.6 inches | 940 mm | 37 inches |
18 | Handlebar Height | 1020 mm | 40.2 inches | 1060 mm | 41.7 inches | 1060 mm | 41.7 inches |
19 | Weight (Without Battery) | 32.6 kg | 71.9 lb | 32.6 kg | 71.9 lb | 33.6 kg | 74.1 lb |
Q: What is the Biktrix 2024 Juggernaut Ultra FS Pro 3 MTB Mid-Drive Full Suspension Electric Bike?
A: The Biktrix 2024 Juggernaut Ultra FS Pro 3 is a powerful electric mountain bike (MTB) equipped with a 750W mid-drive motor, full suspension, and an advanced design tailored for tackling rugged trails. It offers exceptional handling, comfort, and performance for serious off-road riders.
Q: What are the key features of the Biktrix 2024 Juggernaut Ultra FS Pro 3?
A: Key features include a 750W mid-drive motor for efficient power transfer, full suspension for a smooth ride on challenging terrain, hydraulic disc brakes for superior stopping power, and a range of up to 60-80 miles with dual batteries (optional).
Q: What is the range of the Biktrix 2024 Juggernaut Ultra FS Pro 3?
A: The bike offers a range of up to 60-80 miles per charge, depending on factors like terrain, rider weight, and riding style. The optional dual battery system can further extend your riding time.
Q: How fast can the Biktrix 2024 Juggernaut Ultra FS Pro 3 go?
A: The bike can reach speeds of up to 28 mph (45 km/h), making it ideal for both fast mountain trail rides and recreational commuting.
Q: Is the Biktrix 2024 Juggernaut Ultra FS Pro 3 suitable for off-road riding?
A: Yes, the full suspension system and mid-drive motor make it perfect for off-road mountain biking, allowing it to handle rough trails, rocky paths, and steep inclines with ease.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Ultra FS Pro 3 battery?
A: The battery typically takes 6-8 hours to fully charge. The bike also offers the option to add a second battery for increased range, which can be swapped out when needed.
Q: What is the weight of the Biktrix 2024 Juggernaut Ultra FS Pro 3?
A: The bike weighs approximately 70-75 lbs (32-34 kg), offering a durable, high-performance ride without compromising on comfort and stability.
Q: Does the Biktrix 2024 Juggernaut Ultra FS Pro 3 come with a warranty?
A: Yes, the bike comes with a limited warranty. Please consult with the retailer for the full warranty coverage details.
Q: Can I customize the Biktrix 2024 Juggernaut Ultra FS Pro 3 with accessories?
A: Yes, the bike is compatible with a range of accessories such as racks, fenders, and lights, allowing you to customize your ride for added convenience and safety.
Q: Is the Biktrix 2024 Juggernaut Ultra FS Pro 3 easy to assemble?
A: The bike comes partially assembled, with clear instructions for easy final assembly. Professional assembly is recommended for the best performance and safety.
Battery Care: Charge the battery regularly, keeping it between 20-80% for maximum lifespan. Avoid overcharging or discharging it completely. For long-term storage, remove the battery, store it separately at 50% charge in a cool, dry place.
Regular Cleaning: Clean your bike with a soft cloth and mild detergent. Avoid using high-pressure water near the motor, battery, and electrical components. Focus on keeping the suspension, drivetrain, and brake areas free from mud and debris.
Tire Pressure: Check tire pressure regularly and ensure it's within the recommended range for optimal performance. Proper tire inflation reduces motor strain, increases ride comfort, and extends tire life—especially important for MTB tires on rough terrain.
Lubricate the Chain and Drivetrain: Lubricate the chain every few hundred miles or after riding in wet or muddy conditions. Clean the drivetrain before applying fresh lubricant to avoid buildup of dirt and grime.
Brake Maintenance: Regularly inspect the brake pads for wear and ensure that the hydraulic disc brakes (if applicable) are working efficiently. Replace worn pads promptly and check brake fluid levels to maintain proper braking performance.
Suspension System Care: Check the full suspension system (front fork and rear shock) for smooth travel and proper damping. Clean and lubricate suspension components according to the manufacturer's recommendations to ensure they are performing optimally, especially after rough rides.
Motor and Wiring Inspection: Periodically check the mid-drive motor and all wiring for loose connections, fraying, or damage. Tighten and replace parts as necessary to maintain reliable motor function and avoid any electrical failures.
Crankset and Pedal Check: Inspect the crankset and pedals for looseness or wear. Tighten or replace them as needed to prevent damage to the bike’s drivetrain and ensure smooth pedaling.
Frame and Components: Inspect the frame for any signs of cracks or damage, especially after aggressive MTB riding. Check all components (handlebars, seat post, wheel hubs) for tightness and signs of wear.
Proper Storage: When storing the bike for an extended period, keep it in a cool, dry place. Remove the battery, store it at 50% charge, and ensure it is not exposed to extreme temperatures.
