2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit - GW-L02M195TM-SRNK5KU3U1-12

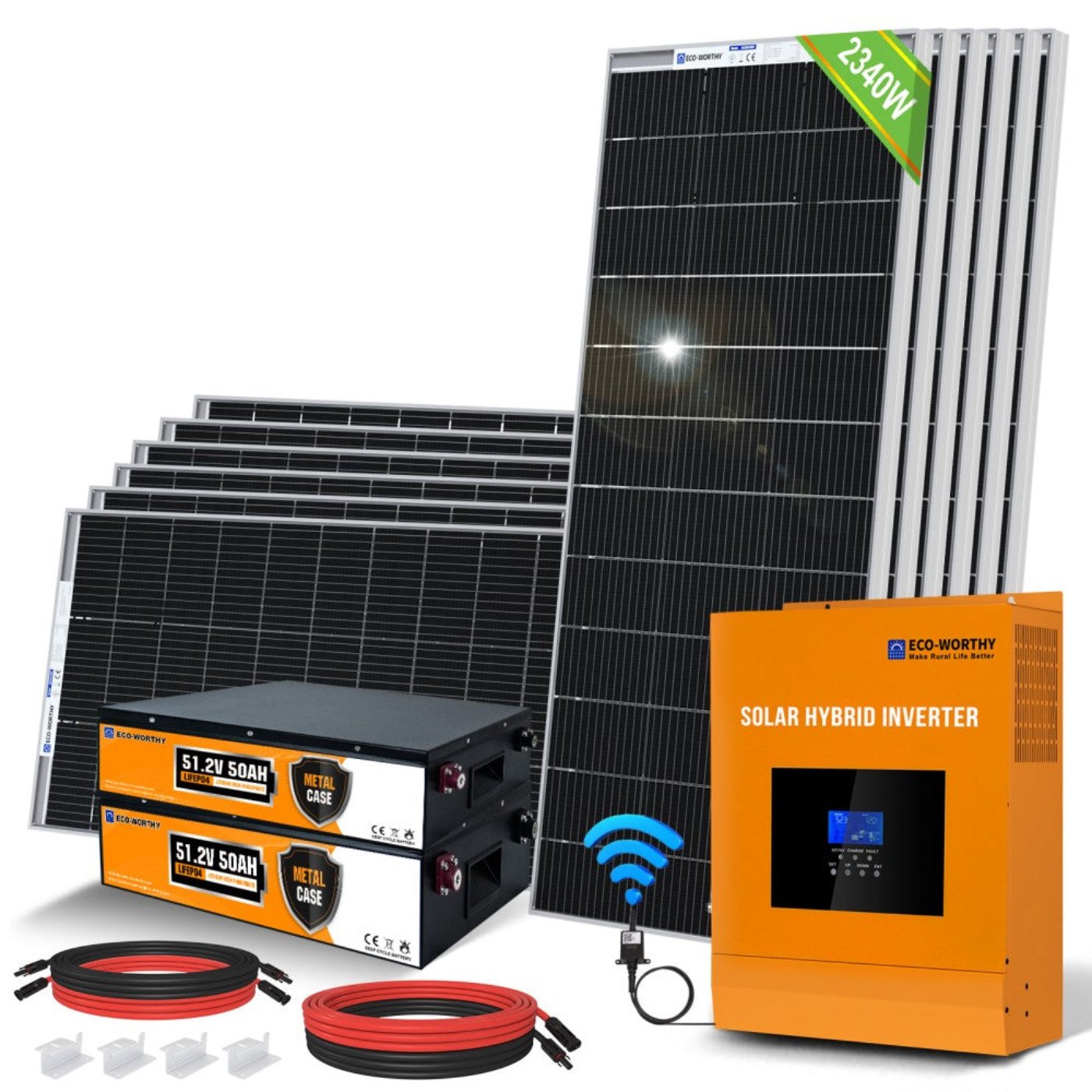

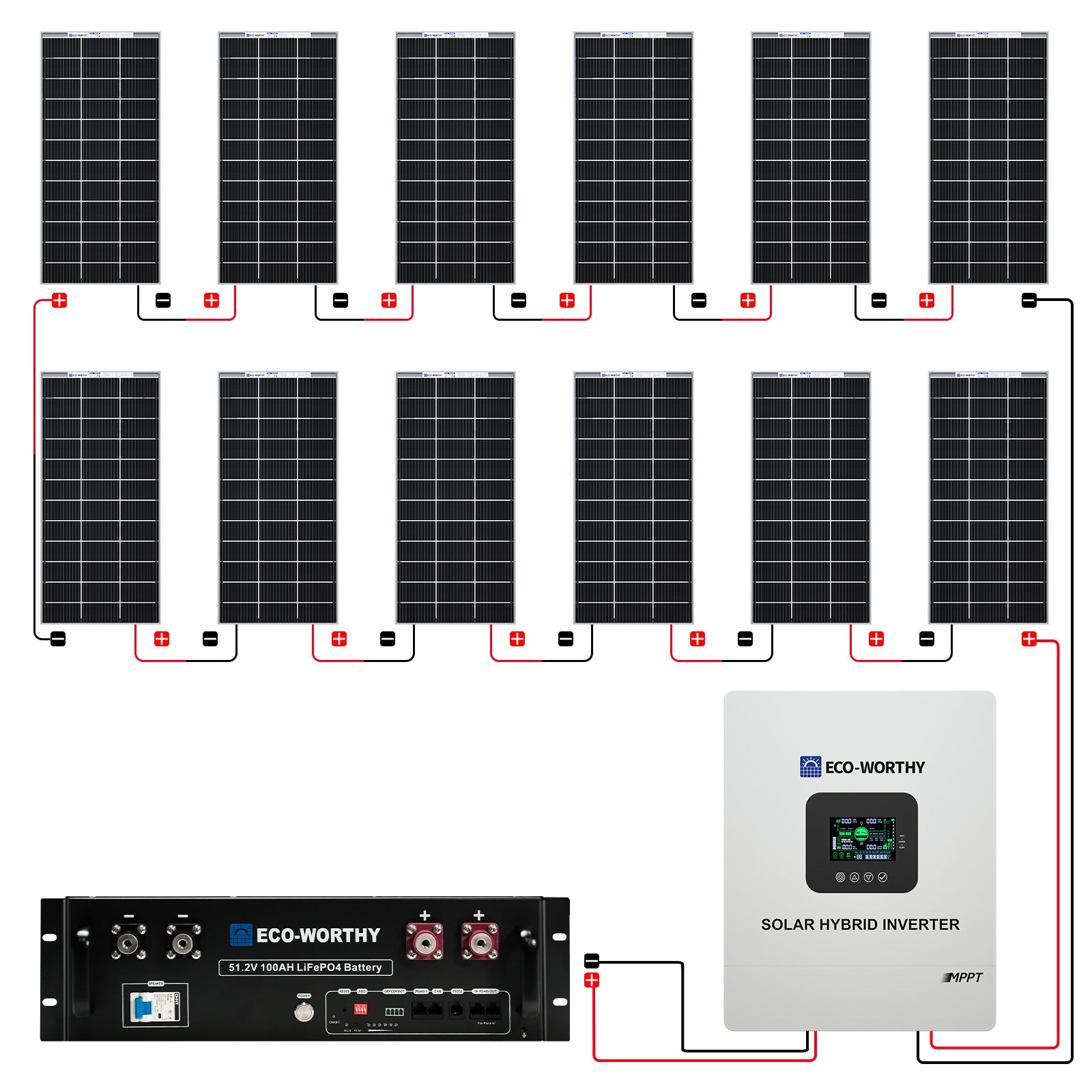

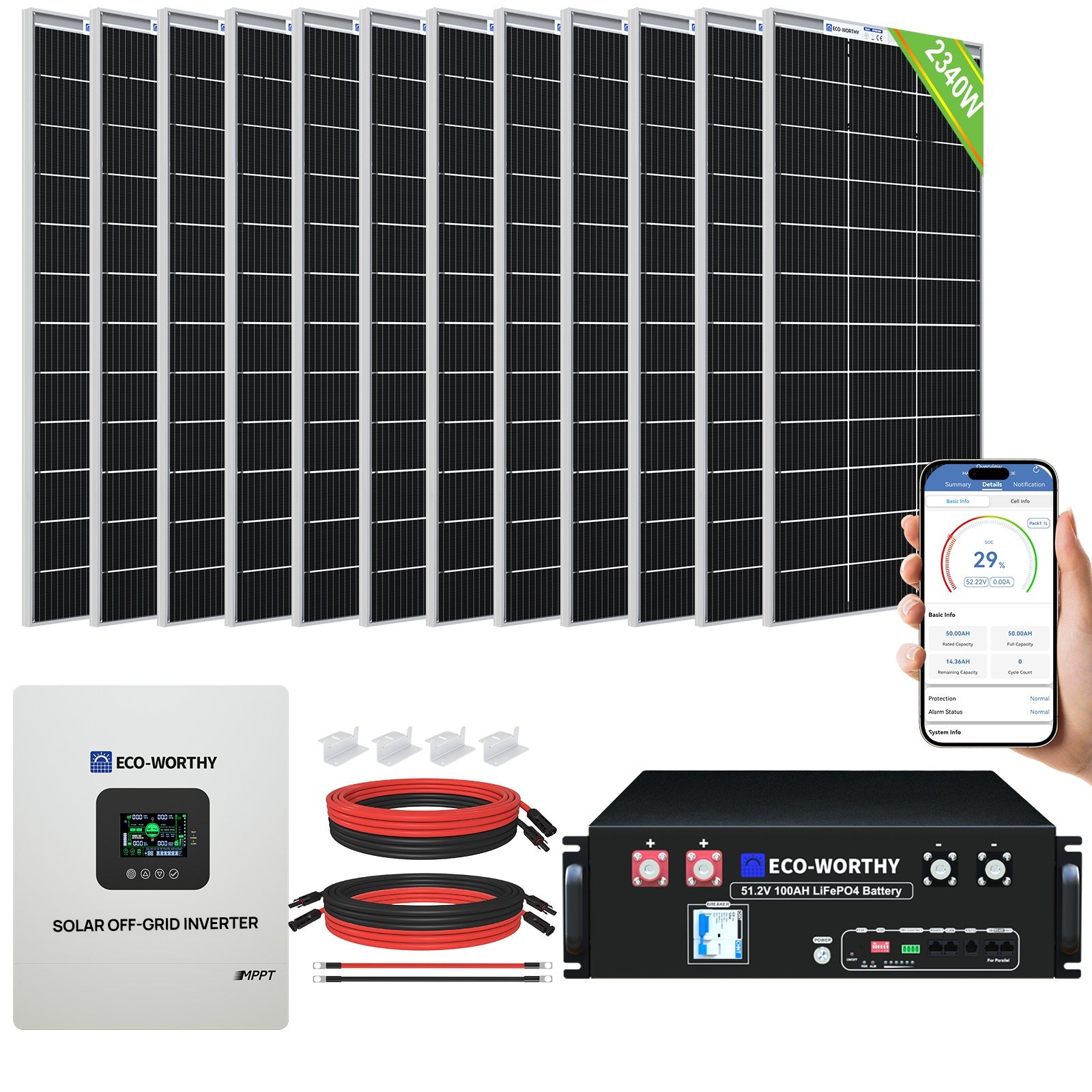

Package Includes:
2340W PV&5.12kWh Battery
12x 195W Mono Solar Panel

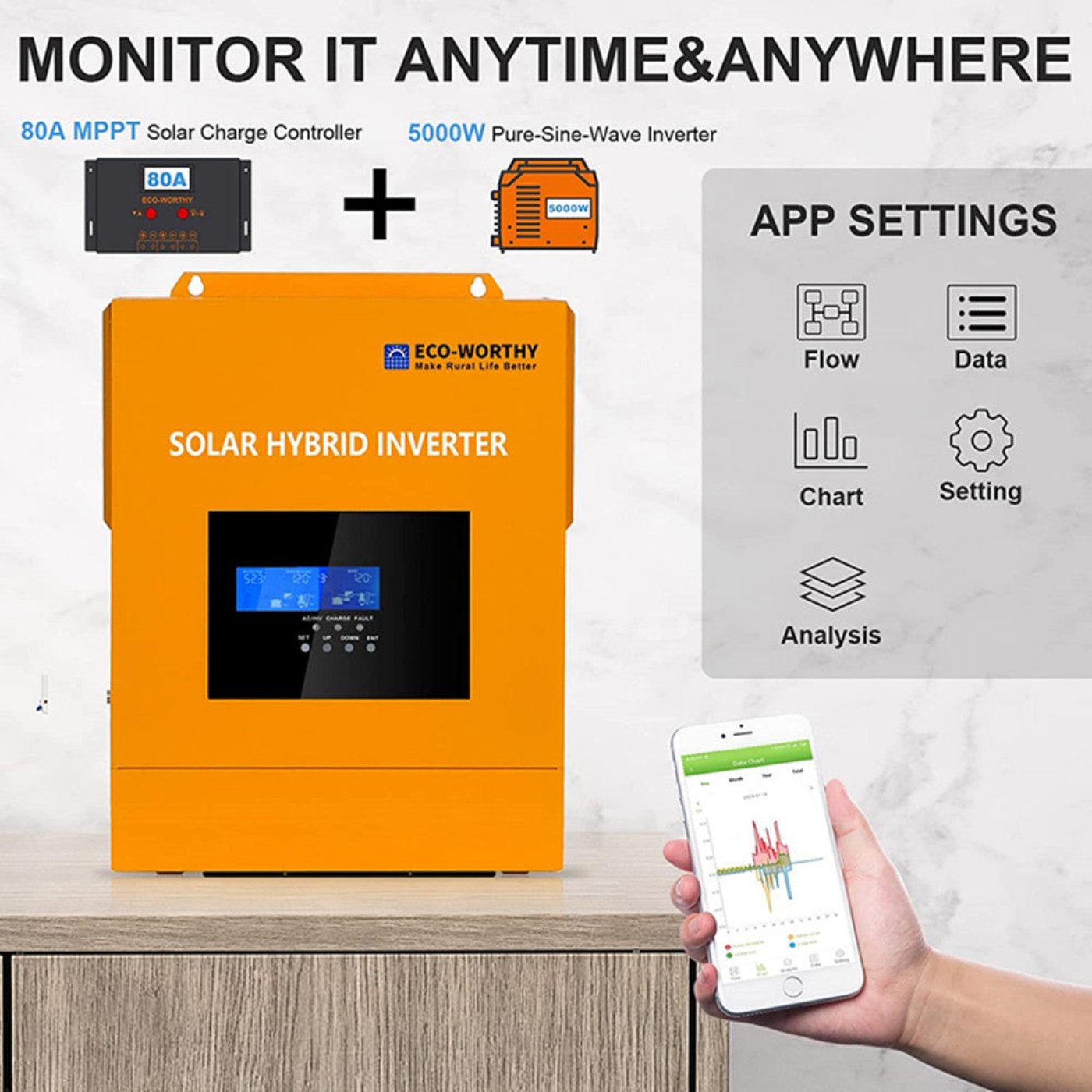

1x 5000W 48V Off-grid Inverter Charger
1x 5M 8AWG Extension Cable with MC4
1x 5M 12AWG Solar Cable with MC4
12x Z Mounting Bracket

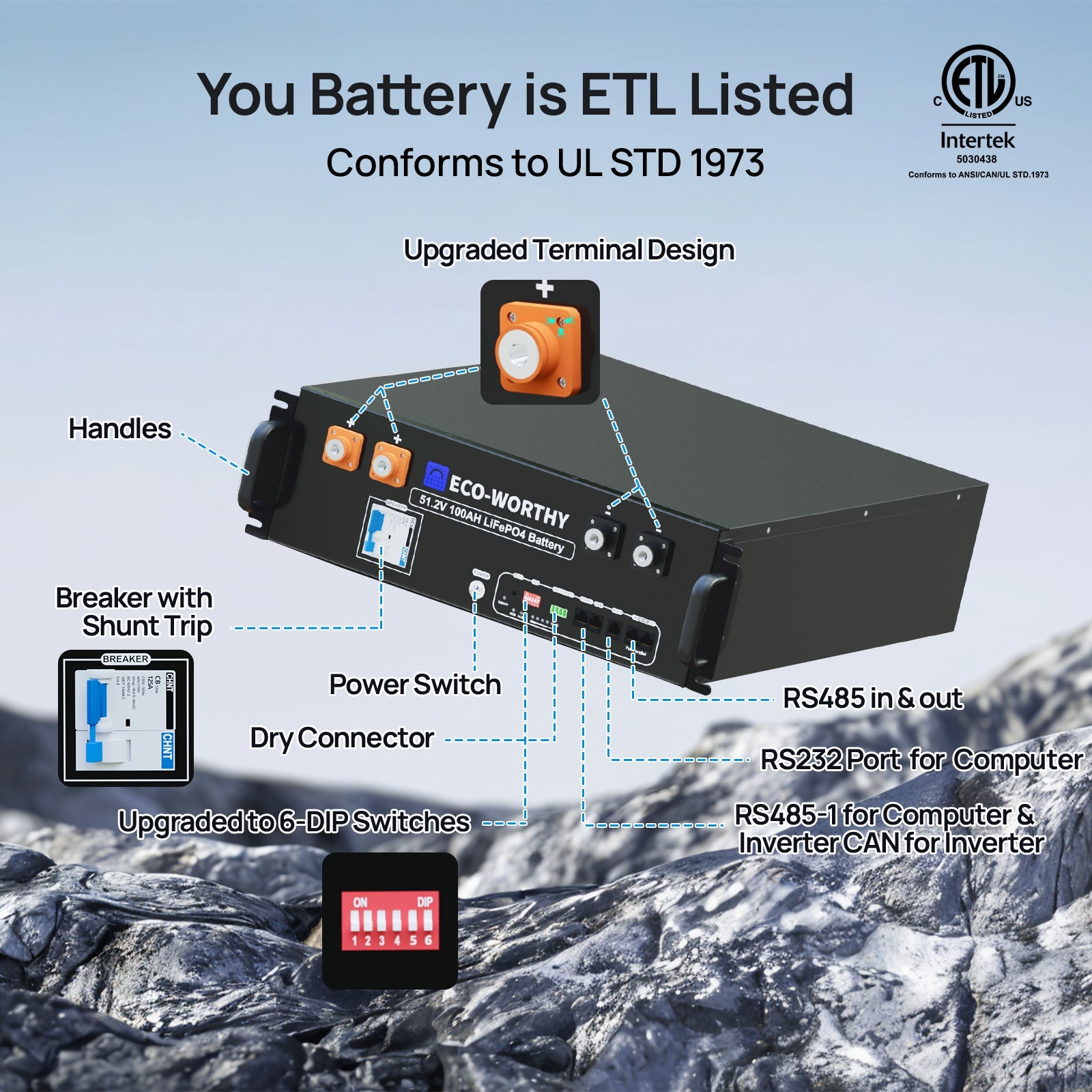

1x 100Ah 48V Rack LiFePO4 Lithium Battery
195W Monocrystalline Solar Panel
| Rated Power |
195W |
| Solar Cell Type |
Monocrystalline |
| Maximum Power Voltage (Vmp) |
20.2V |
| Open Circuit Voltage (Voc) |
24.5V (was listed as 234.5V — please confirm if typo) |
| Short Circuit Current (Isc) |
10.14A |
| Maximum Power Current (Imp) |
9.65A |
| Output Tolerance |
±3% |
| Temperature Coefficient of Isc |
(0.10 ± 0.01)%/°C |
| Temperature Coefficient of Voc |
–(0.38 ± 0.01)%/°C |
| Working Temperature Range |
–40℃ to +85℃ |
| Frame Material |
Aluminum Alloy |

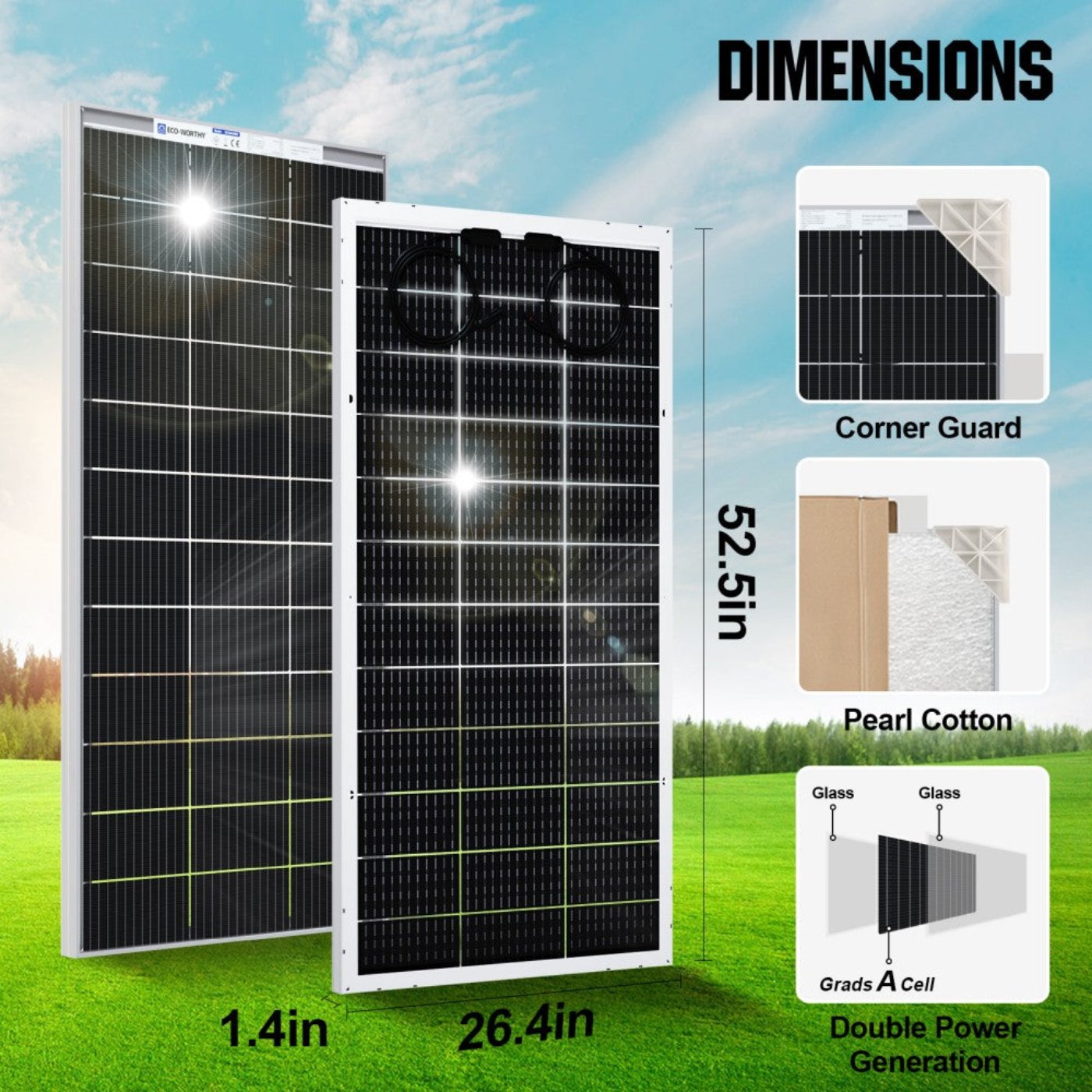

| Dimensions |
52.6 × 26.38 × 1.38 in (1335 × 670 × 35 mm) |
| Weight |
20.48 lbs (9.29 kg) |
| Max PV Input Power |
5500W |
| PV Charging Current Range |
100A |
| MPPT Voltage Range |
120–450VDC |
| Battery Voltage Range |
40–60VDC |
| Inverter Mode |
|
| Specification |
Details |
| Output Waveform |
Pure Sine Wave |
| Rated Output Power |
5000W |
| Peak Power |
10000W |
| Rated Output Voltage |
110V / 120VAC (50Hz / 60Hz) |
| Rated Battery Input Voltage48 |
|
| Battery Capacity |
Text says 50Ah but Power says 5120Wh — likely 100Ah. Please confirm. |
| Battery Energy |
5120Wh |
| Rated Voltage |
51.2V |
| Voltage Range |
40–58V |
| Max Charge/Discharge Current |
100A |
| Charge Temperature Range |
0–55℃ |
| Discharge Temperature Range |
–20–55℃ |
| Maximum Charge Voltage |
58.4V |
| Dimensions |
22.55 × 17.13 × 5.63 in |
| Weight |
97 lbs |
| Cable Purpose |
Connect Solar Panels to Charge Controller |
| Rated Voltage |
600/1000V |
| Length |
5 meters (16.4 ft) |
| Conductor Material |
Tinned Copper |
| AWG Size |
Data says AWG 11 but area 4mm² = AWG 12. Please confirm. |
| Cross-Sectional Area |
4 mm² |
| Waterproof Rating |
IP65 |
| Temperature Range |
-40°F to +185°F |
| Connector Type |
MC4 |
| Weight |
0.742 kg |
What Our Experts Think
-
The ECO-WORTHY 2340W 48V Complete MPPT Off-Grid Solar Kit provides a dependable renewable energy solution for homes, cabins, and backup systems.
-
Includes 12×195W high-efficiency solar panels, a 5000W 48V off-grid inverter, MPPT controller, and all essential installation accessories.
-
Offers stable 48V output with optimized MPPT charging for maximum energy conversion and system reliability.
-
Perfect for users who need a powerful, expandable, and easy-to-install off-grid power setup.
Q&A
Q: What’s included in this 2340W solar kit?
A: It includes 12×195W solar panels (2340W total), a 5000W 48V off-grid inverter, MPPT charge controller, mounting brackets, and cables.
Q: What can this system power?
A: It can run household appliances, lighting, refrigerators, power tools, and electronics in off-grid or backup setups.

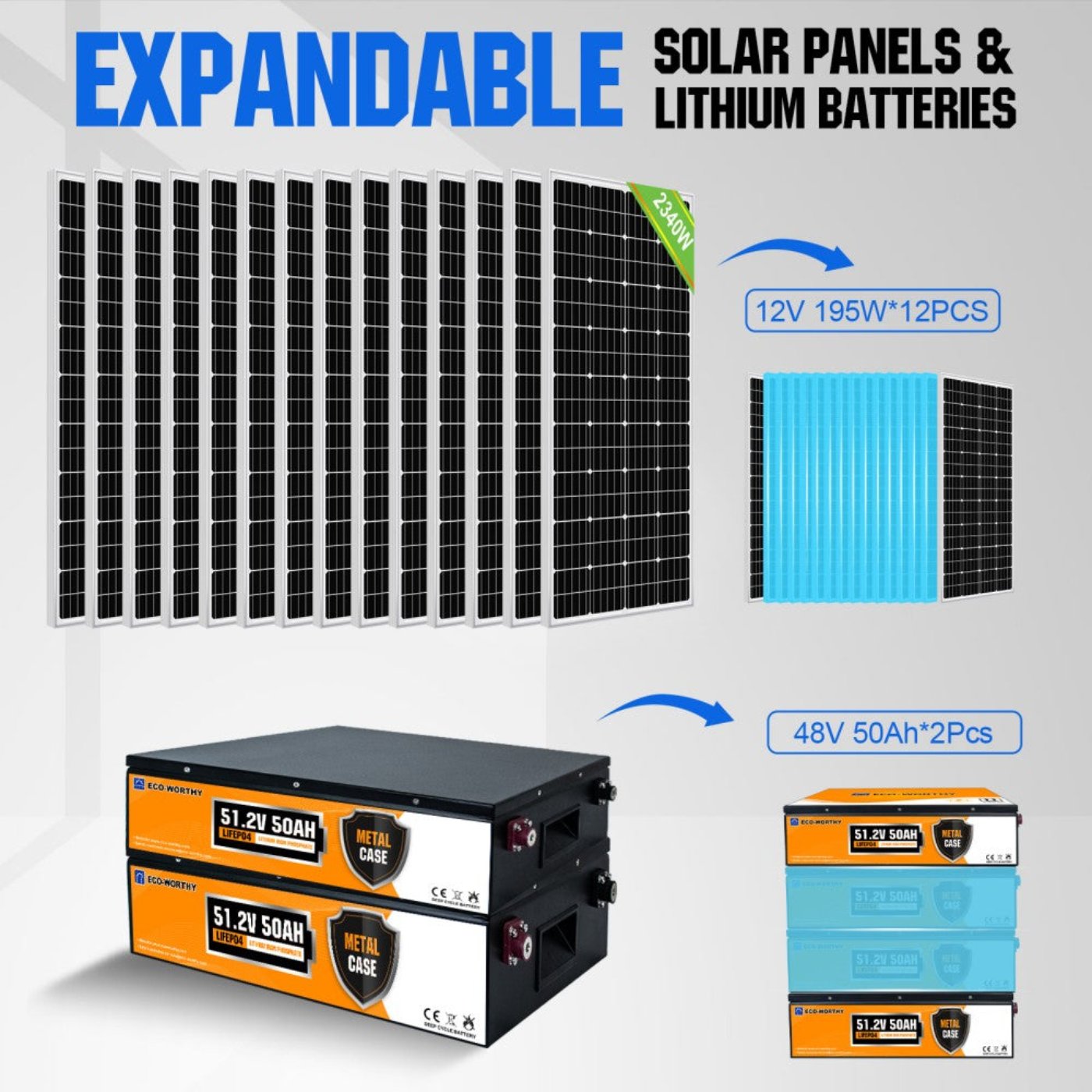

Q: Is this system expandable?

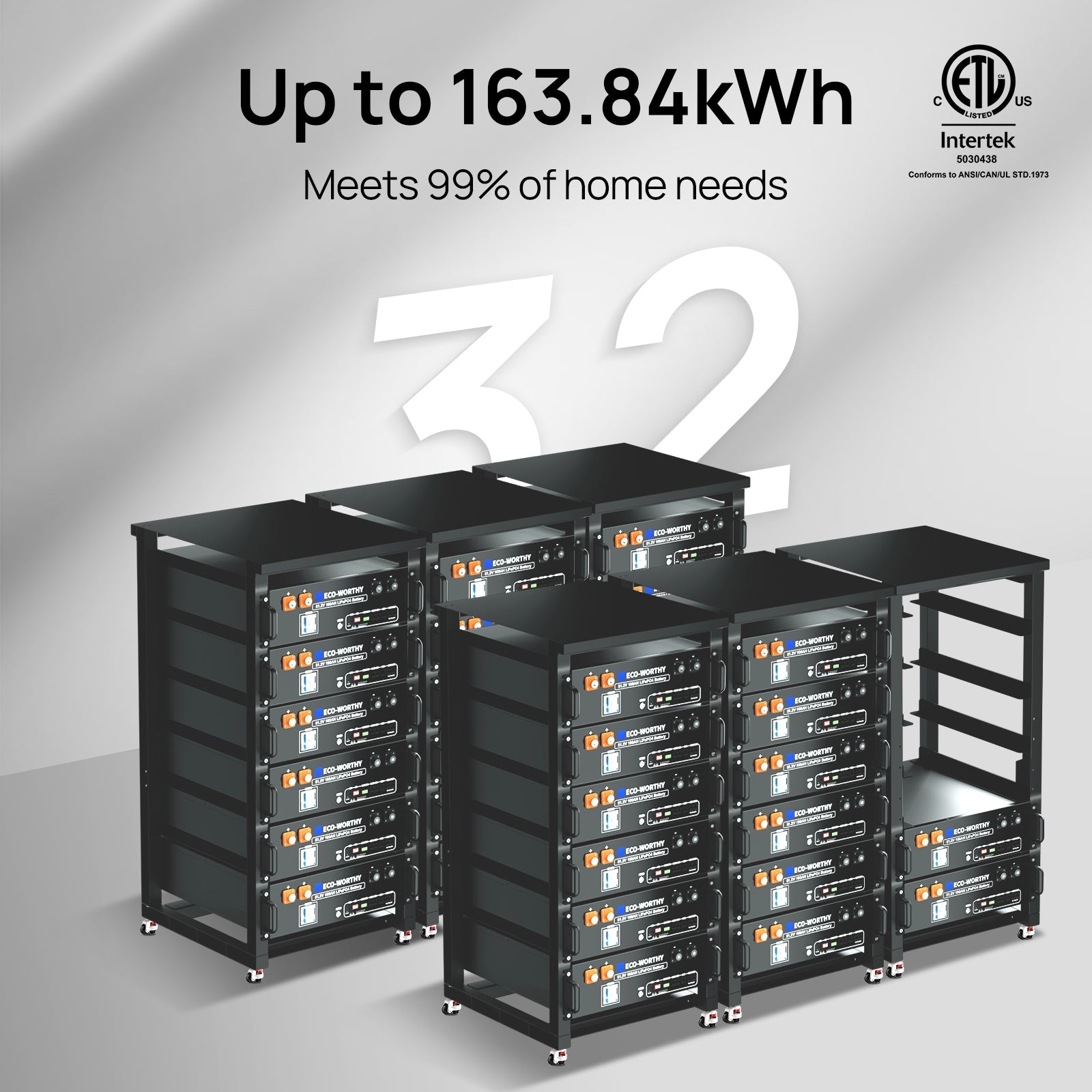

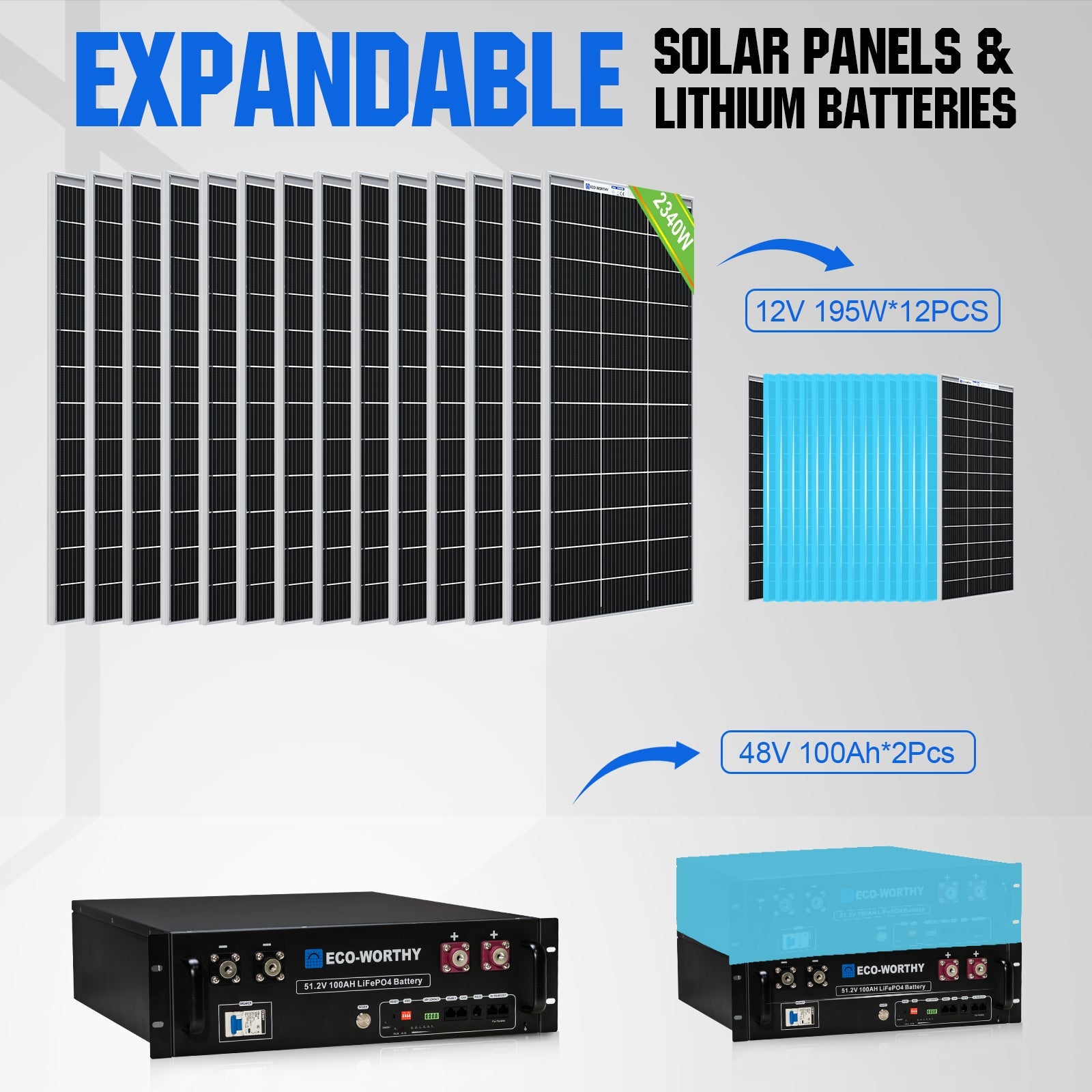

A: Yes, you can add more batteries or panels to increase storage and output capacity.
Q: Which batteries are compatible?
A: Works with 48V LiFePO4, AGM, GEL, and lead-acid batteries.
Maintenance Tips
-
Clean panels regularly to maintain peak performance.
-
Check all wiring and terminals for tight, corrosion-free connections.
-
Keep inverter and controller cool and away from moisture.
-
Monitor charging performance through the MPPT controller.
-
Avoid overloading beyond the inverter’s rated 5000W output.
