Eco-Worthy 3600W 48V (18x Bifacial 195W) Complete MPPT Off Grid Solar Kit

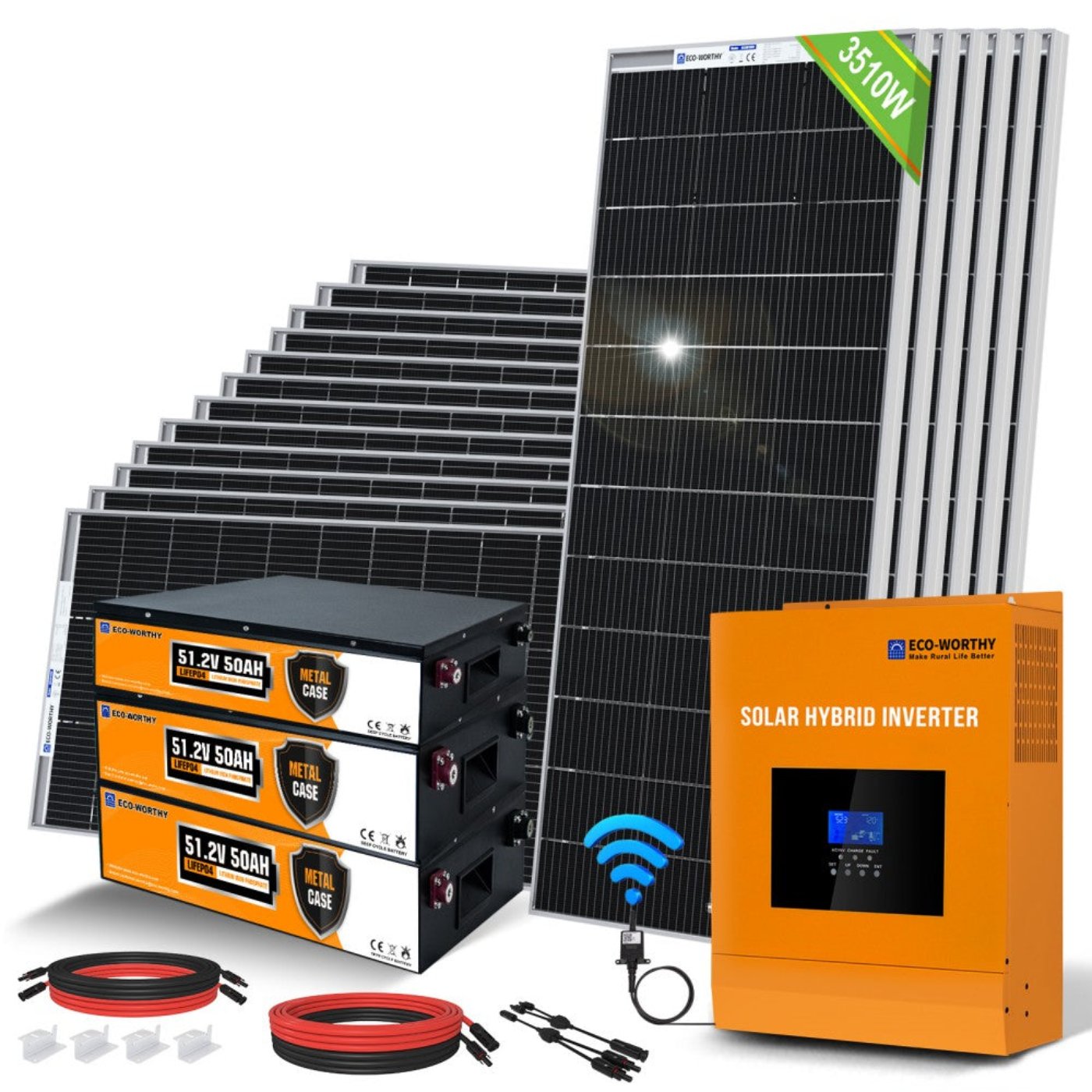

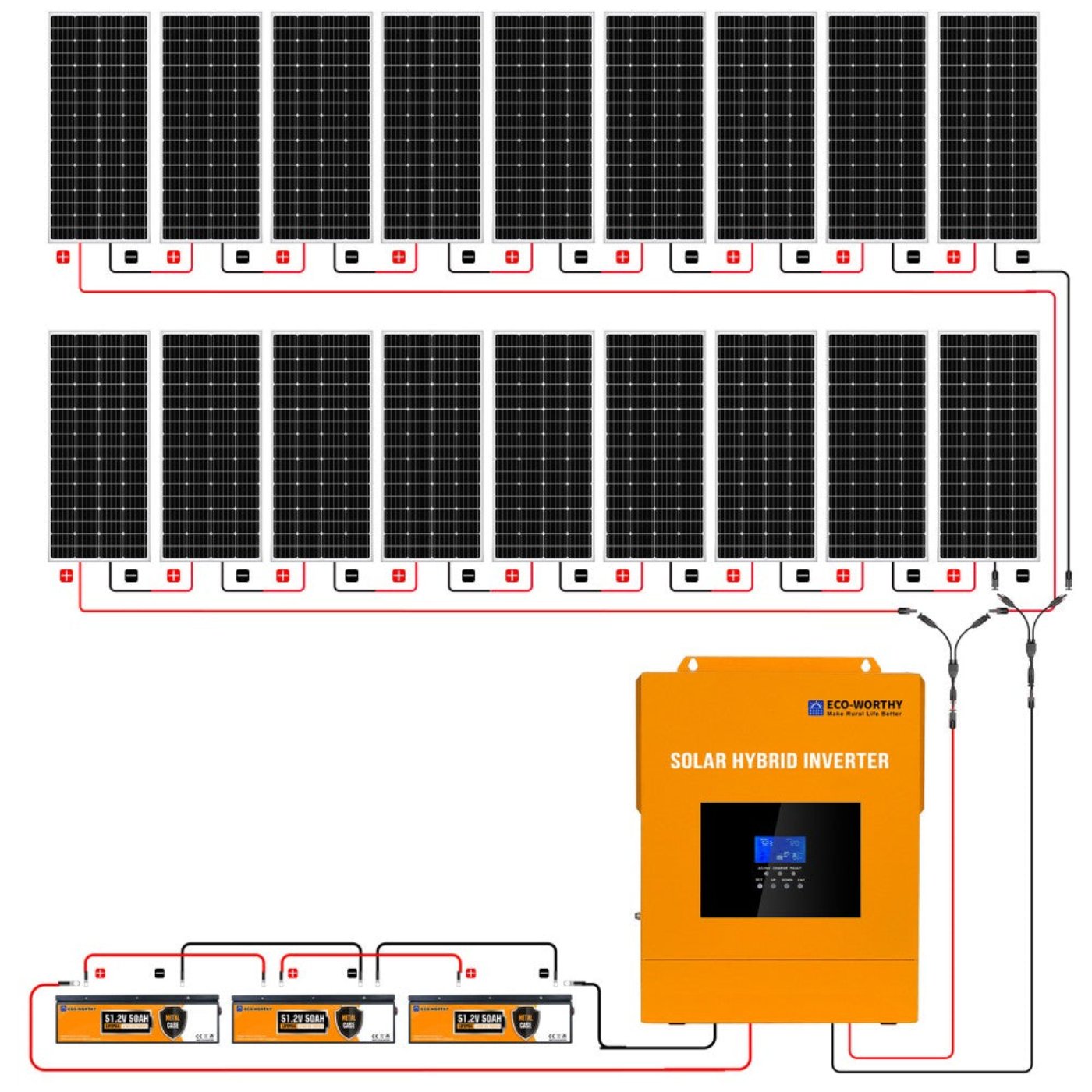

Package Includes
18x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)
1x 5M 8AWG Extension Cable with MC4
2x 5M 12AWG Solar Cable with MC4
1x Y MC4 Connector
18x Z Mounting Bracket
3x 50Ah 48V Stackable LiFePO4 Lithium Battery
4x 6AWG Battery Interconnect Cable
Specifications
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A |
Maximum current: 9.85A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |

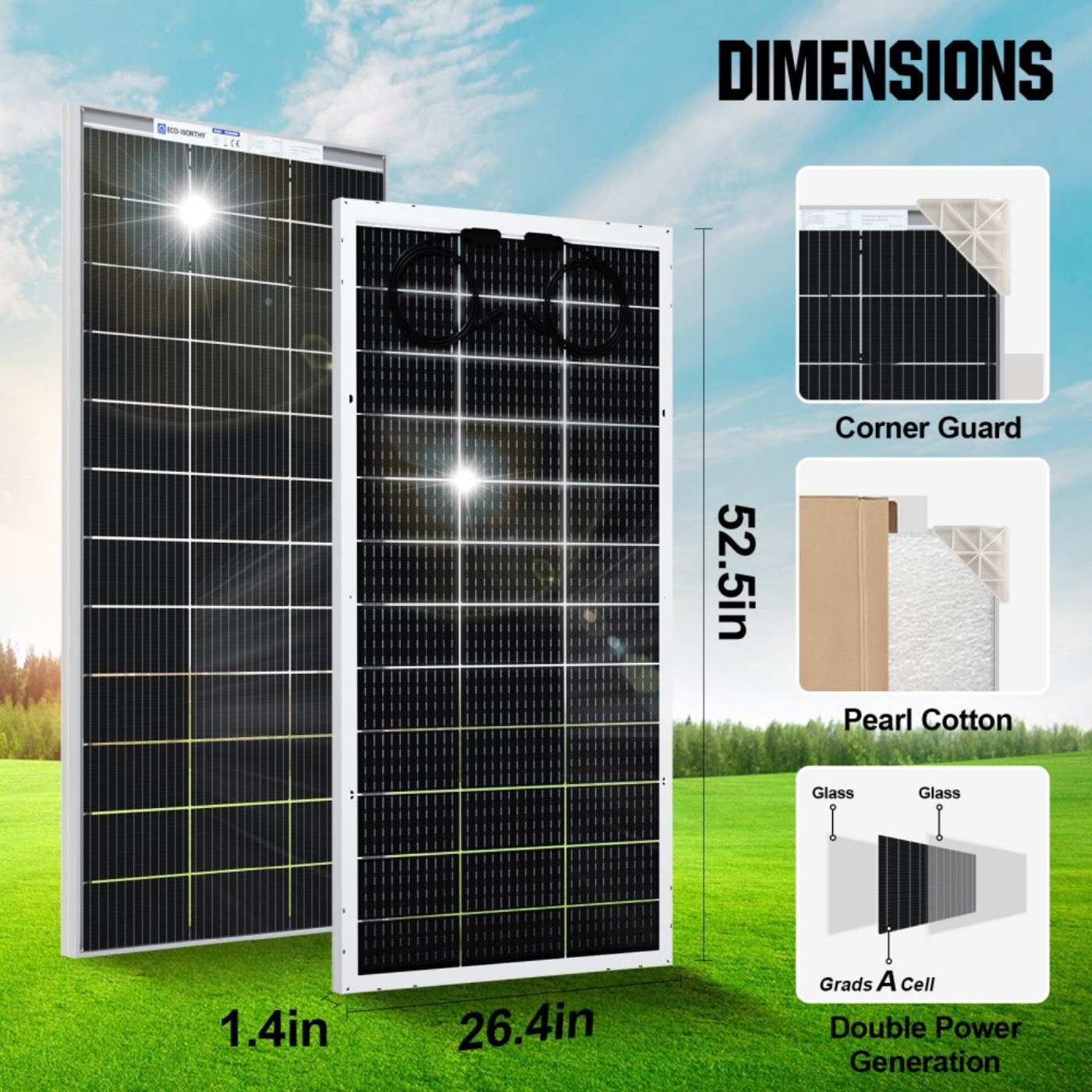

| Size: 52.6x26.38x1.38in (1335*670*35mm) |
|
5000W 48V All-in-one Inverter with 80A MPPT

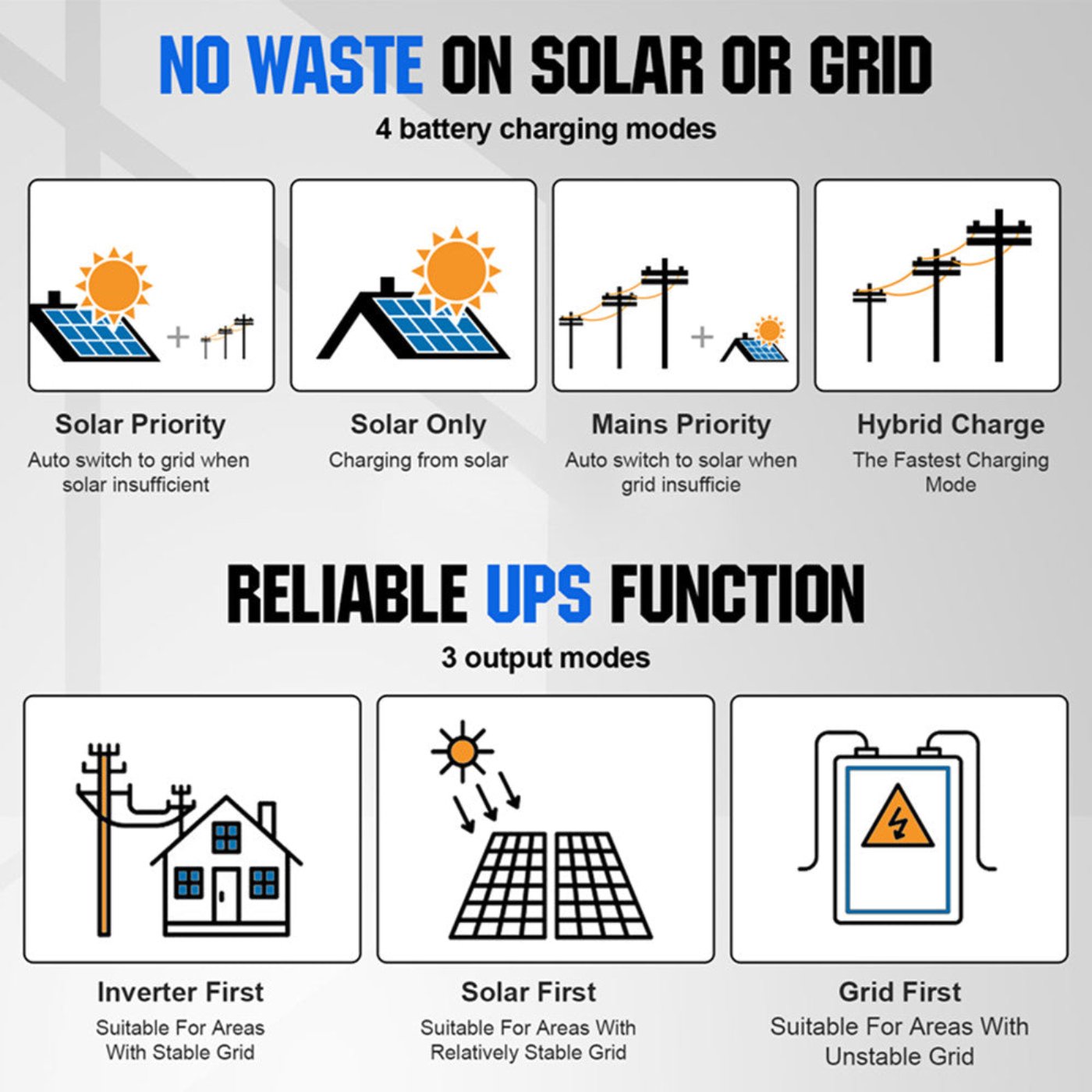

| Solar Charging Mode |
|
| PV Charging Current Range: 0-80A |
MPPT Voltage Range: 120-450VDC |
| Max Input Power: 4400W |
Battery Voltage Range: 40-60VDC |
| Invert Mode |
|
| Output Waveform: Pure Sine Wave |
Rated Output Power: 5000W |
| Rated Output: 120VAC 50Hz/60Hz |
Rated Battery Input Voltage: 48V |
| Peak Power: 10000W |
|
| AC/Grid Charging Mode |
|
| Rated Input: 110VAC 50Hz/60Hz(auto detect) |
|

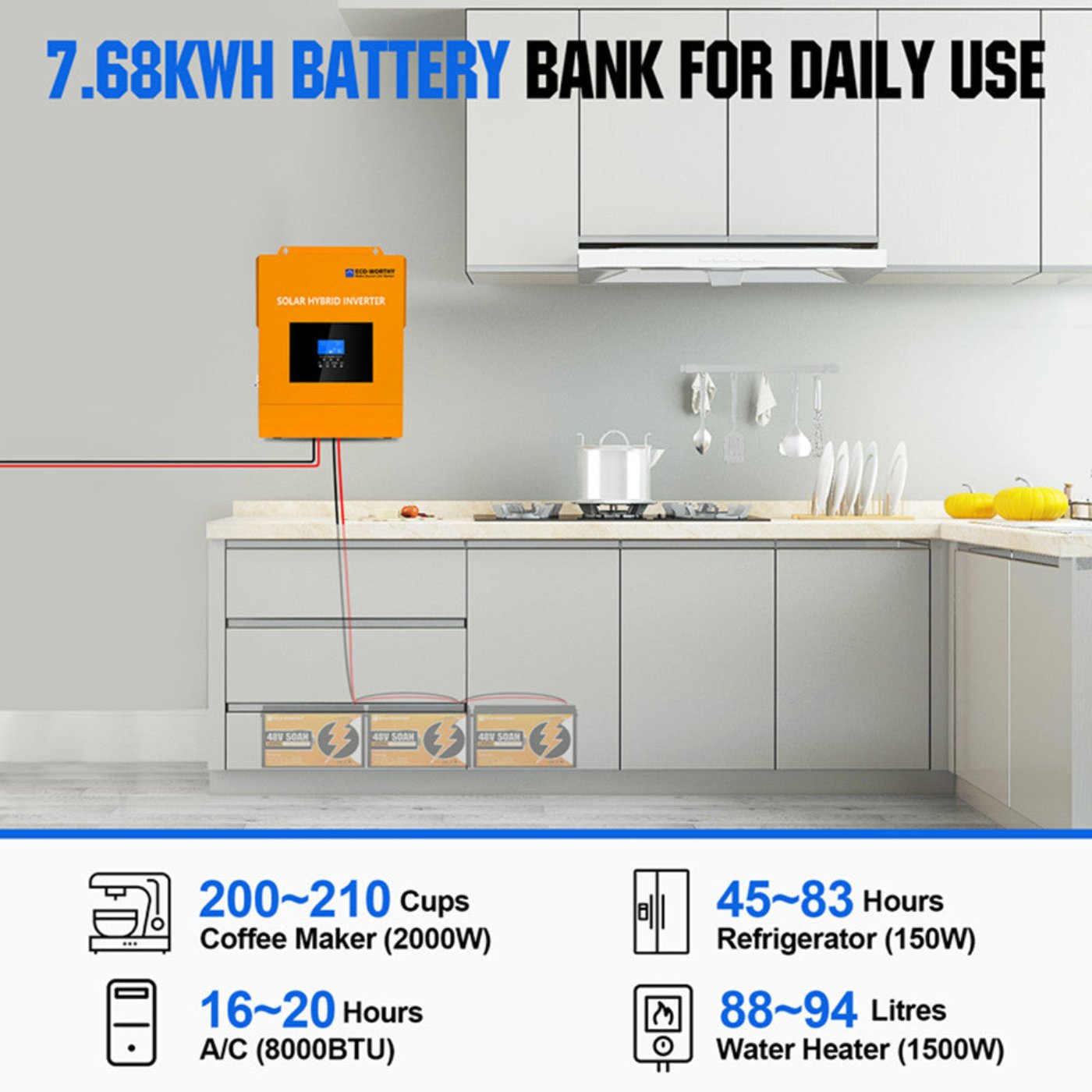

50Ah Stackable LiFePO4 Lithium Battery
| Battery Capacity: 50Ah |
Battery Power: 2560Wh |
| Rated Voltage: 51.2V |
Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 50A |
Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ |
Maximum Charge Voltage: 58.4V |
| Battery Size: 17.21*13.11*4.92inch |
Battery Weight: 58.42 lbs |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
What Our Experts Think
-

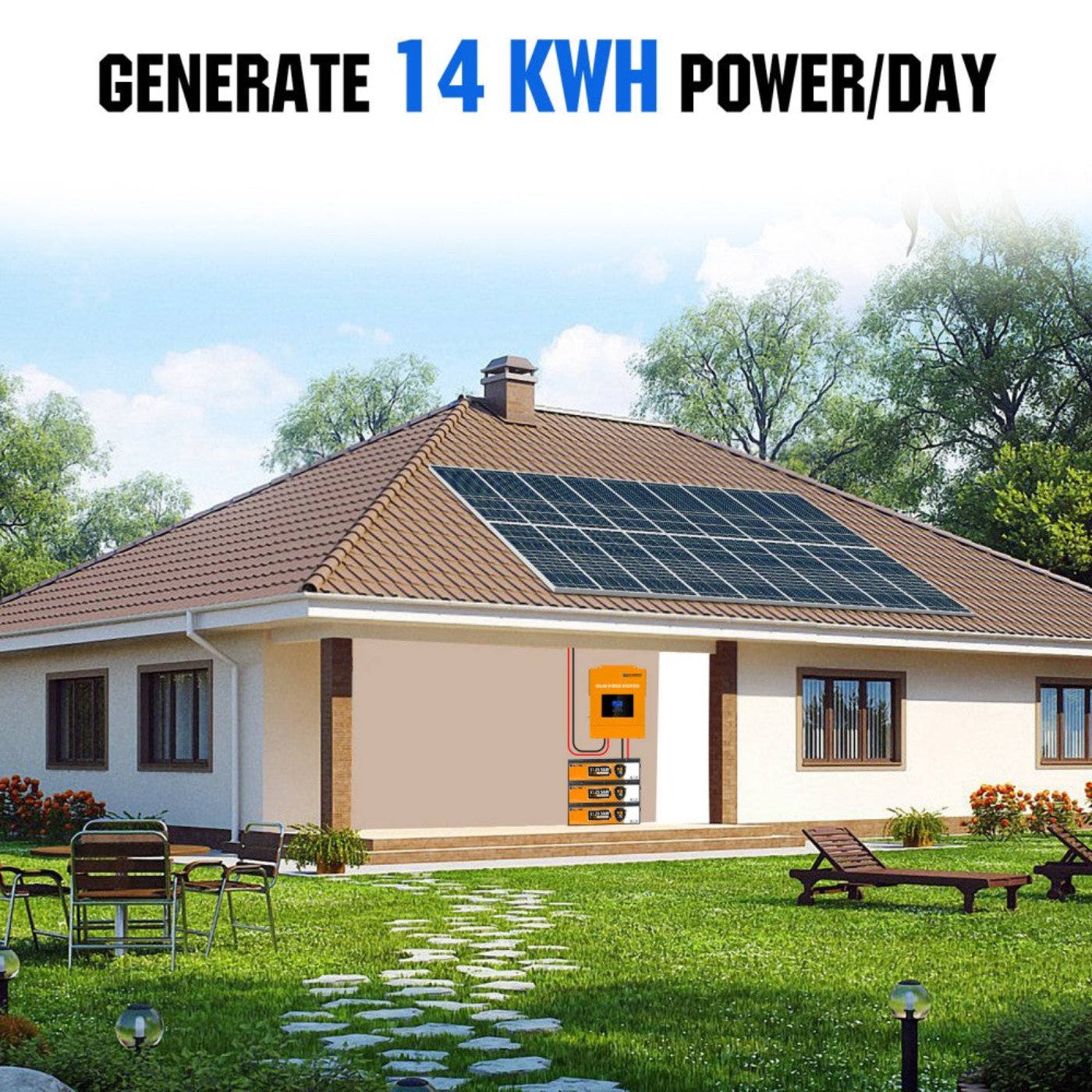

High-Power System: Delivers 3600W with 18 bifacial 195W solar panels, making it ideal for large off-grid homes or commercial applications.
-

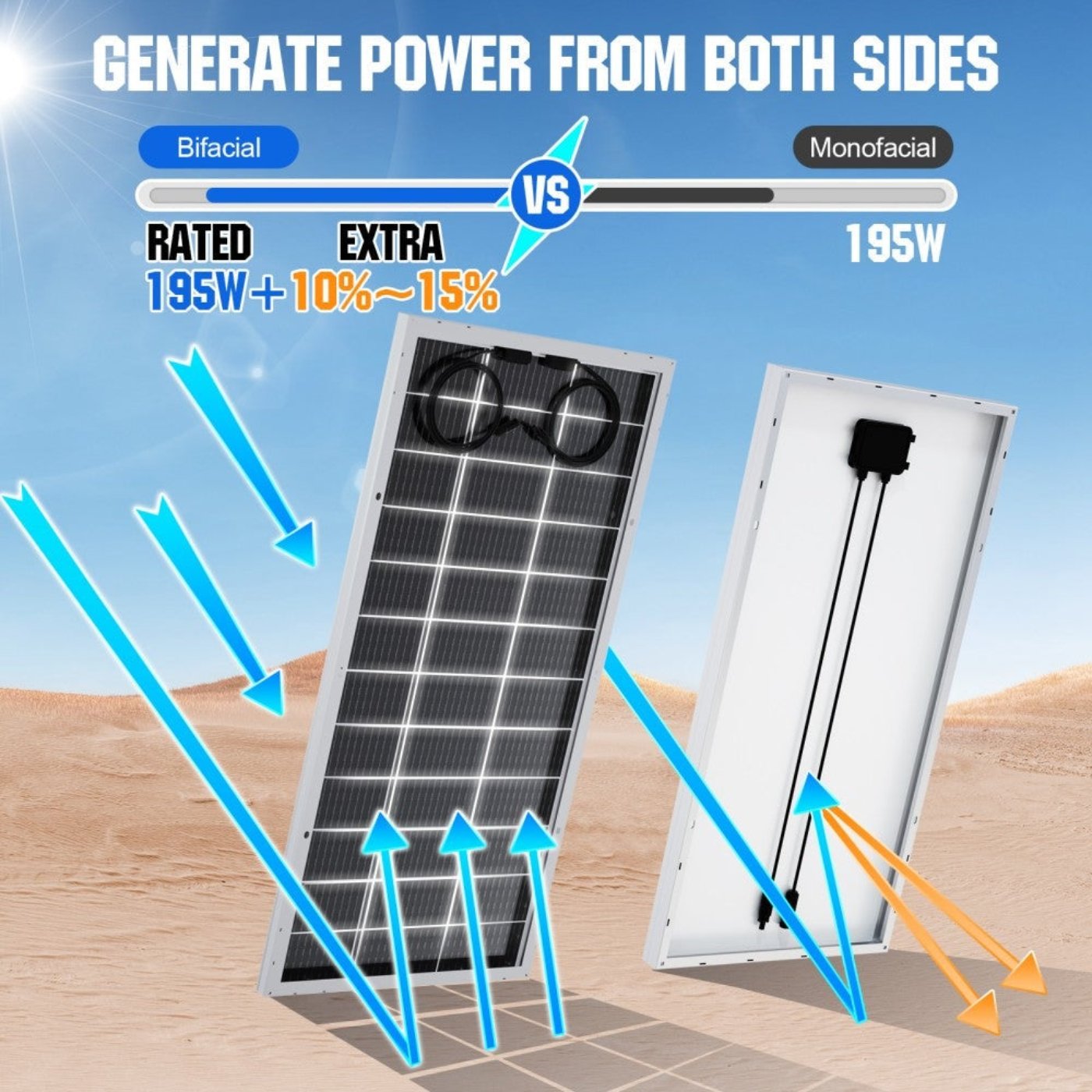

Bifacial Efficiency: Dual-side energy capture increases output by up to 25%, maximizing solar energy production throughout the day.
-
MPPT Charge Controller: Provides optimized energy conversion and charging efficiency, ensuring consistent power supply.
-
Complete Installation Kit: Includes everything you need—solar panels, charge controller, cables, and mounting hardware—for quick and easy setup.
-
Durable Design: Built to endure extreme weather, ensuring reliable performance year-round in any environment.
Q&A
Q: What is the Eco-Worthy 3600W 48V Complete MPPT Off-Grid Solar Kit?
A: The Eco-Worthy 3600W 48V solar kit includes eighteen 195W bifacial solar panels and an MPPT charge controller, providing a powerful and efficient off-grid energy solution for large-scale applications.
Q: What are its key features?
-
Power Output: 3600W total (18 x 195W bifacial panels).
-
Panels: Bifacial design captures sunlight from both sides, increasing energy efficiency.
-
Controller: 60A MPPT charge controller for optimized power conversion and battery management.
-
Durability: High-quality, weather-resistant materials for long-lasting use.
-
Applications: Ideal for large off-grid installations like homes, farms, and businesses requiring substantial energy.
Q: Who is this solar kit ideal for?
A: Perfect for homeowners, businesses, or off-grid systems that demand a high power output for energy independence and sustainability.
Q: Why choose the Eco-Worthy 3600W Off-Grid Kit?
A: Its robust power output, bifacial panels, and MPPT technology provide a reliable, efficient solution for those seeking long-term, sustainable off-grid energy
Maintenance Tips
-
Solar Panel Cleaning: Clean both sides of the bifacial panels regularly with a soft cloth and water to remove dirt and debris for optimal sunlight absorption.
-
Panel Inspection: Check for cracks, damage, or discoloration. Ensure no obstructions, like debris or overgrowth, are blocking the panels' exposure to sunlight, especially the rear side.
-
Mounting & Alignment: Inspect the mounting system for secure installation. Tighten any loose bolts or fasteners and check for proper panel alignment to maximize energy capture.
-
MPPT Charge Controller: Monitor the MPPT charge controller regularly for efficiency and error indicators. Ensure settings are optimized for the system's energy production.
-
Battery Health: Check battery voltage, connections, and overall condition. Avoid deep discharges and overcharging. Store batteries in a cool, dry environment.
-
Wiring & Connectors: Inspect all cables, connectors, and terminals for wear, corrosion, or loose connections. Tighten and replace components as needed to maintain safe operation.
-
Inverter Maintenance: Periodically check the inverter for smooth operation, ensure it’s clean, well-ventilated, and not overheating.
-
System Monitoring: Track energy production and consumption regularly. Look for any noticeable drops in output or unusual behavior to address potential issues early.
-
Weatherproofing: Ensure all system components, especially wiring and junction boxes, are adequately sealed and protected from dust, moisture, or extreme weather conditions.
-
Shading Check: Regularly assess the panel placement for shading throughout the day, especially from trees, nearby buildings, or other obstructions that could reduce energy generation.
