Eco-Worthy 400W 12V (4x100W) Complete MPPT Off Grid Solar Kit

SKU US-L02M100N-MCWMZIUS1000L100-4
Save up to 10% Save 10%
Original price $1,059.99
Original price $499.99 - Original price $1,459.99
Original price $1,059.99
Current price $953.99
$449.99 - $1,313.99
Current price $953.99


  • PEOPLE are also watching that product.

Eco-Worthy 400W 12V (4x100W) Complete MPPT Off Grid Solar Kit

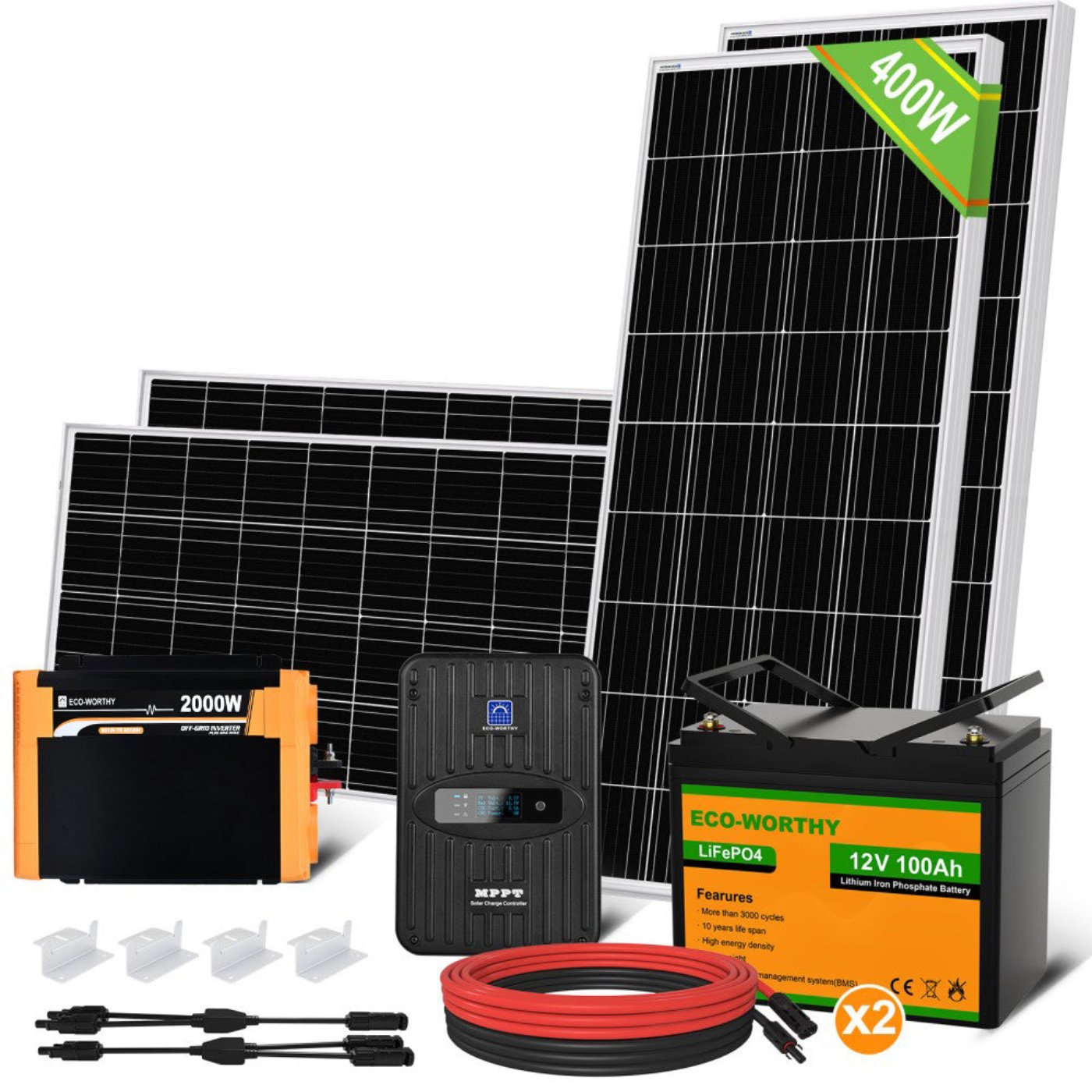

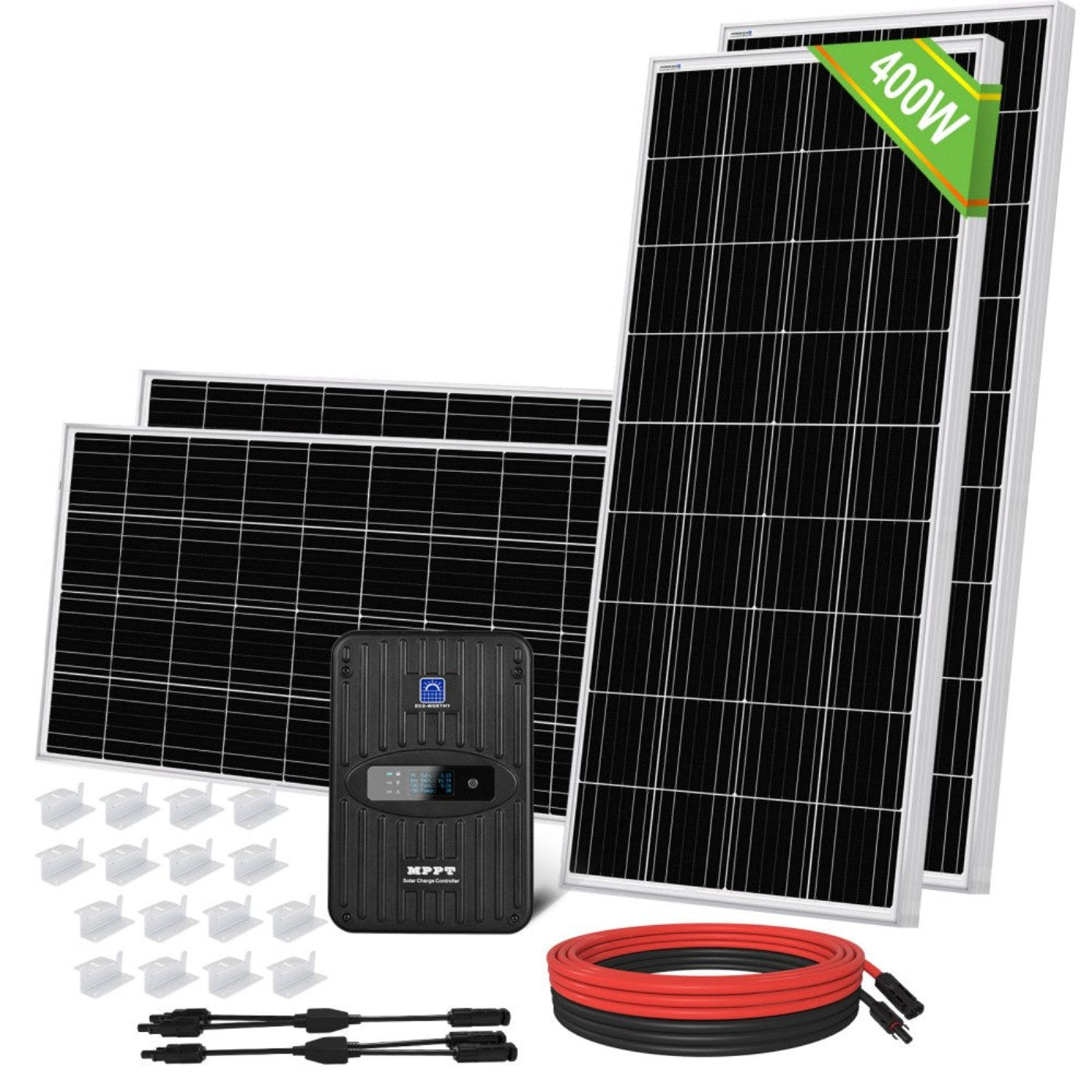

Package Includes

4x 100W Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
3x Y MC4 Connector
4x Z Mounting Bracket
1x 1.5M Tray Cable

Inverter & Battery Options-

1.1kW Inverter & 1.2kWh Lithium Battery (optional)
1x 1100W 12V-110V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery

2kW Inverter & 2.4kWh Lithium Battery (optional)
1x 2000W 12V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Batter

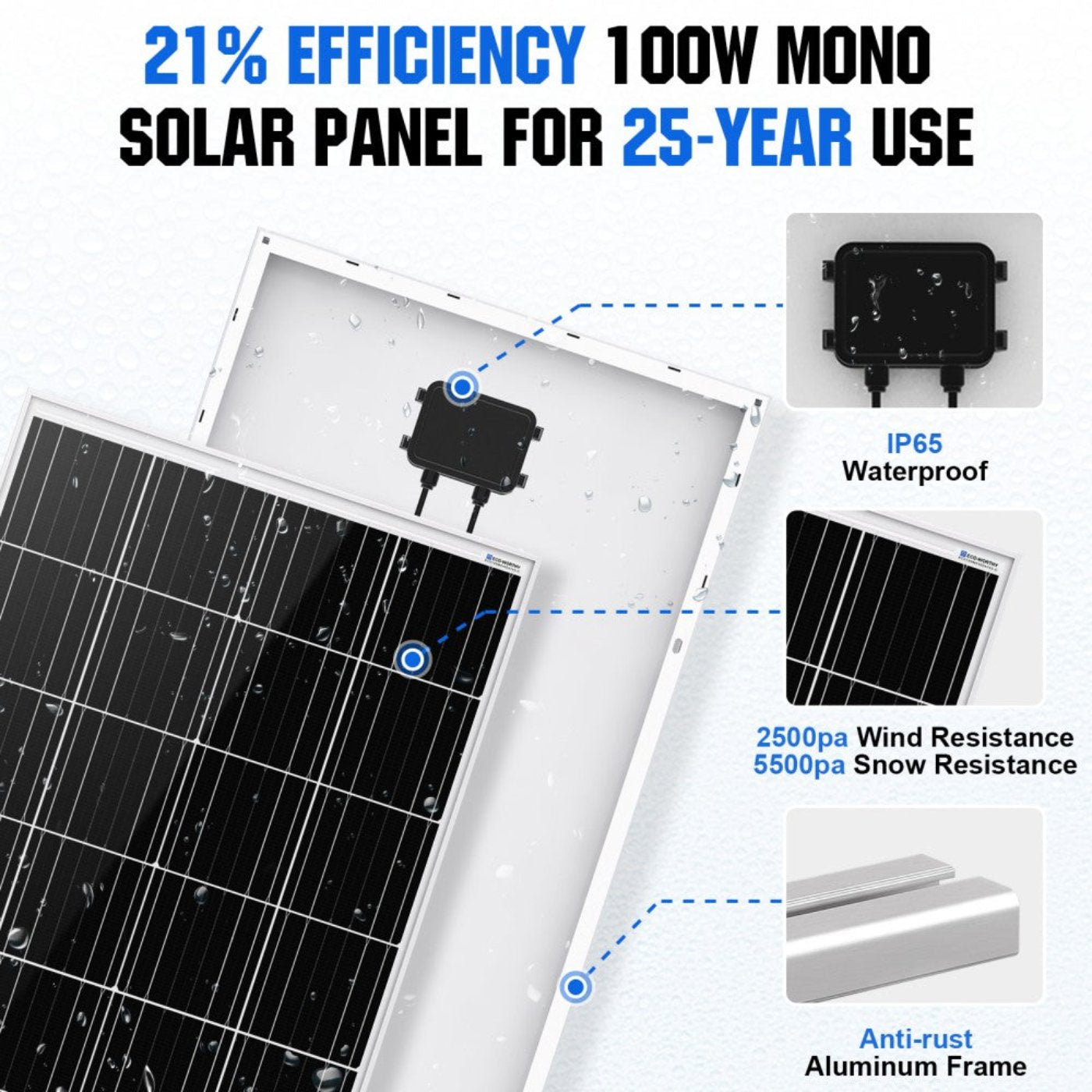

100W Monocrystalline Solar Panel

Rated Power: 100W Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 18V Open Circuit Voltage(Voc): 21.6 V
Short circuit current: 6.11A Maximum current: 5.55A
Output Tolerance: ±3% Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range:-40℃~ +85℃
Frame: Aluminum alloy frame Length of extension cable: 90cm(2.95ft)
Size of extension cable: 4mm²(11AWG)/MC4 Connector Weight: 13.14 lbs(5.96 kg)
Size: 1010mm*460mm*35mm

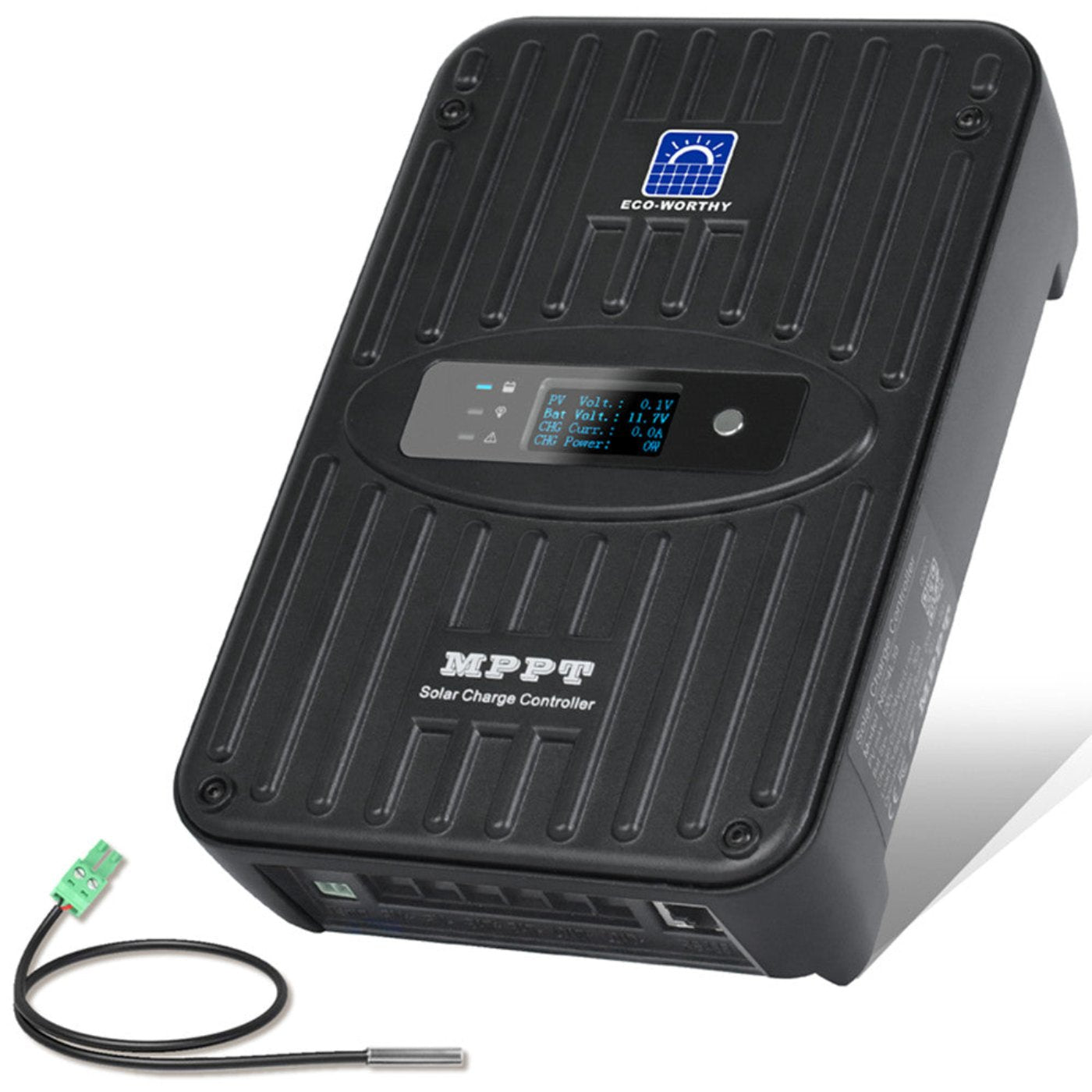

40A MPPT Solar Charge Controller

Battery voltage:12V/24V Max Solar Input Power:560/1120W
Charging mode:MPPT Rated Load Current:20A
Charge Efficiency (Peak):97% Self-Consumption:1~2W
Battey Type:LiFePO4,AGM,Sealed,Gel,Flooded Size:220*148*64mm/8.7*5.8*2.5inch
Max Charge current:40A Weight:1.5KG
Max.PV Open-Circuit Voltage:<100V

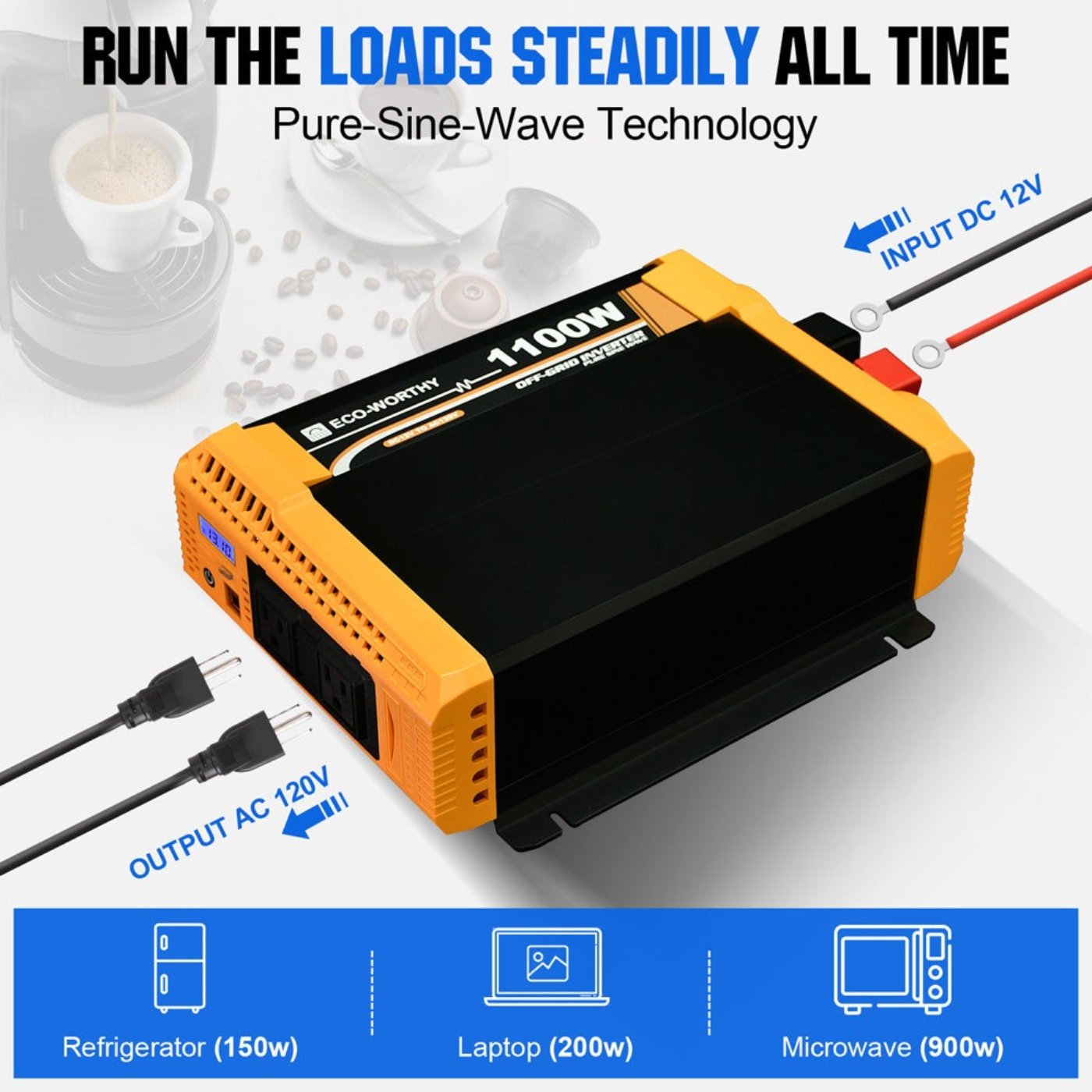

1100W 12V Off Grid Inverter

Output Continuous Watts(W): 1100W+18W USB Surge Capacity (PeakPower): 2200W
Rated Input DC (V,A): 12V Battery, 100A Input Voltage Range: 10.5-16Vdc±0.3V
Rated Frequency (Hz): 60Hz±1 Rated Output AC (V,A): 115Vac±10%, 9.5A
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) No Load Current: <1A
Optimum Efficiency: 85% min Fuse (A): 30A*4
FuseType: Internal Blade Output Wave Form: Pure Sine Wave
Touch Temperature: 65℃(149℉)max Operating Temperature: -20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH: 5~95% Cooling System: Thermo Fan
THD: <4.5% Dimensions (L*W*H): 13.5*9.8*4.1 in
Assembled Weight (kg): 8.05 lbs

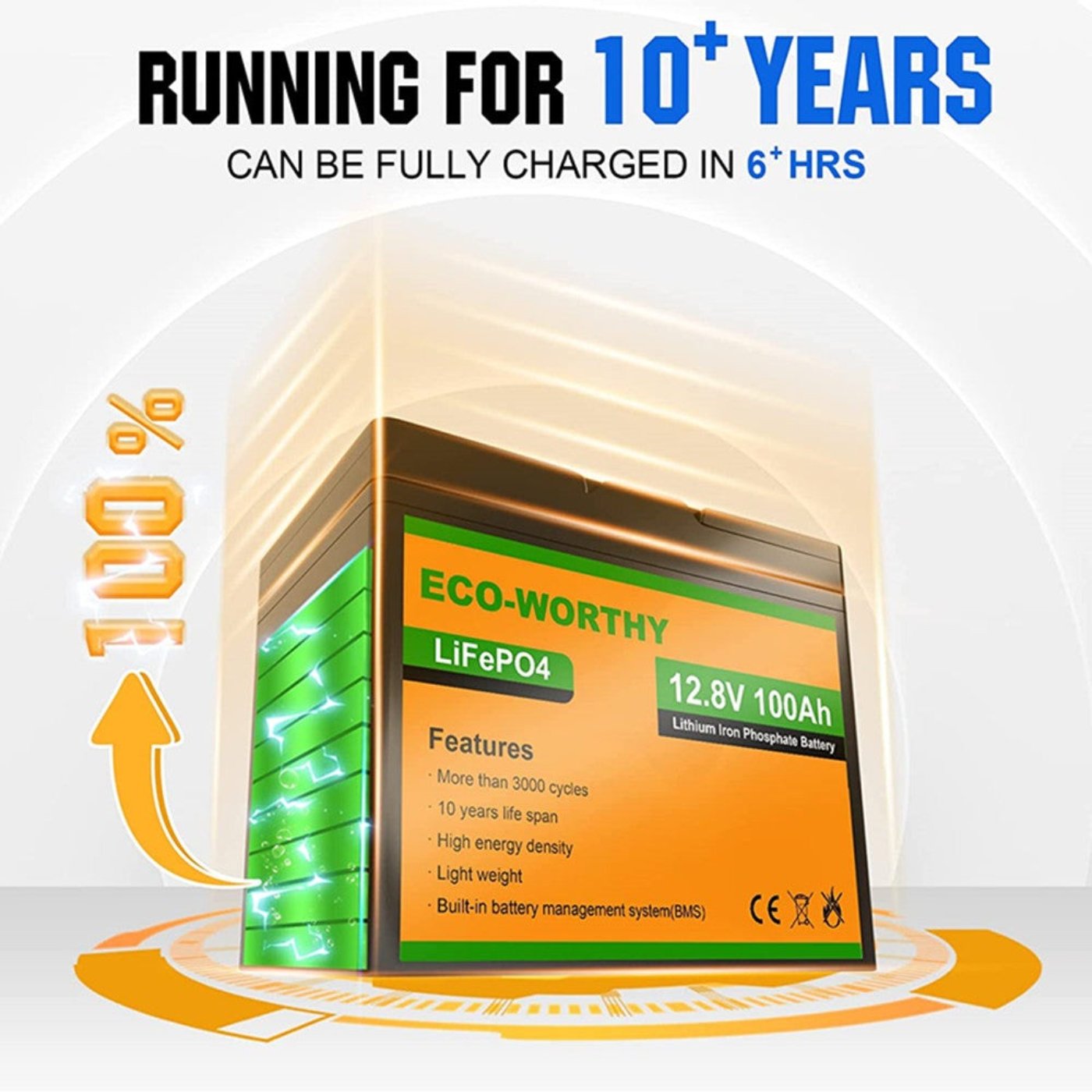

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah Battery Power: 1200Wh
Battery Voltage: 12.8V Maximum Charge/ Discharge Current: 80A/100A
Charge Temperature Range: 0-55℃ Disharge Temperature Range:﹣20-55℃
Maximum Charge Voltage: 14.5V Discharge Cut-Off Voltage: 10V
Screw size: M8 Battery Size: 260*168*209mm(10.2*6.6*8.2inch)
Battery Weight: 9.55kg/21 lbs

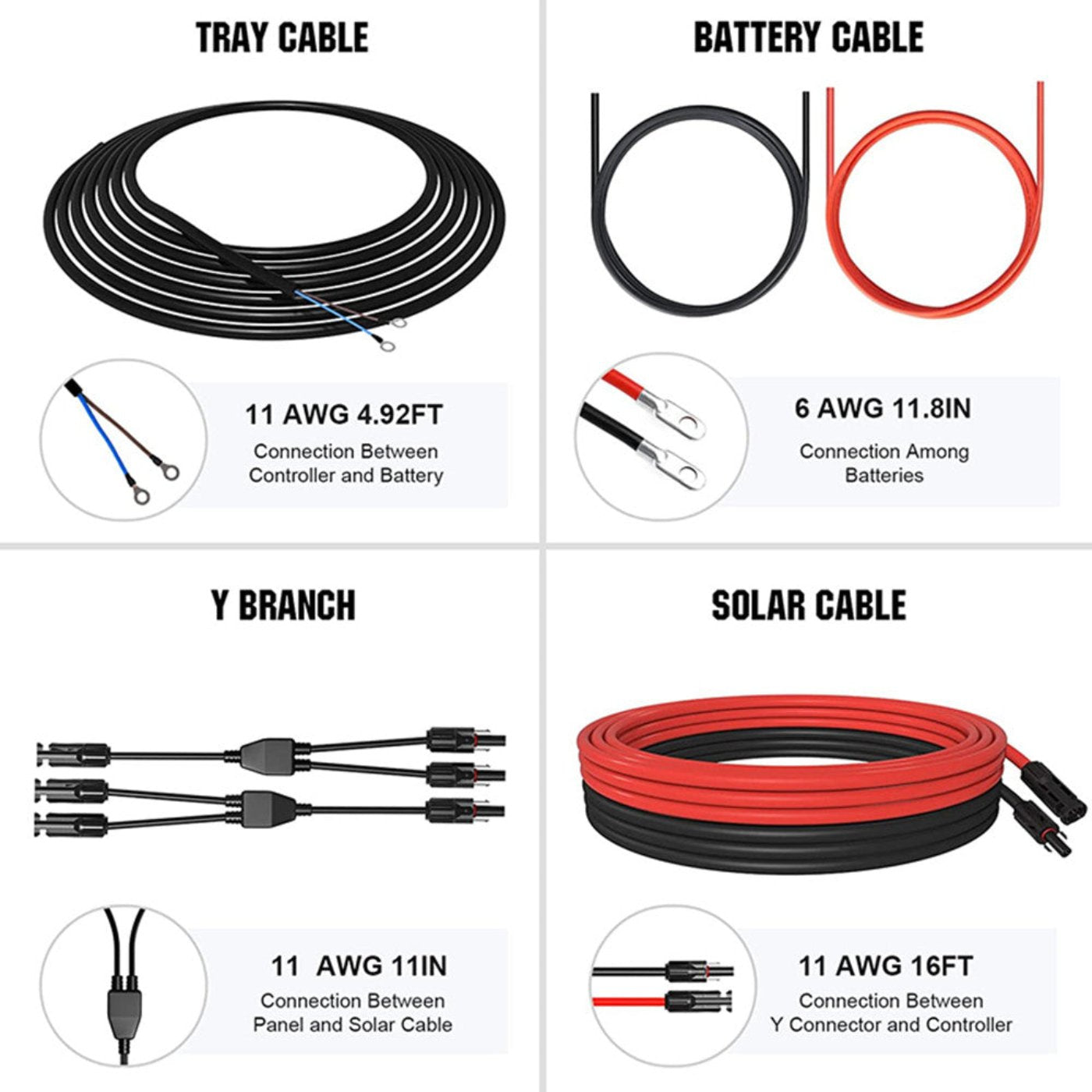

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
Length: 5 meters(16 ft) Conductor: Tinned copper wire
AWG: 11 Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection Temperature: -40°F to +185°F
Connector: MC4 Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets 8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

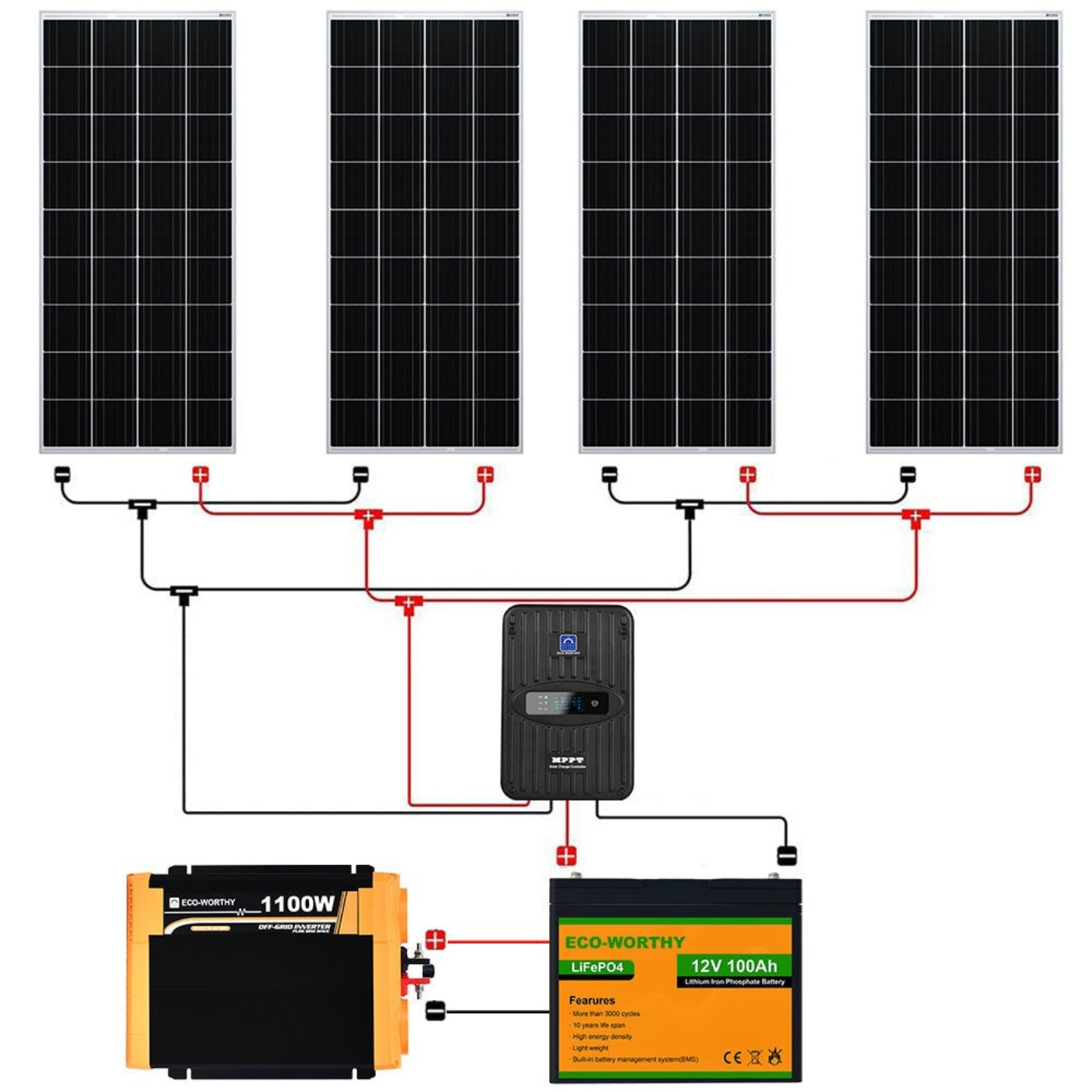

Compatible with MC4 solar connector. Easy installation for 2 solar panels connected in parallel.
