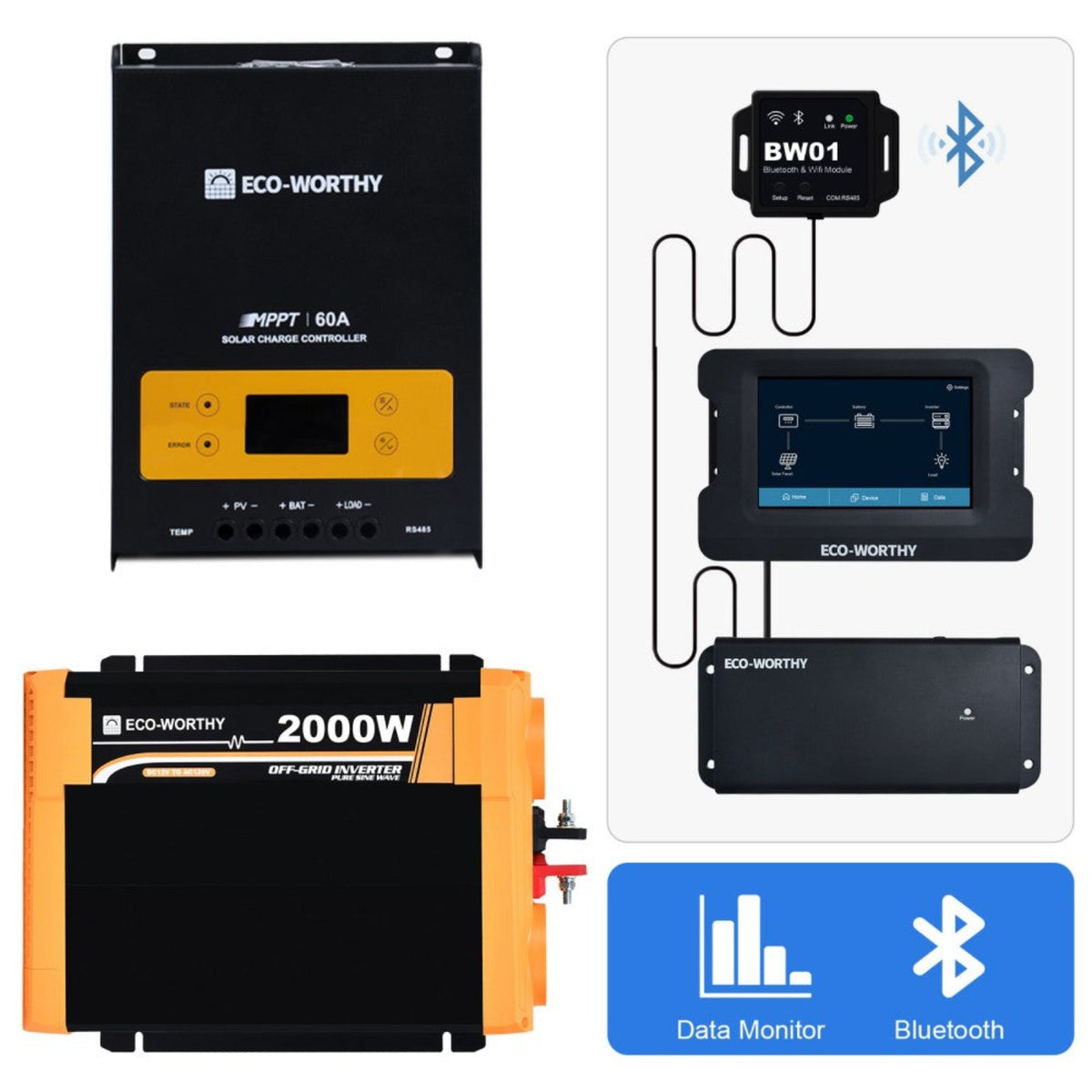

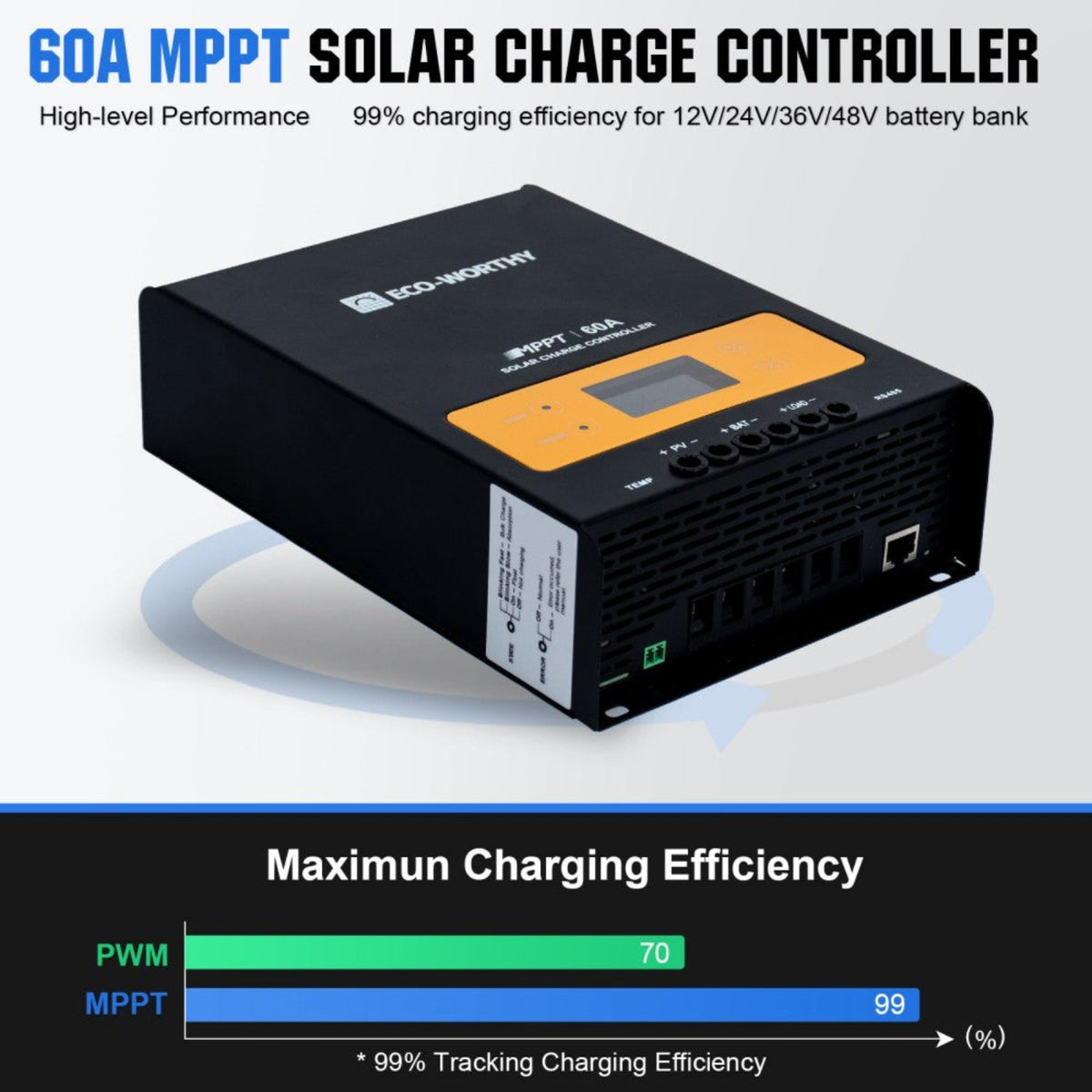

60A MPPT Solar Charge Controller
Battery voltage:12V/24V/36V/48V |
Max Solar Input Power:780W(12V)/1560W(24V)/2340W(36V)/3120W(48V) |
Charging mode:MPPT |
Rated Load Current:30A |
Charge Efficiency (Peak):97% |
Max Charge current:60A |
Battey Type:LiFePO4,AGM,Sealed,Gel,Flooded |
No-load static loss: 0.5W-1.2W |
Size:240*166*65mm |
Weight:1.96KG |
Maximum wire size: 20mm2 |
|

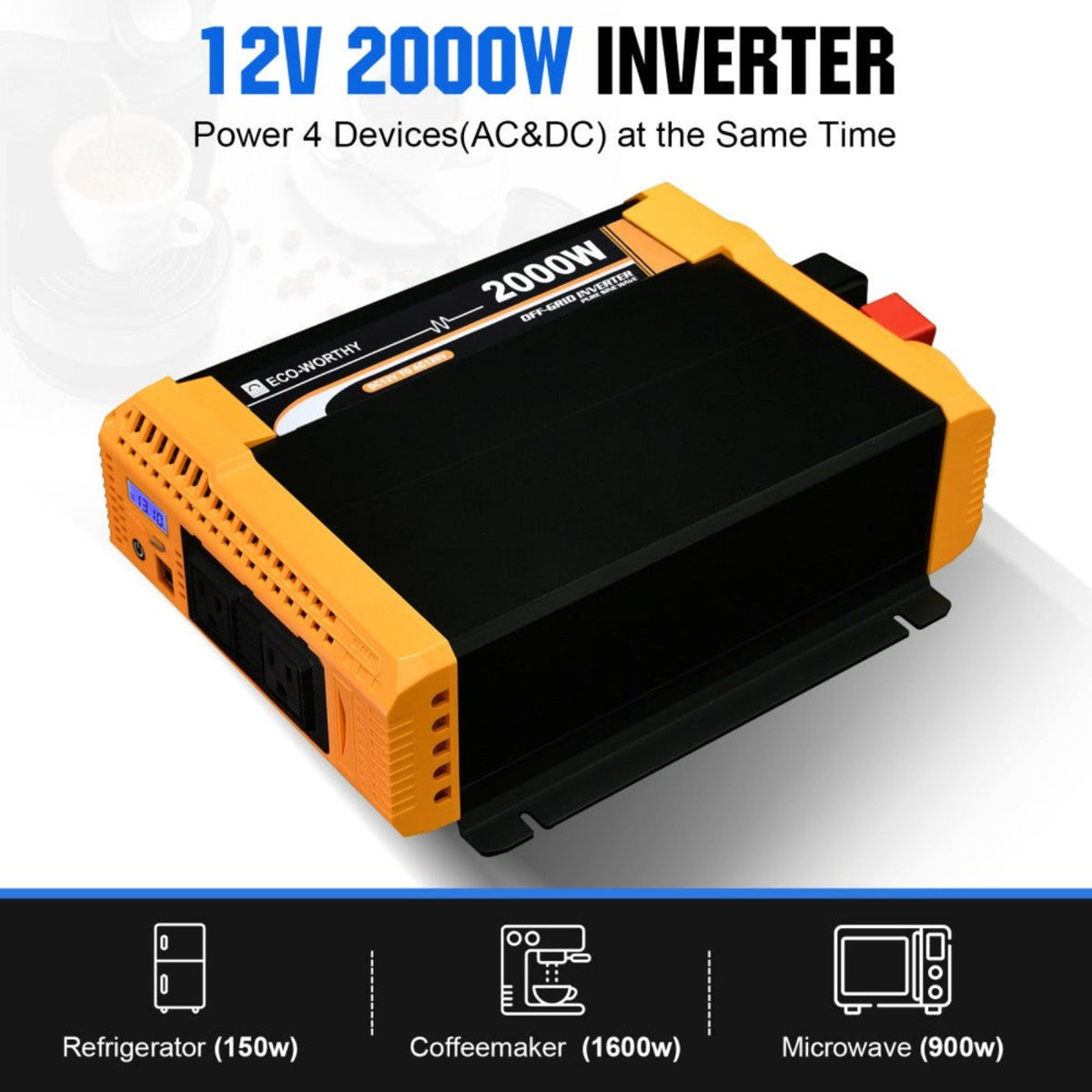

2000W 12V Off Grid Inverter
Output Continuous Watts(W): 2000W+18W USB |
Surge Capacity (PeakPower): 4000W |
Rated Input DC (V,A): 12V Battery, 200A |
Input Voltage Range: 10.5-16Vdc±0.3V |
Rated Frequency (Hz): 60Hz±1 |
Rated Output AC (V,A): 115Vac±10%, 18A |
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) |
No Load Current: <1.2A |
Optimum Efficiency: 85% min |
Fuse (A): 40A*6 |
FuseType: Internal Blade |
Output Wave Form: Pure Sine Wave |
Touch Temperature: 65℃(149℉)max |
Operating Temperature: -20℃~40℃ (4℉~104℉) |
Operating/Storage Humidity RH: 5~95% |
Cooling System: Thermo Fan |
THD: <4.5% |
Dimensions (L*W*H): 16.8*9.8*4.1 in |
Assembled Weight (kg): 7.67 lbs |
|
.
