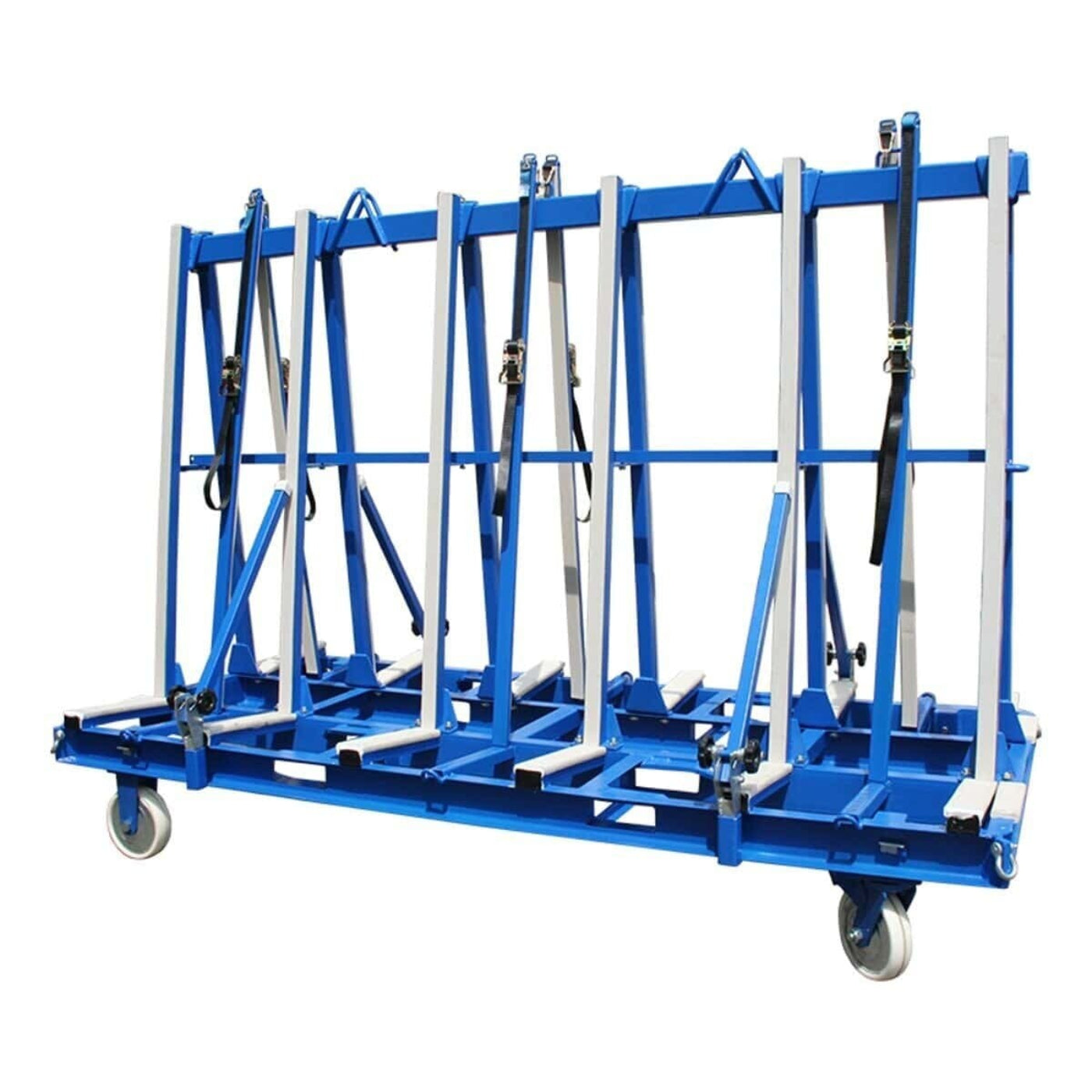

Aardwolf 'A' Frame 2440QP - AF2440QP

Aardwolf 'A' Frame 2440QP - AF2440QP

The QP Frames are designed for delivering heavy sheets of glass and stone to construction sites where a strong, heavy frame is need to lift the complete load and frame together onto building sites.

The fully loaded frame can easily be moved around the floors on different levels of construction sites.

Features

• Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
• Load bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
• It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.
• Has four lifting points at the corner of frame base for lifting loaded frames on and off trucks and onto building sites.
• Handles are located at the end of "A" frames.
• Wheels with brakes to ensure safety in operation.
• Four locking bars per frame mounted in slotted holes on the bottom.
• Powder-coated finish ensures an aesthetic feature as well as the durability of the product.

Specifications

What Our Experts Think

• Dual-Purpose Design: Ideal for both in-factory storage and on-site transport of stone, glass, or engineered slabs.

• Robust Construction: Built with a sturdy steel frame and powder-coated finish for durability and corrosion resistance.

• Secure Slab Handling: Equipped with six adjustable locking bars per frame to ensure slabs are firmly secured during movement.

• Protective Features: Slabs are supported by special rubber profiles to prevent scratches and damage.

• Versatile Mobility: Includes double brake pin release wheels, forklift pockets, and lifting eyes for crane compatibility.

• Generous Capacity: Supports up to 4,000 kg when stationary and 3,000 kg with crane lifting.

• Efficient Dimensions: Measures 2440 x 1197 x 1810 mm, with a base width of 320 mm per side for slab storage.

Q&A

Q: What is the Aardwolf 'A' Frame 2440QP (AF2440QP)?

A: The Aardwolf 'A' Frame 2440QP is a heavy-duty transport and storage frame designed for safely moving and storing large stone slabs, such as granite and marble, on construction sites and in fabrication facilities.

Q: What is the price of the AF2440QP?

A: The Aardwolf 'A' Frame 2440QP is priced around $2,632.00, though the price may vary based on the retailer and location.

Maintenance Tips

• Regular Cleaning: Wipe the powder-coated frame with a damp cloth to remove dust and debris. Use mild soap and water for stubborn residues. Avoid abrasive cleaners to preserve the finish.

• Inspect Rubber Profiles: Check the rubber profiles on the slab storage base for wear. Replace them if they show signs of damage to prevent scratching slabs.

• Check Locking Bars: Ensure the adjustable locking bars are securely mounted. Tighten or replace any loose or damaged bars to keep slabs secure.

• Examine Lifting Points: Inspect the crane lifting points and forklift brackets for wear or damage. Ensure they are free from deformation and securely attached.

• Inspect Wheels and Brakes: Check the wheels and brake mechanisms for smooth operation. Lubricate moving parts and replace worn components.

• Monitor Load Limits: Adhere to the specified load limits (3,000 kg for crane use and 4,000 kg stationary) to prevent structural damage.

• Proper Storage: Store the frame in a dry, sheltered area to avoid corrosion and environmental damage.
