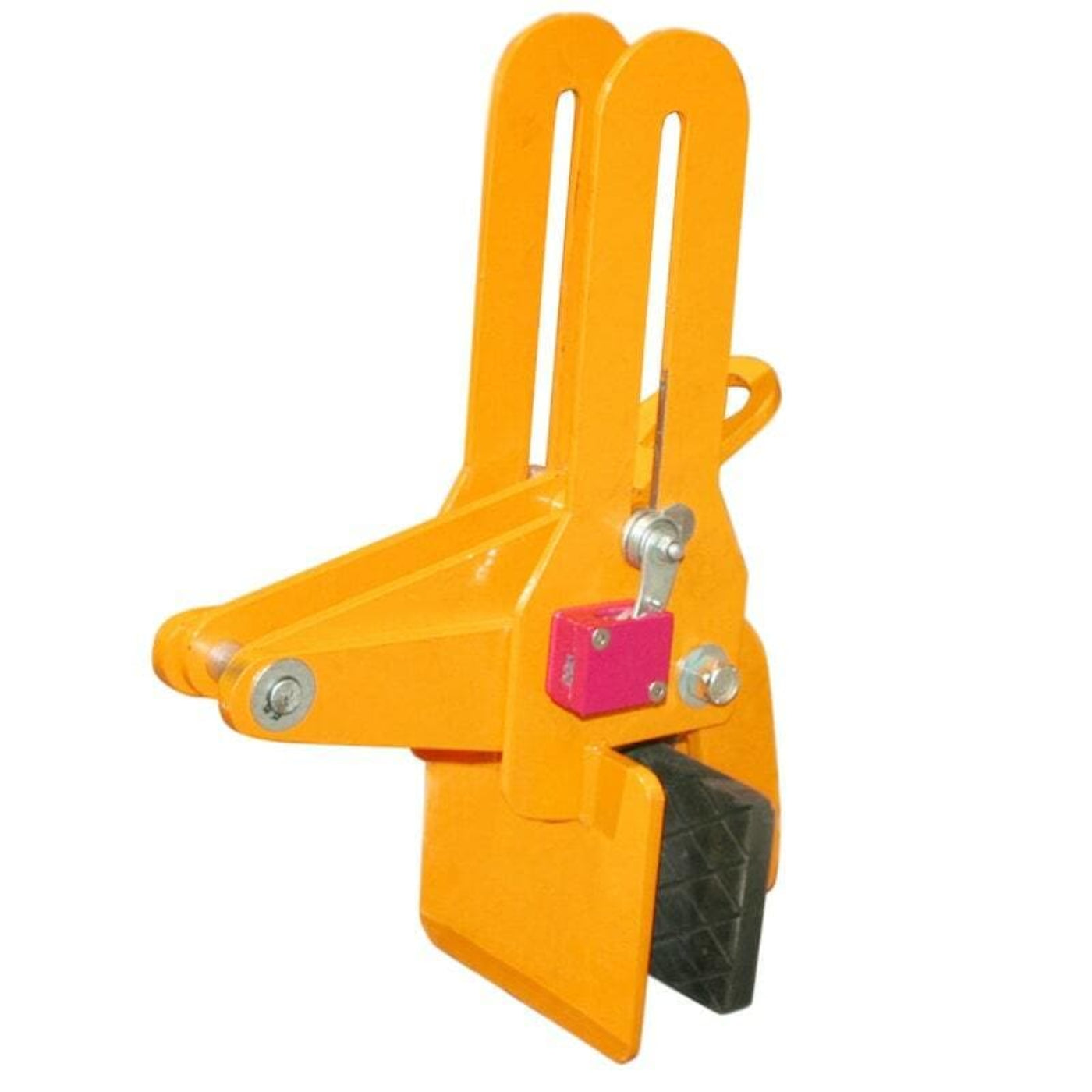

Aardwolf Billet Lifter - BL59

Aardwolf Billet Lifter - BL59

The Aardwolf Slab Billet Clamp utilizes gravity to grip and release materials.

Features

Specifications

What Our Experts Think

• Heavy-Duty Capacity: Supports up to 200 kg (441 lbs), making it ideal for lifting large and heavy slabs.

• Grip Range: Accommodates materials ranging from 5 mm to 60 mm (0.2" to 2"), making it versatile for different slab thicknesses.

• Gravity-Operated: Uses gravity to open and close the clamp, ensuring a secure grip on materials without complex mechanisms.

• Rubber-Lined Jaw: The movable jaw is lined with rubber to provide a strong grip while protecting materials from damage during lifting.

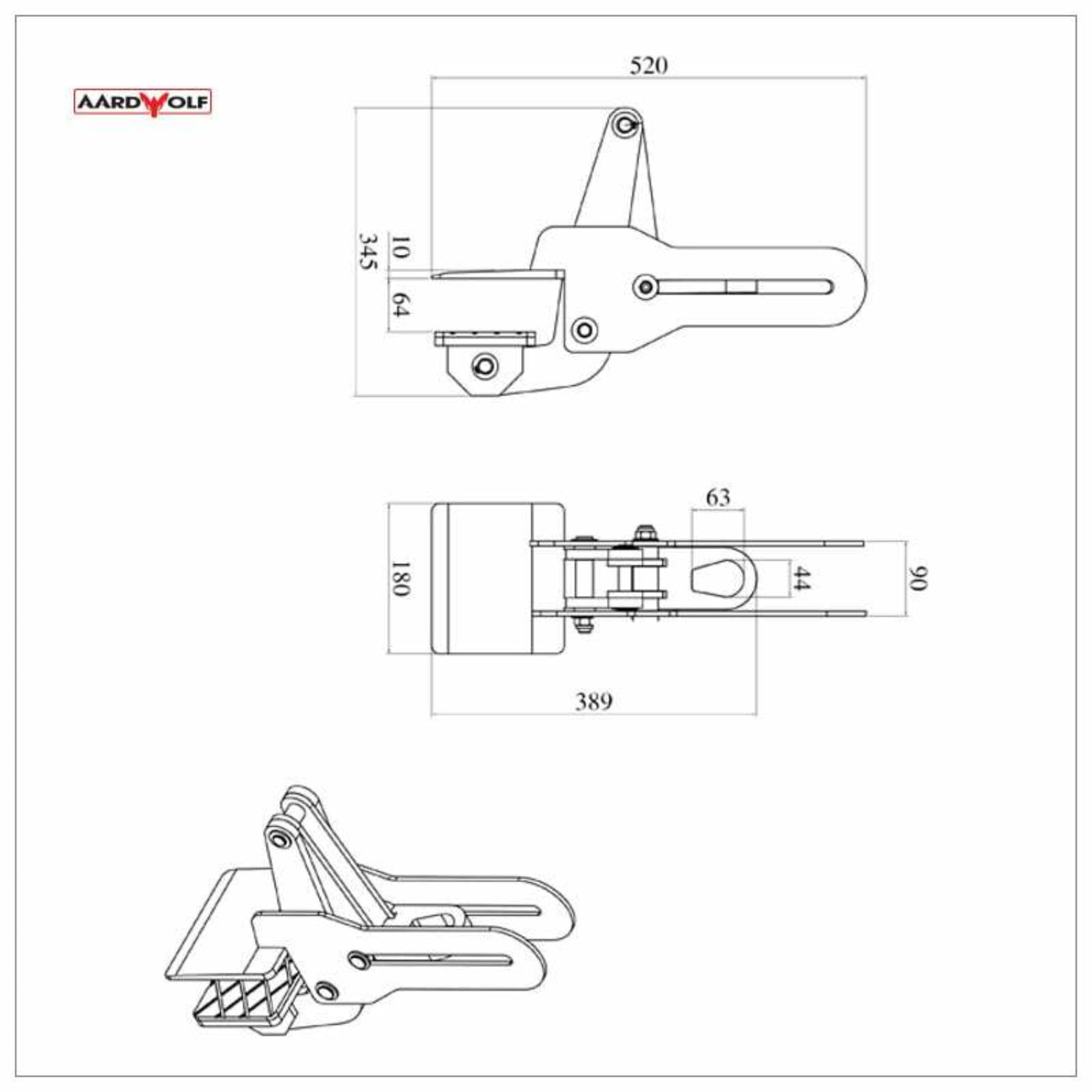

• Compact and Lightweight: Measuring 570 x 185 x 320 mm and weighing only 17 kg (38 lbs), it’s easy to handle, store, and transport.

Q&A

Q: What is the Aardwolf Billet Lifter BL59?

A: The Aardwolf Billet Lifter BL59 is a gravity-operated lifting device designed for handling marble and granite slabs. It features a rubber-lined movable jaw that grips the material securely during lifting, making it ideal for use in stone fabrication and handling.

Q: How does the BL59 improve safety?

A: The gravity-operated mechanism ensures that the clamp automatically opens and closes, reducing the risk of manual handling errors. The rubber-lined jaw provides a secure grip, minimizing the risk of the material slipping during lifting.

Q: Is the BL59 adjustable or customizable?

A: The BL59 is designed for a specific grip range and load capacity. Customization options may be limited, so it’s advisable to consult with the manufacturer for specific needs.

Q: What is the price of the BL59?

A: The Aardwolf Billet Lifter BL59 is priced around $473.99, though prices may vary by retailer and location.

Maintenance Tips

• Regular Cleaning: Wipe the lifter with a damp cloth to remove dust and debris. For stubborn residues, use mild soap and water. Avoid abrasive cleaners to preserve the finish.

• Inspect Rubber Lining: Check the rubber lining on the movable jaw for wear or damage. Replace if necessary to maintain a secure grip on slabs.

• Check Gravity Mechanism: Ensure the gravity hoisting device operates smoothly. Lubricate moving parts as needed to maintain ease of operation.

• Monitor Load Capacity: Adhere to the specified working load limit of 200 kg (441 lbs) to prevent overloading and potential damage.

• Proper Storage: Store the lifter in a dry, sheltered area to protect it from environmental elements that could cause corrosion or damage.
