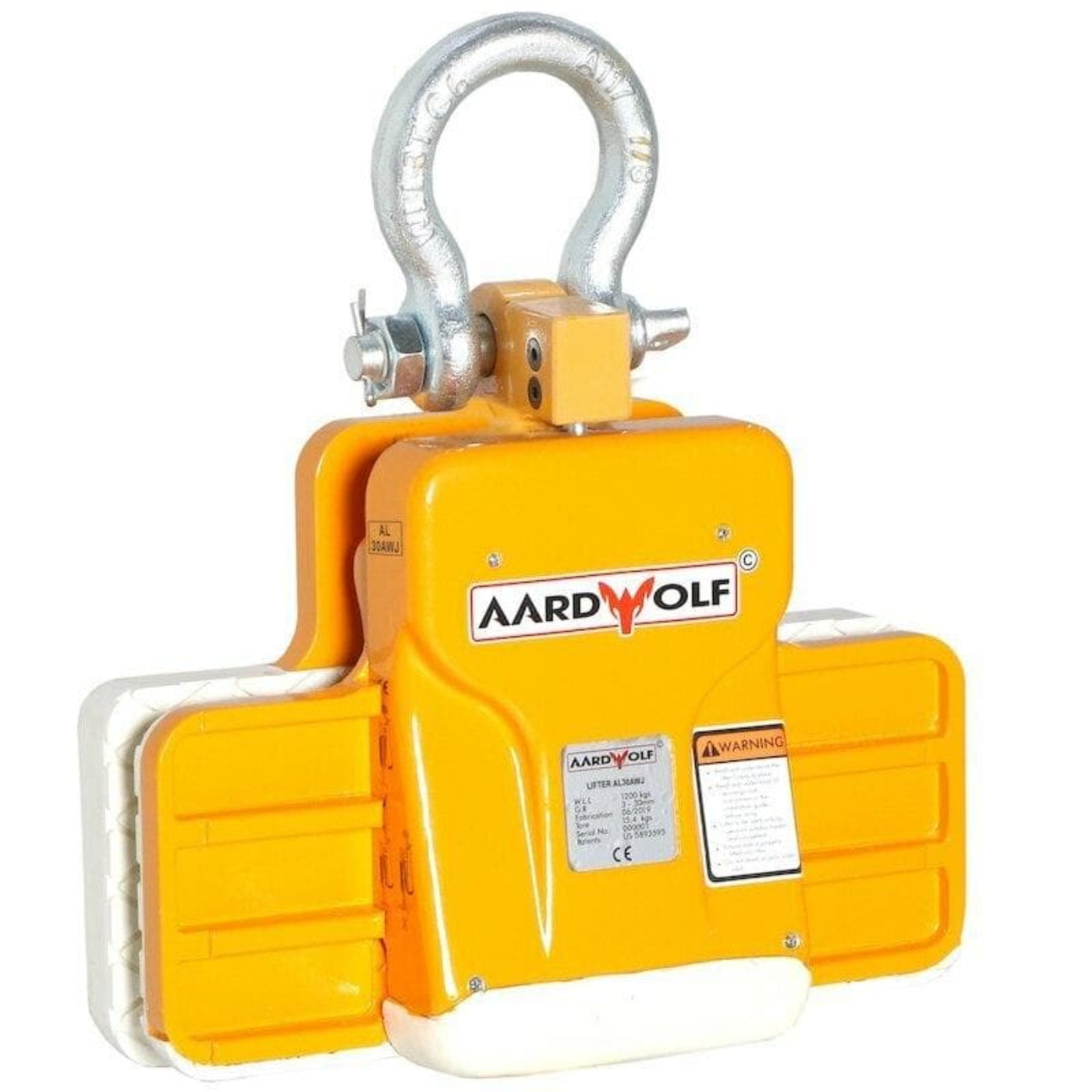

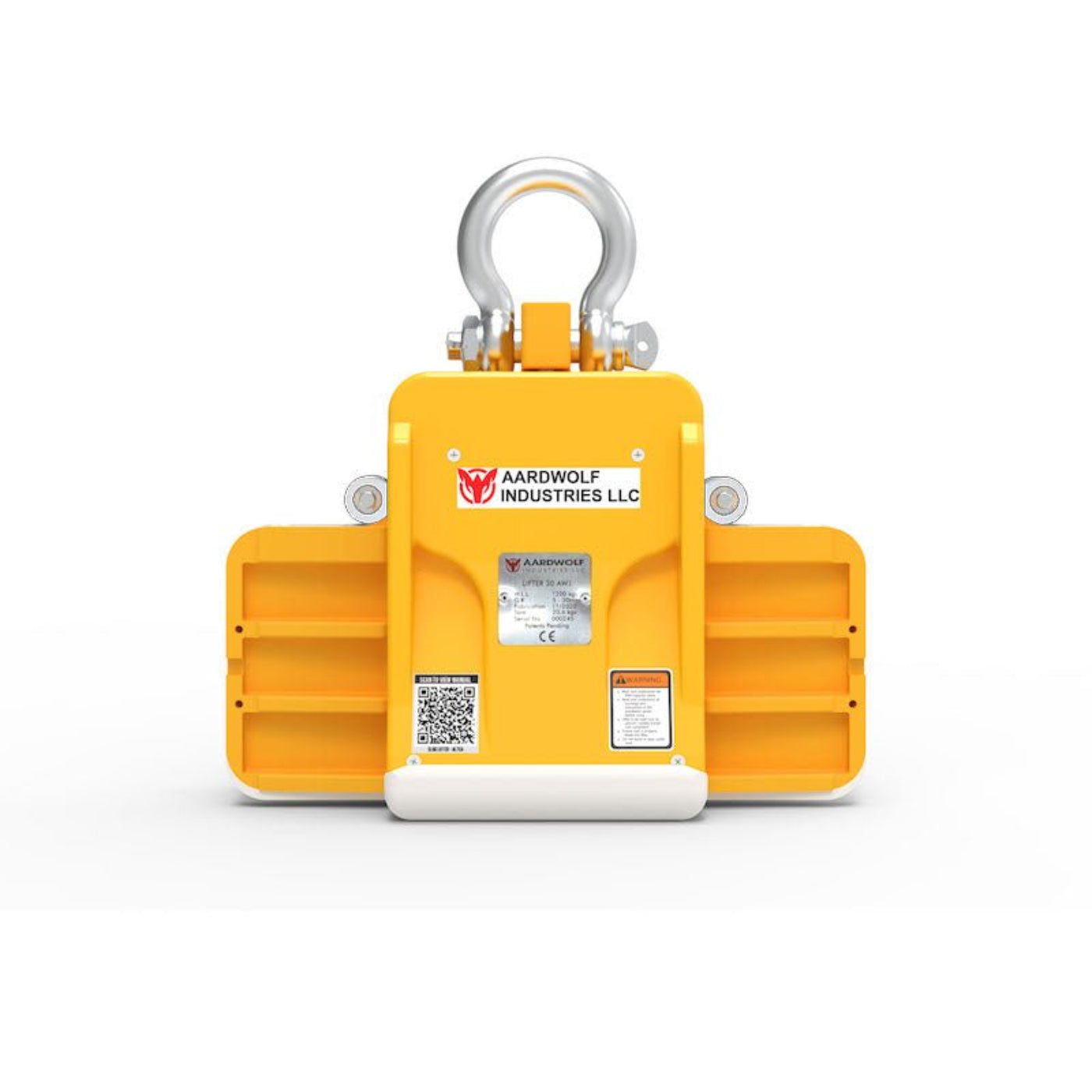

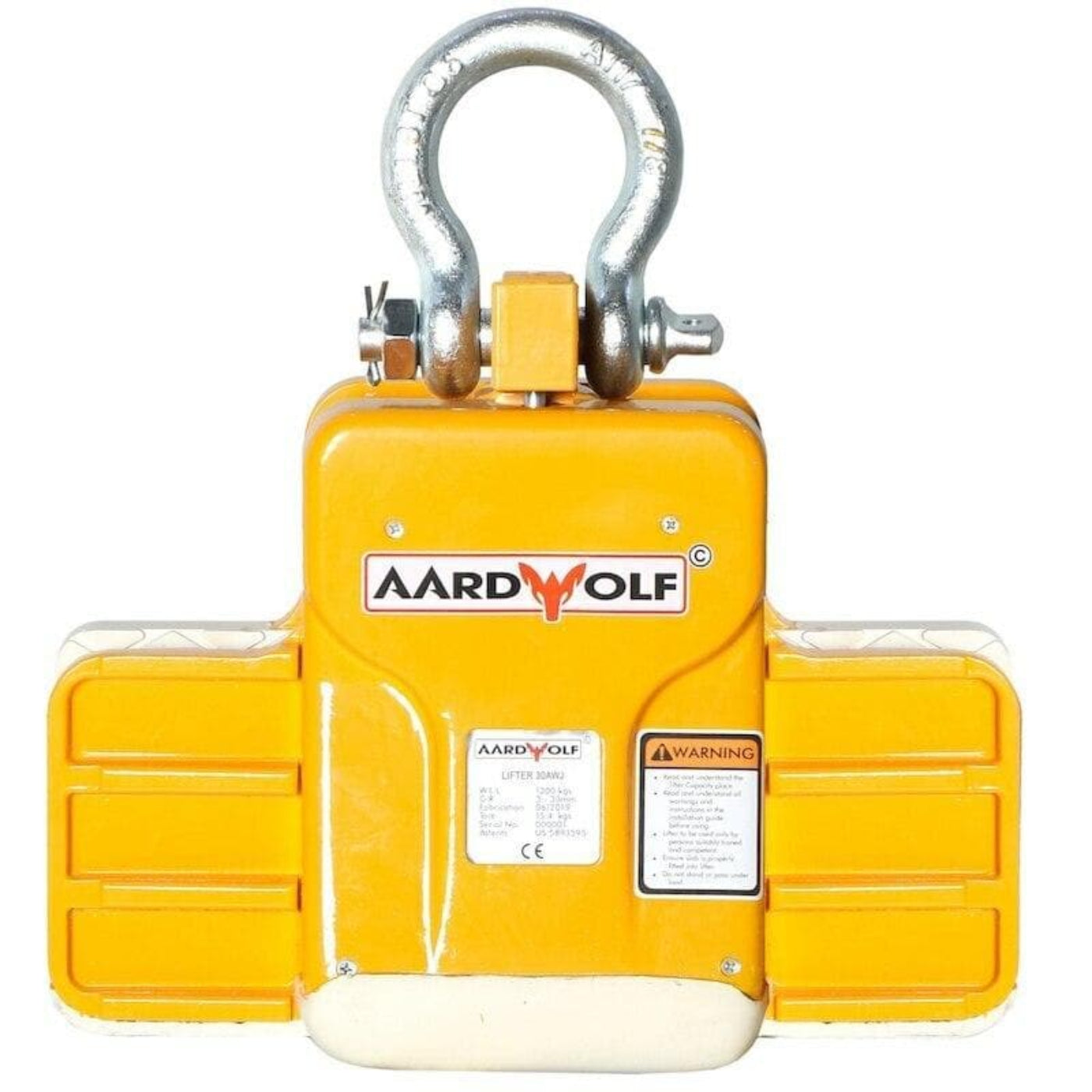

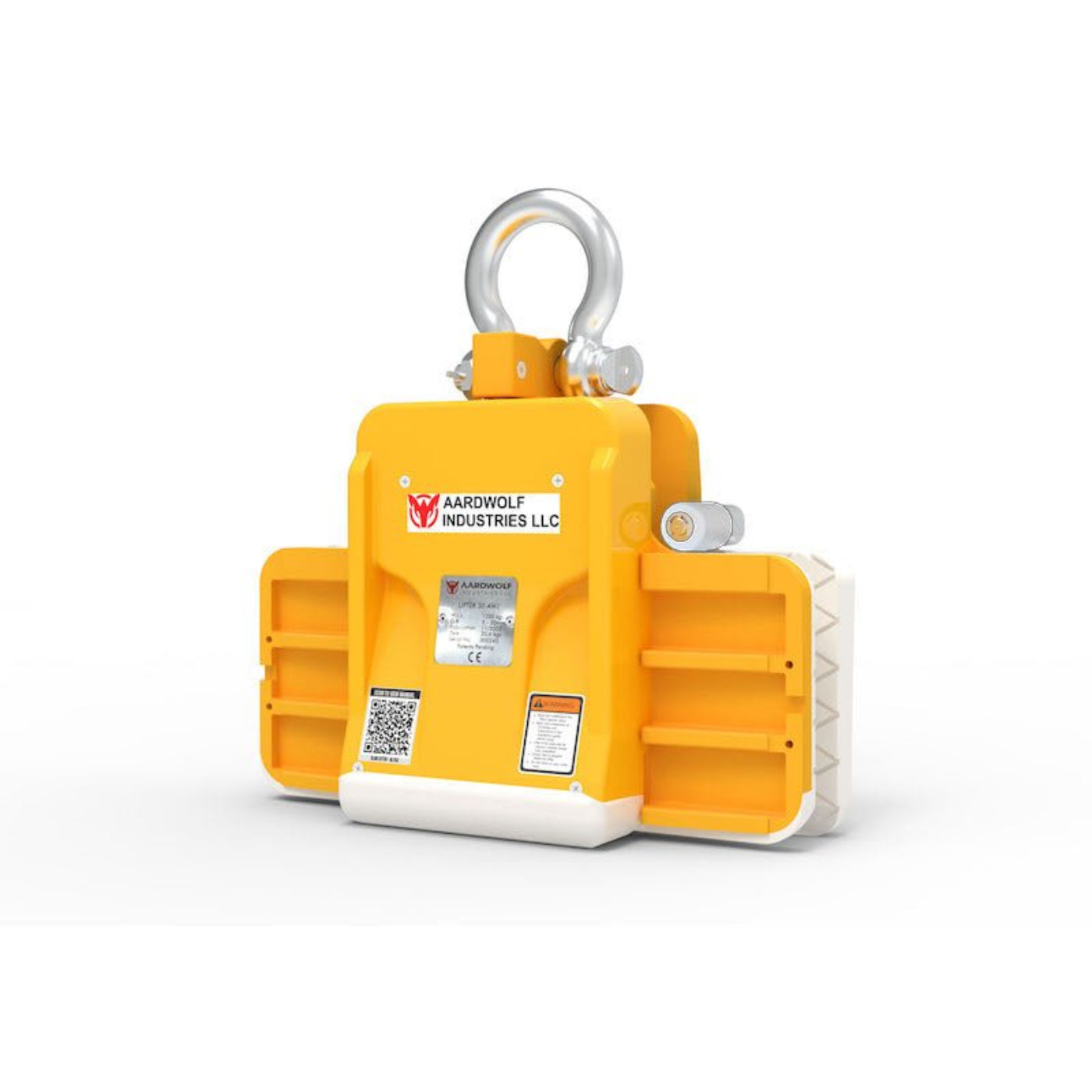

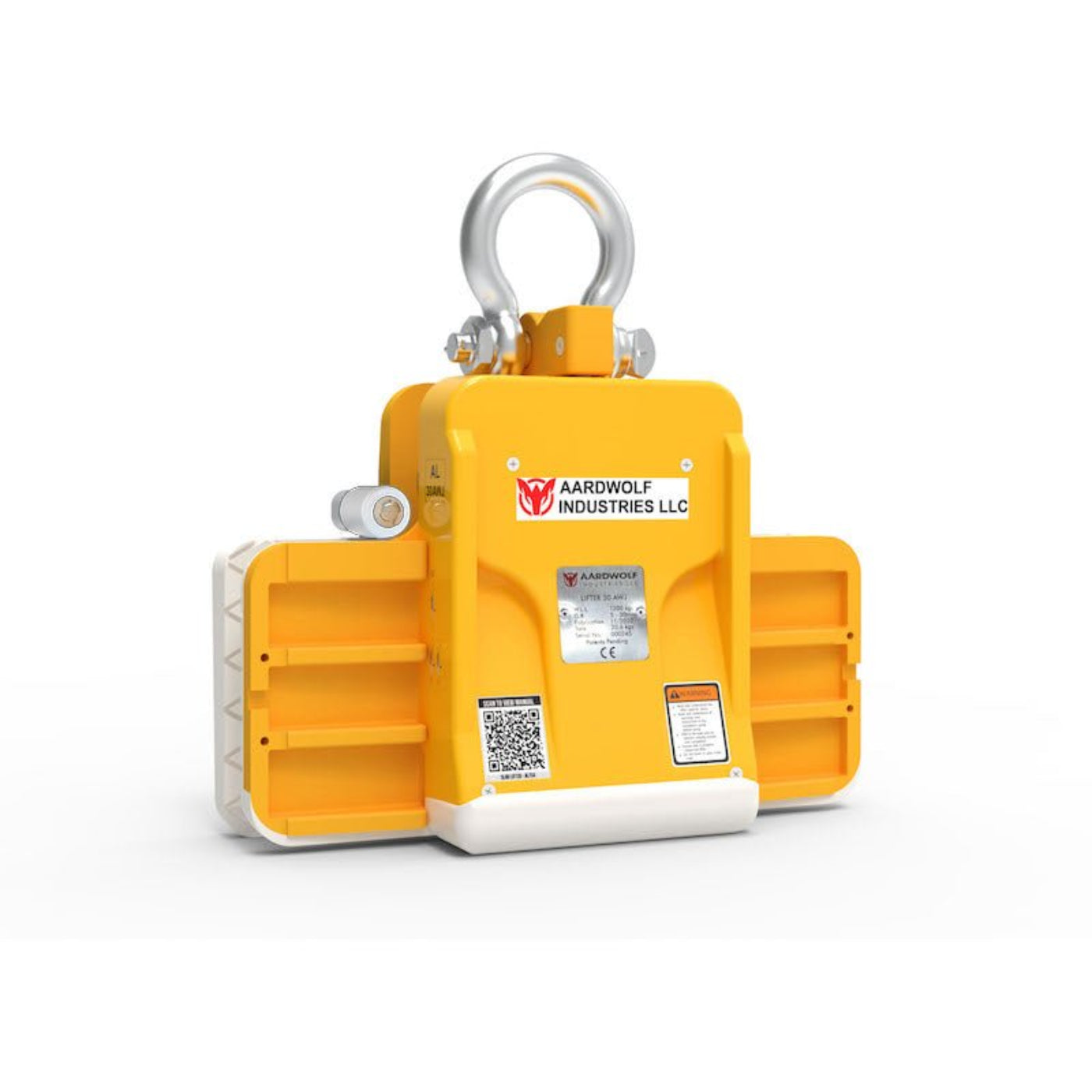

Aardwolf Slab Lifter 30 Type A Wide Jaw with Rollers for Stone - AL30AWJR
The Aardwolf Slab Lifter AL30AWJ is a versatile lifting device with a wide jaw design, making it well suited for delicate materials such as porcelain, glass, marble etc. This lifting clamp leaves no marks on delicate materials while at the same time it is also suitable for handling heavy slabs such as thick granite. Furthermore, this clamp is equipped with a new innovated auto lock and unlock mechanism, allowing the clamp to automatically grip and release slabs.
Specifications
| Model |
Grip Range |
Working Load Limit |
Net Weight |
Gross Weight |
Packing Dimensions |
| Lifter 30 Wide |
0.2'' - 1'' |
2646 |
45 |
47 |
17.3''x6.3x14.2'' |
| Lifter 50 |
0.4'' - 2'' |
2646 |
42 |
44 |
15''x8.3''x9'' |
| Lifter 50-B |
0.4'' - 2'' |
2646 |
53 |
55 |
22.8''x7.3''x12.2'' |
| Lifter 60 |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5''x9''x9.8'' |
| Lifter 75 |
1'' - 3'' |
2646 |
55 |
57 |
16.5''x9''x9.8'' |
| Lifter 50 (Auto) |
0.4'' - 2'' |
2646 |
42 |
44' |
15''x8.3''x9'' |
| Lifter 60 (Auto) |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5''x9''x9.8'' |
| Lifter 75(Auto) |
1'' - 3'' |
2646 |
55 |
57 |
16.5''x9''x9.8''
|
What our Experts Think
-
Wide Jaw Design: The AL30AWJR features a wide jaw design, making it well-suited for delicate materials such as porcelain, glass, and marble.
-
Automatic Locking Mechanism: Equipped with an auto-lock and unlock mechanism, this lifter automatically grips and releases slabs, enhancing operational efficiency.
-
Rollers for Precise Positioning: The inclusion of rollers allows for easy manual centering of slabs, ensuring precise placement during handling
-
Heavy-Duty Capacity: Designed to handle heavy slabs, the AL30AWJR is suitable for lifting and moving slabs weighing up to 2,646 lbs (1,200 kg).
-
Durable Construction: Constructed with robust materials, this slab lifter is built to withstand the demands of industrial environments.
-
Compact Design: The compact design allows for easy maneuverability in tight spaces, making it ideal for use in workshops and construction sites.
-
Safety Features: Built with safety in mind, the AL30AWJR ensures secure handling of materials, reducing the risk of accidents during operation.
Q&A
Q: What is the Aardwolf AL30AWJR used for?
A: It's designed for lifting and transporting thin stone slabs, including granite, marble, and porcelain, without causing surface damage.
Q: What is the lifting capacity of the AL30AWJR?
A: It has a working load limit of 1,200 kg (2,646 lbs).
Q: What is the grip range of this slab lifter?
A: The grip range is 0 to 30 mm (0 to 1.2 inches), suitable for thin slabs.
Q: What are the key features of the AL30AWJR?
A: It features a wide jaw design with rollers to protect slab edges, an auto-lock mechanism for easy operation, and rubber-coated pads to prevent surface marks.
Q: What are the dimensions and weight of the AL30AWJR?
A: The net weight is 24.4 kg (54 lbs), with packaging dimensions of 440 mm x 160 mm x 360 mm (17.3" x 6.3" x 14.2")
Q: Why choose the Aardwolf AL30AWJR?
A: It offers a combination of high lifting capacity, protective features, and ease of use, making it ideal for professionals handling delicate stone materials.
Maintenance Tips
-
Regular Inspection: Before each use, check the lifting mechanism, rollers, and auto-lock/unlock mechanism for wear or damage.
-
Clean After Use: Remove dirt, debris, and moisture to prevent rust and ensure smooth operation.
-
Lubricate Moving Parts: Apply appropriate lubricant to the rollers and moving components to maintain functionality.
-
Check Grip Mechanism: Ensure the wide jaws are free from damage and function properly to avoid slippage.
-
Proper Storage: Store the clamp in a dry, sheltered place to avoid exposure to harsh environmental conditions.
