Aardwolf Stone Grapple - ASG

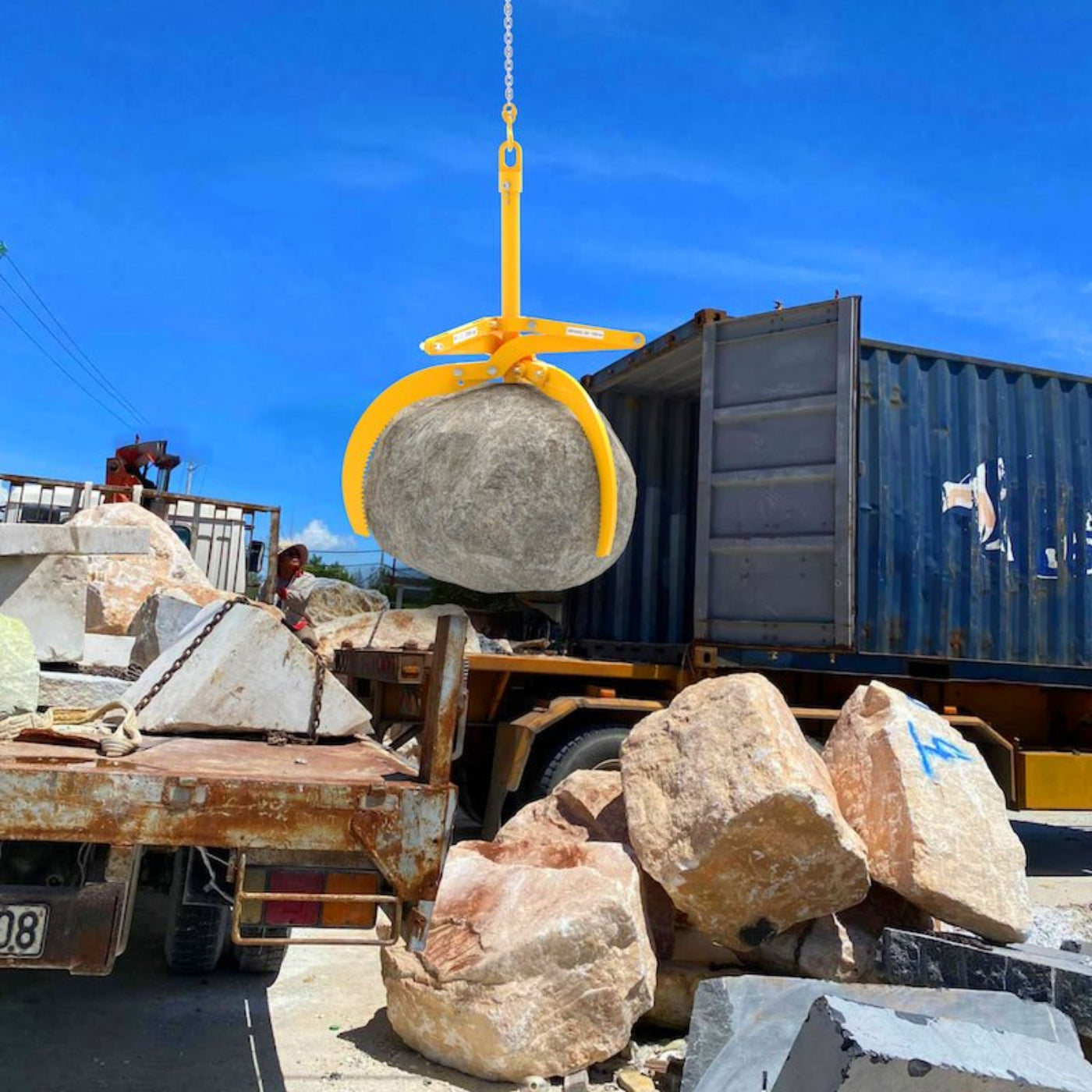

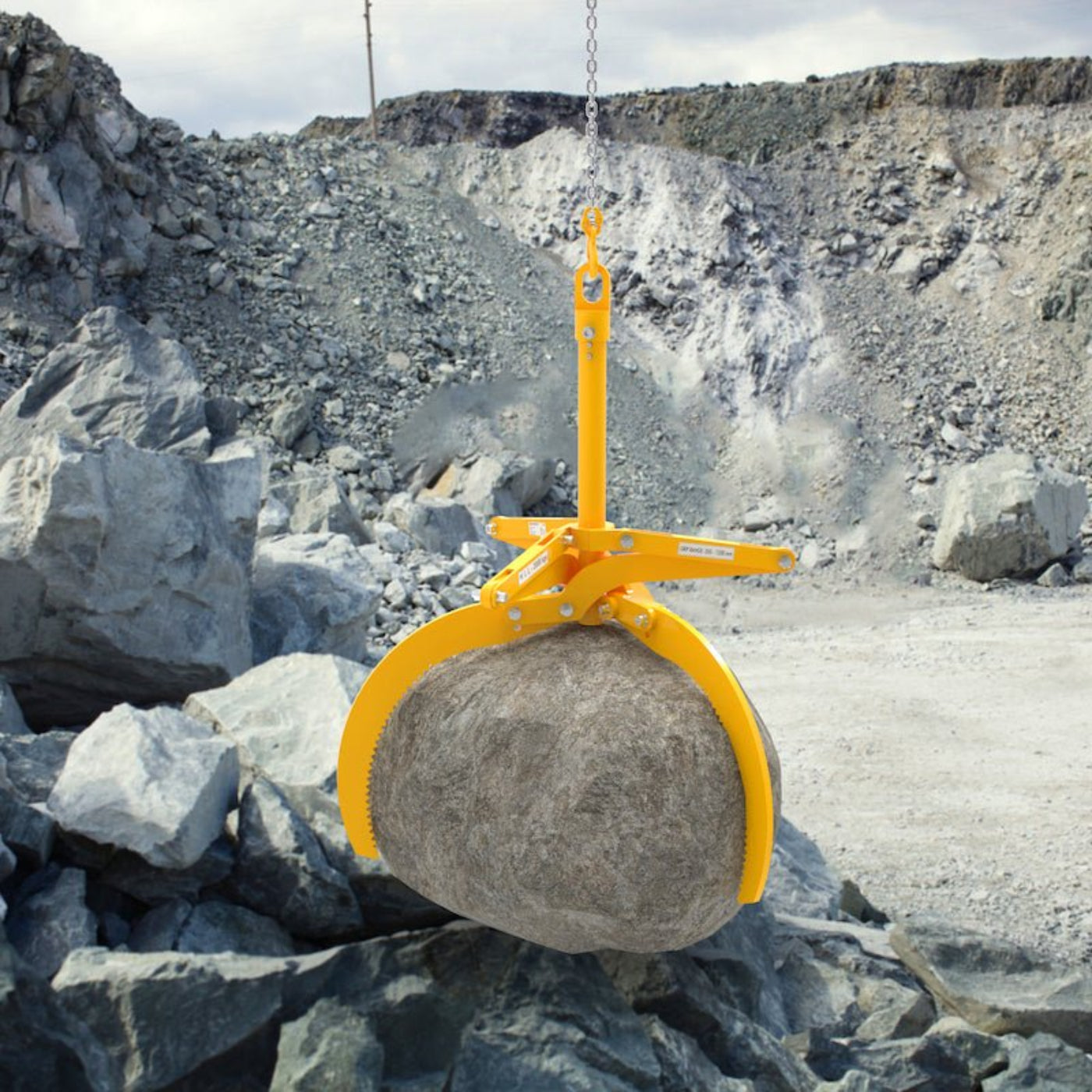

Aardwolf Stone Grapple is an attachment that is mainly used for stones, rocks, and other large, irregularly shaped objects that need to be handled, moved, and loaded onto a truck or other industrial vehicle.

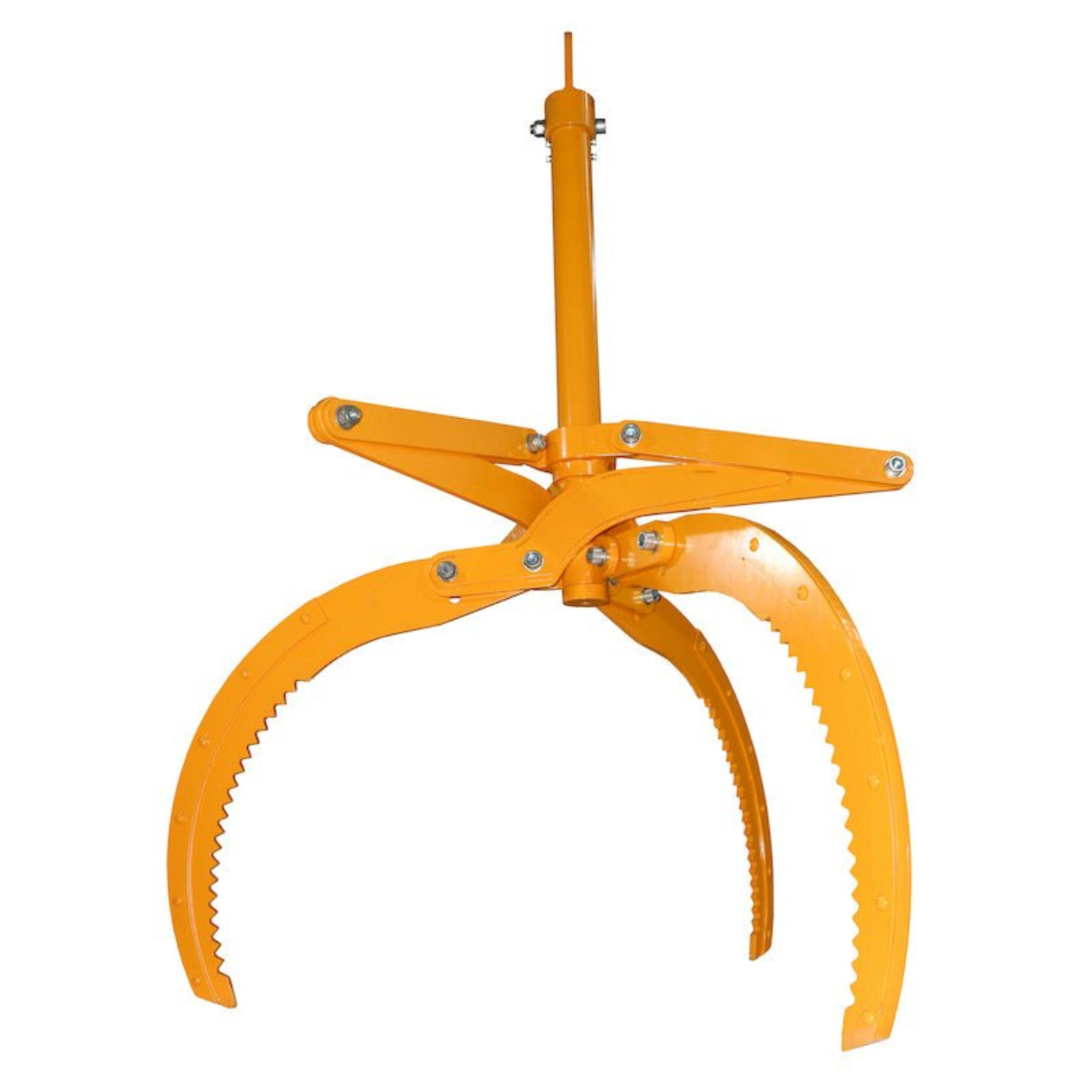

Aardwolf Stone Grapple has three arms that are designed to lift rocks & stones and provide a stable lift of irregularly shaped heavy boulders. The 3-point design provides for a quick, secure lift that creates a safe and easy way to move large objects using a single operator.
The Aardwolf Stone Grapple requires no hydraulics to operate. The Stone Grapple lifting tongs are fully automatic and give the operator complete control to grip or release a load. The three serrated tines contacting the load allow for a very stable lift cycle every time. Once the operator lowers the stone grapple onto a bolder, the stone grapple’s internally housed actuator allows the operator to begin lifting the boulder.
Once the bolder is set down, the stone grapple’s internally housed actuator allows the operator to lift the stone grapple from the bolder, ready for the next lift cycle.
Features
- 3-point design.
- Lifts irregularly shaped objects or debris.
- Quick load cycles.
- Large jaw opening that allows it to pick up large boulders.
SpecificationsÂ
| Working Load Limit |
2000 kg |
4408 lb |
| Grip Range |
350 – 1200 mm |
14″ – 47″ |
| Net Weight |
158 kg |
348 lb |
| Gross Weight |
176 kg |
388 lb |
| Packaging Dimensions |
L.1100 x W.620 x H.400 mm |
43.3″ x 24.4″ x 15.7″ |
What our Experts Think
-
Heavy-Duty Performance: With a working load limit of 2,000 kg (4,408 lb), the ASG is engineered for lifting and transporting large, irregularly shaped stones and boulders efficiently.
-
Versatile Grip Range: Accommodates a grip range from 350 mm to 1,200 mm (13 3/4" to 47 1/4"), making it suitable for various stone sizes.Â
-
Three-Point Design: Features a 3-arm configuration with serrated tines, ensuring a stable and secure grip on irregularly shaped objects.Â
-
Automatic Operation: Operates without hydraulics; the internally housed actuator allows for automatic gripping and releasing, enhancing efficiency and safety.Efficient Load Cycles: Designed for quick load cycles, reducing downtime and increasing productivity during material handling tasks.Â
-
Robust Construction: Weighs 158 kg (348 lb), reflecting its sturdy build quality suitable for demanding industrial applications.Â
-
Compact Packaging: Ships with packaging dimensions of L.1100 x W.620 x H.400 mm (43 1/4" x 24 3/8" x 15 3/4"), facilitating easier transportation and storage.Â
Q&A
Q: What is the Aardwolf Stone Grapple - ASG used for?
A: The ASG is designed for lifting, moving, and positioning large stone slabs, blocks, and other heavy materials with precision and safety.
Q: What materials can it handle?
A: Ideal for granite, marble, sandstone, concrete blocks, and similar dense materials.
Q: What makes the ASG unique?
A: It features automatic clamping, durable construction, and adjustable gripping range for secure handling and efficient workflow.
Q: Is it compatible with forklifts and cranes?
A: Yes, it is suitable for use with both forklifts and overhead cranes via lifting eyes or forklift slots.
Q: What is the weight capacity?
A: The ASG supports heavy-duty loads, with a high weight capacity suitable for industrial applications.
Q: Is it safe to use on polished surfaces?
A: Yes, it has rubber-padded clamps to prevent surface damage while maintaining a firm grip.
Maintenance Tips
-
Regular Inspection: Check for loose bolts, cracks, or worn parts before and after use.
-
Lubrication: Grease all pivot points and moving components routinely to prevent wear and ensure smooth operation.
-
Clean After Use: Remove dust, stone debris, and moisture to avoid corrosion and material buildup.
-
Hydraulics Check: Inspect hydraulic hoses and fittings for leaks or damage; replace if necessary.
-
Rust Prevention: Store in a dry, covered location and apply anti-rust coating on exposed metal surfaces when needed.
-
Follow Manufacturer Guidelines: Adhere to service intervals and replacement parts recommendations for peak safety and efficiency.
