Aardwolf Vacuum Block Lifter 1,000kg - AVBL1000

Aardwolf Vacuum Block Lifter 1,000kg - AVBL1000

Vacuum Lifter ABVL 1,000 for lifting stone, granite, pavers, block, concrete, and brick over 2,000 pounds!

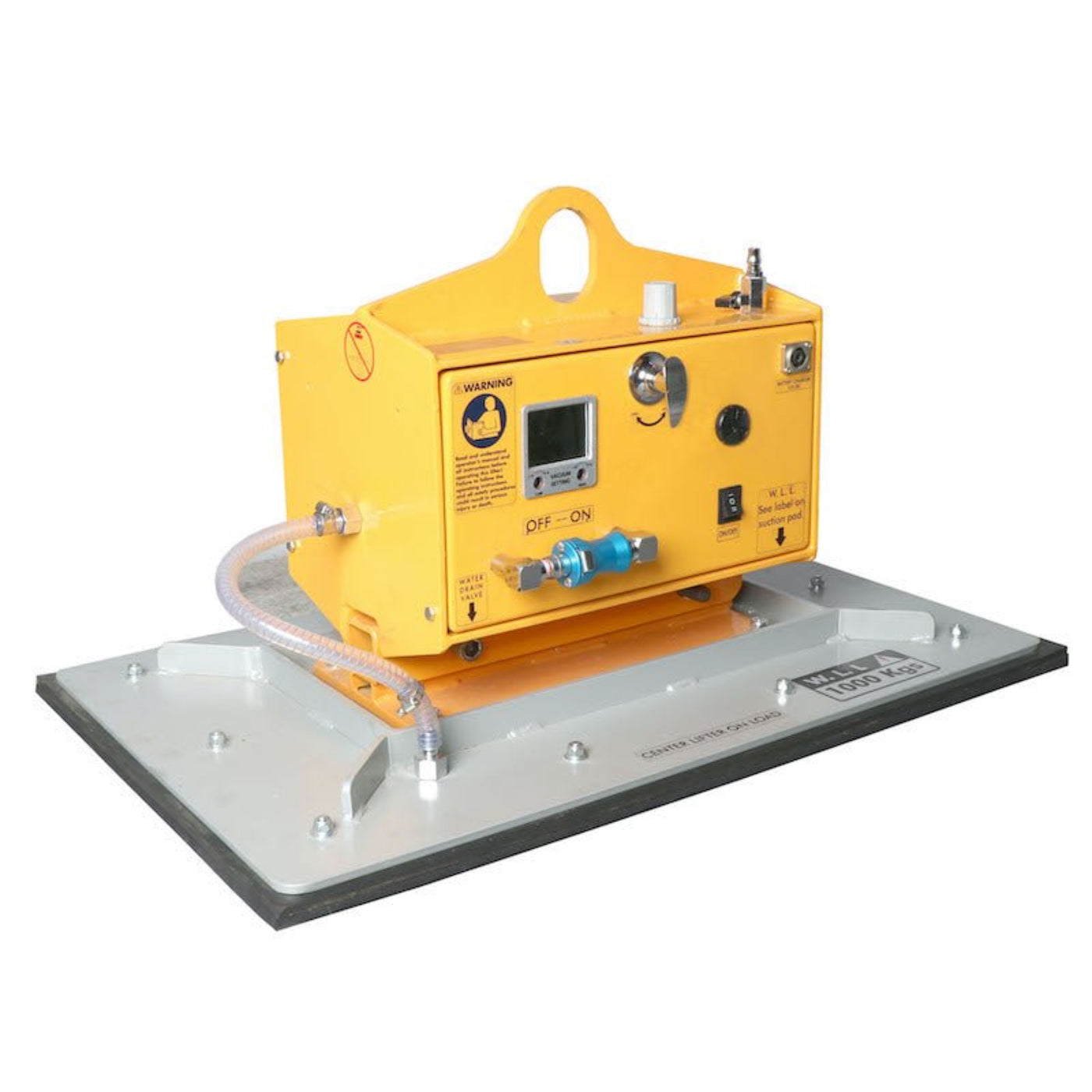

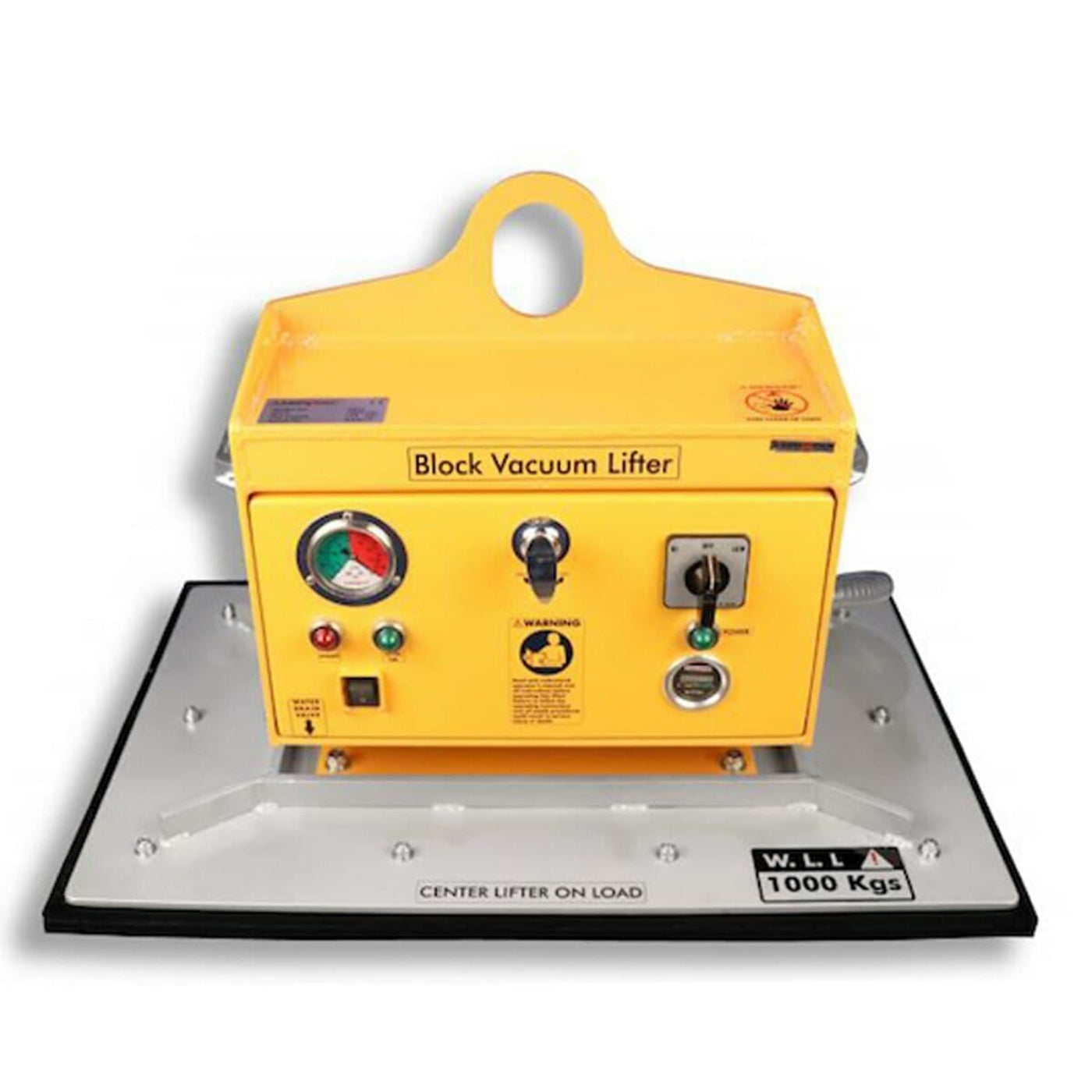

Aardwolf makes top of the line vacuum lifters for stone, pavers, and concrete. The Aardwolf Block Lifter 1,000kg is a powerful battery operated vacuum device for lifting, moving, handling, and laying stone, pavers, and concrete. What sets the block lifters apart from othe vacuum lifters is its abality to lift porous material. The paver slab lifter is equipped to move concrete, pavers, and other fairly porous material. Robust and compact, the Aardwolf Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables, forklifts, and more. If you are lifting paving slabs, concrete slabs, or granite slabs, the Vacuum Block LIfter is for you.

Features

• The Aardwolf Block Lifter 1000 kg is equipped with two 12v 4A battery operated vacuum pumps.
• Suction plates slide on and slide off, so plates can be changed in less than one minute.
• Safety features: Flashing light to warn of low pressure, vacuum gauge, safety vacuum storage tank, acoustic warning device.
• Pressure switch control system automatically and starts the vacuum pump after start of loss of pressure.
• Power saving control system allows the battery to last for one working day.
• Battery charge indicator indicates battery charged level.
• Manually operated valve for vacuum

Specifications

Manual

AVLP 2 - 2 Pad Vacuum Lifter

AVLP 4 - 4 Pad Vacuum Lifter

ABL380 - Block Lifter

ABL1000 - Block Lifter

ARGL0500DC - Vacuum Glass Lifter

AHVL500 - Handy Vacuum Lifter

What Our Experts Think

• High Capacity: Lifts up to 1,000 kg (2,204 lbs), suitable for heavy stone, concrete, and paver slabs.

• Dual Vacuum Pumps: Equipped with two 12V battery-operated vacuum pumps; operator can use one or both depending on load porosity.

• Long Battery Life: Offers 5 hours of continuous operation with a 12V-24Ah battery; 8-hour charging time; 720-hour standby time.

• Safety Features: Includes audio/visual alarms, vacuum gauge, flashlight, and a vacuum reserve tank for added security.

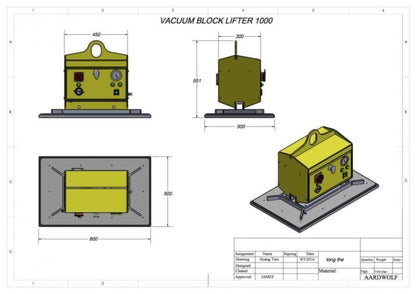

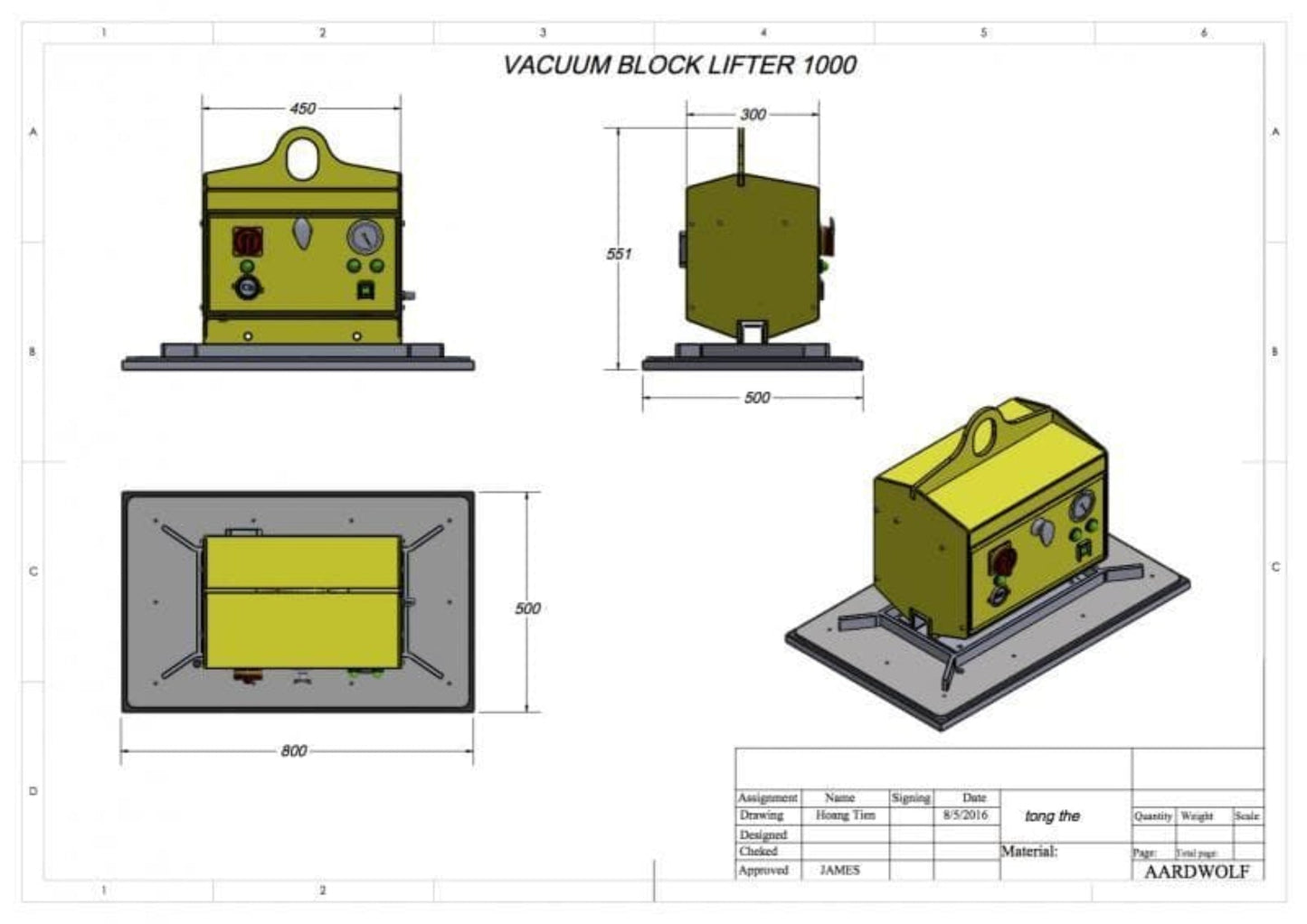

• Compact Design: Measures 800 mm x 500 mm x 551 mm (31.5" x 19.7" x 21.7") and weighs 95 kg (209 lbs), making it easy to handle and transport.

• Versatile Mounting: Can be suspended using load hooks, chains, or cables, compatible with various lifting equipment.

• Quick Pad Replacement: Suction pads can be changed in under a minute, enhancing operational efficiency.

• Durable Construction: Built to withstand tough applications, ensuring longevity and reliability in demanding environments.

Q&A

Q: What is the Aardwolf Vacuum Block Lifter AVBL1000?
A: The AVBL1000 is a battery-operated vacuum lifter designed for lifting and transporting heavy materials such as marble, granite slabs, concrete, and other related materials. It can be suspended from various lifting equipment like load hooks, chains, and cables.

Q: Where is the AVBL1000 typically used?
A: This lifter is ideal for use in construction sites, stone fabrication shops, and other settings where heavy materials need to be lifted and transported safely and efficiently.

Maintenance Tips

• Regular Cleaning: After each use, clean the suction pads and the lifting surface to remove debris and prevent damage to the rubber seals.

• Battery Maintenance: Fully charge the 12V battery after each use and store it in a cool, dry place to prolong battery life.

• Inspect Vacuum System: Regularly check the vacuum pumps and hoses for leaks or damage. Replace any worn components promptly.

• Lubricate Moving Parts: Apply appropriate lubricant to moving parts to ensure smooth operation and prevent rust.

• Check Safety Features: Test the audio/visual safety indicators and vacuum gauge to ensure they are functioning correctly.

• Proper Storage: When not in use, store the lifter in a dry, sheltered area to protect it from environmental factors that could cause wear or damage.
