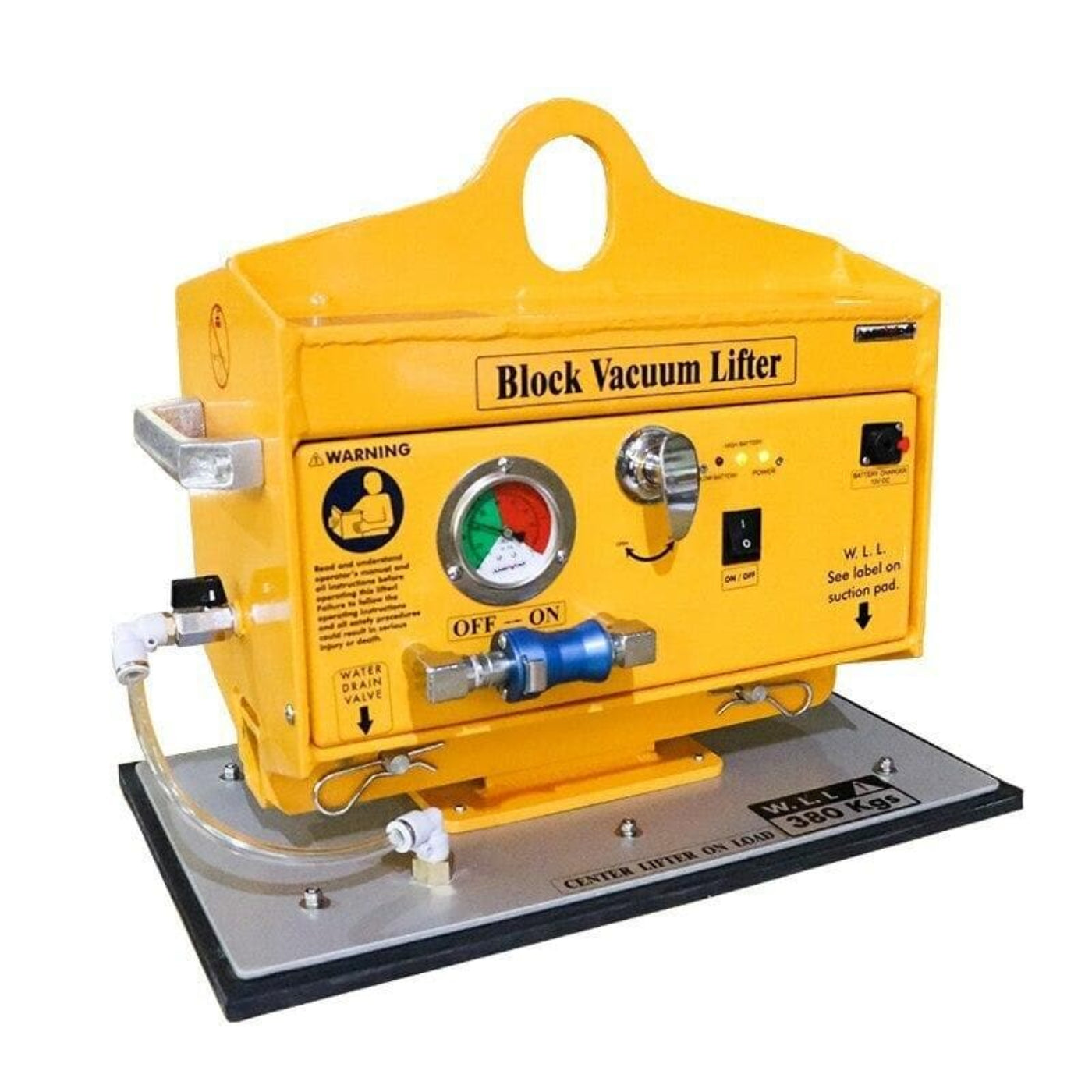

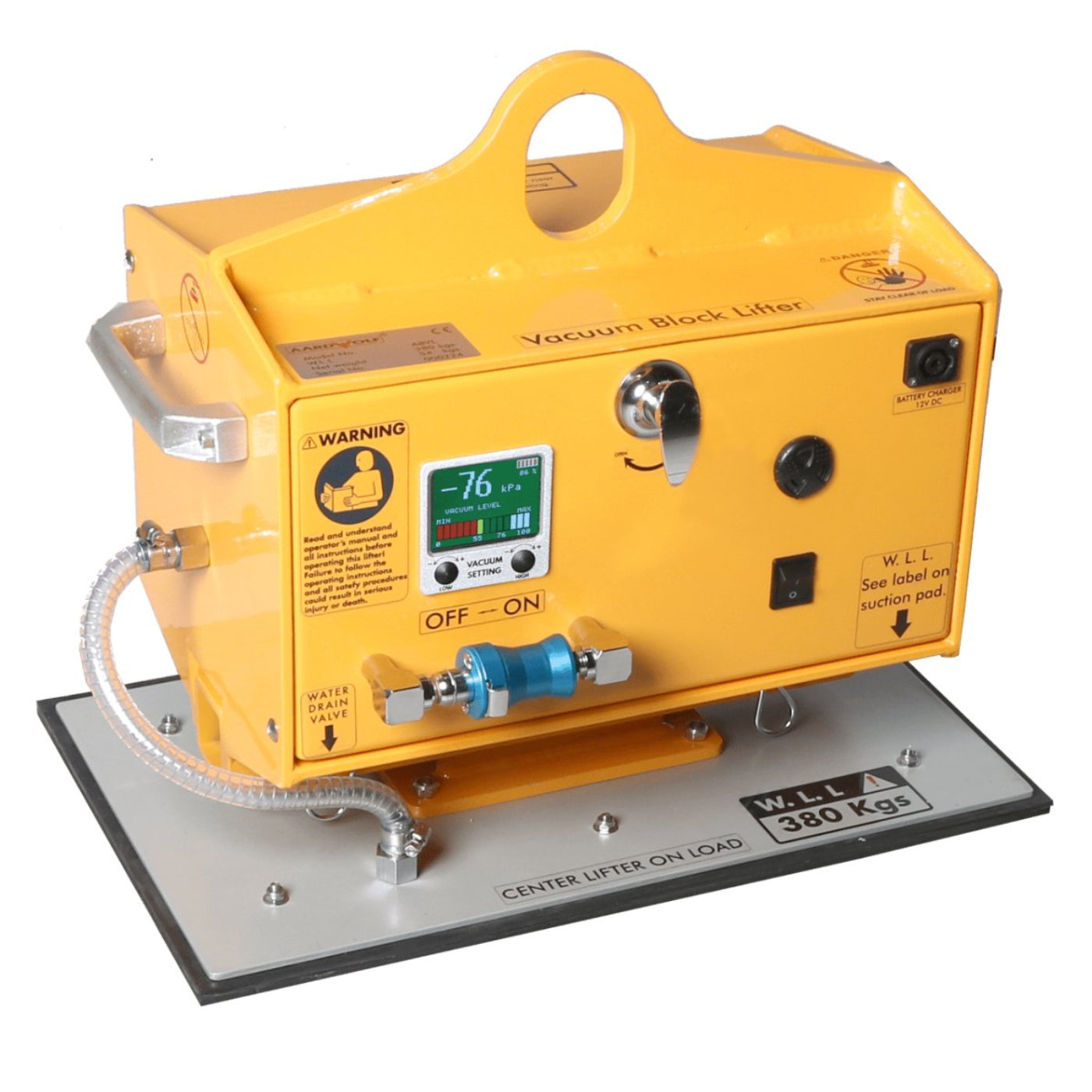

Aardwolf Vacuum Block Lifter 380kg - AVBL380
The Aardwolf Vacuum Block Lifter is a professional-grade vacuum stone lifter. This stone slab lifteris the middle range block lifter, equipped with a powerful battery that can lift up to 900 pounds depending on pad size. The size of the pad on a vacuum stone lifter determines how much the vacuum lifter can move. The Vacuum Lifting Device have different pad size available for different lifting parameters. The vacuum hoist lifter is used for the laying of marble and granite slabs, concrete and other similar material. Robust and compact, the Aardwolf Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables and the like. The Vacuum Lifter is part of Aardwolf Industries vacuum lift systems.
Features
- The Aardwolf Block Lifter is equipped with a battery operated vacuum pump.
- For special purposes, different suction plates are available.
- Suction plates slide on and slide off, so plates can be changed in less then one minute.
- The carrying capacity is dependant on the suction plate used. Larger weights can be lifted with larger vacuum plate up to a maximum load of 992 LBS.
- Powered by a rechargeable and exchangeable 12V battery.
- Safety features: Flashing light to warn of low pressure, vacuum gauge, safety vacuum storage tank, acoustic warning device.
- Pressure switch control system automatically and starts the vacuum pump after start of loss of pressure.
- Power saving control system allows the battery to last for one working day. Battery charge indicator indicates battery charged level.
- Manually operated valve for vacuum "on/off".
- Choice of four standard vacuum pads:-
Manual
AVLP 2 - 2 Pad Vacuum Lifter
AVLP 4 - 4 Pad Vacuum Lifter
ABL380 - Block Lifter
ABL1000 -Â Block Lifter
ARGL0500DC -Â Vacuum Glass Lifter
AHVL500 -Â Handy Vacuum Lifter
What Our Experts Think
-
High Load Capacity: Lifts up to 380 kg (837 lbs), suitable for heavy materials like marble, granite, and concrete.
-
Battery-Powered: Operates on a rechargeable 12V battery, providing approximately 5 hours of continuous use.
-
Compact & Robust: Designed for easy suspension using load hooks, chains, or cables, ensuring versatility in various lifting setups.
-
Quick Pad Replacement: Suction pads can be changed in under a minute, enhancing operational efficiency.
-
Safety Features: Equipped with a vacuum gauge, audio/visual alarms, and a vacuum reserve tank for added security during lifting operations.
-
Durable Construction: Built to withstand the demands of heavy-duty lifting tasks, ensuring longevity and reliability.
Q&A
Q: What is the Aardwolf Vacuum Block Lifter 380kg (AVBL380)?
A: The AVBL380 is a battery-operated vacuum lifting device designed for lifting and moving heavy materials such as marble, granite, concrete, and other similar slabs. It is particularly useful in stone fabrication, construction, and landscaping applications.
Q: What is the lifting capacity of the AVBL380?
A: The lifting capacity of the AVBL380 depends on the size of the vacuum pad used. With the appropriate pad, it can lift up to 380 kg (approximately 837 lbs). For instance, using a 20.5" x 15" pad provides a working load limit of 380 kg.
Q: Where is the AVBL380 typically used?
A: The AVBL380 is ideal for use in environments where heavy slabs need to be handled, such as:
Q: How does the AVBL380 enhance safety during lifting operations?
A: The AVBL380 is designed with several safety features to ensure secure lifting:
-
Audio/Visual Alarm System: Alerts the operator to any issues with the vacuum level.
-
Vacuum Gauge: Provides real-time monitoring of the vacuum pressure.
-
Flashlight: Illuminates the work area for better visibility.
-
Storage Tank: Maintains vacuum pressure during temporary power losses.
Q: What maintenance is required for the AVBL380?
To ensure optimal performance and longevity:
-
Regularly check and clean the vacuum pads to prevent debris buildup.
-
Inspect the battery and charging system to ensure proper function.
-
Verify that all safety features, including the alarm system and vacuum gauge, are operational.
-
Store the unit in a dry, cool place when not in use to protect the battery and electronic components.
Maintenance Tips
-
Clean After Each Use: Thoroughly clean the suction pads and lifting surface to remove debris and prevent damage to the rubber seals.
-
Inspect Components Regularly: Check the vacuum system, hoses, and connections for any signs of wear or leaks. Replace any damaged parts promptly.
-
Lubricate Moving Parts: Apply appropriate lubricant to moving components to ensure smooth operation and prevent rust.
-
Monitor Battery Health: For models with rechargeable batteries, ensure they are charged according to the manufacturer's recommendations and replace them when performance declines.
-
Store Properly: When not in use, store the lifter in a dry, sheltered area to protect it from environmental factors that could cause wear or damage.
