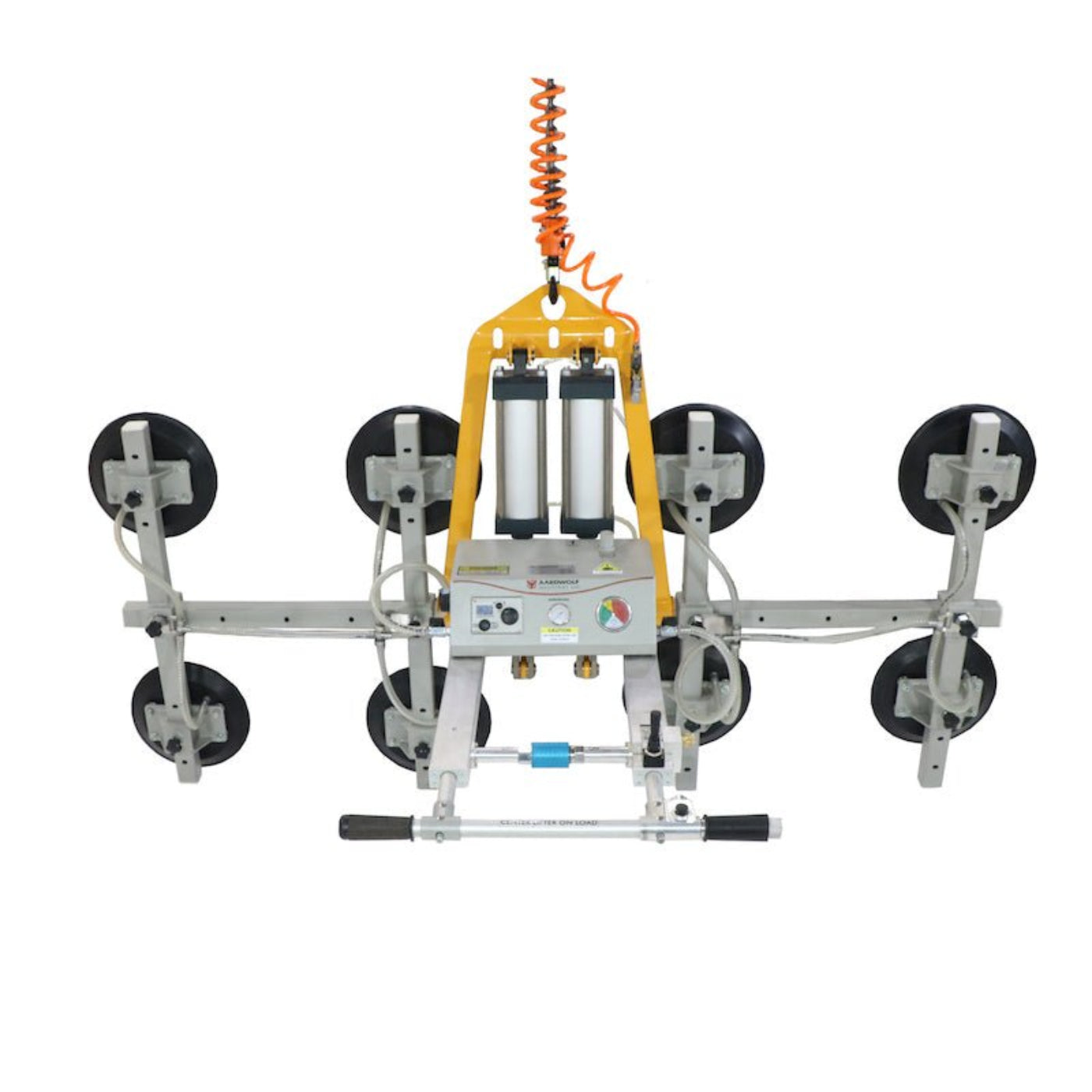

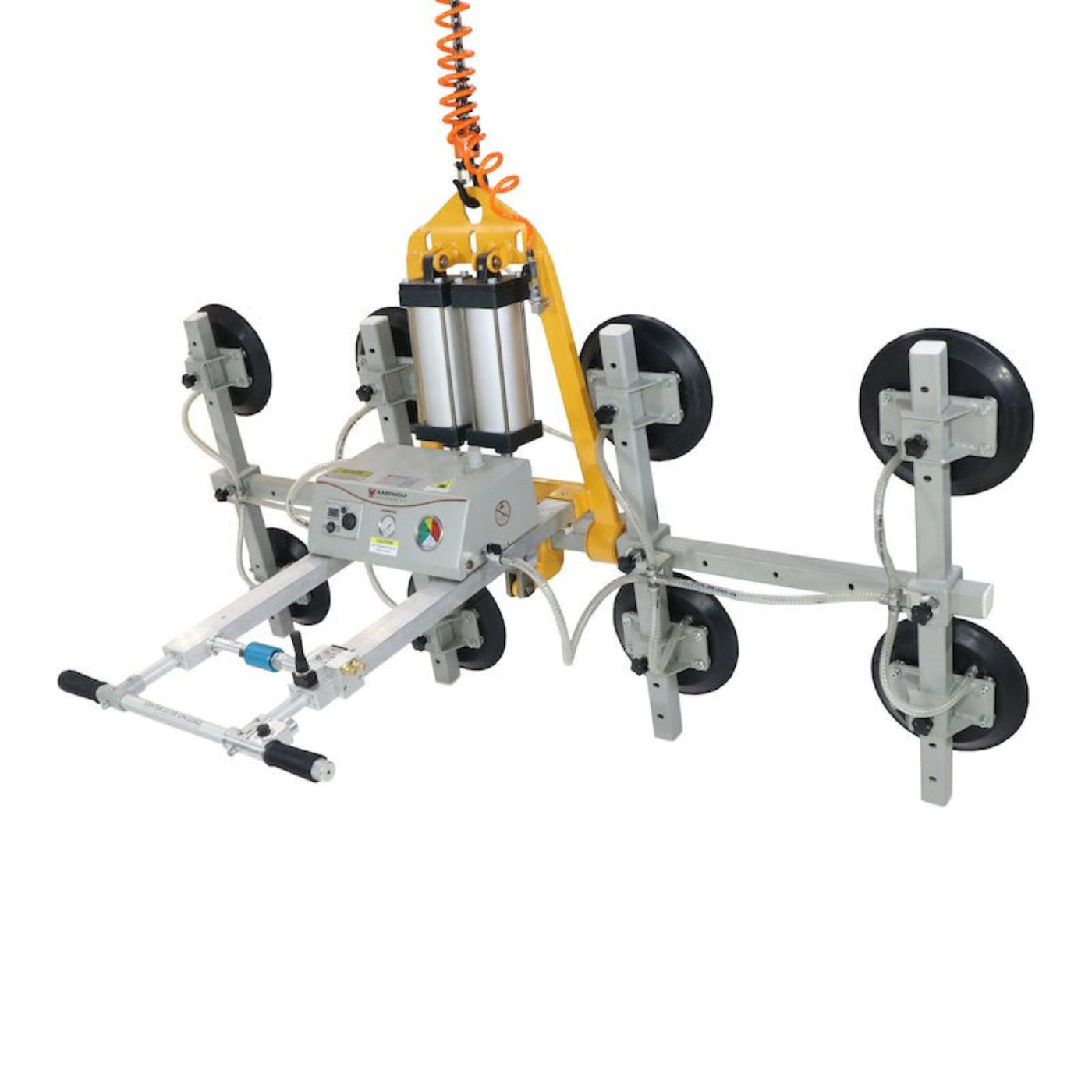

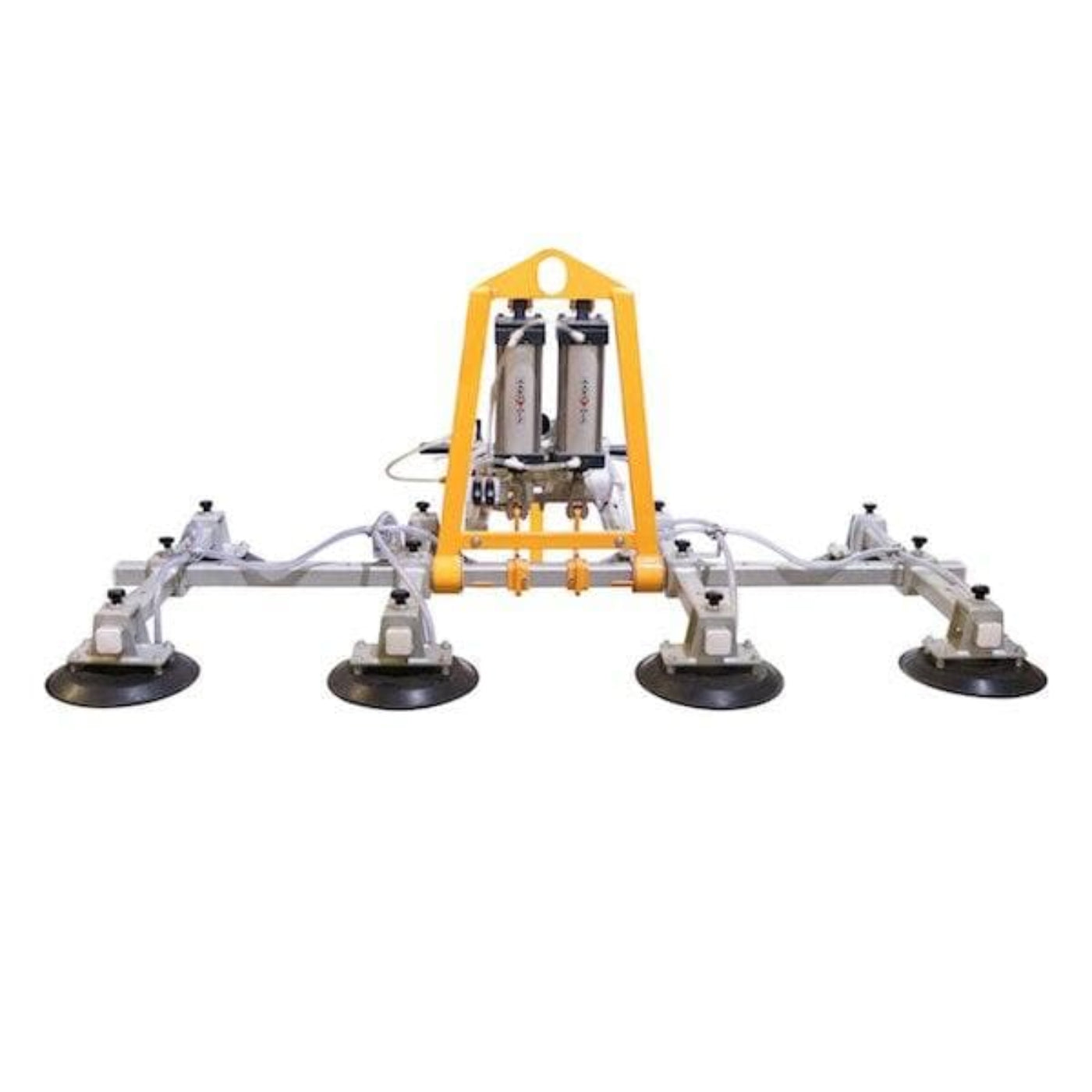

Aardwolf Vacuum Glass Lifter 800kg - AVGLP8

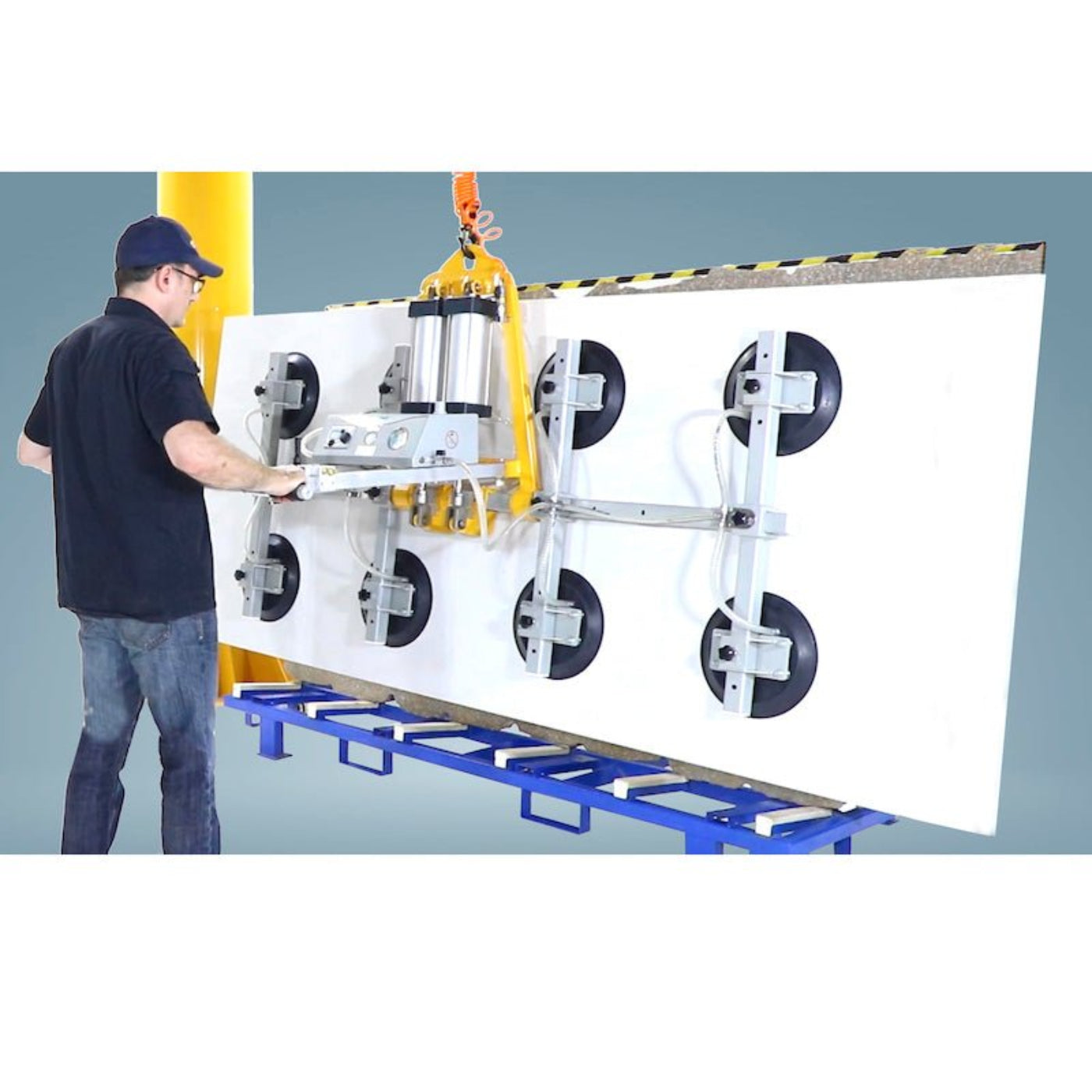

This vacuum lifter is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90°.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.
Specifications
|
Metric |
Imperial |
| Number of pads |
8 |
- |
| Pad diameter |
seal to seal:300 mm |
11.8" |
| Working load limit |
Vertical: 400 kg
Horizontal: 800 kg |
882 lb.
1764 lb. |
| Net weight |
108 kg |
238 lb. |
| Gross weight |
135 kg |
298 lb. |

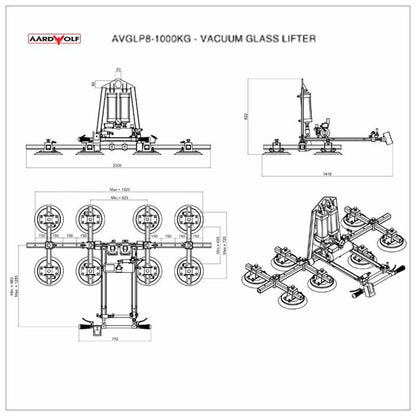

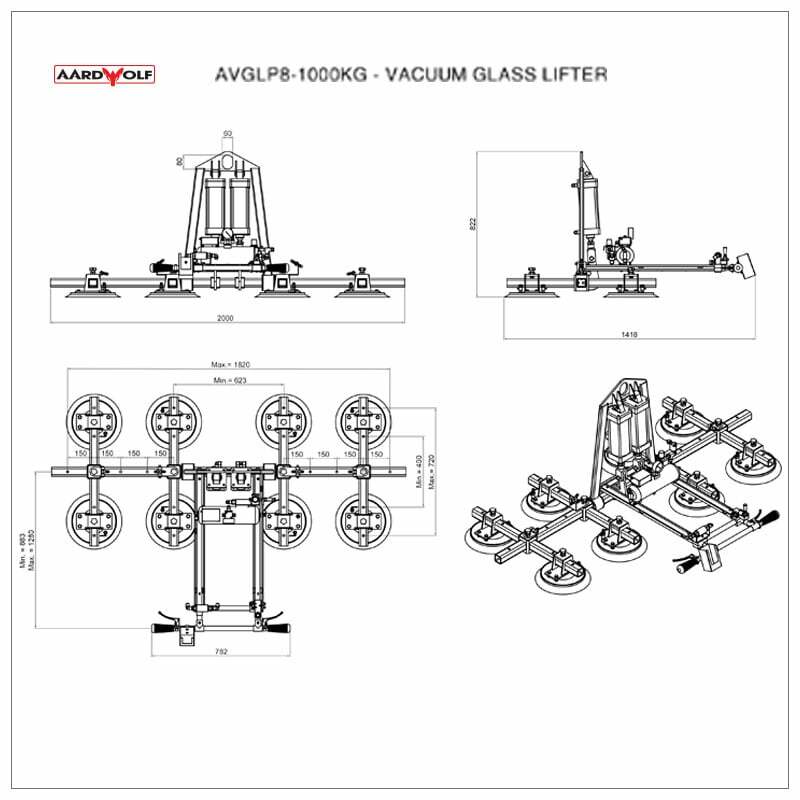

| Packaging dimensions |
L.2050xW.430xH.960 mm |
80.7"x17"x37.8" |
What Our Experts Think
-
High Load Capacity: Lifts up to 800 kg (1,764 lbs) horizontally and 400 kg (882 lbs) vertically, suitable for large glass and porcelain sheets.
-
Pneumatic Tilting: Offers 0° to 90° tilting with adjustable speed, allowing precise positioning of materials.
-
Quick Suction: Achieves full vacuum in approximately 5 seconds, ensuring efficient operation.
-
Safety Features: Includes an automatic vacuum pump restart upon power loss, and an acoustic and visual alarm system powered by a 12V lithium-ion battery.
-
Air Requirements: Operates at 5 bar (72 PSI) air pressure with a consumption of 180 liters per minute.
-
Adjustable Pads: Equipped with eight 12" (300 mm) diameter vacuum pads that can be turned off individually to accommodate smaller materials.
-
Durable Construction: Built with rugged materials to handle heavy-duty lifting tasks.
-
Weight and Dimensions: Net weight of 108 kg (238 lbs) and gross weight of 135 kg (298 lbs), with packaging dimensions of 2050 x 430 x 960 mm (80.7" x 17" x 37.8").
-
Price Range: Approximately $6,154.99 to $6,462.00, depending on the supplier.
Q&A
Q: What is the Aardwolf AVGLP8 Vacuum Glass Lifter?
A: A pneumatic lifter designed for safely lifting, tilting, and transporting large glass, porcelain, plywood, or metal sheets.
Q: What is its lifting capacity?
A: It can lift up to 800 kg (1,764 lbs) horizontally or 400 kg (882 lbs) vertically.
Q: How does it operate?
A: Powered by compressed air, it features pneumatic tilting from 0° to 90°, adjustable vacuum pads, and a rapid 5-second suction time.
Q: Is it suitable for all materials?
A: Yes, it is ideal for smooth-surfaced materials like glass, porcelain, plywood, and metal sheets.
Q: Where can I purchase the AVGLP8?
A: Available through authorized dealers and online retailers.
Maintenance Tips
-
Regular Cleaning: After each use, clean the vacuum pads and lifting surfaces to remove debris and prevent damage to the rubber seals.
-
Inspect Vacuum System: Regularly check the vacuum pump, hoses, and connections for leaks or wear. Replace any damaged components promptly.
-
Test Safety Features: Ensure the acoustic and visual alarm system functions correctly. Test the automatic vacuum pumping feature to confirm it activates during vacuum loss.
-
Lubricate Moving Parts: Apply appropriate lubricant to the pneumatic tilt mechanism and any moving components to ensure smooth operation.
-
Monitor Battery Health: For models with rechargeable batteries, ensure they are charged according to the manufacturer's recommendations and replace them when performance declines.
-
Proper Storage: When not in use, store the lifter in a dry, sheltered area to protect it from environmental factors that could cause wear or damage.
