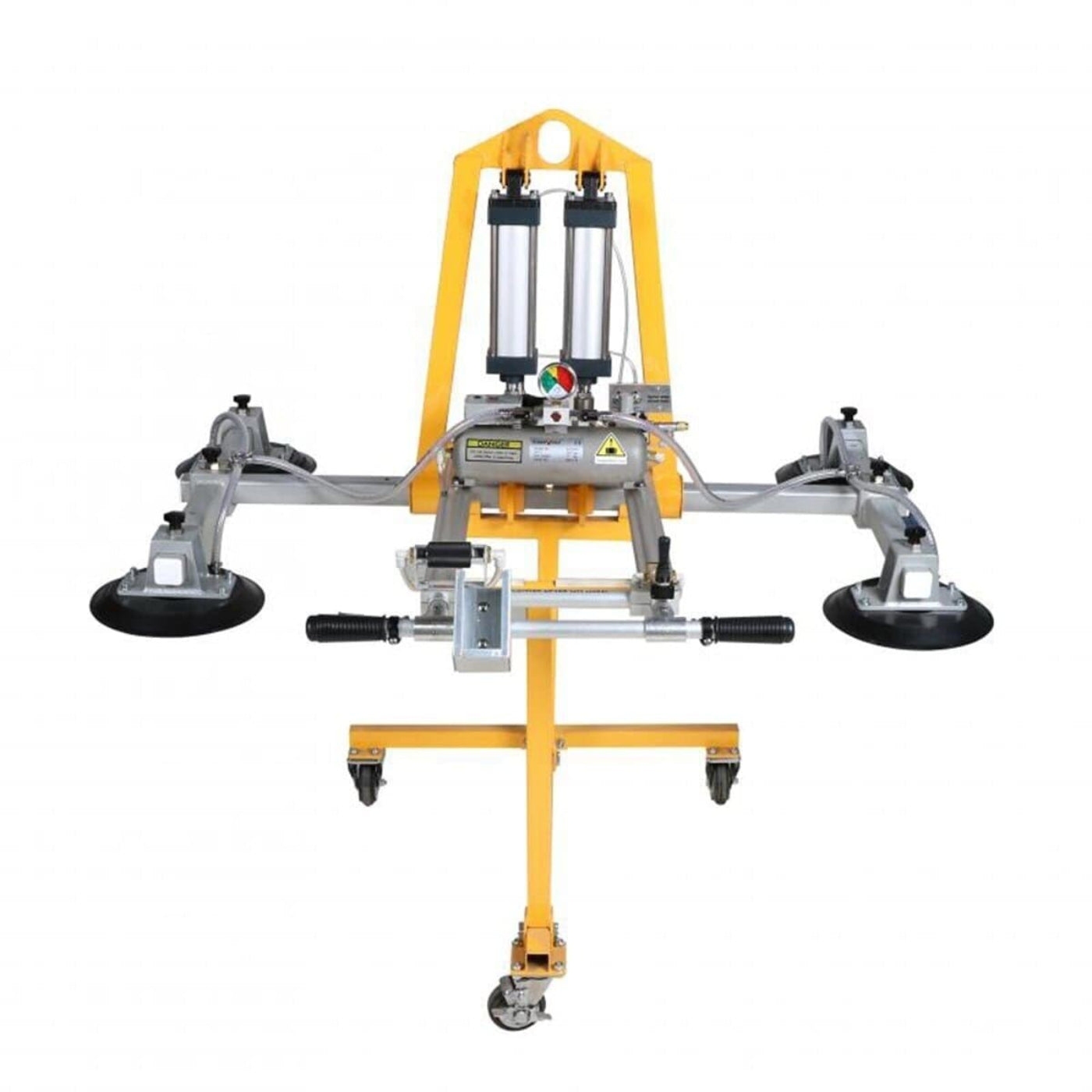

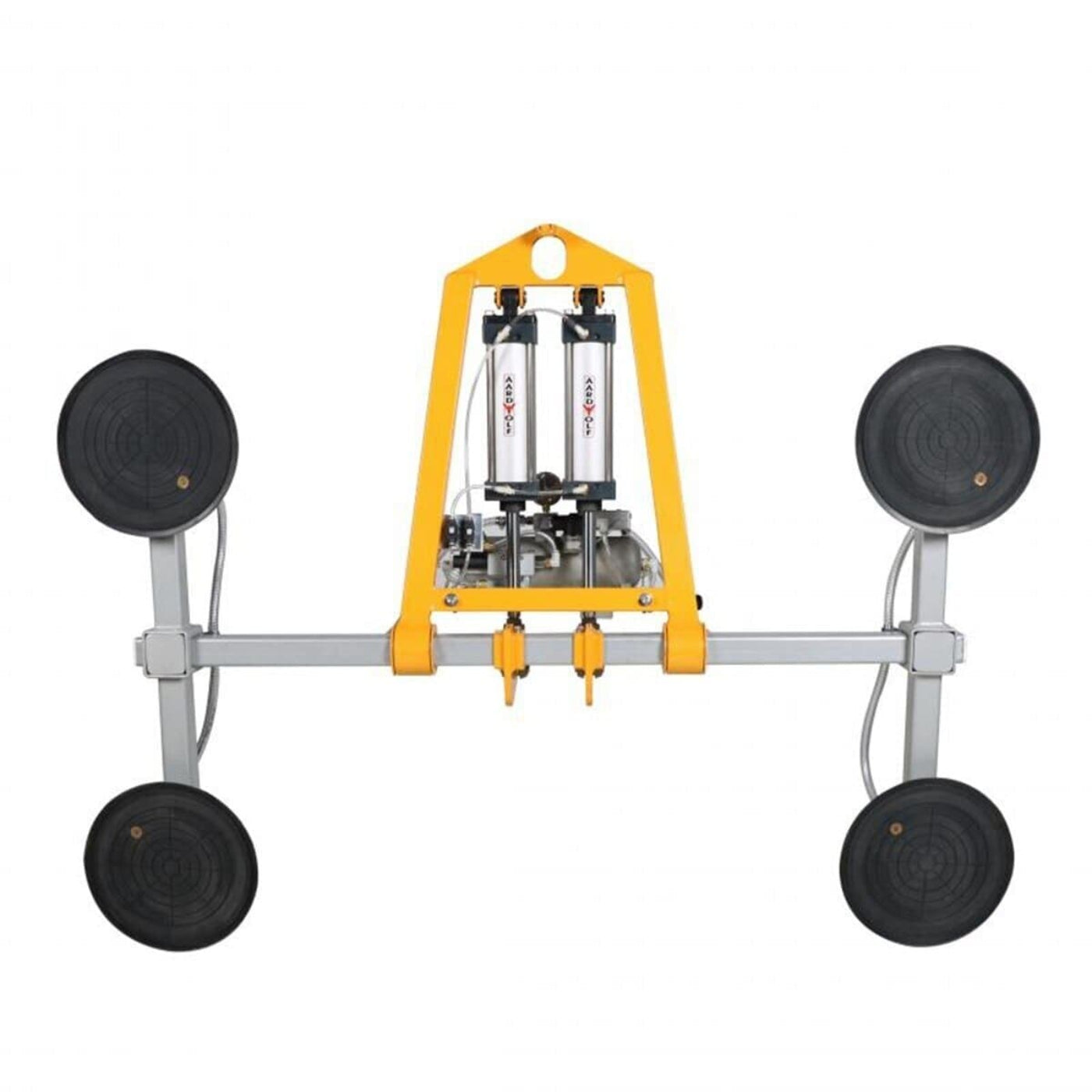

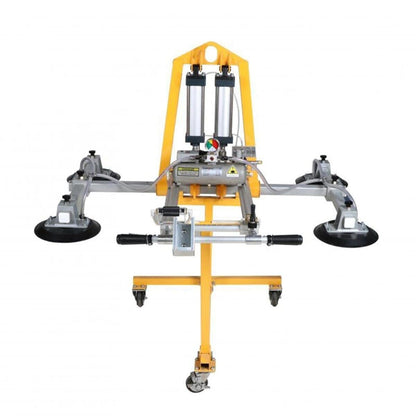

Aardwolf Vacuum Glass Lifter 400kg - AVGLP4-400
Pneumatically powered, the Vacuum Glass Lifter AVGLP4 is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.
General
Pneumatically powered, the Vacuum Glass Lifter is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.Â
Features

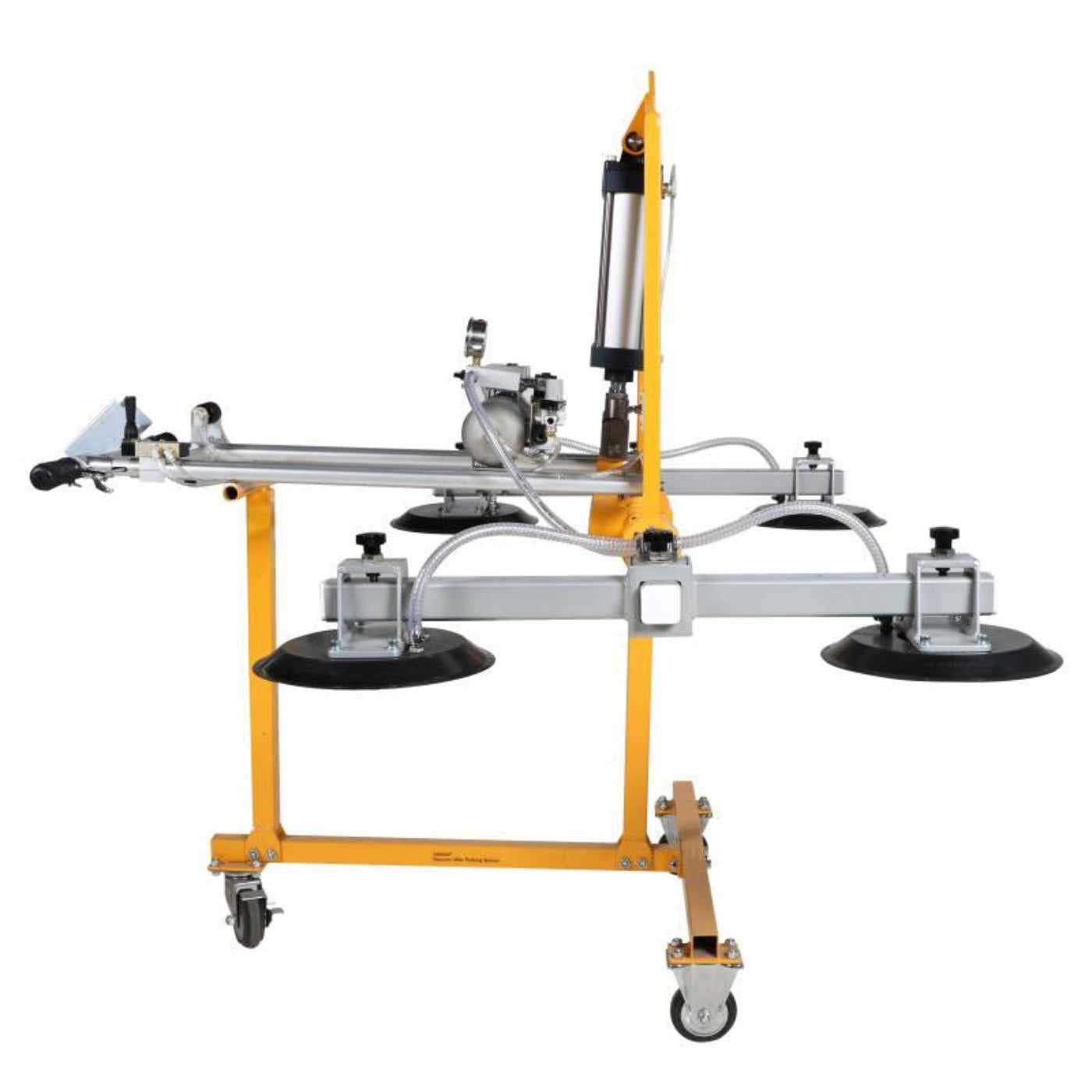

- Pneumatic vertical-horizontal tilting from 0 to 90°.
- A stainless steel vacuum tank ensures safety in the event of an unexpected power outage.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.
Specifications
|
Metric |
Imperial |
| Number of pad |
4 |
- |
| Pad diameter |
Seal to seal: 280 mm |
11" |
| Working load limit |
Vertical: 200 kg
Horizontal: 400 kg |
441 lb
882 lb |
| Net weight |
79 kg |
174 lb |
| Packaging dimensions |
L.1480xW.380xH.960 mm |
58.2"x15"x37.8" |
What our Experts Think
-
Strong Lifting Power: Handles glass loads up to 400 kg (882 lbs) horizontally and 200 kg (441 lbs) vertically—ideal for a wide range of glass handling tasks.
-
Pneumatic Tilting: Offers smooth tilting from 0° to 90°, making it easy to move panels from vertical to horizontal positions with precision and control.
-
Built-In Safety: Includes a stainless steel vacuum tank that holds vacuum pressure even if power is lost, reducing the risk of dropping materials.
-
Automatic Re-Pumping: Maintains a secure grip by automatically restoring vacuum pressure when needed—minimizing operator intervention.
-
Alarm System: Integrated acoustic and visual alarms alert users of low vacuum levels; powered by a rechargeable 3.7V LiPo battery for continuous safety monitoring.
-
Customizable Pad Layout: Four adjustable 280 mm vacuum pads can be repositioned to suit different glass sizes and configurations.
-
Simple Controls: ON/OFF slide valve allows for easy vacuum engagement and release, streamlining the loading and unloading process.
-
Efficient Air Usage: Operates on compressed air at 5 bars (72 psi) with a consumption rate of 180 L/min, making it effective and economical.
Q&A
Q: What is the Aardwolf AVGLP4-400 used for?

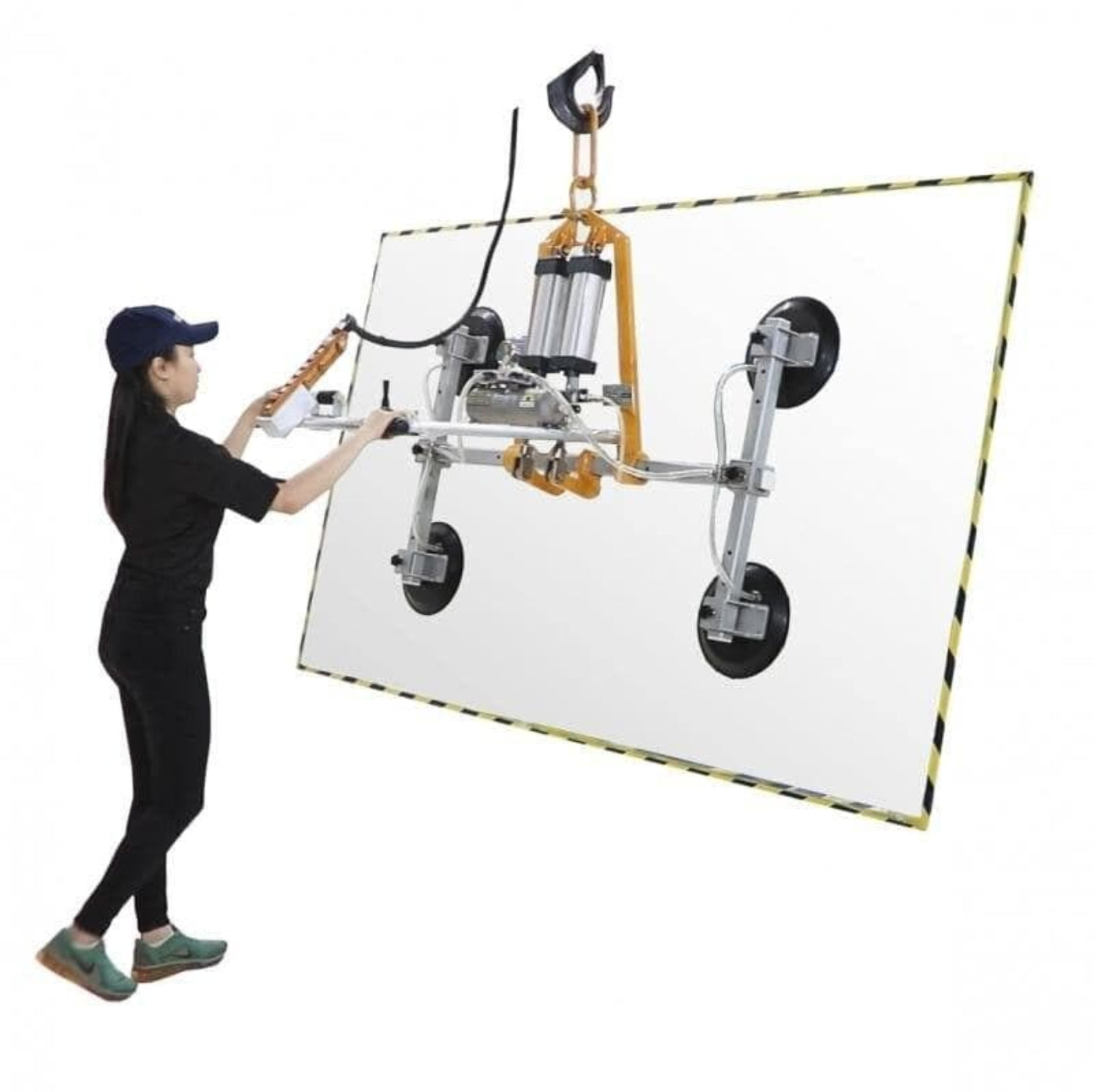

A: It's a vacuum glass lifter designed for safely lifting, tilting, and transporting heavy glass, stone, metal, and similar smooth materials in industrial and construction settings.
Q: What is the maximum lifting capacity?
A: It can lift up to 400 kg horizontally and 200 kg vertically, making it ideal for large panels.
Q: Does it tilt the load?
A: Yes, it offers pneumatic tilting from 0° to 90° for easy positioning during installation or fabrication.
Q: What are the key safety features?
A: Includes an automatic vacuum re-pump system, visual and audible alarms, and a stainless steel vacuum tank for load security during power loss.
Q: What powers the alarm system?
A: A rechargeable lithium polymer (LiPo) battery provides up to 7 hours of operation with a quick 2-hour recharge time.
Q: Why choose this model?
A: The AVGLP4-400 delivers strength, reliability, and safety—ideal for professionals handling heavy glass or sheet materials with precision and care.
