Aardwolf Vacuum Lifter 160kg - AVLB4

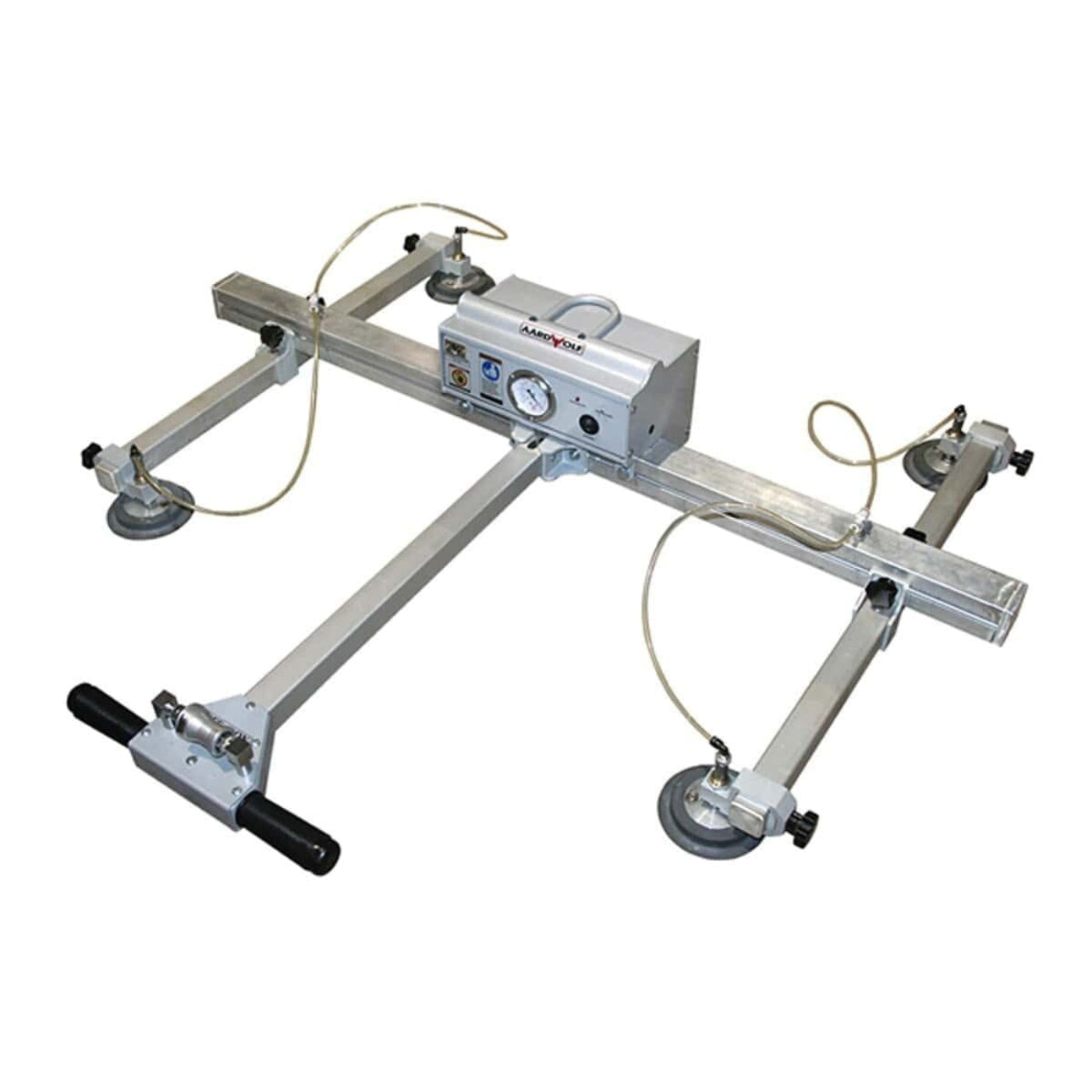

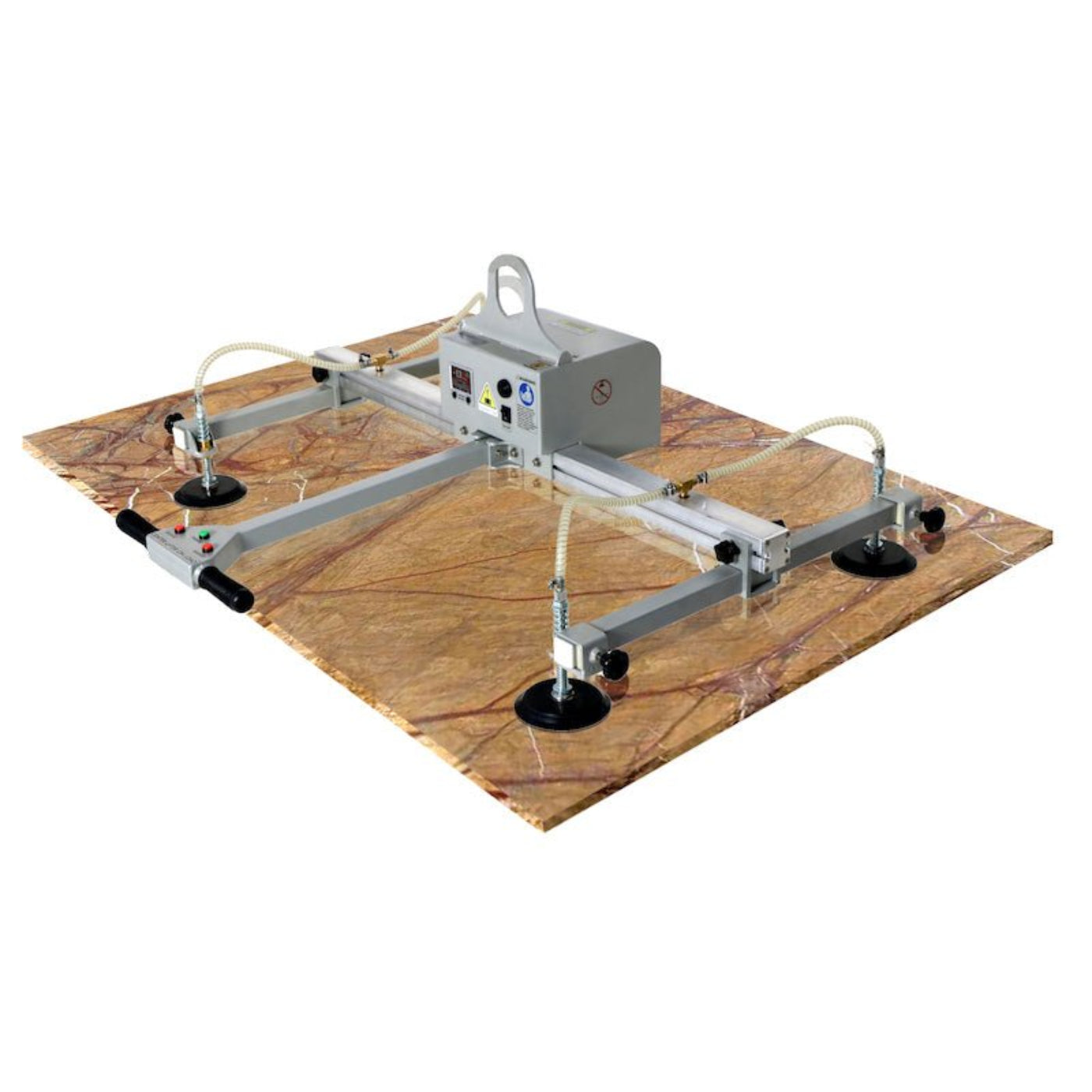

Aardwolf Vacuum Lifter 160kg is a four-pad vacuum lifter for horizontal lifting of glass, laser cutters, metal sheets, and panels

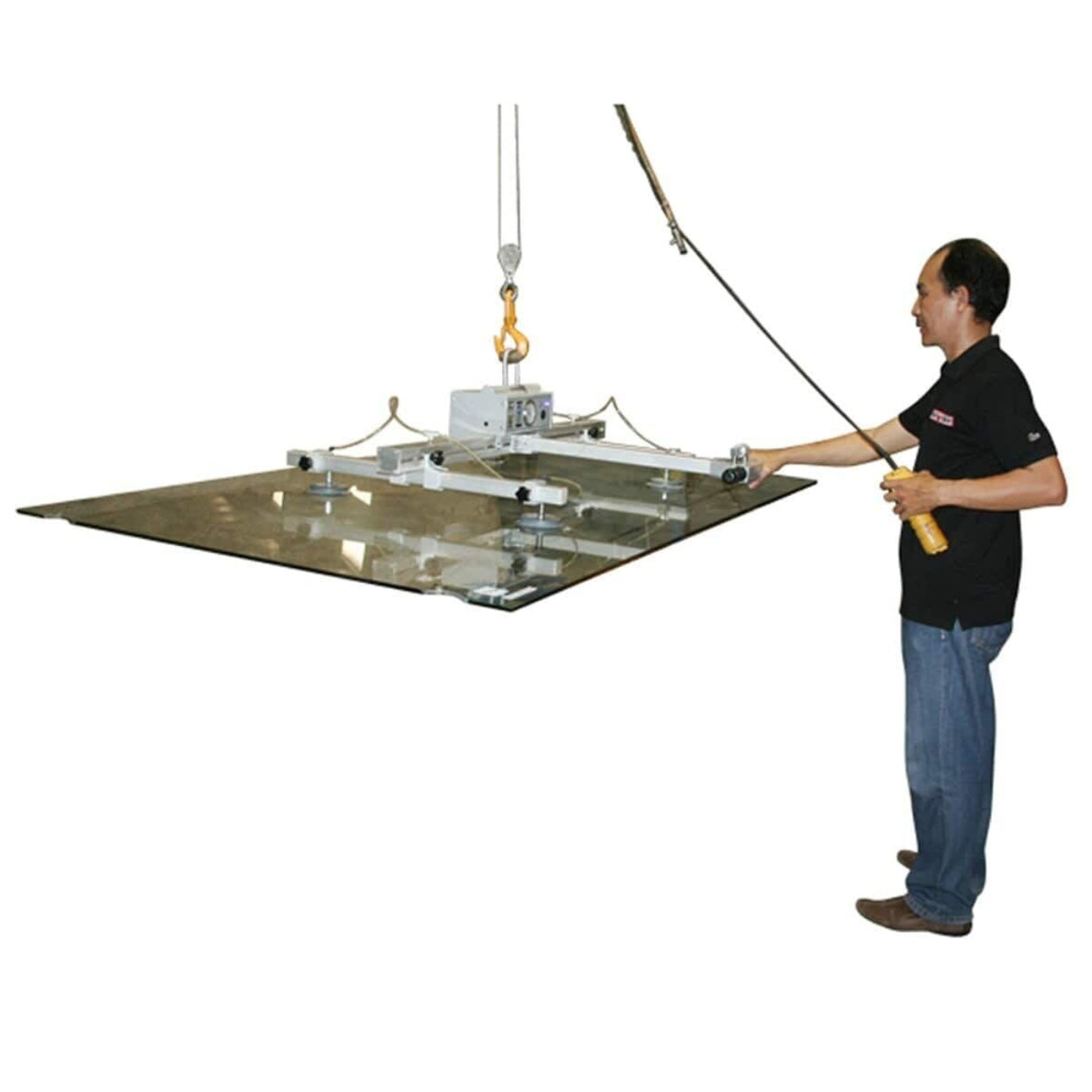

The AVLB4 is designed for the horizontal lifting of glass, laser cutters, metal sheets and panels. In addition, the compact design makes it easy to hook onto a hoist.
Features
- Vacuum tank
- Aluminum construction, lightweight
- Audio/visual alarm system
- Attach/release material using the ON/OFF slide valve
- Easy to operate
- Battery charger
Specifications
| Working Load Limit |
160 kg |
353 lbs |
| Net Weight |
28 kg |
62 lbs |
| Gross Weight |
40 kg |
88 lbs |

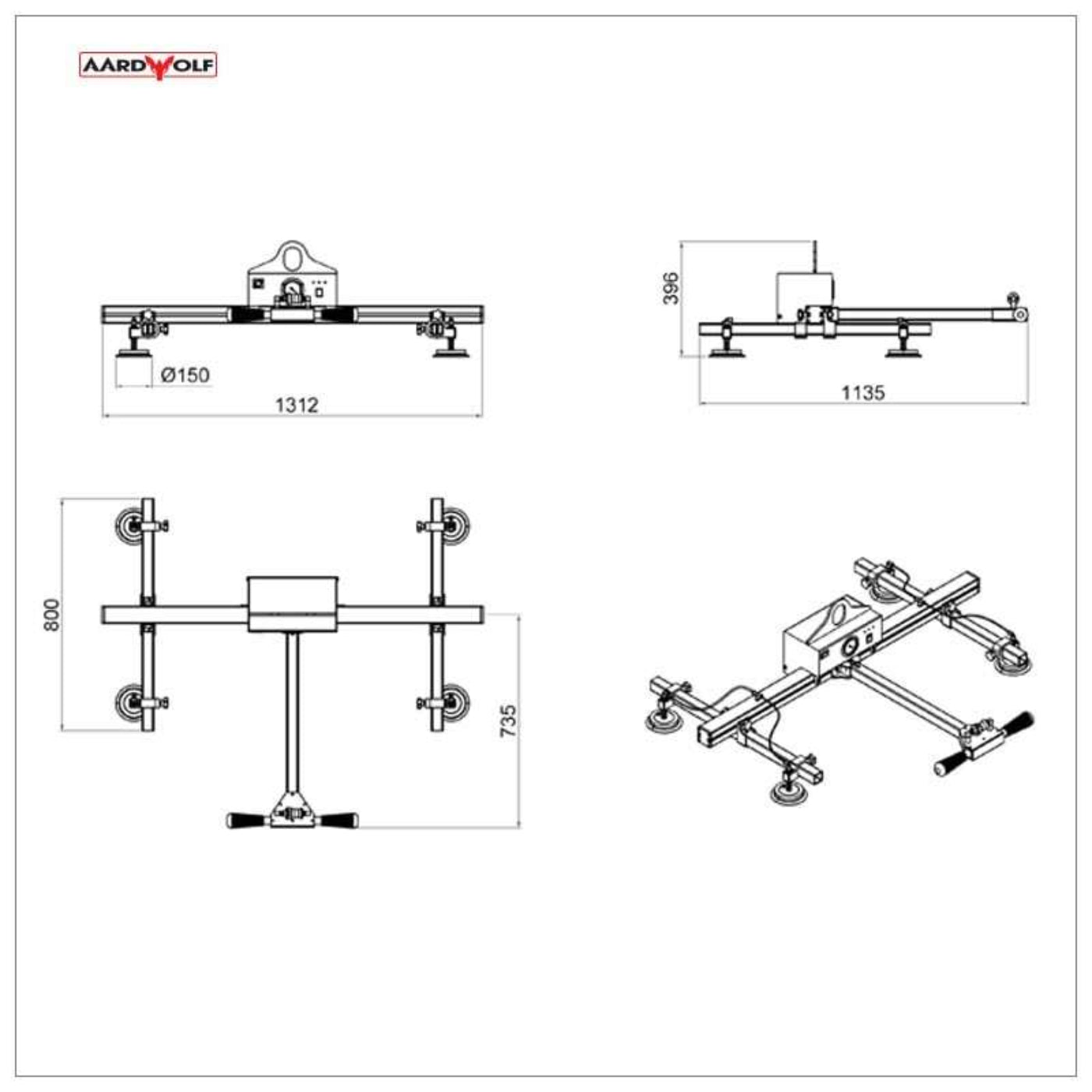

| Packaging Dimensions |
1350 x 300 x 510 mm |
53″ x 12″ x 20″ |
| Pad Diameter |
150 mm |
5.9″ |
What our Experts Think
-
Efficient Horizontal Lifting: Designed for handling glass, metal sheets, and similar flat materials. Its compact build allows easy attachment to hoists for streamlined movement.
-
Lightweight and Durable: Constructed from aluminum, it offers strength while remaining light enough for portable use.
-
Enhanced Safety: Built-in audio and visual alarms alert the operator to any issues, increasing workplace safety during lifts.
-
User-Friendly Controls: Simple button-based operation makes vacuum engagement and release intuitive and efficient.
-
Long Battery Life: Runs on a 12V 6.0Ah battery offering 2.5 hours of continuous use and up to 720 hours on standby.
-
Strong Vacuum Power: Provides a consistent 32.5 liters per minute vacuum flow rate for secure lifting.
-
Compact Storage: Weighs 28 kg and comes in a manageable size for transport and storage.
Q&A
Q: What is the Aardwolf AVLB4 Vacuum Lifter used for?
A: The AVLB4 is designed for horizontal lifting of glass, metal sheets, laser-cut panels, and similar flat materials, offering efficient and safe handling.
Q: What is its lifting capacity?
A: It can lift materials weighing up to 160 kg (approximately 353 lbs), suitable for various industrial applications.
Q: How many suction pads does it have, and what are their dimensions?
A: The lifter features four suction pads, each with a diameter of 150 mm (approximately 5.9 inches), ensuring a secure grip on materials.
Q: What are its battery specifications?
A: The AVLB4 operates on a 12V battery with a capacity of 6.0Ah. It offers a standby time of 720 hours, a charging time of 2 hours, and a continuous working time of approximately 2.5 hours.
Q: What is the vacuum flow rate of the device?
A: The vacuum flow rate is 32.5 liters per minute, ensuring efficient suction and release during operations.
Q: Is the AVLB4 easy to transport and set up?
A: Yes, with a net weight of 28 kg (approximately 62 lbs) and compact packaging dimensions (L1350 x W300 x H510 mm), it is designed for easy transportation and quick setup.
Maintenance Tips
-
Inspect Before Use: Check vacuum pads, seals, and hoses for wear, cracks, or leaks.
-
Clean Suction Pads: Wipe down pads after each use to remove dust, residue, and debris for maximum suction performance.
-
Test Vacuum System: Regularly test the vacuum pump and gauge to ensure proper suction pressure and safety.
-
Lubricate Moving Parts: Apply light lubricant to any mechanical joints or pivot points to keep movement smooth.
-
Store Properly: Keep the lifter in a clean, dry area away from direct sunlight and moisture to protect components.
