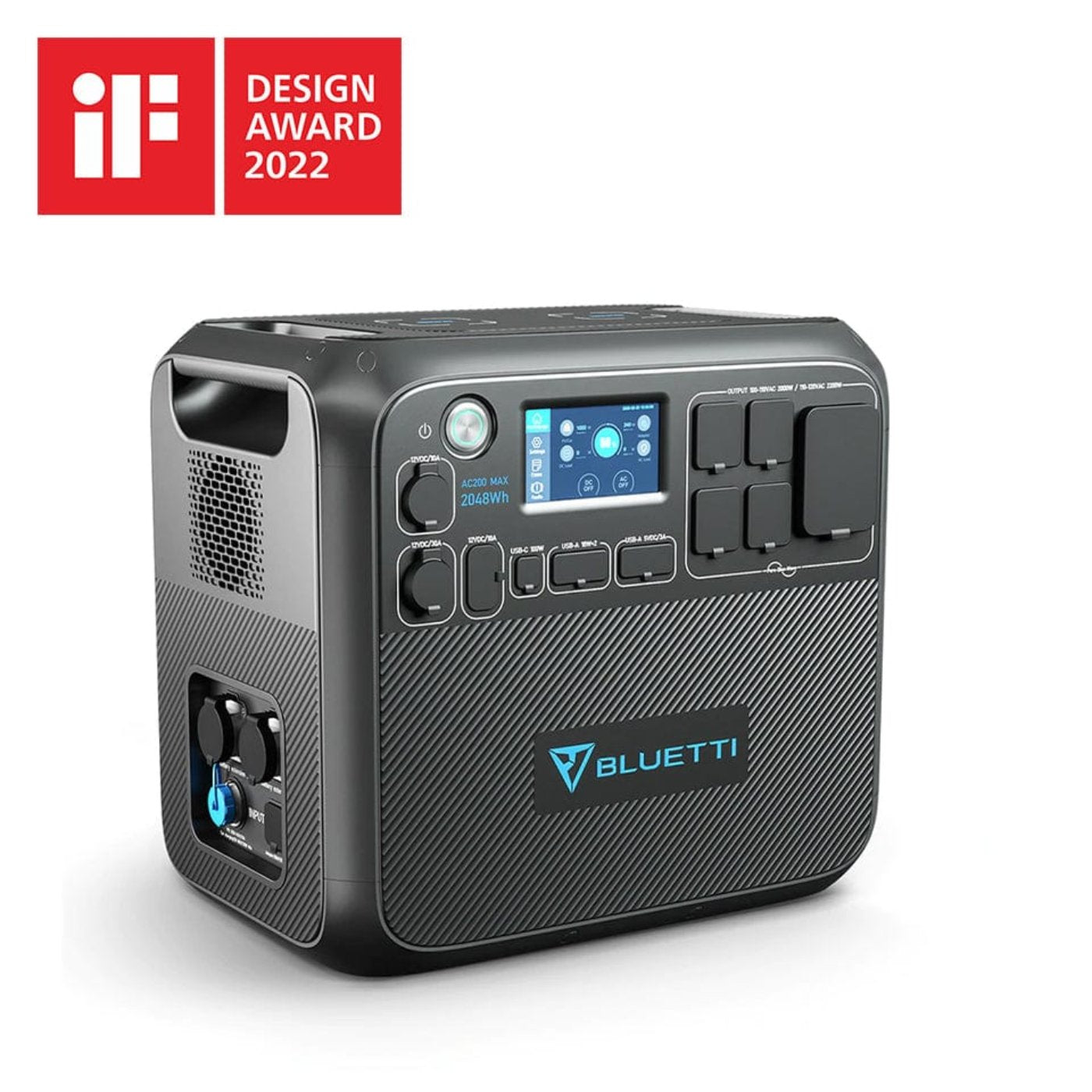

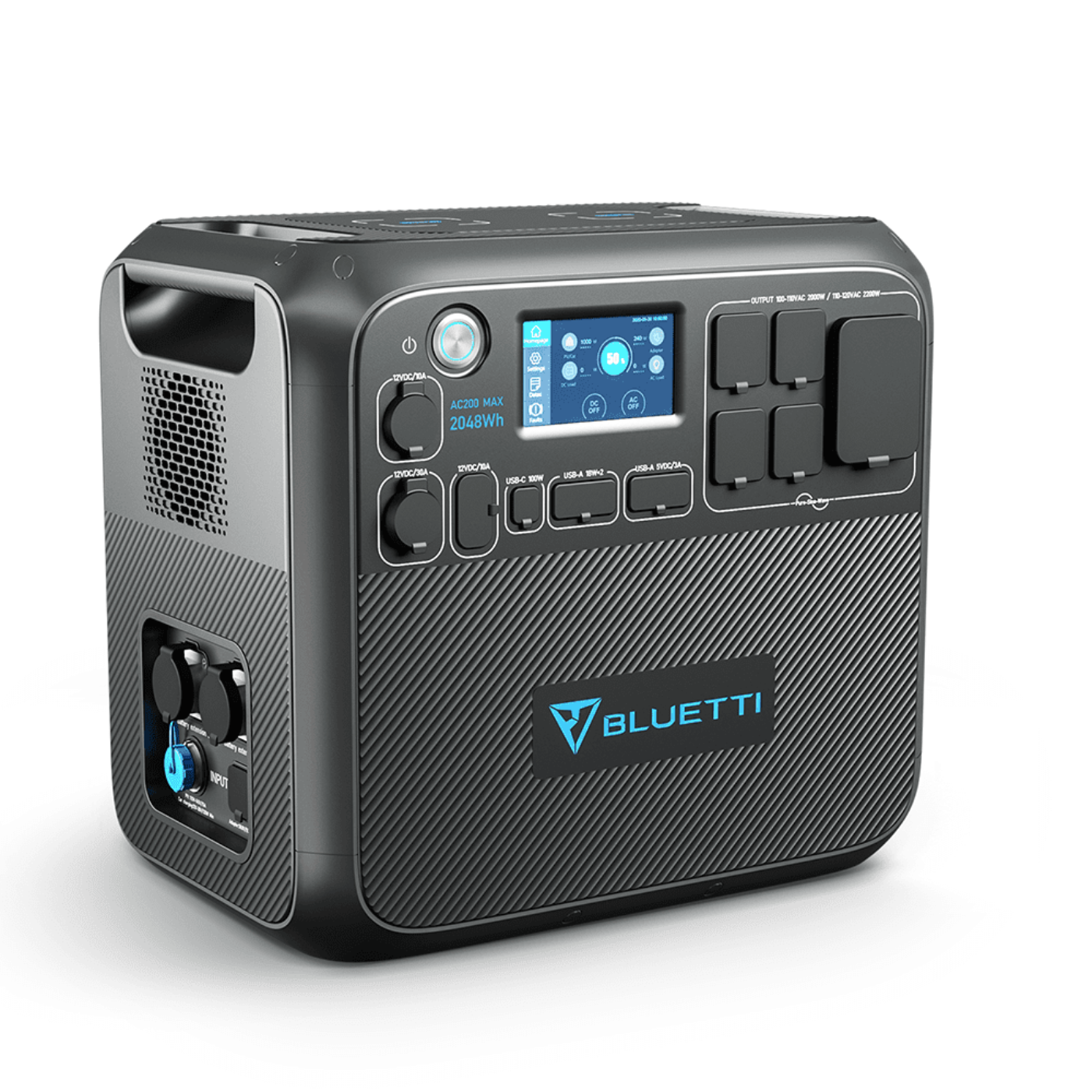

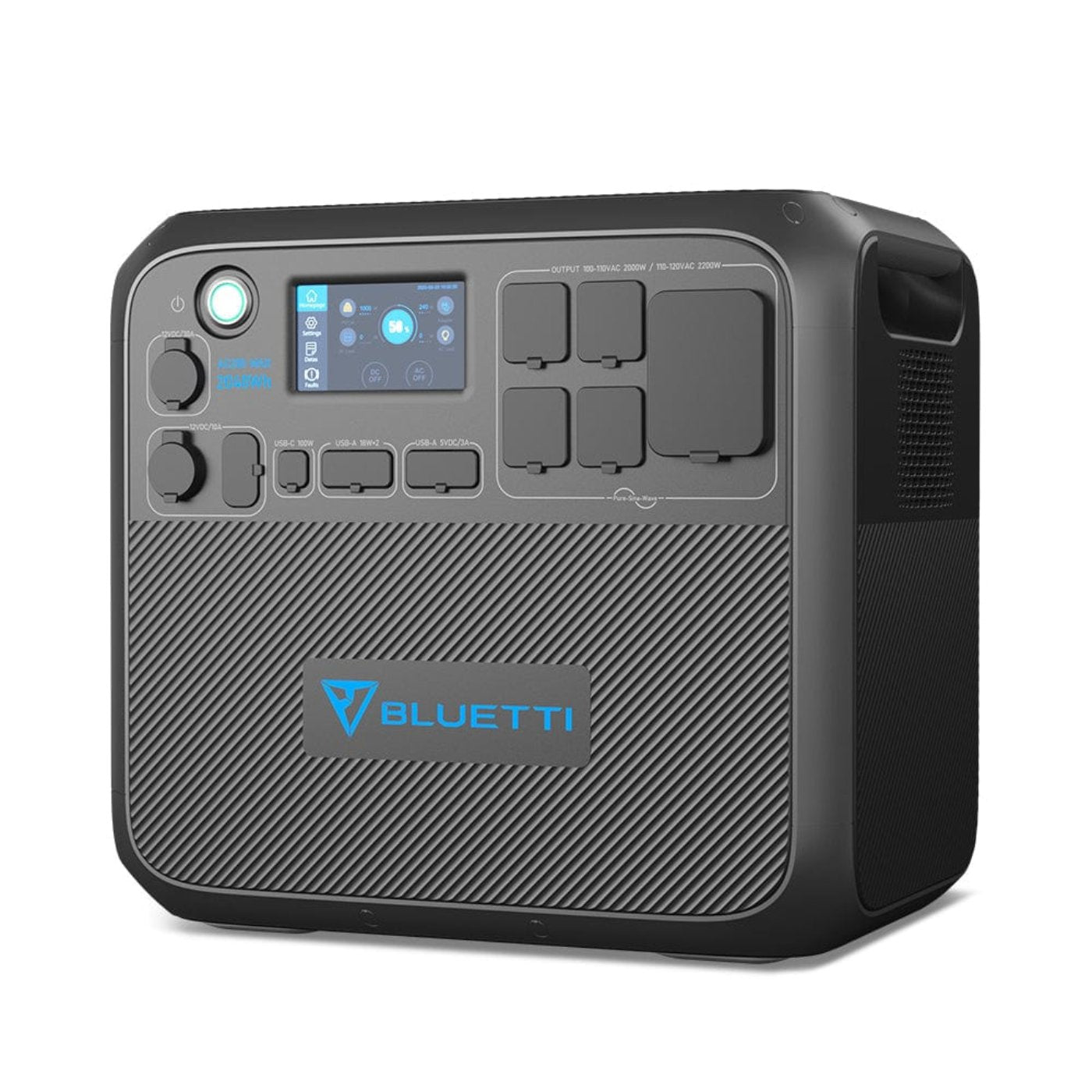

The first modular, expandable BLUETTI power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.

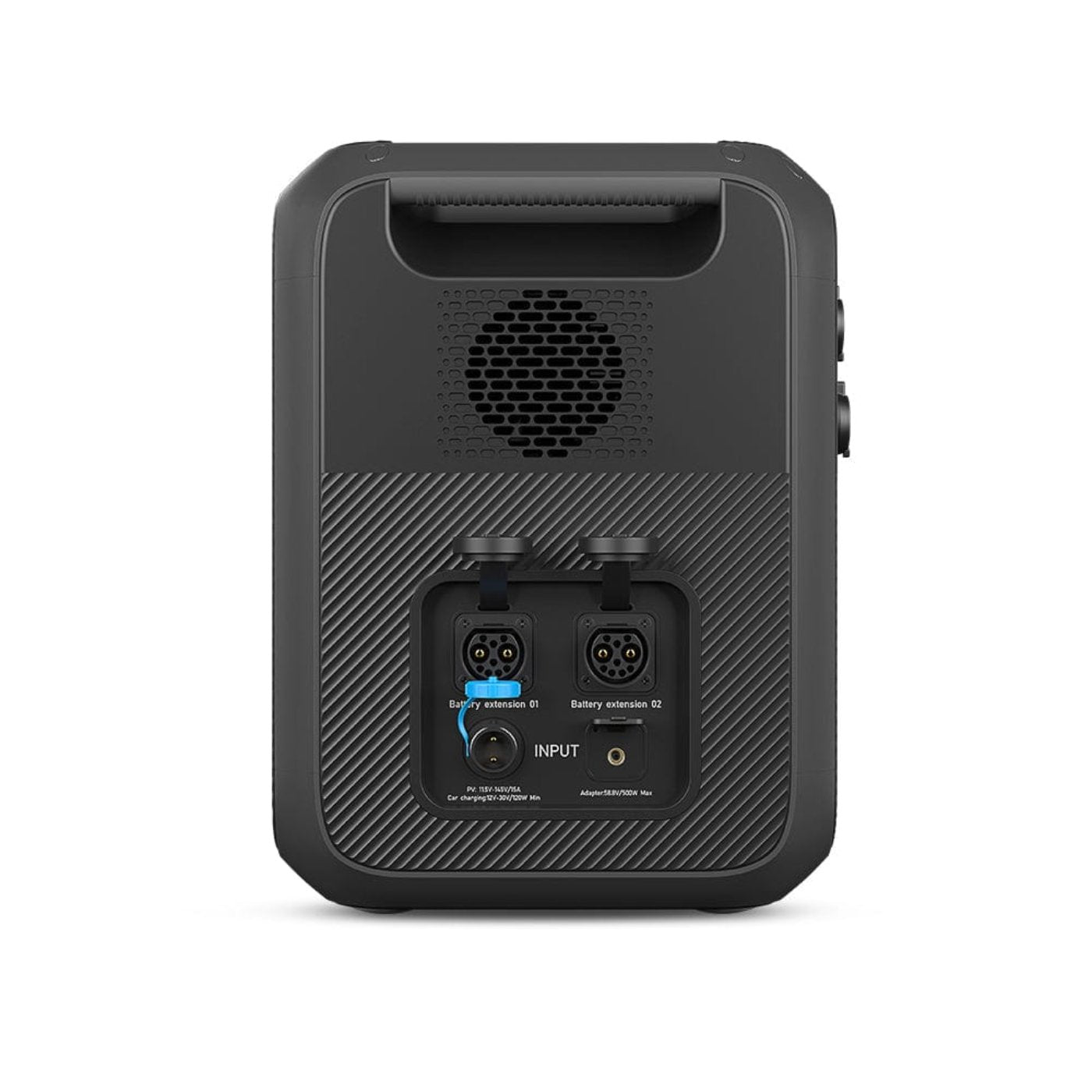

Less To Spend, More To Love - Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!
Get Charged In Anyway You Prefer - The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).
Small Change, Huge Leap - The AC200 Max can now take one module via its solar input port with a converter cable for extra capacity!

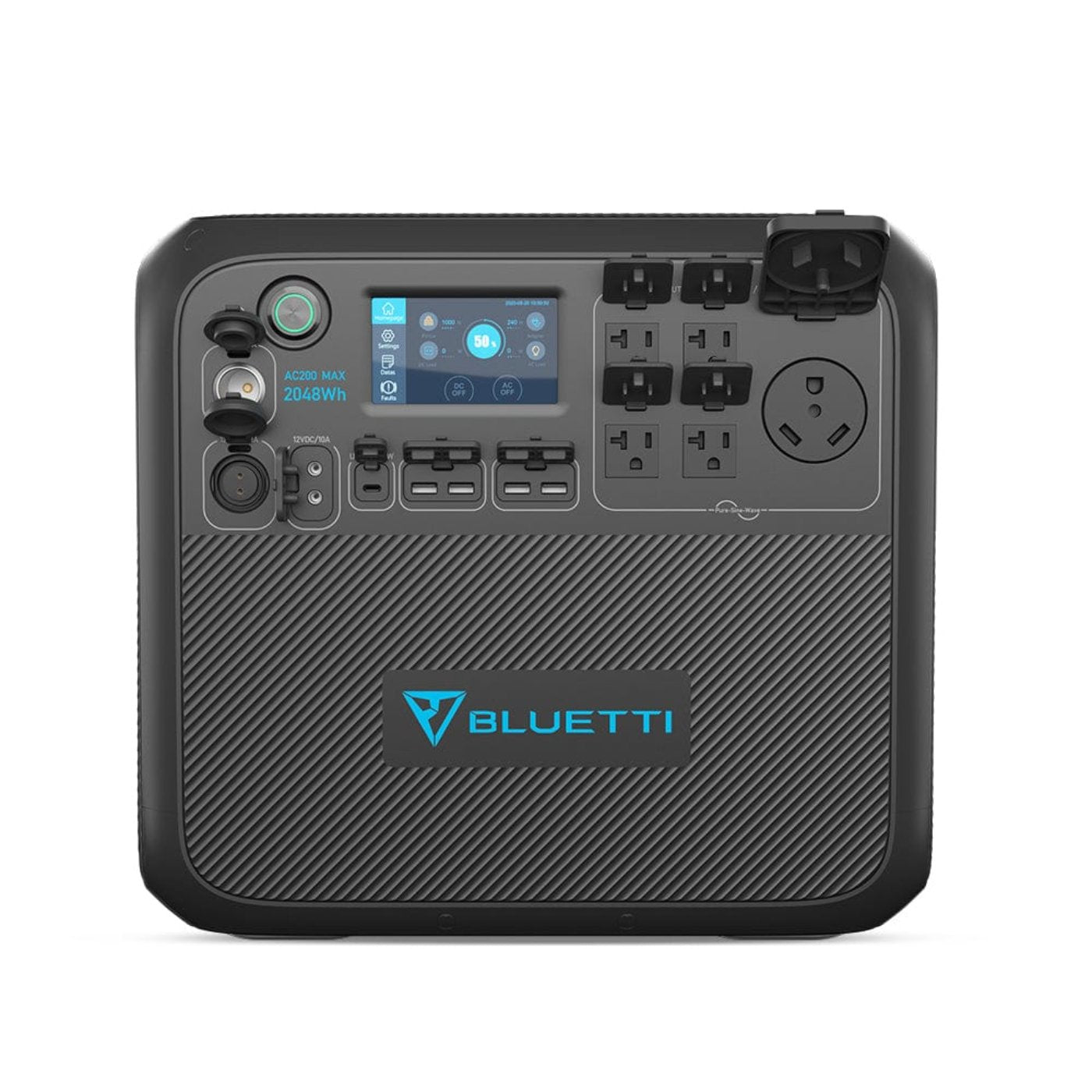

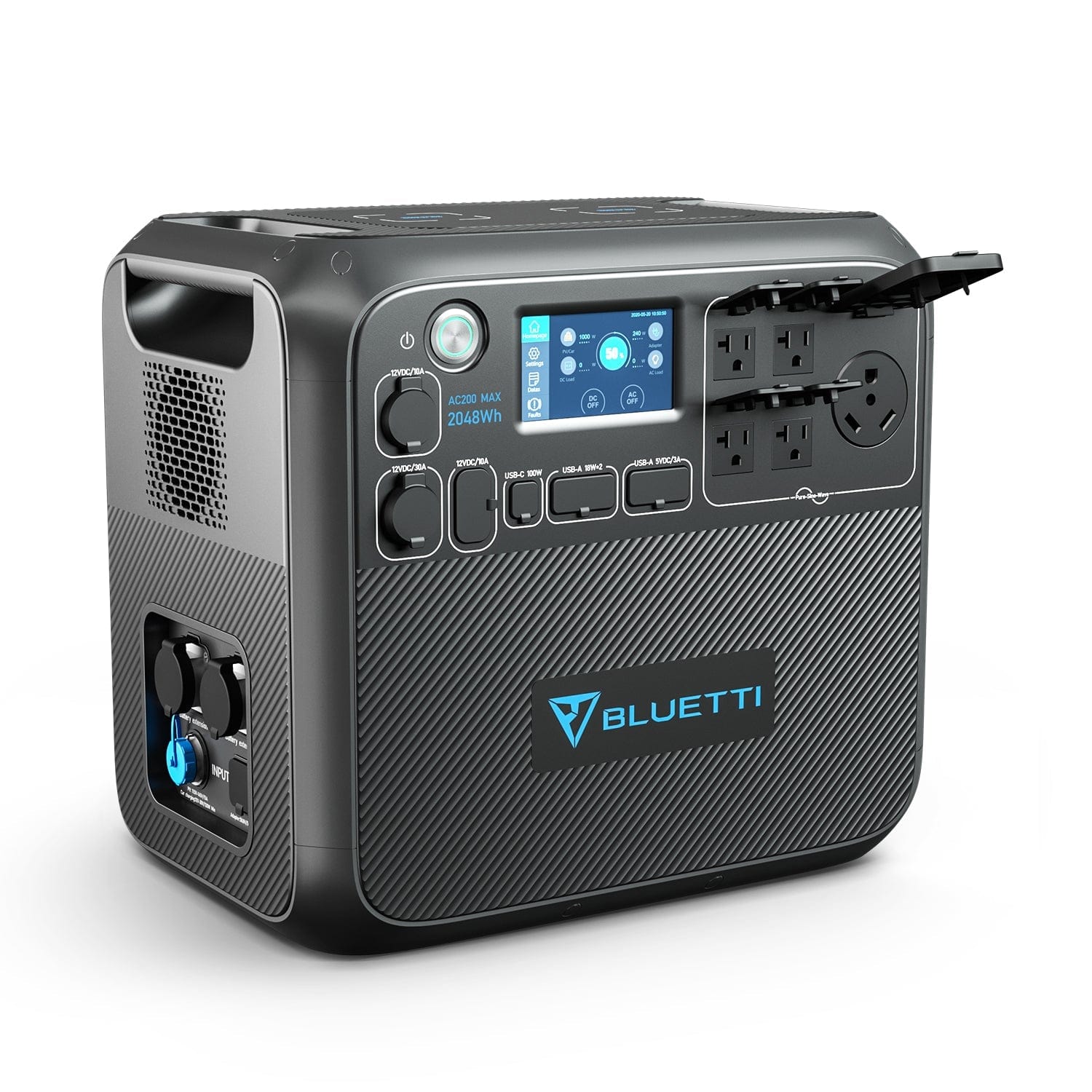

Incomparable Outlet Versatility - With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.
|Capacity||2,048Wh (51.2V, 40Ah)|
|Cell Chemistry||LiFePO4 (Lithium Iron Phosphate)|
|Lifecycle||3500+(to 80%),6000+(to 50%)|
|Management System||BMS, Over Voltage Protection, Short Circuit Protection|
|AC Outlets||4 x 120V/20A Outlets|
|1 x 120V/30A NEMA TT-30|
|2200W In Total|
|Inverter Type||Pure Sine Wave|
|USB-C Port||2 x 5V/3A USB-A|
|2 x 18W USB-A|
|12V DC Outlets|
|1 x 12V/30A (RV Outlet)|
|1 x 12V/10A (Car Outlet)|
|2 x 12V/10A DC 5521 (5.5mm Outlet)|
|Wireless Charging Pad||2 x 15W Max. (For Each)|
|AC Adapter Input||500W.|
|Solar Input||900W Max., VOC 10-145VDC, 15A|
|Car Input||12/24V from Cigarette Lighter Port|
|Max Input||1,400W, with AC+Solar Input|
|AC Adapter (400W)||≈5.5~6 Hours|
|Solar (900W)||≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)|
|12V/24V Car Outlet (100W/200W)||≈10 or 20 Hours|
|AC Adapter + Solar (1300W)||≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)|
|Dual AC Adapters (800W)||≈3~3.5 Hours (Extra adapter is REQUIRED)|
|240V Split Phase Bonding||No. Need 240V power source? Explore here.|
|Scalability||Expandable w/ Up to 2 x B230 or 2 x B300|
|Dimensions (LxWxD)||16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)|
|Operating Temperature||-4-104℉ (-20-40℃)|
|Storage Temperature||14-113℉ (-10-45℃)|
|Certifications||UL Standard, CEC, DOE, FCC, CA Prop 65|
